| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_140T01_9000002596_17527cztM0_level2.evt | modeM0/AS1A05_140T01_9000002596_17527cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,743,680 | 86,699,520 |
| Size | 437.5 MB | 82.7 MB |
| Events in quadrant A | 2,975,798 | 561,975 |
| Events in quadrant B | 3,026,700 | 574,729 |
| Events in quadrant C | 3,255,682 | 550,252 |
| Events in quadrant D | 4,237,571 | 529,824 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12311 | 1 |
| B | 0 | 12434 | 1 |
| C | 0 | 13077 | 1 |
| D | 0 | 16199 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5852 | 55 | 0.939850% |
| B | 5853 | 50 | 0.854263% |
| C | 5853 | 92 | 1.571843% |
| D | 5853 | 503 | 8.593883% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7112 | 5852 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7113 | 5854 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7113 | 5853 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7113 | 5853 | 398 | 398 | 5.60% | 6.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6746 | 38.74 | 773 | 758 | 154.6 |
| A | 12 | 194 | 5738 | 32.22 | 773 | 758 | 154.6 |
| A | 3 | 137 | 5372 | 29.85 | 773 | 758 | 154.6 |
| B | 12 | 111 | 16660 | 110.71 | 769 | 750 | 143.7 |
| B | 0 | 230 | 15928 | 105.61 | 769 | 750 | 143.7 |
| B | 11 | 111 | 14593 | 96.33 | 769 | 750 | 143.7 |
| C | 3 | 233 | 151974 | 861.49 | 757 | 765 | 175.5 |
| C | 14 | 238 | 118199 | 669.06 | 757 | 765 | 175.5 |
| C | 5 | 218 | 32006 | 177.99 | 757 | 765 | 175.5 |
| D | 5 | 222 | 1135135 | 6373.03 | 739 | 719 | 178.0 |
| D | 2 | 120 | 169239 | 946.73 | 739 | 719 | 178.0 |
| D | 13 | 189 | 126428 | 706.22 | 739 | 719 | 178.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

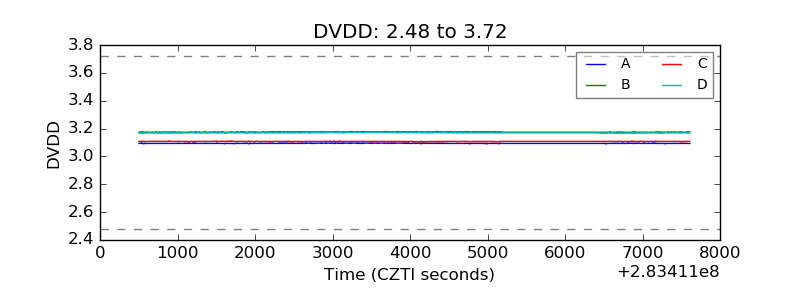

| D_VDD |  |

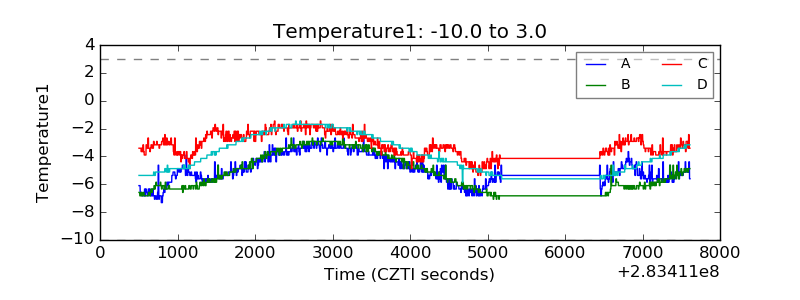

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

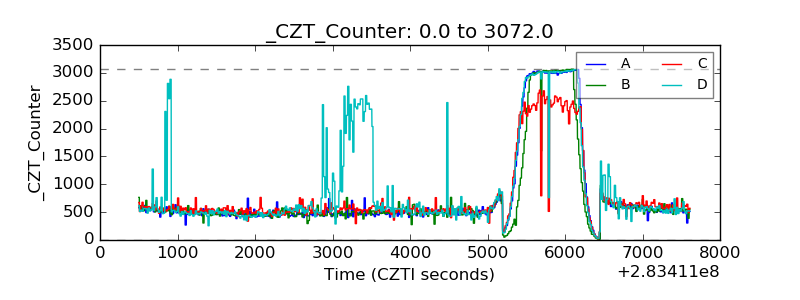

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

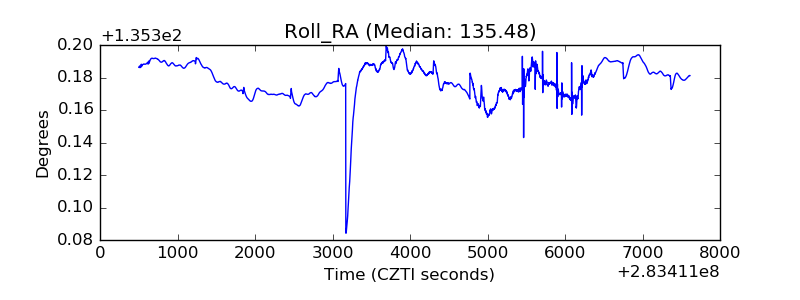

| _Roll_RA |  |
| Veto Counter |  |
