| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_013T01_9000002598_17540cztM0_level2.evt | modeM0/AS1T03_013T01_9000002598_17540cztM0_level2_quad_clean.evt |
| Size (bytes) | 367,292,160 | 68,621,760 |
| Size | 350.3 MB | 65.4 MB |
| Events in quadrant A | 3,452,940 | 433,706 |
| Events in quadrant B | 2,412,719 | 445,677 |
| Events in quadrant C | 2,259,967 | 431,882 |
| Events in quadrant D | 2,667,199 | 425,630 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13830 | 1 |
| B | 0 | 10589 | 1 |
| C | 0 | 10008 | 1 |
| D | 0 | 11209 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4853 | 249 | 5.130847% |
| B | 4854 | 49 | 1.009477% |
| C | 4854 | 65 | 1.339102% |
| D | 4854 | 54 | 1.112485% |

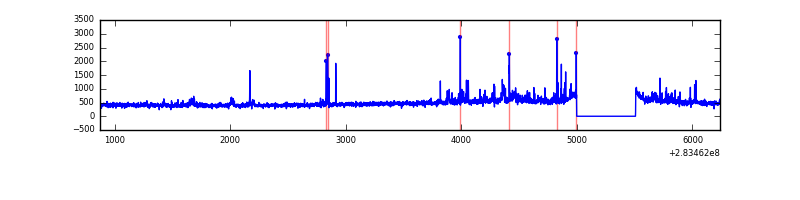

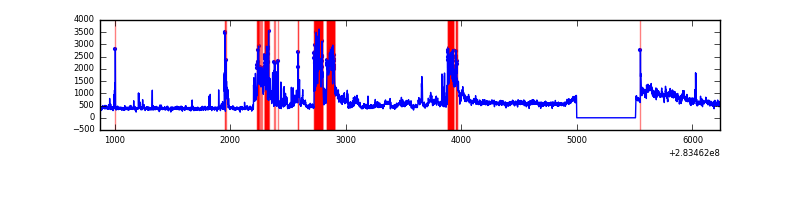

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5363 | 4854 | 191 | 191 | 3.56% | 3.93% |  |
| B | 5364 | 4855 | 6 | 6 | 0.11% | 0.12% |  |
| C | 5364 | 4855 | 1 | 1 | 0.02% | 0.02% |  |
| D | 5364 | 4855 | 28 | 28 | 0.52% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 1267514 | 11028.42 | 562 | 548 | 114.9 |
| A | 15 | 174 | 21266 | 180.34 | 562 | 548 | 114.9 |
| A | 0 | 226 | 4984 | 38.61 | 562 | 548 | 114.9 |
| B | 10 | 245 | 130185 | 1189.54 | 567 | 554 | 109.0 |
| B | 7 | 220 | 17046 | 151.34 | 567 | 554 | 109.0 |
| B | 12 | 111 | 12819 | 112.55 | 567 | 554 | 109.0 |
| C | 14 | 238 | 84168 | 652.95 | 544 | 546 | 128.1 |
| C | 3 | 233 | 36049 | 277.22 | 544 | 546 | 128.1 |
| C | 8 | 128 | 6992 | 50.33 | 544 | 546 | 128.1 |
| D | 4 | 239 | 413055 | 3076.78 | 550 | 534 | 134.1 |
| D | 13 | 189 | 79631 | 589.94 | 550 | 534 | 134.1 |
| D | 5 | 222 | 51304 | 378.67 | 550 | 534 | 134.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

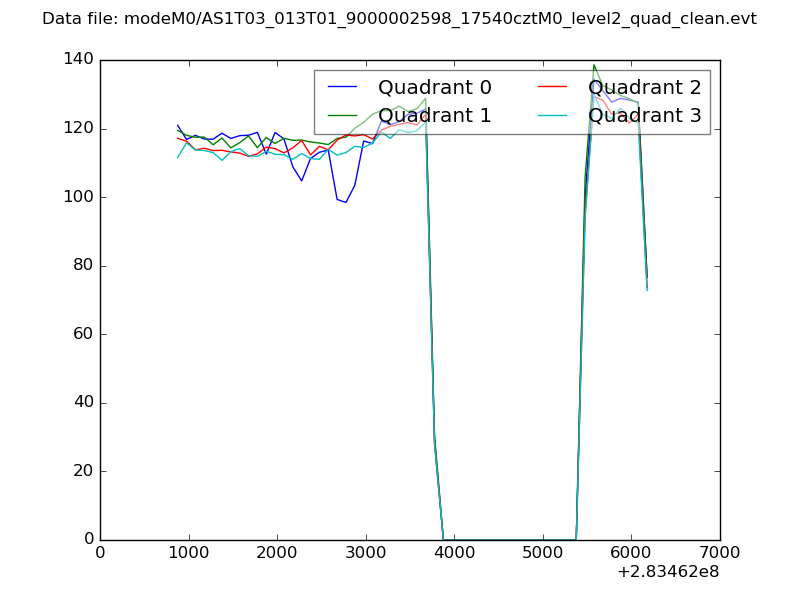

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

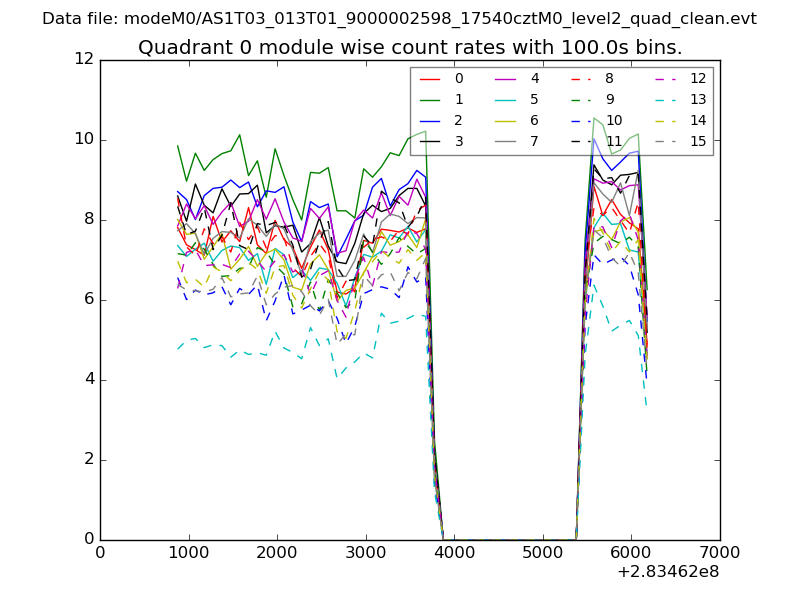

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

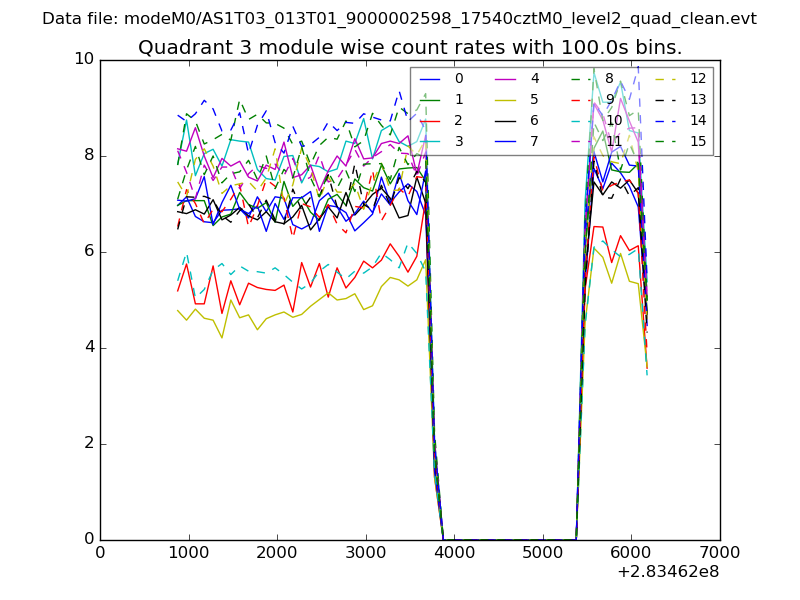

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

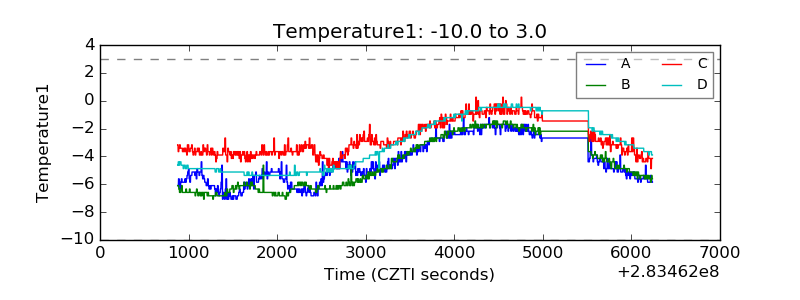

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

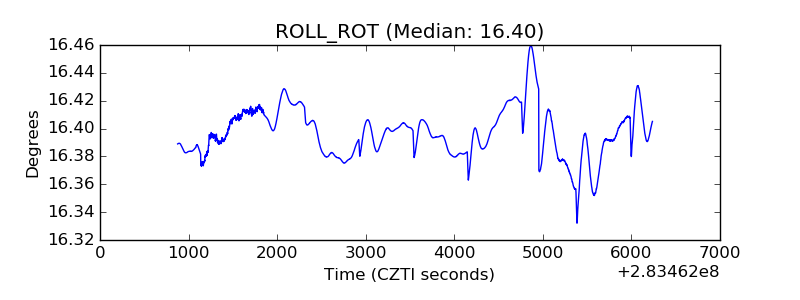

| _ROLL_ROT |  |

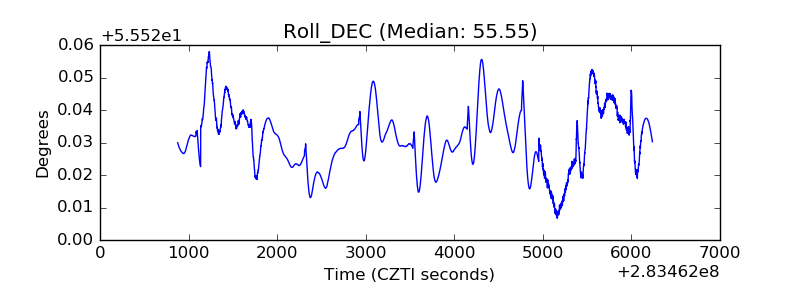

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
