| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_066T01_9000002600_17554cztM0_level2.evt | modeM0/AS1T03_066T01_9000002600_17554cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,322,240 | 96,500,160 |
| Size | 511.5 MB | 92.0 MB |
| Events in quadrant A | 4,378,247 | 625,064 |
| Events in quadrant B | 3,135,701 | 640,417 |
| Events in quadrant C | 4,790,900 | 596,226 |
| Events in quadrant D | 3,484,937 | 595,607 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17654 | 2 |
| B | 0 | 13742 | 2 |
| C | 0 | 18604 | 2 |
| D | 0 | 15183 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6668 | 733 | 10.992801% |
| B | 6668 | 48 | 0.719856% |
| C | 6668 | 416 | 6.238752% |
| D | 6668 | 105 | 1.574685% |

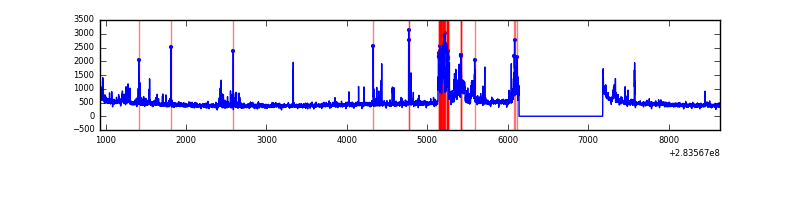

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6669 | 490 | 490 | 6.36% | 7.35% |  |
| B | 7708 | 6668 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7708 | 6669 | 269 | 269 | 3.49% | 4.03% |  |
| D | 7708 | 6669 | 55 | 55 | 0.71% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 1572420 | 10674.64 | 725 | 708 | 147.2 |
| A | 15 | 174 | 15669 | 101.61 | 725 | 708 | 147.2 |
| A | 0 | 226 | 6238 | 37.56 | 725 | 708 | 147.2 |
| B | 12 | 111 | 18130 | 114.59 | 798 | 780 | 151.4 |
| B | 11 | 111 | 15813 | 99.29 | 798 | 780 | 151.4 |
| B | 14 | 111 | 13782 | 85.88 | 798 | 780 | 151.4 |
| C | 0 | 79 | 1687011 | 9662.62 | 752 | 757 | 174.5 |
| C | 14 | 238 | 115610 | 658.13 | 752 | 757 | 174.5 |
| C | 3 | 233 | 48856 | 275.62 | 752 | 757 | 174.5 |
| D | 7 | 238 | 255899 | 1363.75 | 764 | 740 | 187.1 |
| D | 5 | 222 | 150779 | 801.91 | 764 | 740 | 187.1 |
| D | 13 | 189 | 109916 | 583.51 | 764 | 740 | 187.1 |

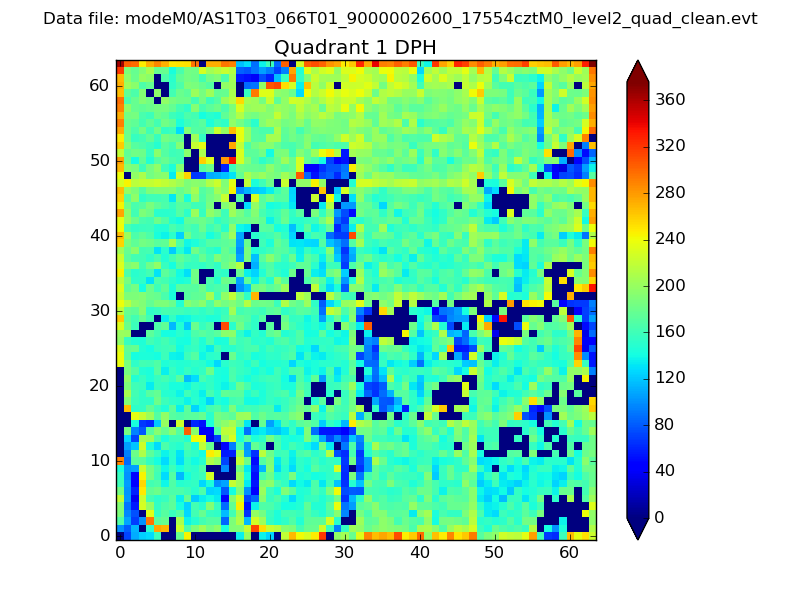

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

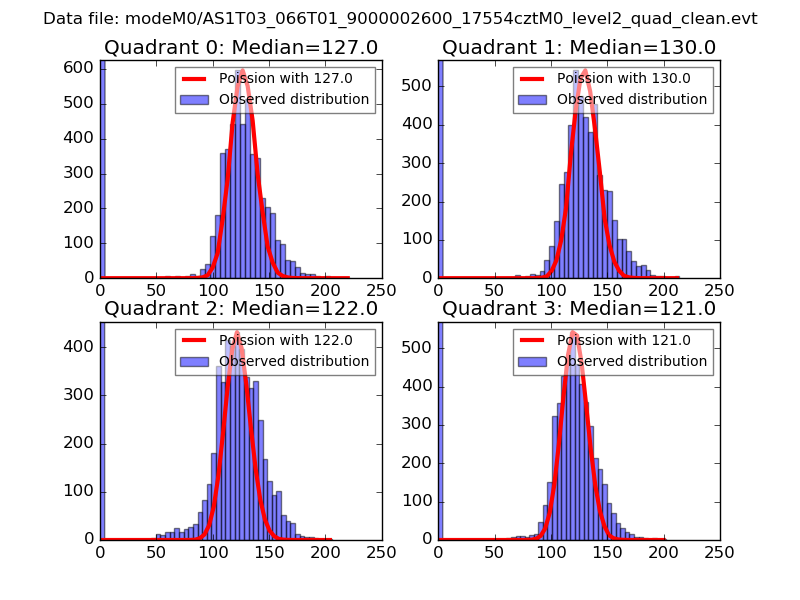

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

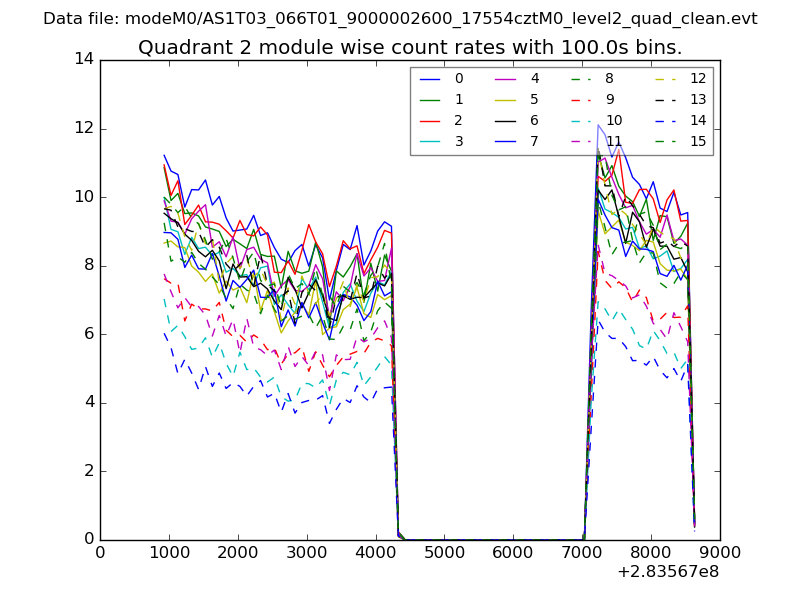

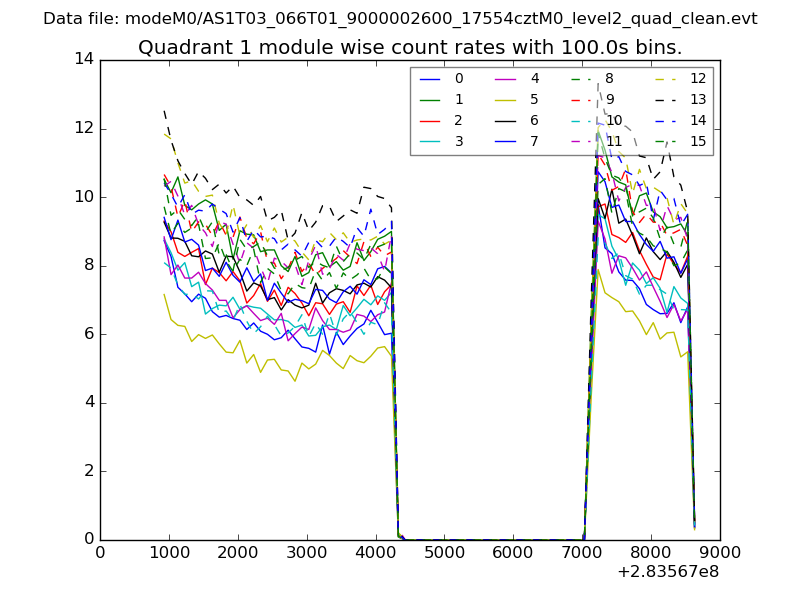

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

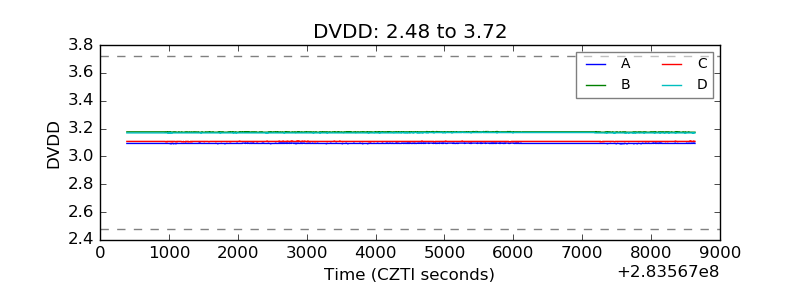

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

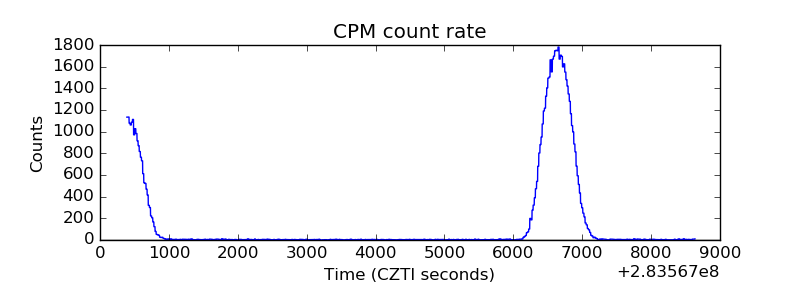

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

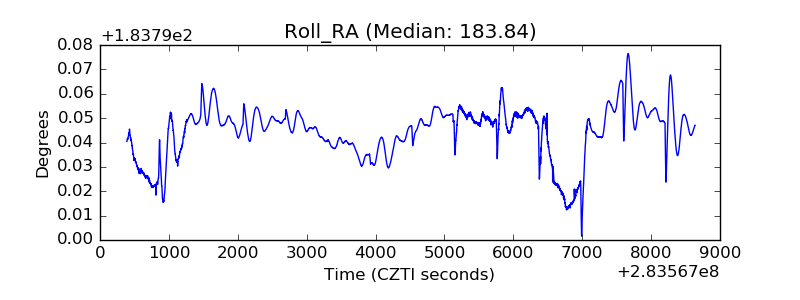

| _Roll_RA |  |
| Veto Counter |  |
