| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_066T01_9000002600_17558cztM0_level2.evt | modeM0/AS1T03_066T01_9000002600_17558cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,925,760 | 92,589,120 |
| Size | 488.2 MB | 88.3 MB |
| Events in quadrant A | 4,307,821 | 601,794 |
| Events in quadrant B | 3,154,722 | 613,488 |
| Events in quadrant C | 3,246,999 | 587,100 |
| Events in quadrant D | 4,377,384 | 572,736 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16548 | 1 |
| B | 0 | 12914 | 1 |
| C | 0 | 13048 | 1 |
| D | 0 | 16916 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6145 | 465 | 7.567128% |
| B | 6146 | 119 | 1.936219% |
| C | 6146 | 148 | 2.408070% |
| D | 6146 | 396 | 6.443215% |

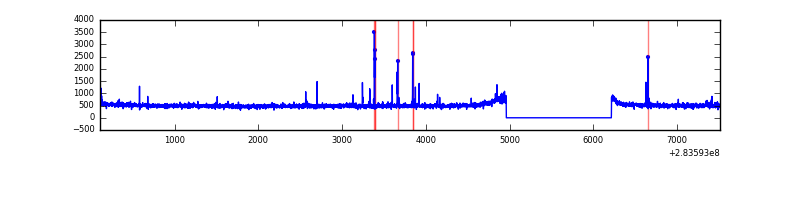

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7400 | 6145 | 267 | 267 | 3.61% | 4.34% |  |
| B | 7401 | 6146 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7401 | 6146 | 15 | 15 | 0.20% | 0.24% |  |
| D | 7401 | 6147 | 253 | 253 | 3.42% | 4.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 1291528 | 8316.02 | 782 | 769 | 155.2 |
| A | 0 | 226 | 6863 | 39.26 | 782 | 769 | 155.2 |
| A | 15 | 174 | 6235 | 35.22 | 782 | 769 | 155.2 |
| B | 0 | 244 | 42665 | 282.38 | 789 | 771 | 148.4 |
| B | 12 | 111 | 17100 | 110.06 | 789 | 771 | 148.4 |
| B | 11 | 111 | 14946 | 95.54 | 789 | 771 | 148.4 |
| C | 14 | 238 | 118928 | 669.81 | 761 | 767 | 176.4 |
| C | 3 | 233 | 88246 | 495.89 | 761 | 767 | 176.4 |
| C | 0 | 207 | 74063 | 415.49 | 761 | 767 | 176.4 |
| D | 13 | 189 | 789679 | 4267.24 | 763 | 740 | 184.9 |
| D | 5 | 222 | 636383 | 3438.09 | 763 | 740 | 184.9 |
| D | 10 | 70 | 30816 | 162.67 | 763 | 740 | 184.9 |

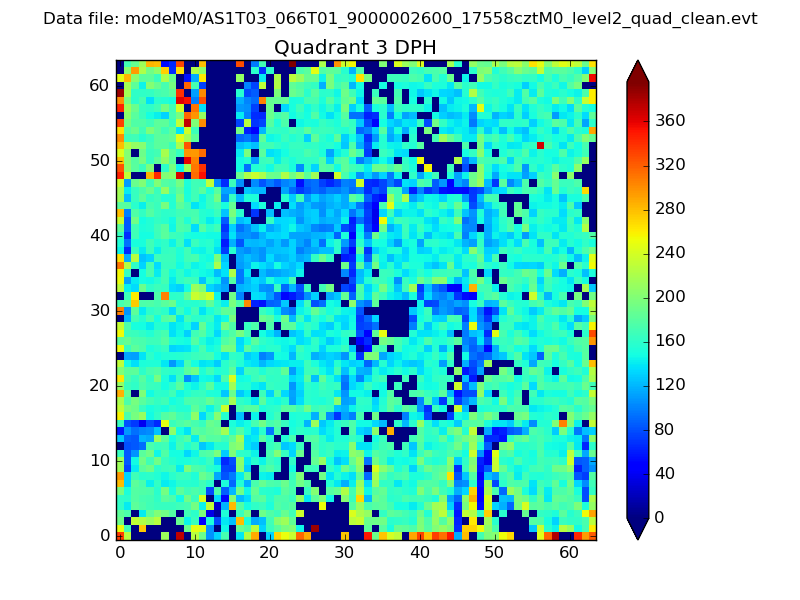

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

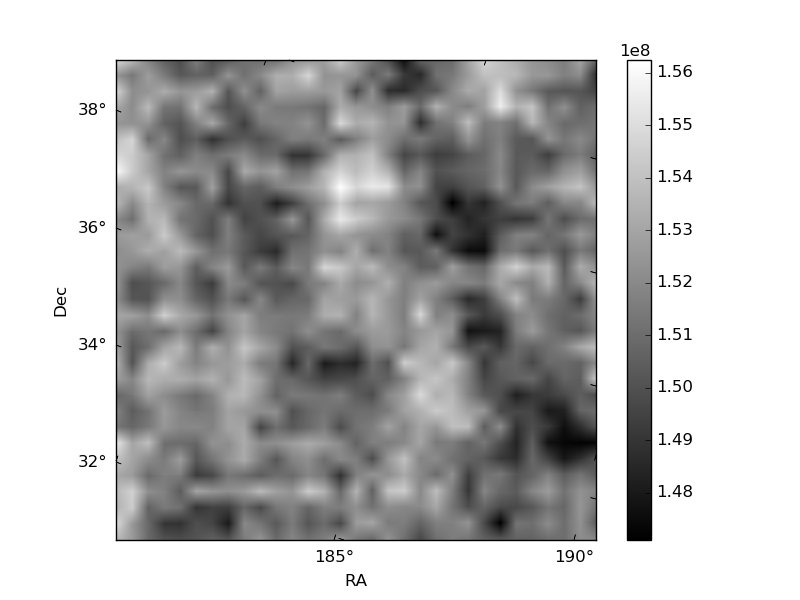

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

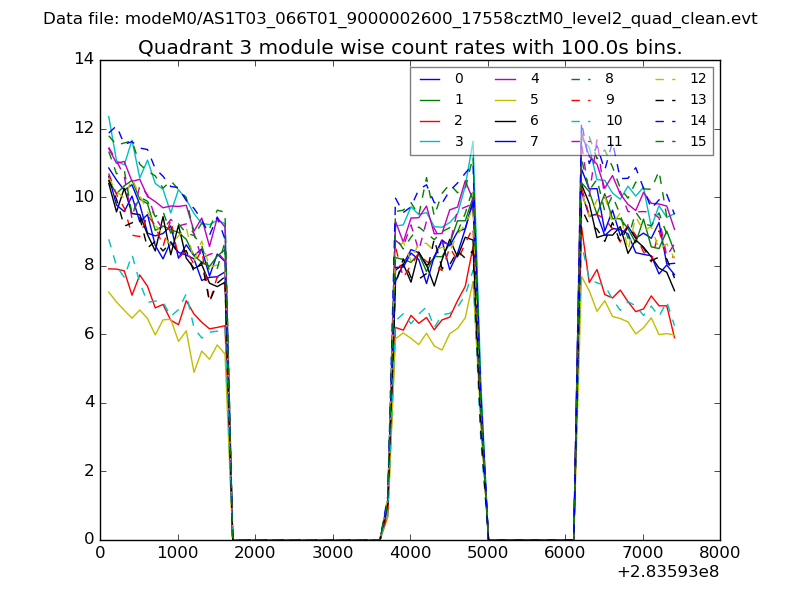

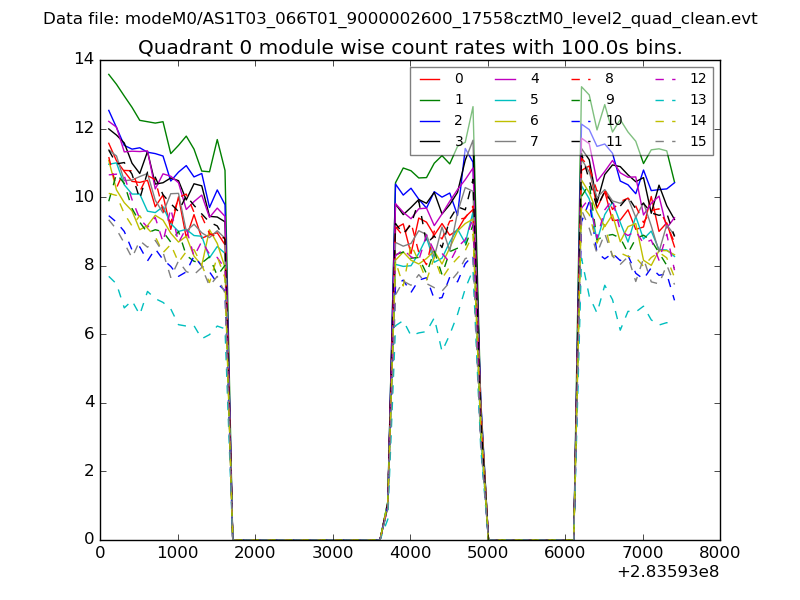

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

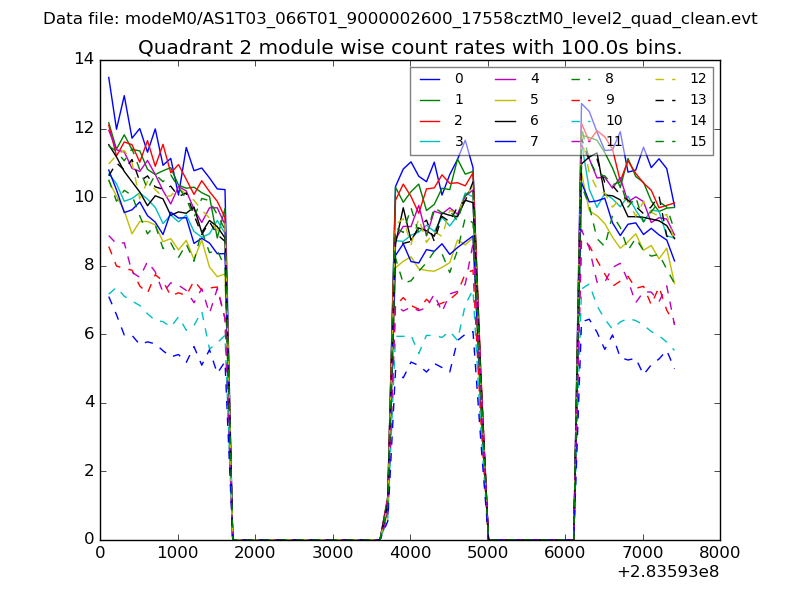

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

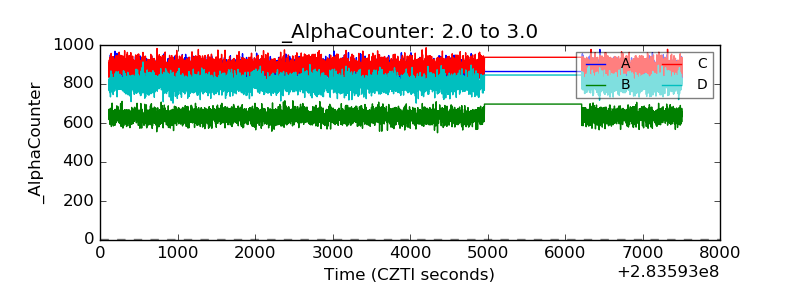

| Alpha Counter |  |
| _CPM_Rate |  |

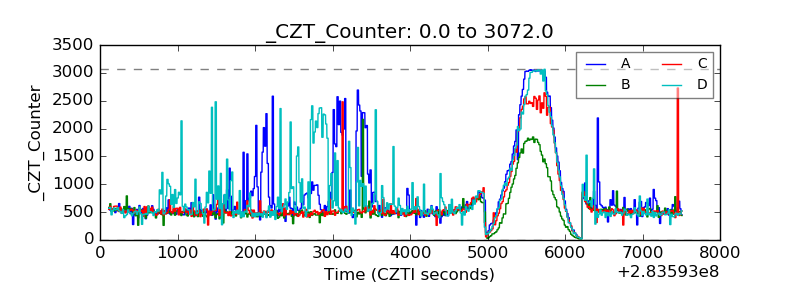

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
