| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_012T02_9000002602_17561cztM0_level2.evt | modeM0/AS1A05_012T02_9000002602_17561cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,545,600 | 79,781,760 |
| Size | 582.3 MB | 76.1 MB |
| Events in quadrant A | 7,247,402 | 459,521 |
| Events in quadrant B | 3,576,562 | 499,330 |
| Events in quadrant C | 3,573,013 | 482,622 |
| Events in quadrant D | 3,610,553 | 477,761 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26439 | 2 |
| B | 0 | 15304 | 3 |
| C | 0 | 15010 | 2 |
| D | 0 | 15659 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7129 | 1102 | 15.457988% |
| B | 7128 | 99 | 1.388889% |
| C | 7128 | 103 | 1.445006% |
| D | 7128 | 137 | 1.921998% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7654 | 7130 | 779 | 779 | 10.18% | 10.93% |  |
| B | 7653 | 7129 | 31 | 31 | 0.41% | 0.43% |  |
| C | 7653 | 7129 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7653 | 7128 | 79 | 79 | 1.03% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 4105941 | 25258.45 | 810 | 791 | 162.5 |
| A | 11 | 47 | 16447 | 96.33 | 810 | 791 | 162.5 |
| A | 0 | 226 | 7220 | 39.56 | 810 | 791 | 162.5 |
| B | 7 | 220 | 155749 | 958.55 | 852 | 831 | 161.6 |
| B | 0 | 230 | 22638 | 134.93 | 852 | 831 | 161.6 |
| B | 12 | 111 | 19106 | 113.08 | 852 | 831 | 161.6 |
| C | 3 | 233 | 194055 | 1025.85 | 814 | 821 | 188.4 |
| C | 14 | 238 | 126214 | 665.69 | 814 | 821 | 188.4 |
| C | 0 | 207 | 76039 | 399.32 | 814 | 821 | 188.4 |
| D | 13 | 189 | 349432 | 1730.48 | 829 | 801 | 201.5 |
| D | 5 | 222 | 56439 | 276.17 | 829 | 801 | 201.5 |
| D | 2 | 234 | 33014 | 159.89 | 829 | 801 | 201.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

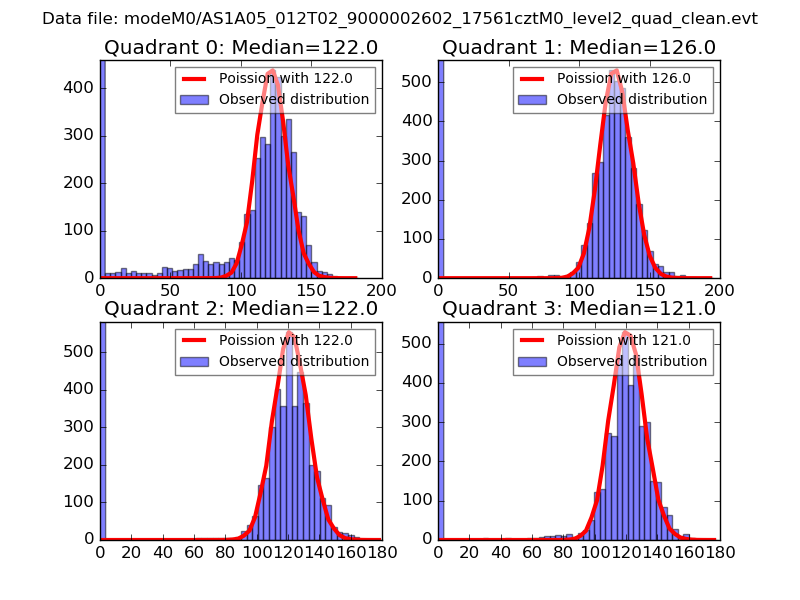

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

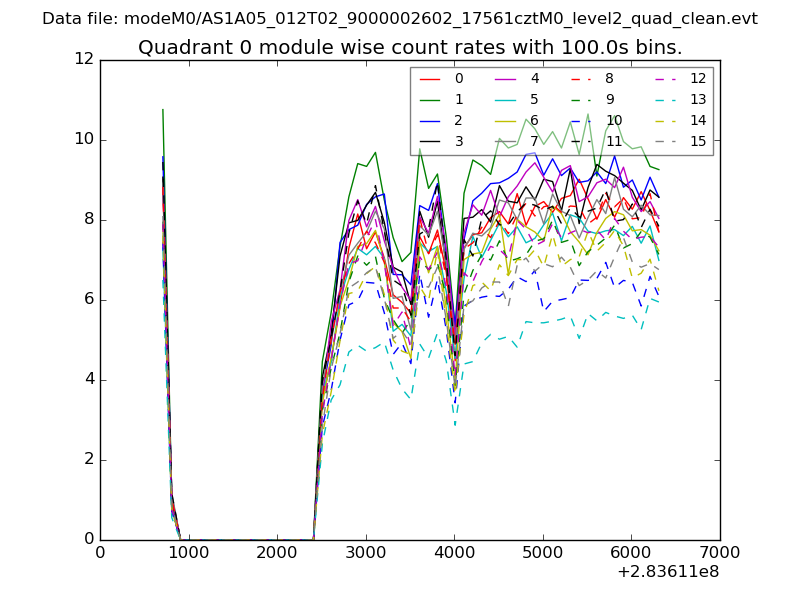

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

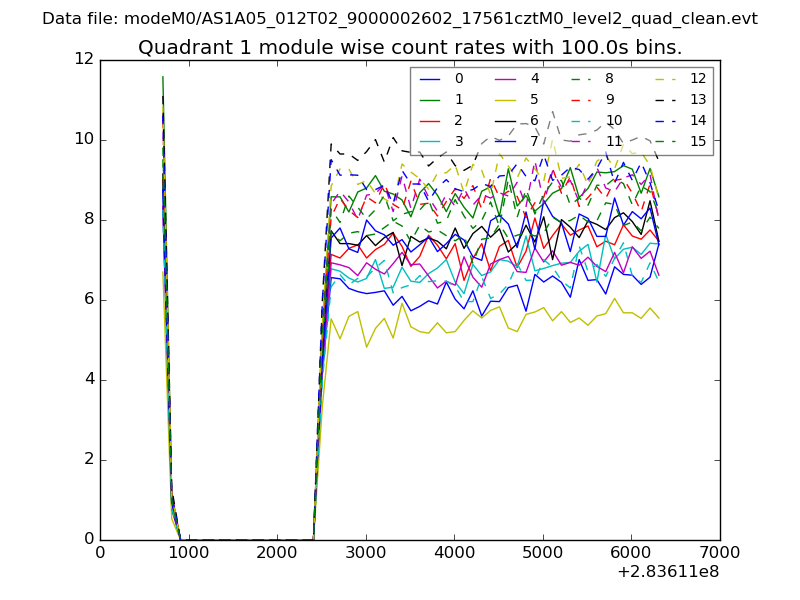

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
