| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_012T02_9000002602_17563cztM0_level2.evt | modeM0/AS1A05_012T02_9000002602_17563cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,522,880 | 98,864,640 |
| Size | 517.4 MB | 94.3 MB |
| Events in quadrant A | 4,460,133 | 629,164 |
| Events in quadrant B | 3,756,933 | 628,991 |
| Events in quadrant C | 3,731,138 | 606,458 |
| Events in quadrant D | 3,966,628 | 601,045 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18434 | 2 |
| B | 0 | 16249 | 2 |
| C | 0 | 15945 | 2 |
| D | 0 | 17094 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7596 | 194 | 2.553976% |
| B | 7596 | 103 | 1.355977% |
| C | 7596 | 118 | 1.553449% |
| D | 7595 | 169 | 2.225148% |

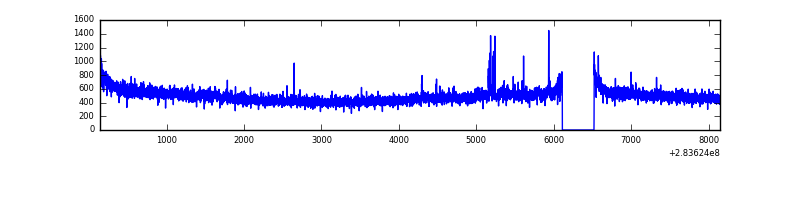

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8006 | 7597 | 95 | 95 | 1.19% | 1.25% |  |
| B | 8006 | 7597 | 8 | 8 | 0.10% | 0.11% |  |
| C | 8006 | 7597 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8005 | 7595 | 84 | 84 | 1.05% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 997061 | 5452.55 | 897 | 876 | 182.7 |
| A | 15 | 174 | 8088 | 39.47 | 897 | 876 | 182.7 |
| A | 0 | 226 | 7816 | 37.99 | 897 | 876 | 182.7 |
| B | 7 | 220 | 102764 | 592.19 | 902 | 880 | 172.0 |
| B | 15 | 35 | 33119 | 187.39 | 902 | 880 | 172.0 |
| B | 0 | 197 | 21910 | 122.23 | 902 | 880 | 172.0 |
| C | 3 | 233 | 163263 | 807.27 | 865 | 870 | 201.2 |
| C | 14 | 238 | 131258 | 648.17 | 865 | 870 | 201.2 |
| C | 0 | 207 | 34244 | 165.9 | 865 | 870 | 201.2 |
| D | 13 | 189 | 327820 | 1520.63 | 878 | 850 | 215.0 |
| D | 10 | 70 | 183833 | 850.99 | 878 | 850 | 215.0 |
| D | 1 | 255 | 60101 | 275.56 | 878 | 850 | 215.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

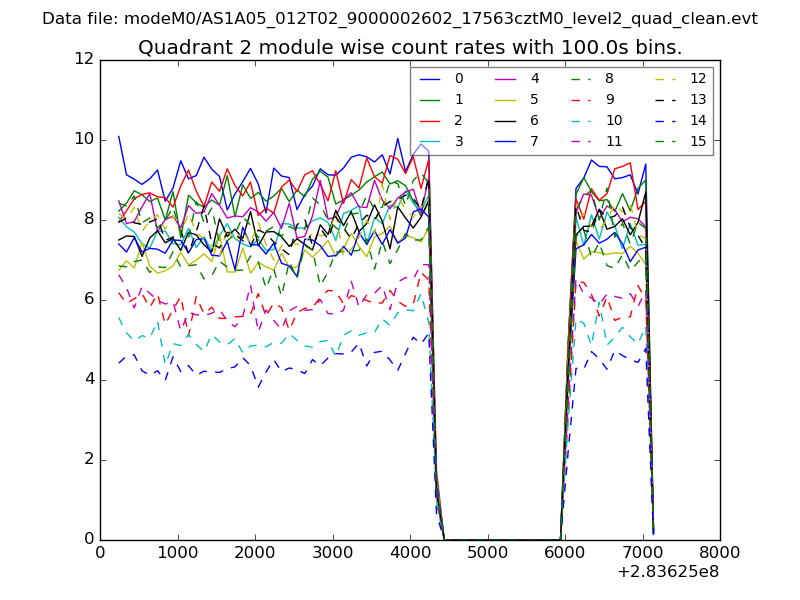

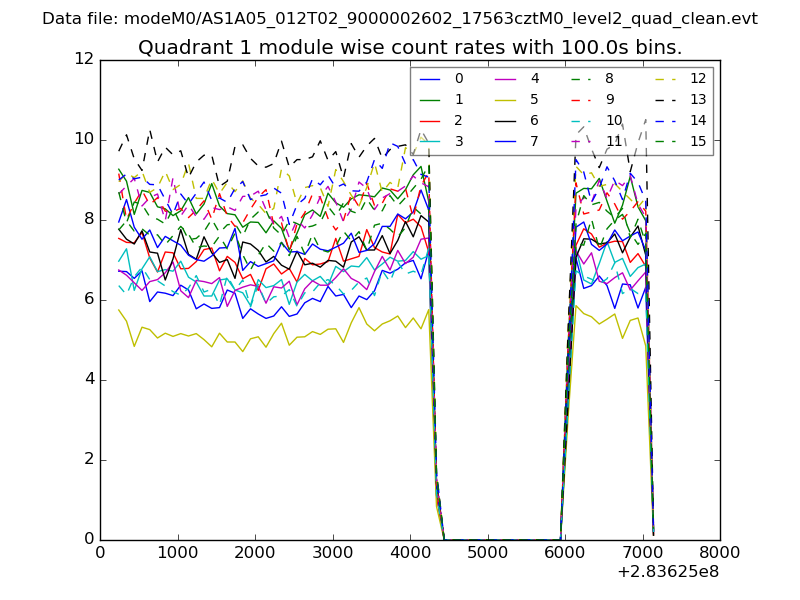

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

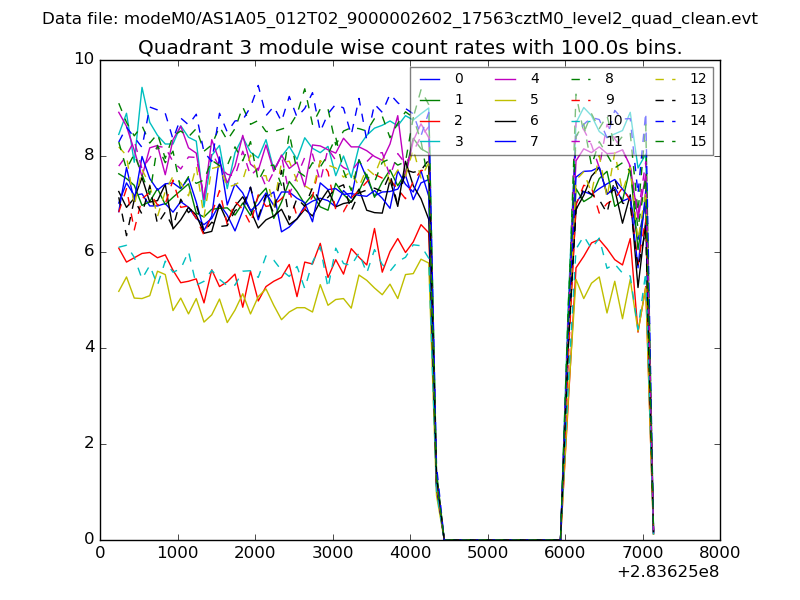

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

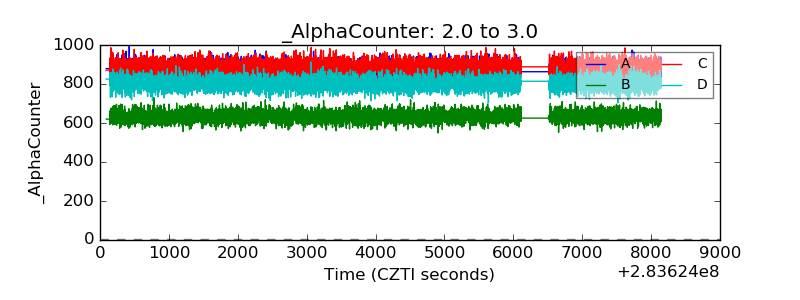

| Alpha Counter |  |
| _CPM_Rate |  |

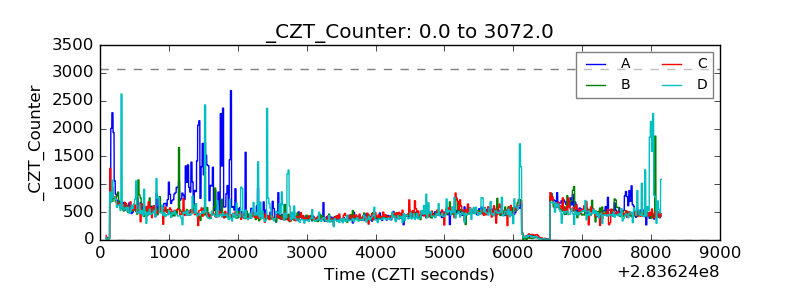

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

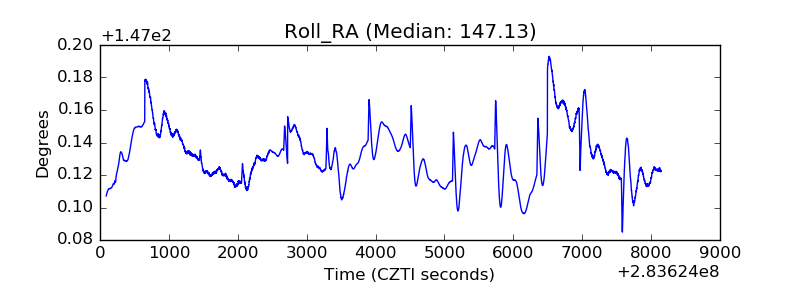

| _Roll_RA |  |
| Veto Counter |  |
