| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_012T02_9000002602_17572cztM0_level2.evt | modeM0/AS1A05_012T02_9000002602_17572cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,368,640 | 94,878,720 |
| Size | 446.7 MB | 90.5 MB |
| Events in quadrant A | 4,485,939 | 625,151 |
| Events in quadrant B | 3,087,574 | 632,986 |
| Events in quadrant C | 3,026,883 | 597,691 |
| Events in quadrant D | 3,178,935 | 600,550 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17103 | 1 |
| B | 0 | 12614 | 1 |
| C | 0 | 12348 | 1 |
| D | 0 | 13100 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5966 | 394 | 6.604090% |
| B | 5967 | 73 | 1.223395% |
| C | 5967 | 59 | 0.988772% |
| D | 5967 | 48 | 0.804424% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

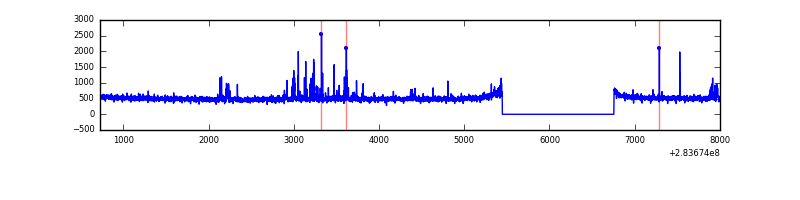

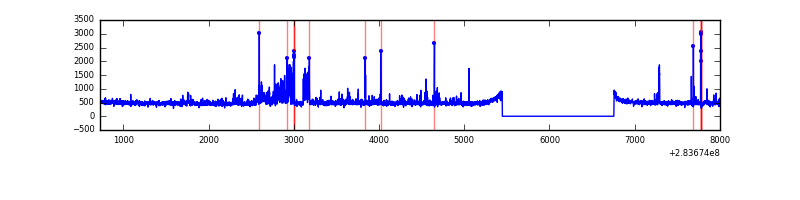

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7276 | 5967 | 286 | 286 | 3.93% | 4.79% |  |
| B | 7277 | 5968 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7277 | 5967 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7277 | 5968 | 15 | 15 | 0.21% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 1562108 | 10352.52 | 760 | 745 | 150.8 |
| A | 0 | 226 | 6715 | 39.58 | 760 | 745 | 150.8 |
| A | 12 | 194 | 5551 | 31.87 | 760 | 745 | 150.8 |
| B | 7 | 220 | 49038 | 340.66 | 759 | 742 | 141.8 |
| B | 0 | 230 | 31968 | 220.26 | 759 | 742 | 141.8 |
| B | 12 | 111 | 16282 | 109.61 | 759 | 742 | 141.8 |
| C | 14 | 238 | 115349 | 693.37 | 721 | 727 | 165.3 |
| C | 3 | 233 | 36756 | 217.95 | 721 | 727 | 165.3 |
| C | 0 | 207 | 34233 | 202.68 | 721 | 727 | 165.3 |
| D | 1 | 52 | 233809 | 1298.52 | 745 | 725 | 179.5 |
| D | 13 | 189 | 72502 | 399.87 | 745 | 725 | 179.5 |
| D | 2 | 234 | 27629 | 149.88 | 745 | 725 | 179.5 |

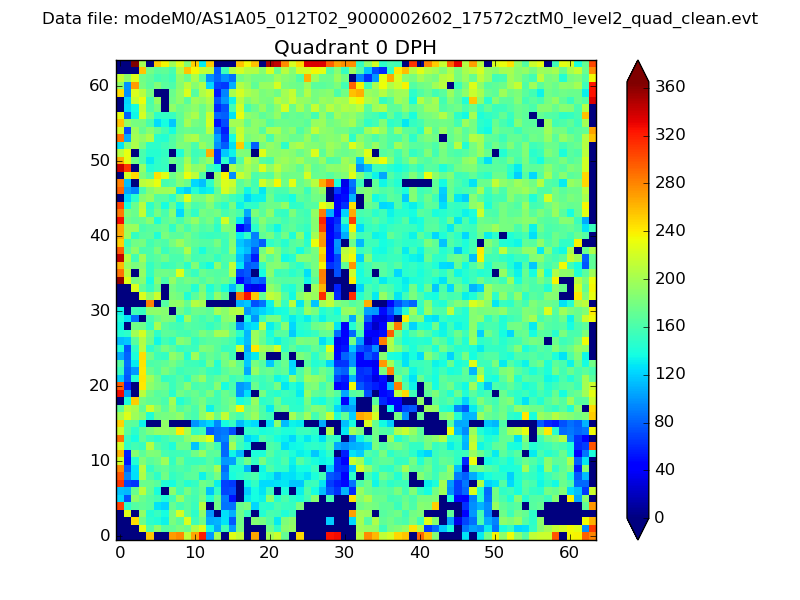

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

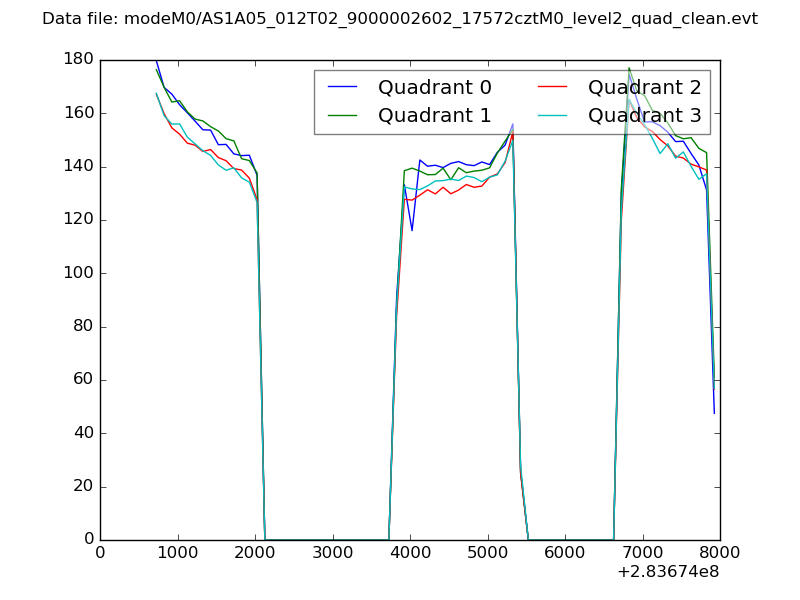

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

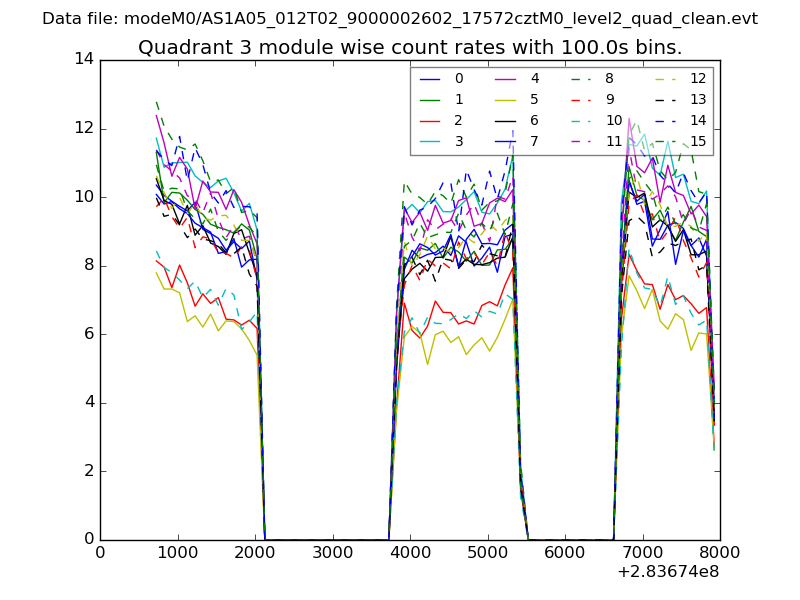

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

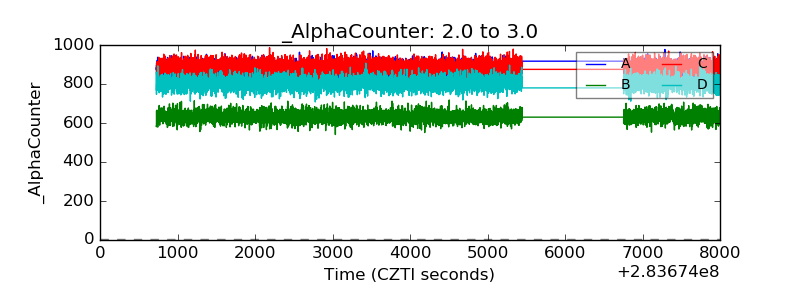

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

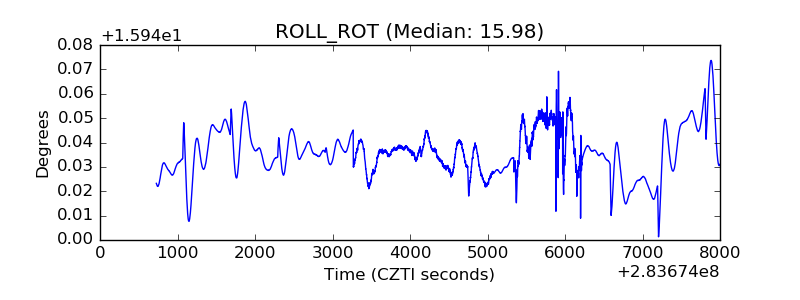

| _ROLL_ROT |  |

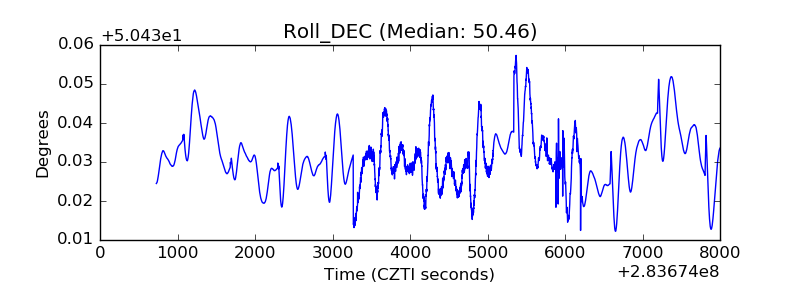

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
