| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002604_17590cztM0_level2.evt | modeM0/AS1A05_056T01_9000002604_17590cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,418,880 | 93,058,560 |
| Size | 487.7 MB | 88.7 MB |
| Events in quadrant A | 3,796,995 | 588,581 |
| Events in quadrant B | 3,522,310 | 592,588 |
| Events in quadrant C | 4,276,021 | 565,211 |
| Events in quadrant D | 3,400,822 | 567,206 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15981 | 1 |
| B | 0 | 15102 | 1 |
| C | 0 | 17485 | 1 |
| D | 0 | 15047 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7247 | 227 | 3.132331% |
| B | 7248 | 216 | 2.980132% |
| C | 7248 | 274 | 3.780353% |
| D | 7248 | 142 | 1.959161% |

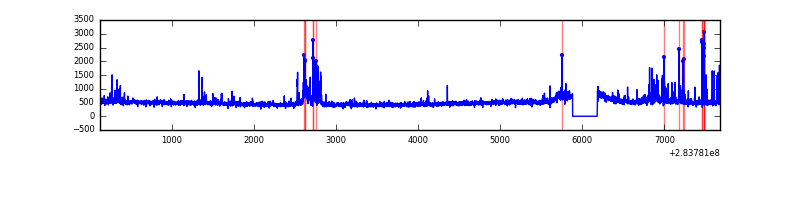

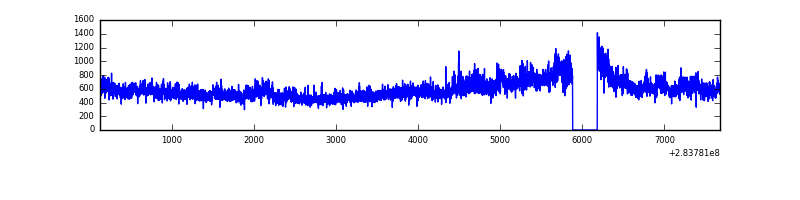

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 7247 | 17 | 17 | 0.23% | 0.23% |  |
| B | 7548 | 7249 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7548 | 7248 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7548 | 7249 | 5 | 5 | 0.07% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 349530 | 1909.11 | 897 | 879 | 182.6 |
| A | 0 | 226 | 7867 | 38.26 | 897 | 879 | 182.6 |
| A | 3 | 137 | 6970 | 33.35 | 897 | 879 | 182.6 |
| B | 12 | 111 | 21437 | 118.18 | 892 | 869 | 174.0 |
| B | 11 | 111 | 18392 | 100.68 | 892 | 869 | 174.0 |
| B | 14 | 111 | 15899 | 86.36 | 892 | 869 | 174.0 |
| C | 3 | 233 | 771076 | 3839.0 | 854 | 860 | 200.6 |
| C | 14 | 238 | 130795 | 647.64 | 854 | 860 | 200.6 |
| C | 5 | 218 | 40714 | 198.64 | 854 | 860 | 200.6 |
| D | 13 | 189 | 46444 | 213.21 | 875 | 848 | 213.9 |
| D | 2 | 234 | 23767 | 107.17 | 875 | 848 | 213.9 |
| D | 5 | 222 | 18270 | 81.47 | 875 | 848 | 213.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

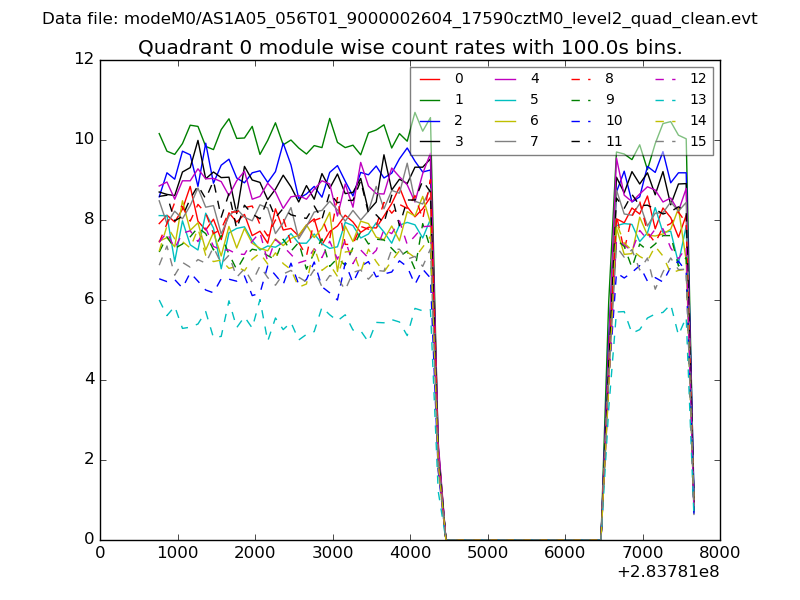

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

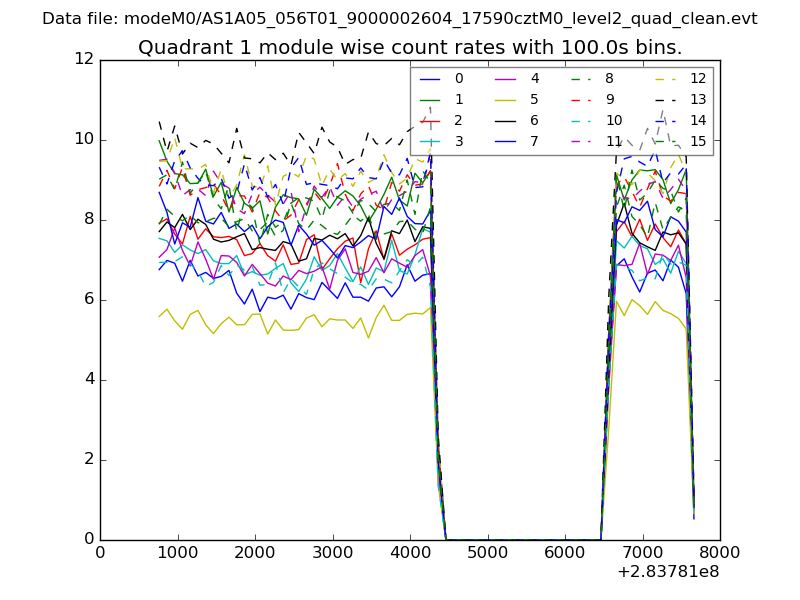

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

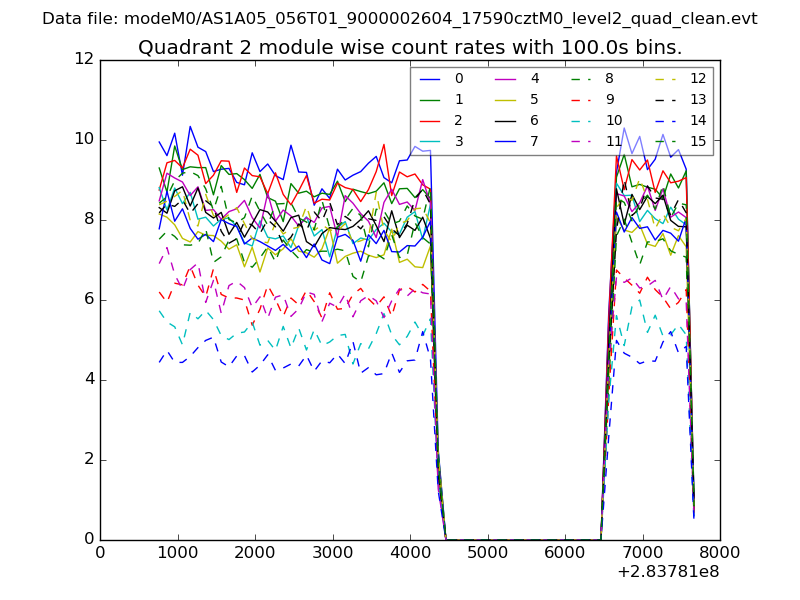

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

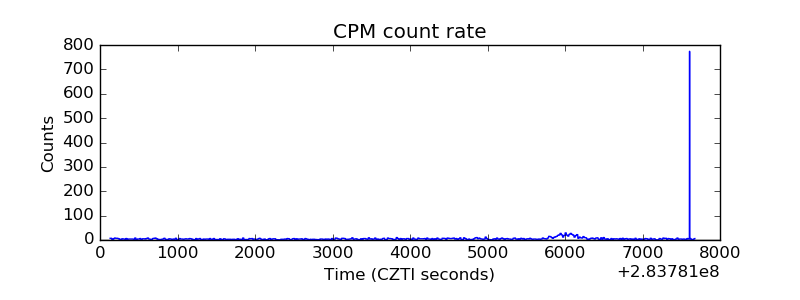

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

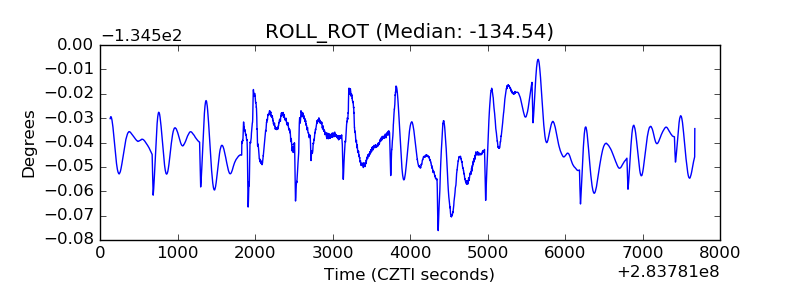

| _ROLL_ROT |  |
| _Roll_DEC |  |

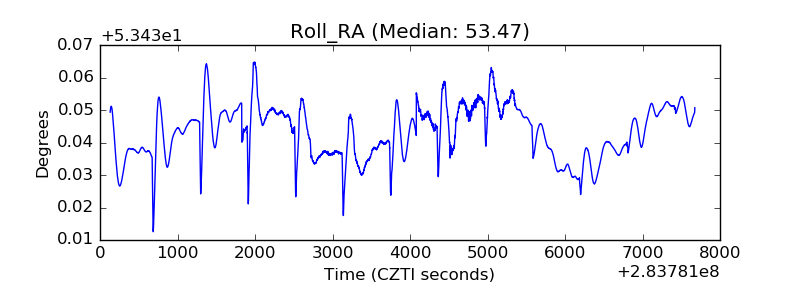

| _Roll_RA |  |
| Veto Counter |  |
