| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002604_17601cztM0_level2.evt | modeM0/AS1A05_056T01_9000002604_17601cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,591,360 | 65,592,000 |
| Size | 441.2 MB | 62.6 MB |
| Events in quadrant A | 3,255,717 | 392,622 |
| Events in quadrant B | 3,340,792 | 399,747 |
| Events in quadrant C | 3,754,068 | 382,999 |
| Events in quadrant D | 3,242,389 | 382,243 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13208 | 2 |
| B | 0 | 13525 | 2 |
| C | 0 | 15185 | 2 |
| D | 0 | 13274 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6131 | 114 | 1.859403% |
| B | 6131 | 137 | 2.234546% |
| C | 6131 | 199 | 3.245800% |
| D | 6130 | 105 | 1.712887% |

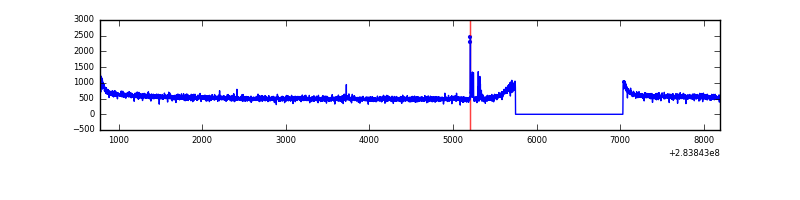

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7416 | 6131 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7416 | 6131 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7416 | 6131 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7415 | 6130 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7412 | 39.12 | 845 | 830 | 168.3 |
| A | 12 | 194 | 6133 | 31.52 | 845 | 830 | 168.3 |
| A | 3 | 137 | 5891 | 30.08 | 845 | 830 | 168.3 |
| B | 4 | 48 | 27980 | 170.62 | 849 | 830 | 159.1 |
| B | 12 | 111 | 18620 | 111.8 | 849 | 830 | 159.1 |
| B | 11 | 111 | 15979 | 95.2 | 849 | 830 | 159.1 |
| C | 3 | 233 | 397673 | 2100.72 | 819 | 825 | 188.9 |
| C | 14 | 238 | 129711 | 682.26 | 819 | 825 | 188.9 |
| C | 5 | 218 | 33160 | 171.17 | 819 | 825 | 188.9 |
| D | 4 | 239 | 53172 | 263.6 | 830 | 808 | 198.6 |
| D | 1 | 52 | 37675 | 185.59 | 830 | 808 | 198.6 |
| D | 2 | 234 | 19776 | 95.48 | 830 | 808 | 198.6 |

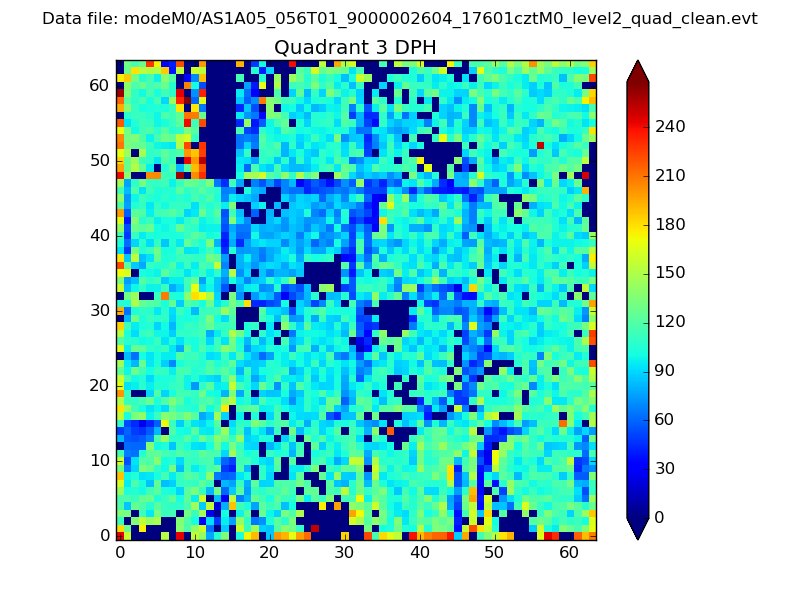

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

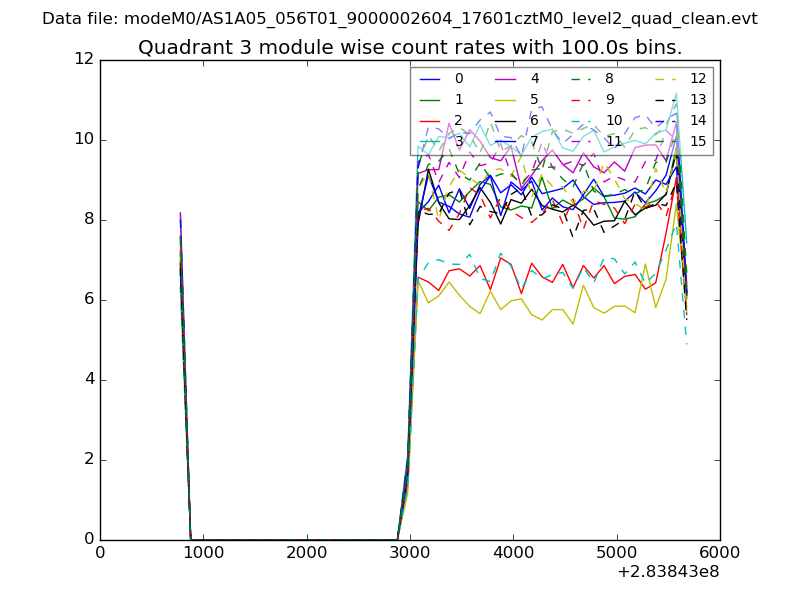

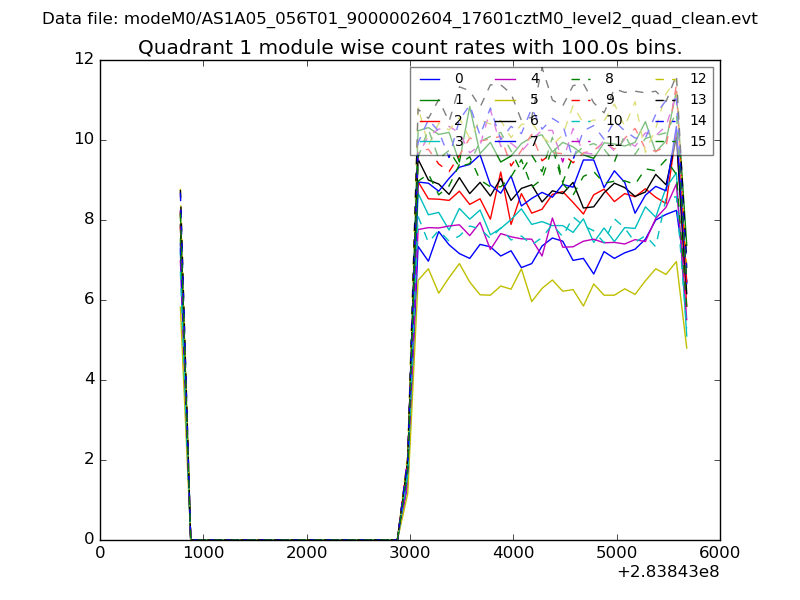

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

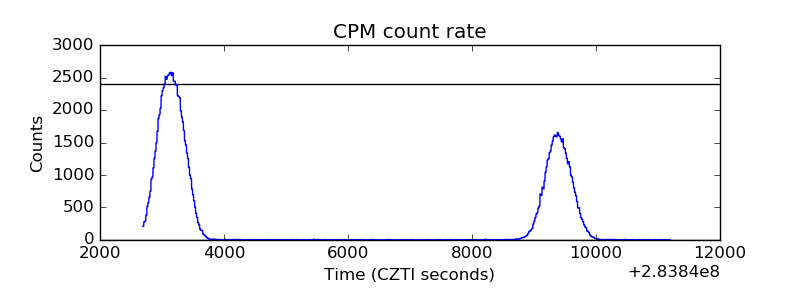

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

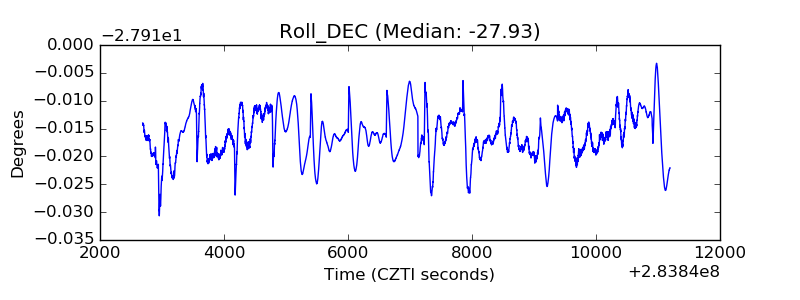

| _Roll_DEC |  |

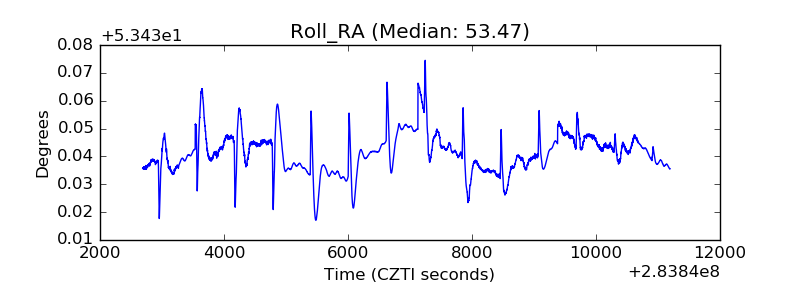

| _Roll_RA |  |

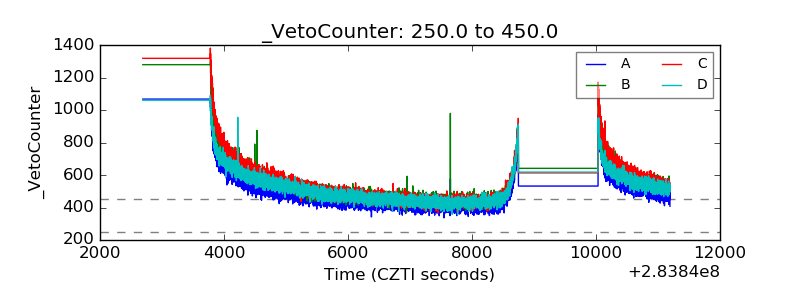

| Veto Counter |  |
