| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_027T01_9000002608_17614cztM0_level2.evt | modeM0/AS1T03_027T01_9000002608_17614cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,007,360 | 65,882,880 |
| Size | 474.0 MB | 62.8 MB |
| Events in quadrant A | 3,243,922 | 394,750 |
| Events in quadrant B | 3,307,071 | 400,966 |
| Events in quadrant C | 4,561,751 | 380,846 |
| Events in quadrant D | 3,513,923 | 380,430 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13421 | 2 |
| B | 0 | 13637 | 2 |
| C | 0 | 18574 | 2 |
| D | 0 | 14520 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6276 | 65 | 1.035692% |
| B | 6276 | 73 | 1.163161% |
| C | 6276 | 142 | 2.262588% |
| D | 6276 | 67 | 1.067559% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6276 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7546 | 6276 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7546 | 6276 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7546 | 6277 | 29 | 29 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7366 | 39.17 | 842 | 829 | 166.9 |
| A | 12 | 194 | 5977 | 30.84 | 842 | 829 | 166.9 |
| A | 3 | 137 | 5887 | 30.3 | 842 | 829 | 166.9 |
| B | 12 | 111 | 18377 | 110.85 | 844 | 827 | 158.3 |
| B | 11 | 111 | 16125 | 96.63 | 844 | 827 | 158.3 |
| B | 14 | 111 | 13884 | 82.47 | 844 | 827 | 158.3 |
| C | 3 | 233 | 1273365 | 6892.67 | 800 | 809 | 184.6 |
| C | 14 | 238 | 125698 | 676.45 | 800 | 809 | 184.6 |
| C | 5 | 218 | 45872 | 244.08 | 800 | 809 | 184.6 |
| D | 13 | 168 | 270115 | 1372.66 | 810 | 789 | 196.2 |
| D | 13 | 232 | 122571 | 620.68 | 810 | 789 | 196.2 |
| D | 13 | 104 | 24529 | 120.99 | 810 | 789 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

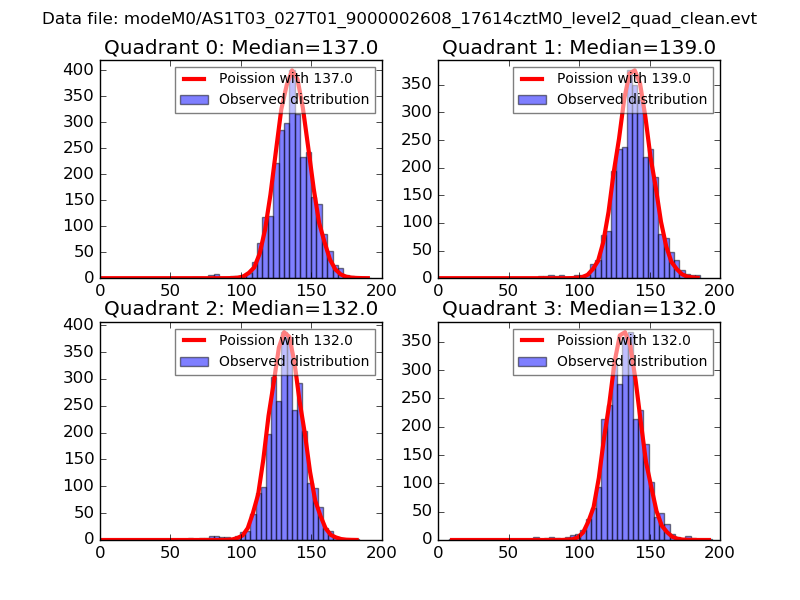

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
