| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_027T01_9000002608_17616cztM0_level2.evt | modeM0/AS1T03_027T01_9000002608_17616cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,019,520 | 91,745,280 |
| Size | 490.2 MB | 87.5 MB |
| Events in quadrant A | 3,352,241 | 595,524 |
| Events in quadrant B | 3,436,111 | 602,154 |
| Events in quadrant C | 5,100,808 | 563,817 |
| Events in quadrant D | 3,243,837 | 570,269 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13699 | 3 |
| B | 0 | 14067 | 2 |
| C | 0 | 19793 | 2 |
| D | 0 | 13665 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6401 | 133 | 2.077800% |
| B | 6401 | 177 | 2.765193% |
| C | 6401 | 279 | 4.358694% |
| D | 6401 | 106 | 1.655991% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7641 | 6401 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7641 | 6401 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7641 | 6401 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7641 | 6401 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 10309 | 54.31 | 870 | 855 | 174.1 |
| A | 0 | 226 | 7599 | 38.74 | 870 | 855 | 174.1 |
| A | 12 | 194 | 6250 | 30.99 | 870 | 855 | 174.1 |
| B | 0 | 183 | 59687 | 362.33 | 862 | 843 | 162.4 |
| B | 12 | 111 | 19167 | 112.83 | 862 | 843 | 162.4 |
| B | 11 | 111 | 16618 | 97.13 | 862 | 843 | 162.4 |
| C | 3 | 233 | 1753395 | 9392.48 | 812 | 820 | 186.6 |
| C | 14 | 238 | 128635 | 684.99 | 812 | 820 | 186.6 |
| C | 5 | 218 | 50236 | 264.83 | 812 | 820 | 186.6 |
| D | 7 | 96 | 28383 | 135.39 | 839 | 816 | 203.6 |
| D | 2 | 234 | 20740 | 97.86 | 839 | 816 | 203.6 |
| D | 13 | 189 | 18894 | 88.79 | 839 | 816 | 203.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

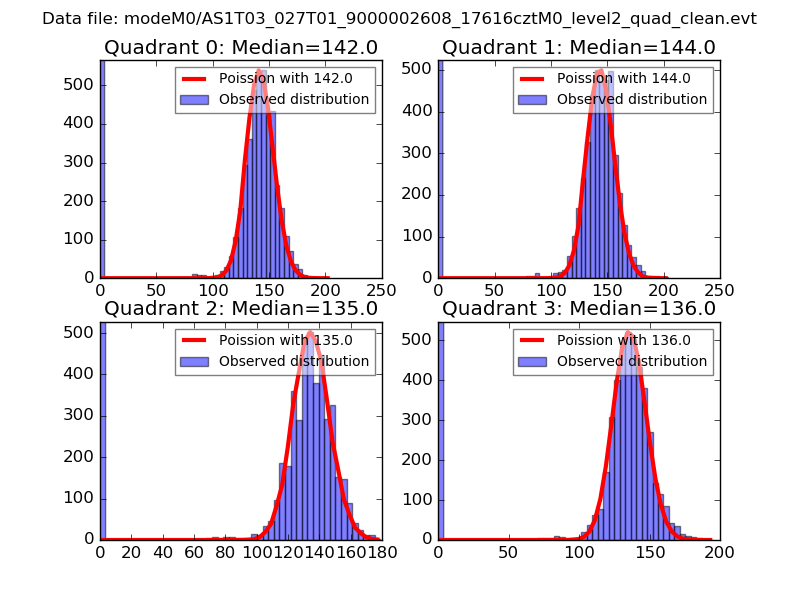

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

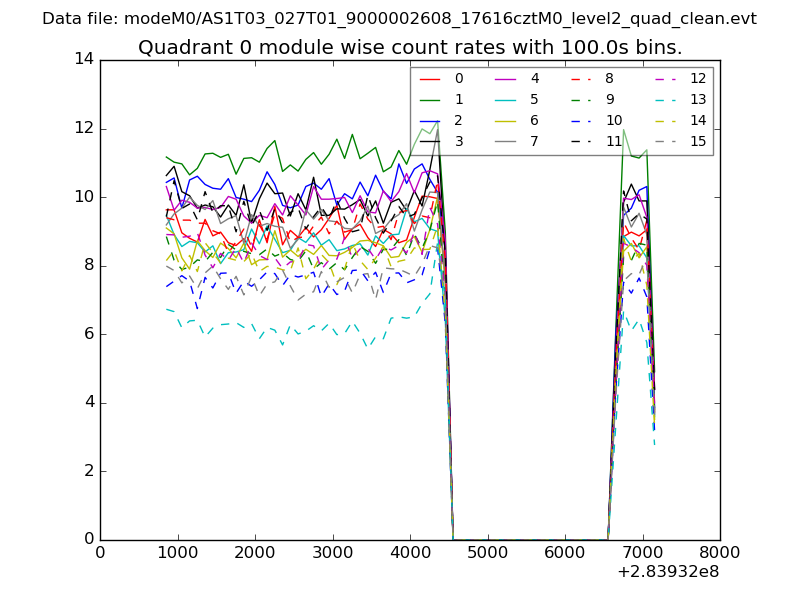

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

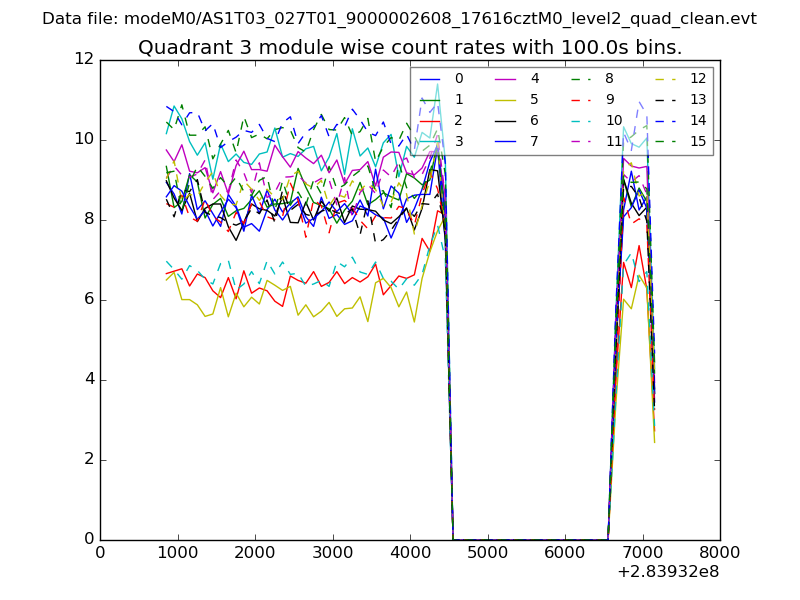

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

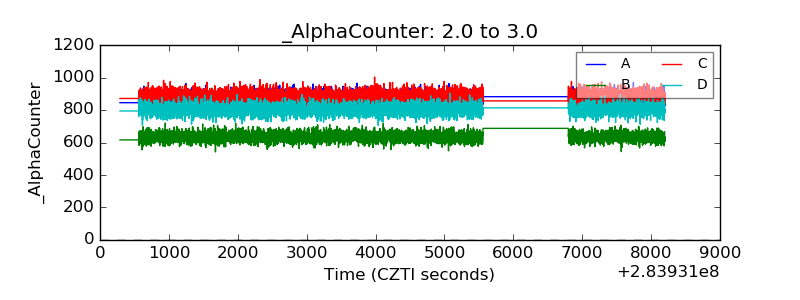

| Alpha Counter |  |

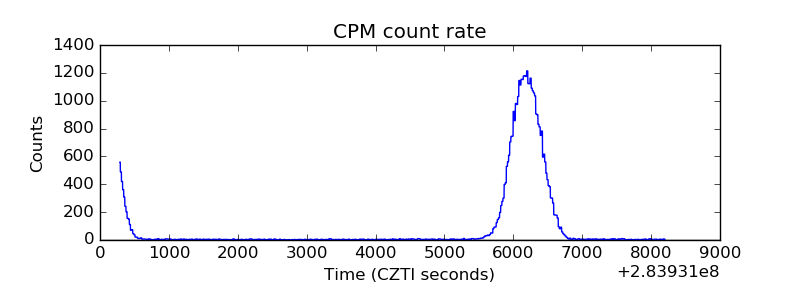

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

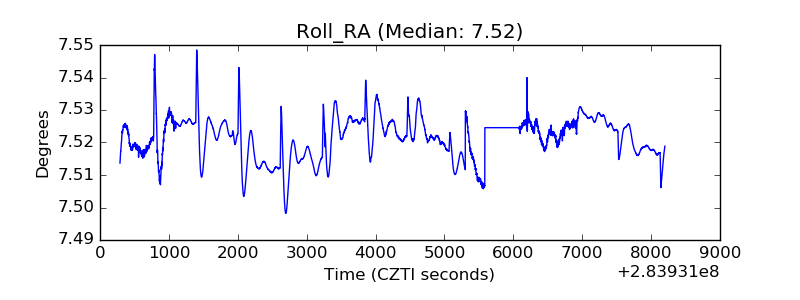

| _Roll_RA |  |

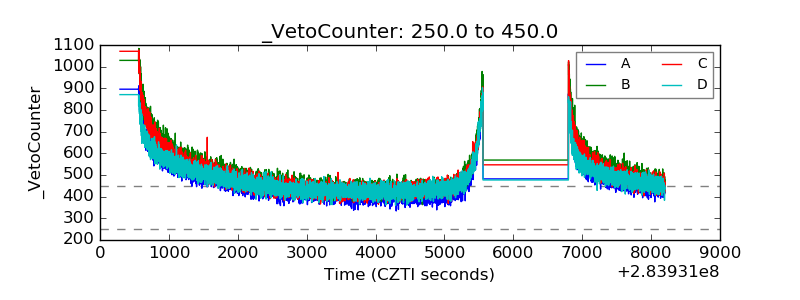

| Veto Counter |  |
