| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_071T01_9000002610_17618cztM0_level2.evt | modeM0/AS1T03_071T01_9000002610_17618cztM0_level2_quad_clean.evt |
| Size (bytes) | 187,024,320 | 27,233,280 |
| Size | 178.4 MB | 26.0 MB |
| Events in quadrant A | 1,283,975 | 164,737 |
| Events in quadrant B | 1,333,587 | 166,259 |
| Events in quadrant C | 1,606,057 | 155,697 |
| Events in quadrant D | 1,267,638 | 157,112 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5304 | 1 |
| B | 0 | 5470 | 1 |
| C | 0 | 6552 | 1 |
| D | 0 | 5419 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2509 | 124 | 4.942208% |
| B | 2509 | 116 | 4.623356% |
| C | 2508 | 160 | 6.379585% |
| D | 2508 | 126 | 5.023923% |

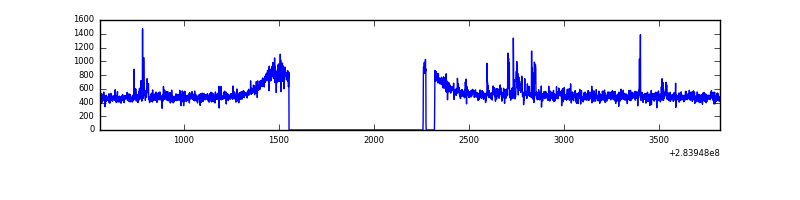

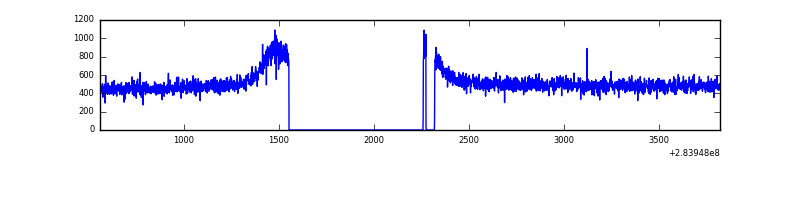

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3259 | 2510 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3259 | 2510 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3258 | 2508 | 3 | 3 | 0.09% | 0.12% |  |
| D | 3258 | 2508 | 16 | 16 | 0.49% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 2938 | 37.01 | 333 | 325 | 70.6 |
| A | 3 | 137 | 2627 | 32.61 | 333 | 325 | 70.6 |
| A | 12 | 194 | 2448 | 30.07 | 333 | 325 | 70.6 |
| B | 0 | 230 | 26580 | 393.92 | 328 | 318 | 66.7 |
| B | 0 | 189 | 9171 | 132.79 | 328 | 318 | 66.7 |
| B | 3 | 64 | 8220 | 118.52 | 328 | 318 | 66.7 |
| C | 3 | 233 | 275495 | 3680.26 | 311 | 311 | 74.8 |
| C | 14 | 238 | 47783 | 634.88 | 311 | 311 | 74.8 |
| C | 0 | 207 | 46787 | 621.56 | 311 | 311 | 74.8 |
| D | 1 | 52 | 33407 | 412.58 | 321 | 310 | 80.2 |
| D | 2 | 234 | 8581 | 103.1 | 321 | 310 | 80.2 |
| D | 7 | 96 | 6201 | 73.44 | 321 | 310 | 80.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

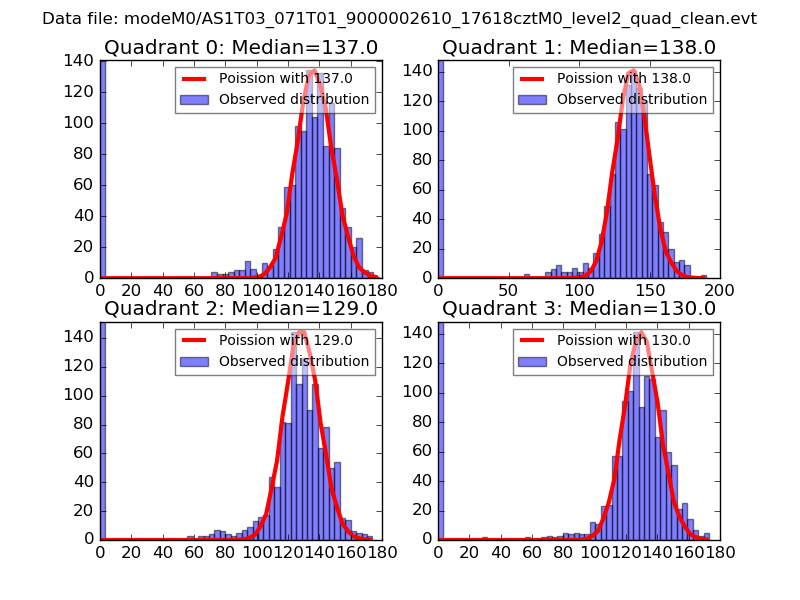

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

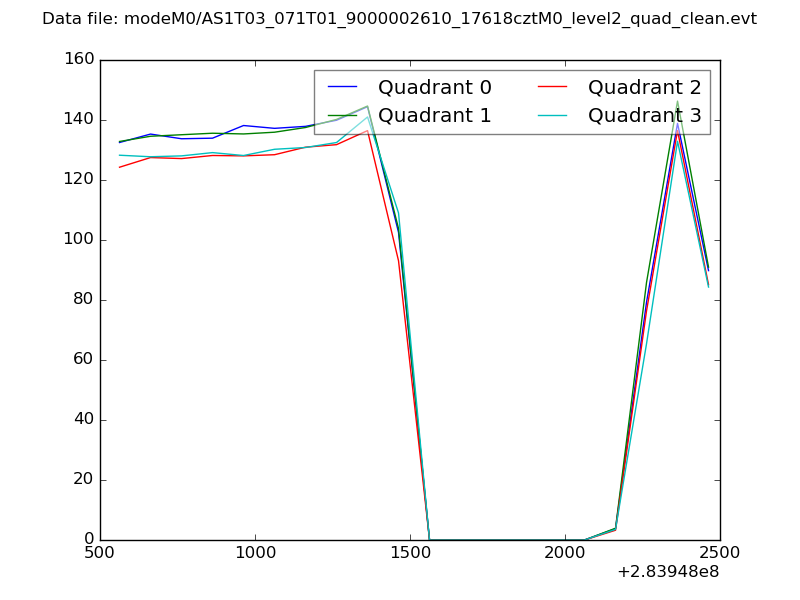

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

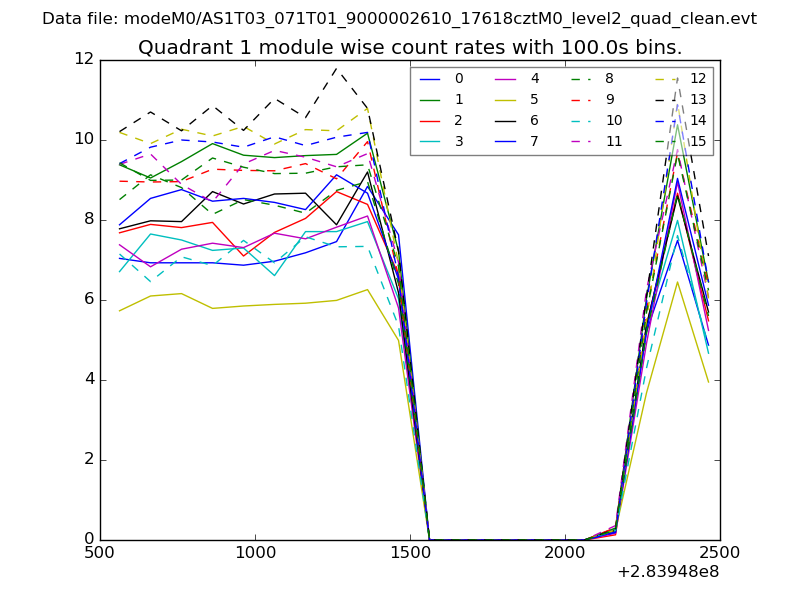

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

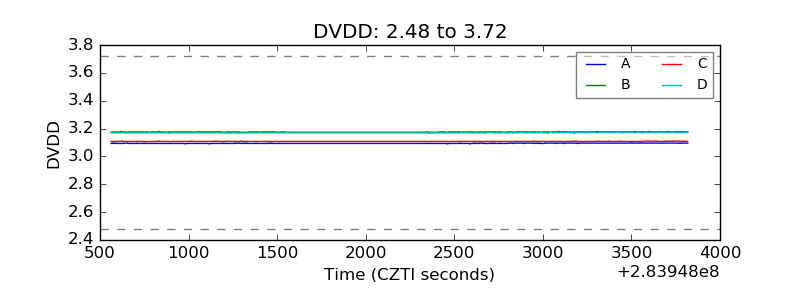

| D_VDD |  |
| Temperature 1 |  |

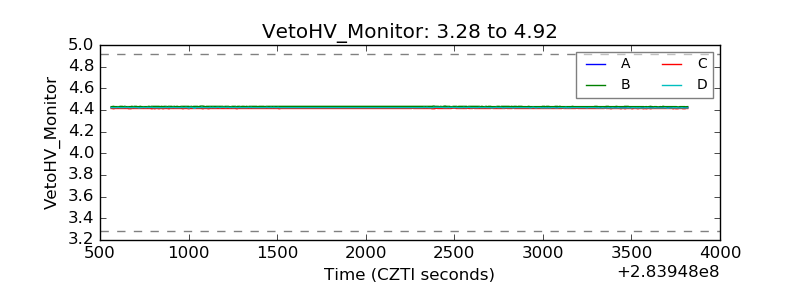

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
