| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_071T01_9000002610_17628cztM0_level2.evt | modeM0/AS1T03_071T01_9000002610_17628cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,695,680 | 101,347,200 |
| Size | 474.6 MB | 96.7 MB |
| Events in quadrant A | 3,583,584 | 667,497 |
| Events in quadrant B | 3,324,070 | 677,644 |
| Events in quadrant C | 3,435,134 | 635,111 |
| Events in quadrant D | 4,274,250 | 620,799 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14874 | 2 |
| B | 0 | 14049 | 2 |
| C | 0 | 14260 | 2 |
| D | 0 | 17300 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6719 | 66 | 0.982289% |
| B | 6720 | 62 | 0.922619% |
| C | 6720 | 97 | 1.443452% |
| D | 6719 | 58 | 0.863224% |

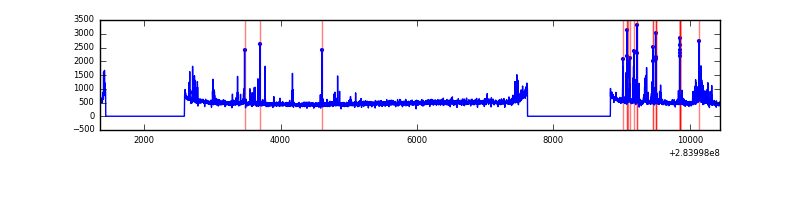

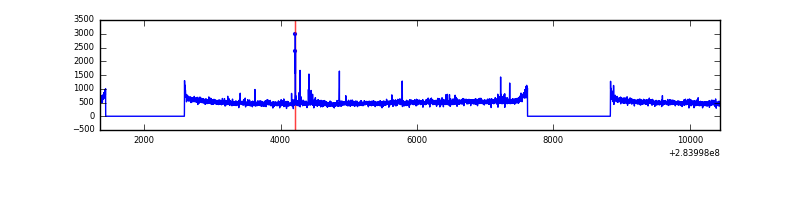

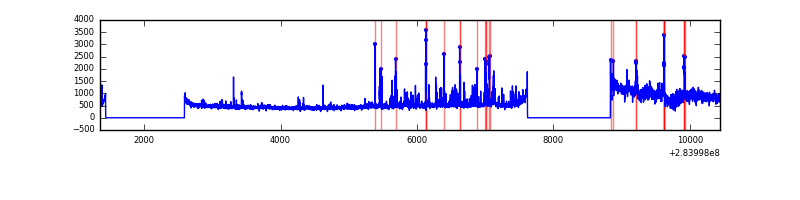

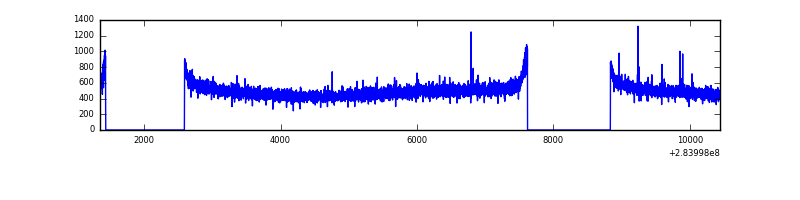

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9089 | 6721 | 22 | 22 | 0.24% | 0.33% |  |
| B | 9090 | 6722 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9090 | 6721 | 2 | 2 | 0.02% | 0.03% |  |
| D | 9089 | 6721 | 28 | 28 | 0.31% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 316634 | 1866.06 | 850 | 836 | 169.2 |
| A | 0 | 226 | 7495 | 39.35 | 850 | 836 | 169.2 |
| A | 12 | 194 | 6092 | 31.06 | 850 | 836 | 169.2 |
| B | 12 | 111 | 18622 | 111.71 | 848 | 827 | 159.3 |
| B | 11 | 111 | 16021 | 95.39 | 848 | 827 | 159.3 |
| B | 14 | 111 | 13799 | 81.44 | 848 | 827 | 159.3 |
| C | 14 | 238 | 127810 | 682.69 | 803 | 809 | 186.0 |
| C | 3 | 233 | 112635 | 601.12 | 803 | 809 | 186.0 |
| C | 0 | 207 | 39874 | 209.99 | 803 | 809 | 186.0 |
| D | 12 | 144 | 759088 | 3887.61 | 813 | 792 | 195.1 |
| D | 1 | 52 | 255594 | 1306.31 | 813 | 792 | 195.1 |
| D | 13 | 189 | 121332 | 617.98 | 813 | 792 | 195.1 |

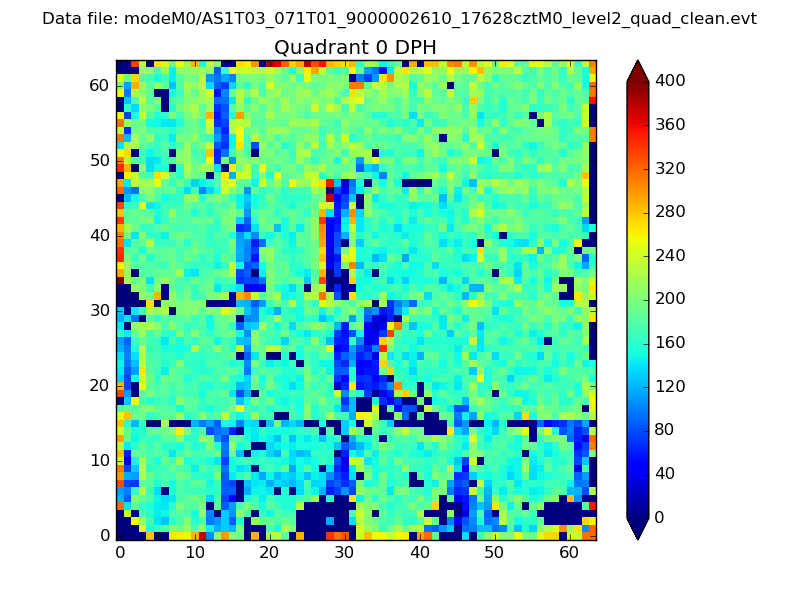

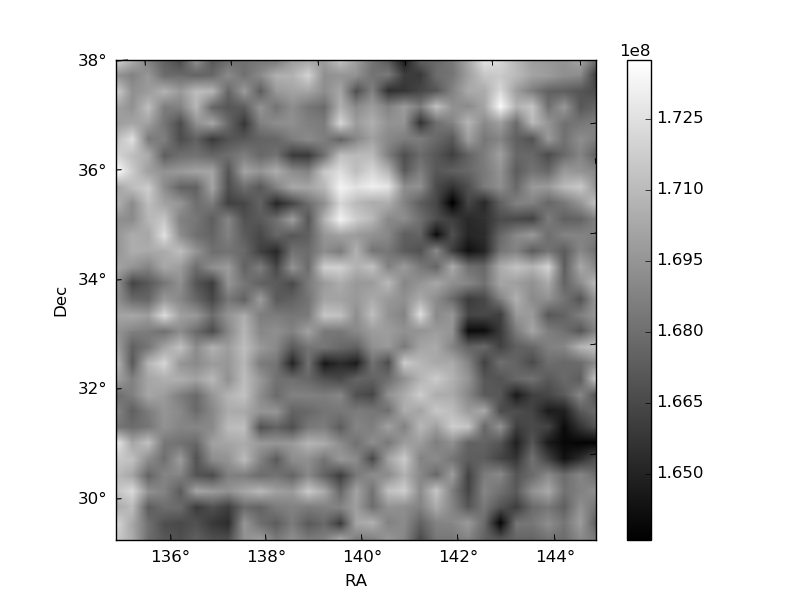

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

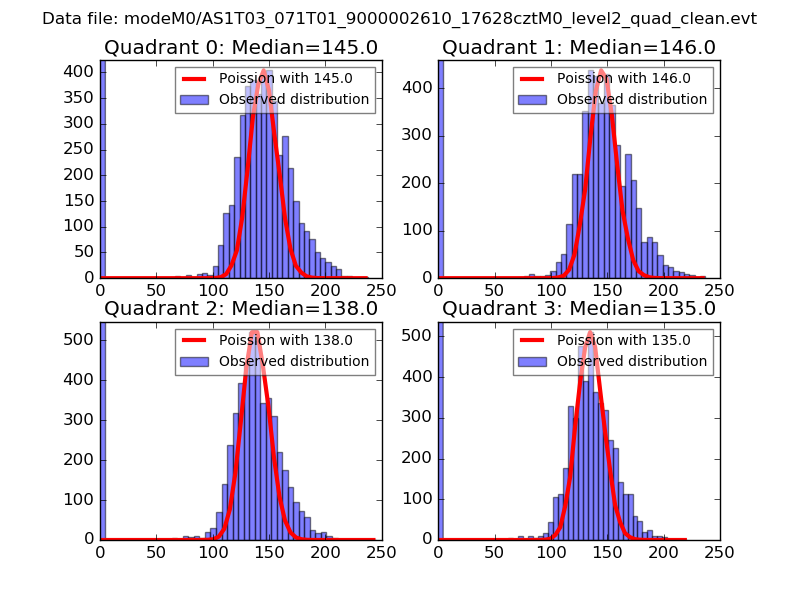

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

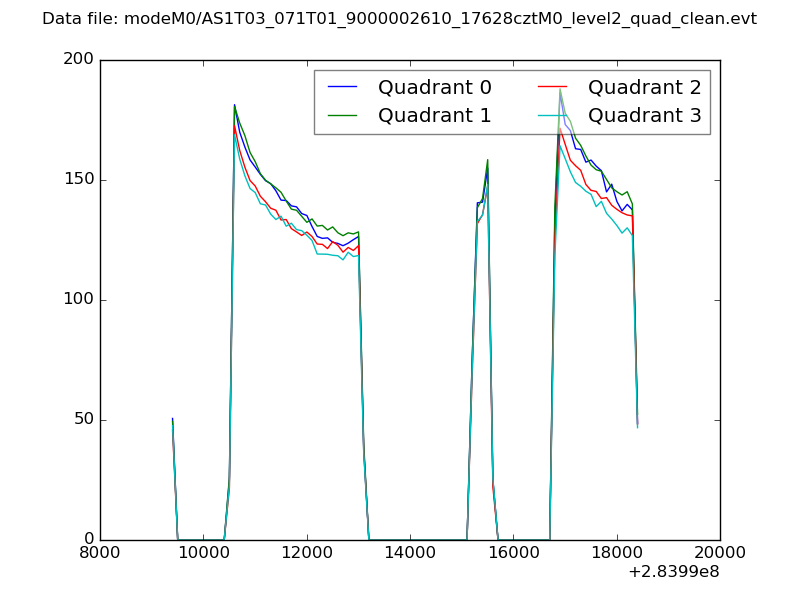

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

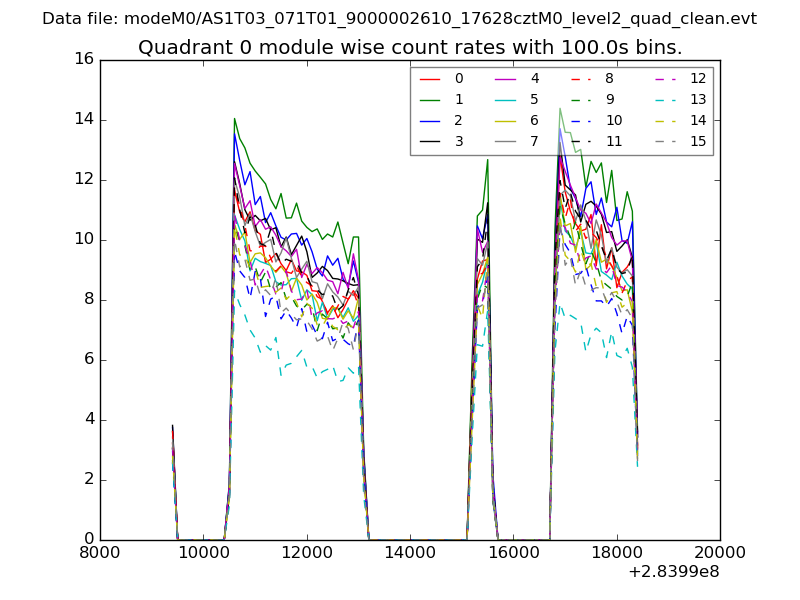

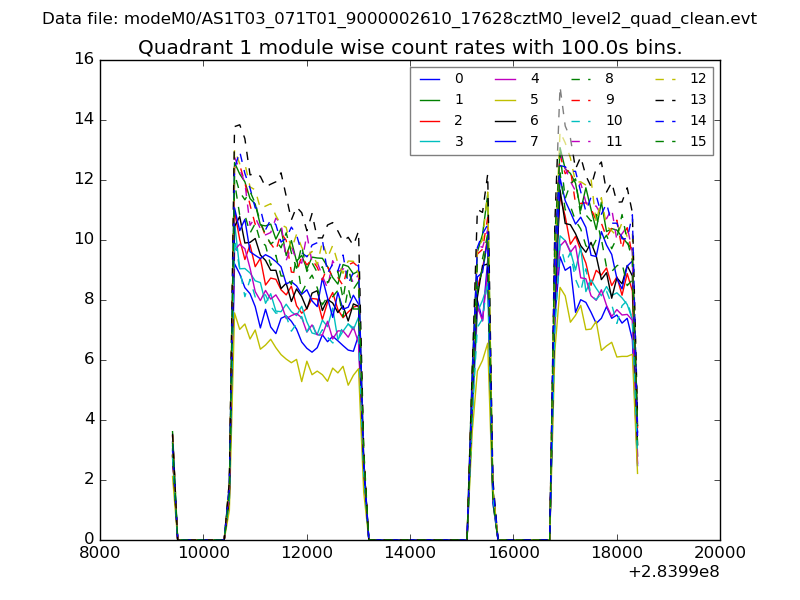

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

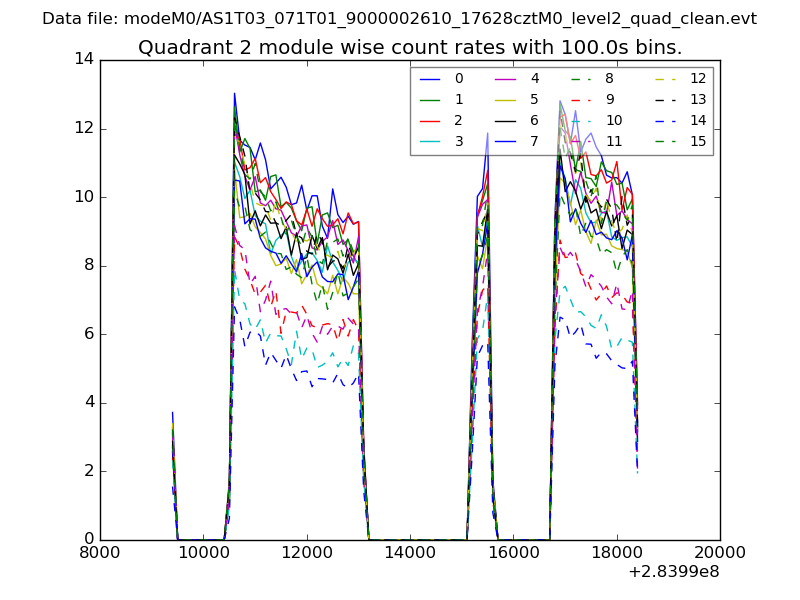

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

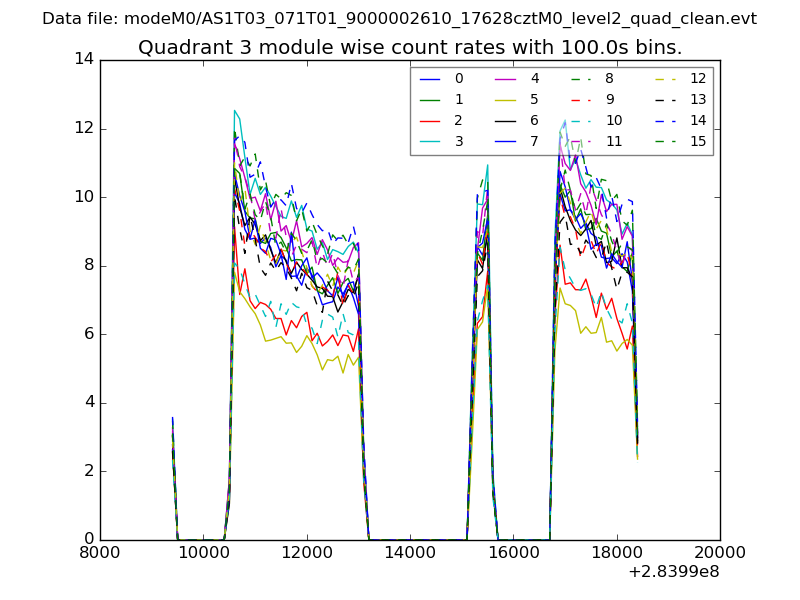

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

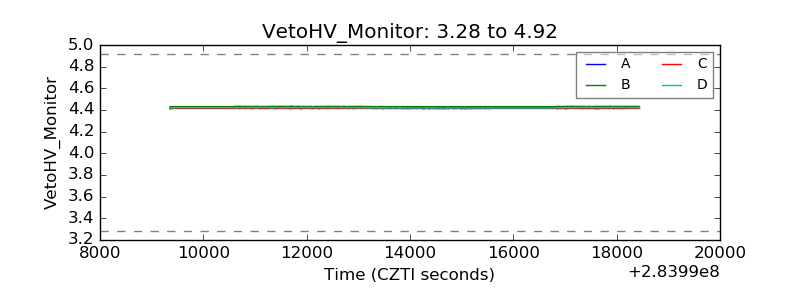

| CZT HV Monitor |  |

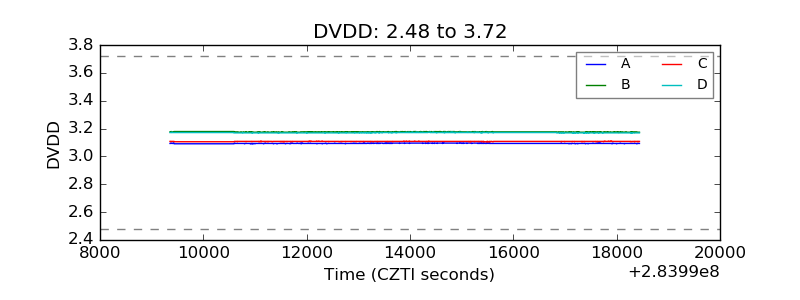

| D_VDD |  |

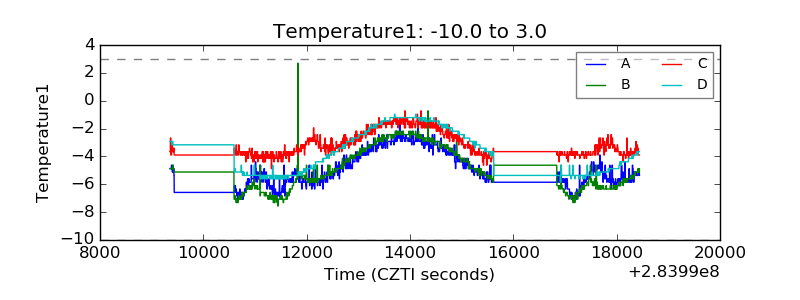

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

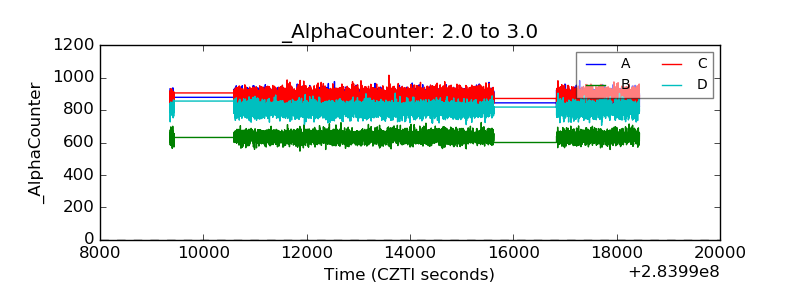

| Alpha Counter |  |

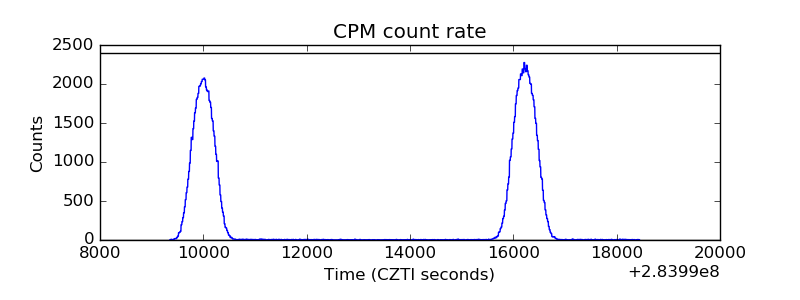

| _CPM_Rate |  |

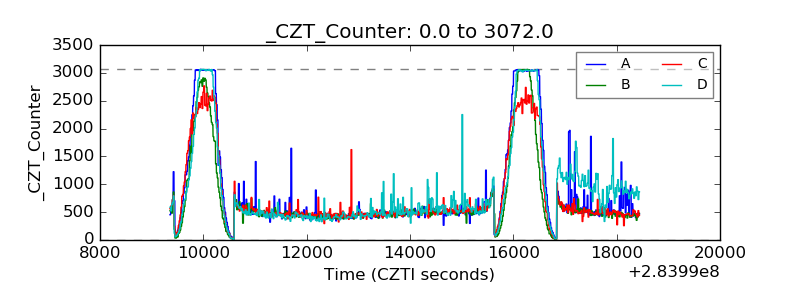

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

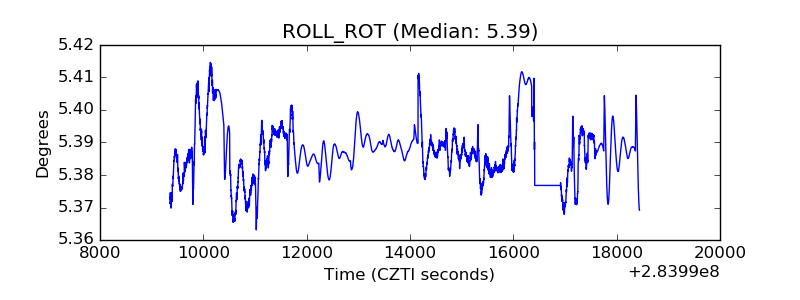

| _ROLL_ROT |  |

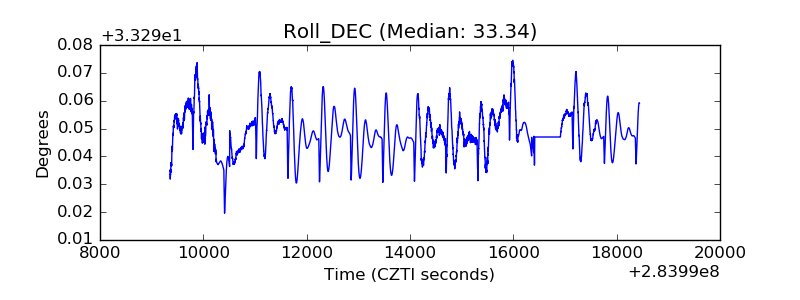

| _Roll_DEC |  |
| _Roll_RA |  |

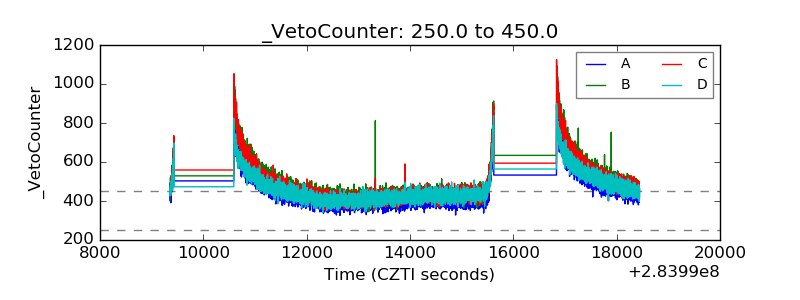

| Veto Counter |  |
