| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_071T01_9000002610_17631cztM0_level2.evt | modeM0/AS1T03_071T01_9000002610_17631cztM0_level2_quad_clean.evt |
| Size (bytes) | 282,648,960 | 45,743,040 |
| Size | 269.6 MB | 43.6 MB |
| Events in quadrant A | 2,141,632 | 282,836 |
| Events in quadrant B | 2,018,451 | 283,321 |
| Events in quadrant C | 2,171,611 | 266,830 |
| Events in quadrant D | 1,954,794 | 269,159 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8699 | 1 |
| B | 0 | 8330 | 1 |
| C | 0 | 8757 | 1 |
| D | 0 | 8335 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4005 | 46 | 1.148564% |
| B | 4005 | 30 | 0.749064% |
| C | 4005 | 29 | 0.724095% |
| D | 4005 | 17 | 0.424469% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

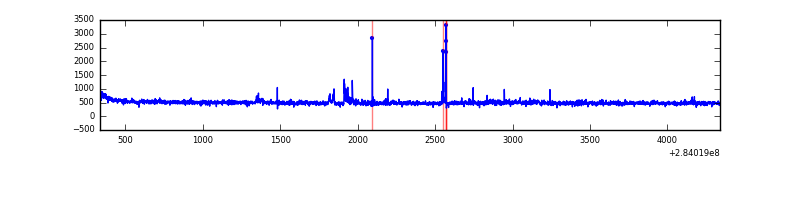

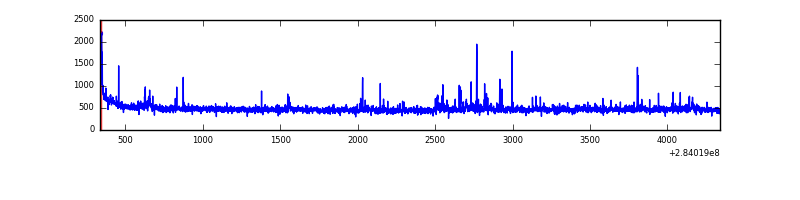

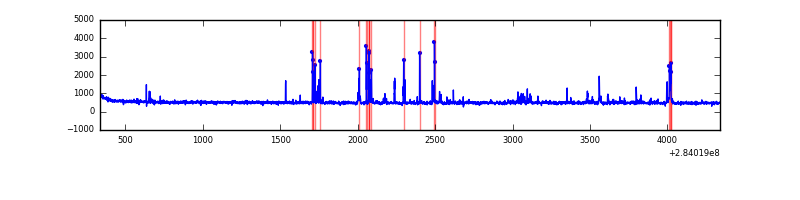

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4005 | 4005 | 20 | 20 | 0.50% | 0.50% |  |
| B | 4005 | 4005 | 5 | 5 | 0.12% | 0.12% |  |
| C | 4005 | 4005 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4005 | 4005 | 2 | 2 | 0.05% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 180963 | 1772.15 | 508 | 499 | 101.8 |
| A | 15 | 174 | 7310 | 66.88 | 508 | 499 | 101.8 |
| A | 0 | 226 | 4655 | 40.81 | 508 | 499 | 101.8 |
| B | 0 | 230 | 21026 | 218.17 | 497 | 486 | 94.1 |
| B | 4 | 142 | 20315 | 210.62 | 497 | 486 | 94.1 |
| B | 12 | 111 | 10631 | 107.76 | 497 | 486 | 94.1 |
| C | 3 | 233 | 197378 | 1787.25 | 475 | 478 | 110.2 |
| C | 14 | 238 | 74654 | 673.29 | 475 | 478 | 110.2 |
| C | 0 | 207 | 25399 | 226.21 | 475 | 478 | 110.2 |
| D | 1 | 52 | 36976 | 302.56 | 490 | 477 | 120.6 |
| D | 13 | 189 | 35443 | 289.85 | 490 | 477 | 120.6 |
| D | 10 | 70 | 17395 | 140.24 | 490 | 477 | 120.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

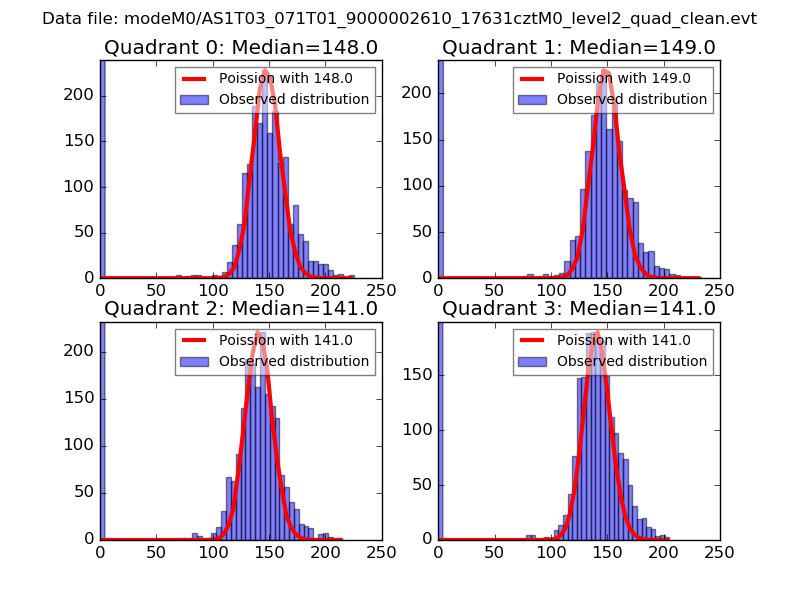

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

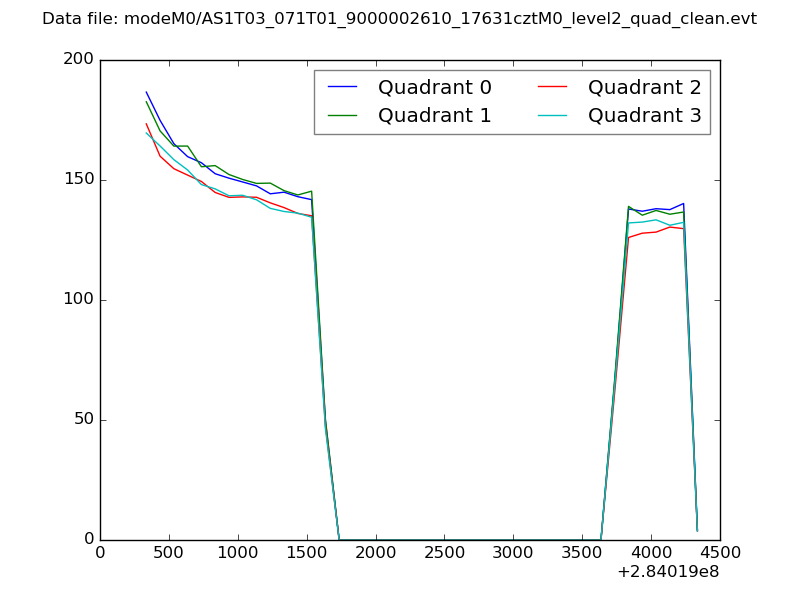

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

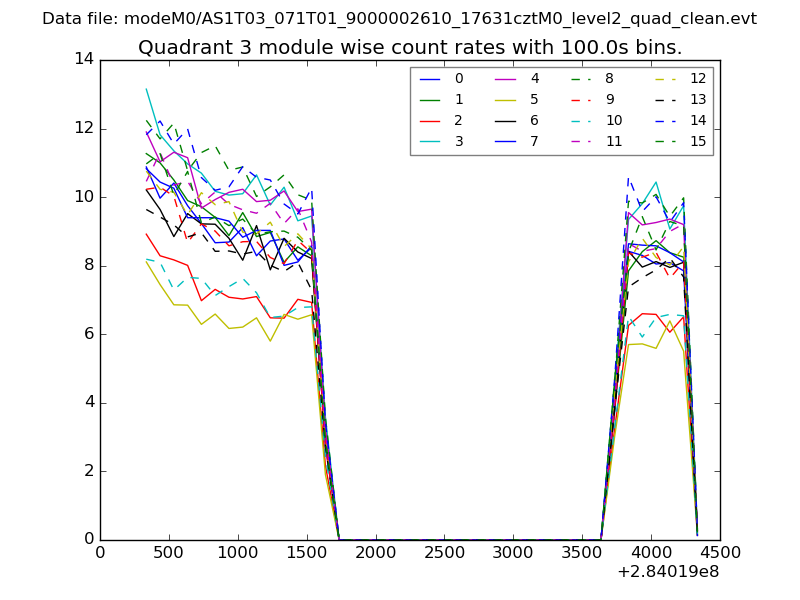

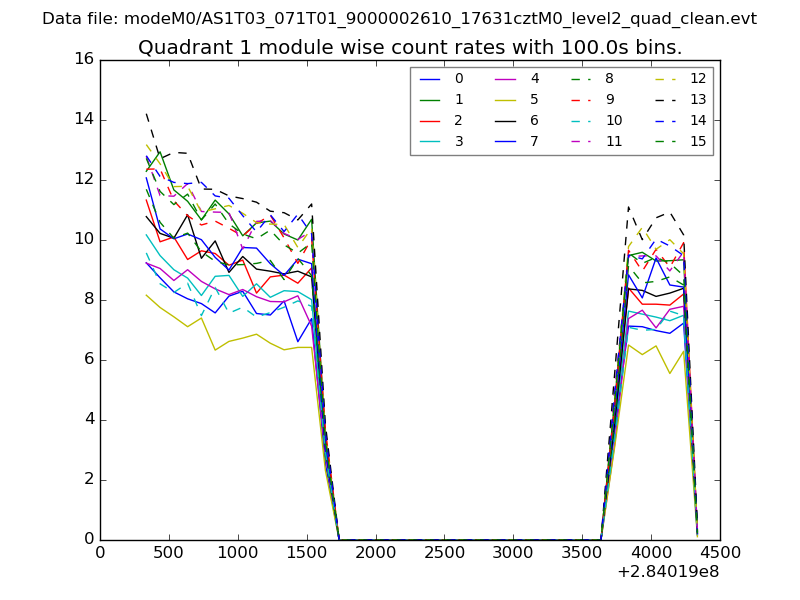

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

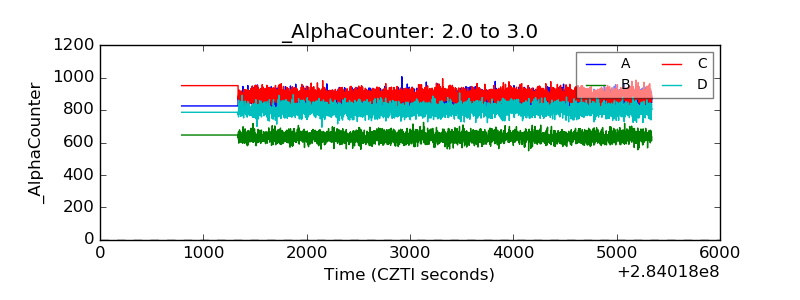

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
