| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_118T02_9000002612_17633cztM0_level2.evt | modeM0/AS1A05_118T02_9000002612_17633cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,115,840 | 82,368,000 |
| Size | 479.8 MB | 78.6 MB |
| Events in quadrant A | 3,824,357 | 504,288 |
| Events in quadrant B | 3,595,869 | 516,131 |
| Events in quadrant C | 3,687,689 | 493,717 |
| Events in quadrant D | 3,649,320 | 487,813 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15871 | 3 |
| B | 0 | 15073 | 2 |
| C | 0 | 15116 | 2 |
| D | 0 | 15588 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7059 | 200 | 2.833263% |
| B | 7059 | 155 | 2.195778% |
| C | 7059 | 178 | 2.521604% |
| D | 7059 | 163 | 2.309109% |

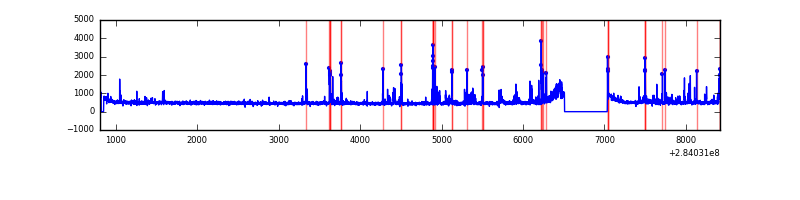

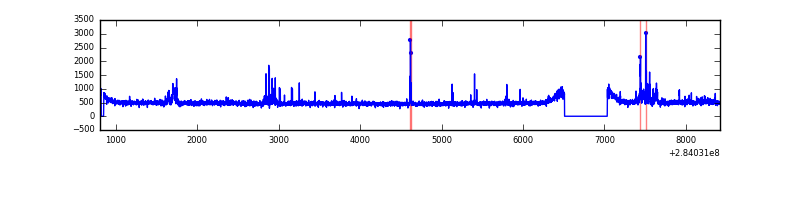

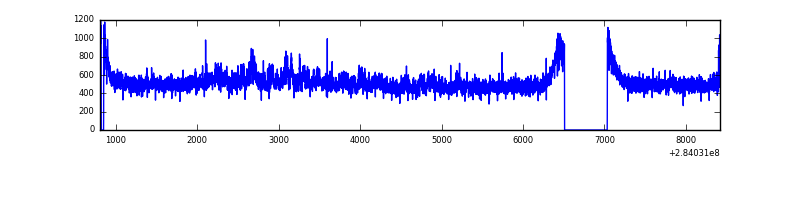

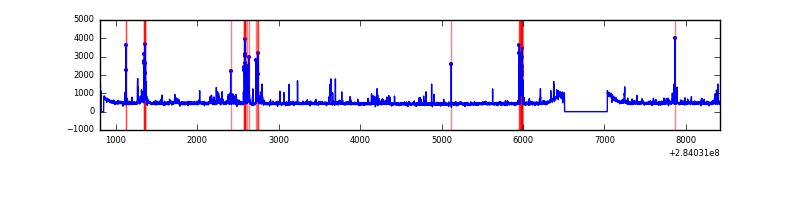

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7614 | 7060 | 39 | 39 | 0.51% | 0.55% |  |
| B | 7614 | 7060 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7614 | 7061 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7614 | 7061 | 43 | 43 | 0.56% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 395930 | 2220.33 | 872 | 853 | 177.9 |
| A | 15 | 174 | 71889 | 399.22 | 872 | 853 | 177.9 |
| A | 0 | 8 | 7749 | 38.76 | 872 | 853 | 177.9 |
| B | 0 | 230 | 83683 | 493.82 | 870 | 847 | 167.7 |
| B | 7 | 220 | 29559 | 171.17 | 870 | 847 | 167.7 |
| B | 12 | 111 | 20061 | 114.54 | 870 | 847 | 167.7 |
| C | 3 | 233 | 289193 | 1479.2 | 832 | 836 | 194.9 |
| C | 14 | 238 | 126908 | 646.72 | 832 | 836 | 194.9 |
| C | 5 | 218 | 21681 | 106.93 | 832 | 836 | 194.9 |
| D | 13 | 189 | 236327 | 1128.7 | 852 | 826 | 208.6 |
| D | 9 | 85 | 58616 | 276.97 | 852 | 826 | 208.6 |
| D | 10 | 70 | 37017 | 173.45 | 852 | 826 | 208.6 |

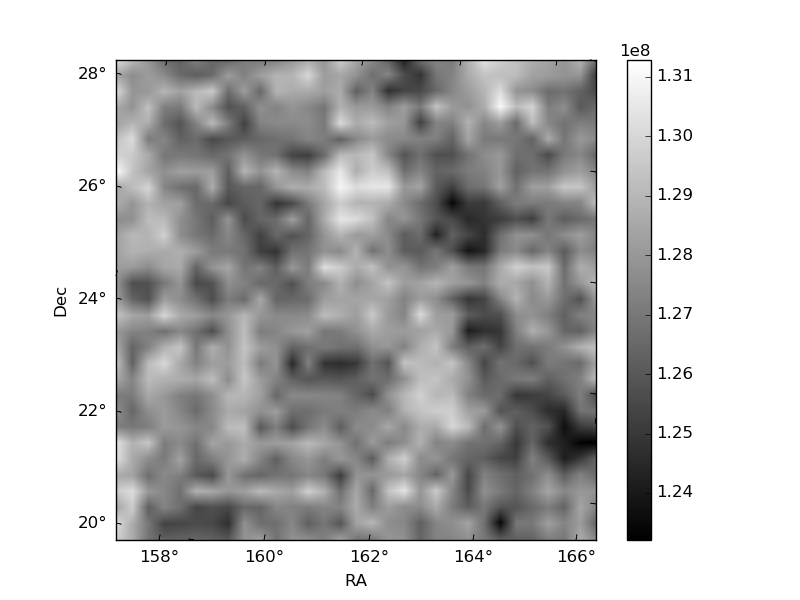

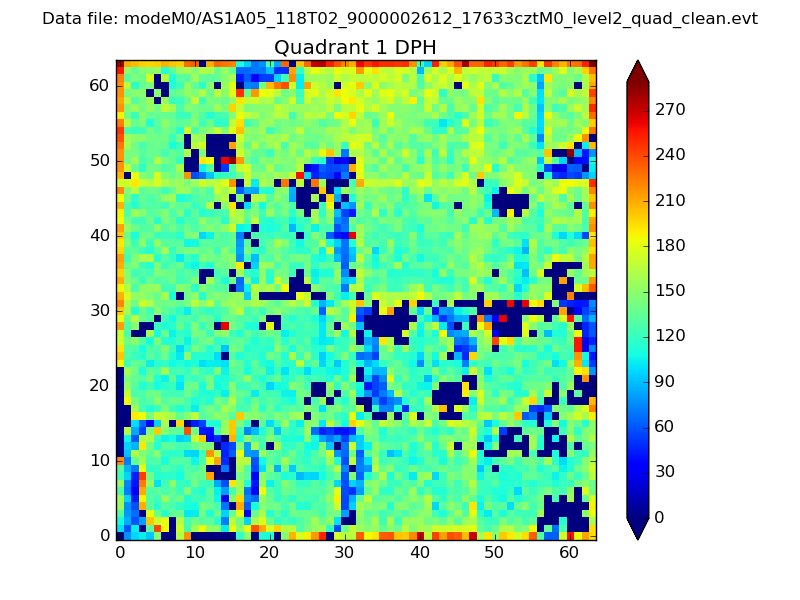

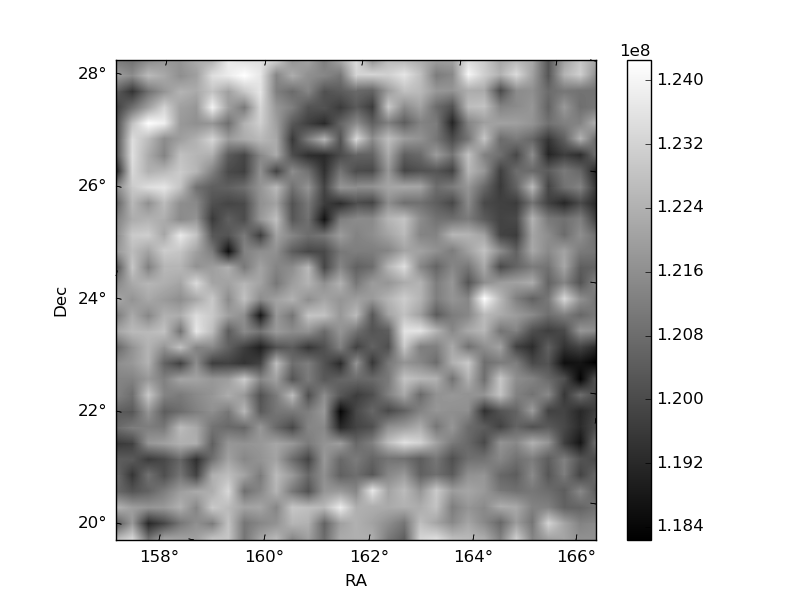

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

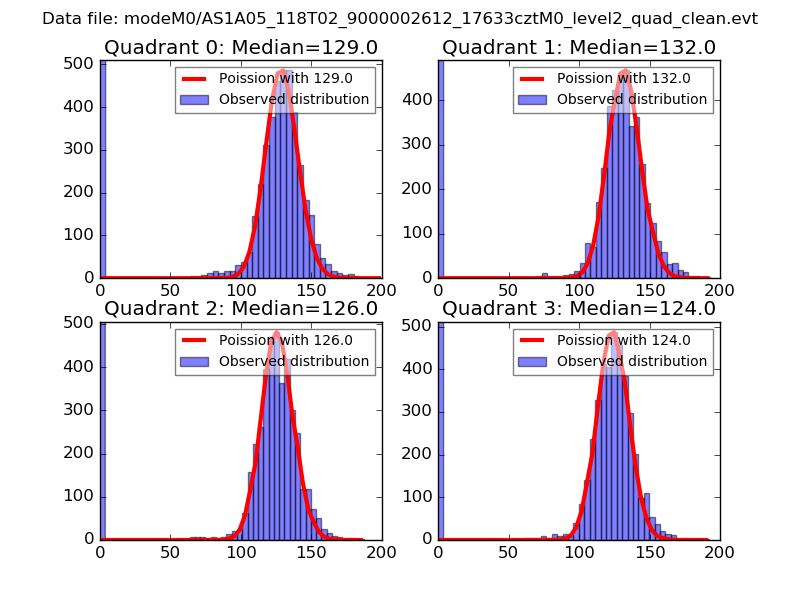

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

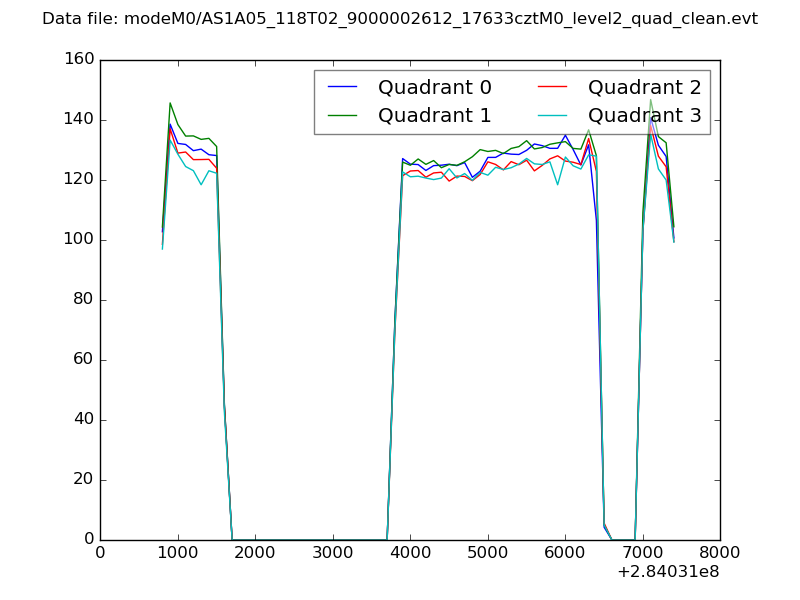

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

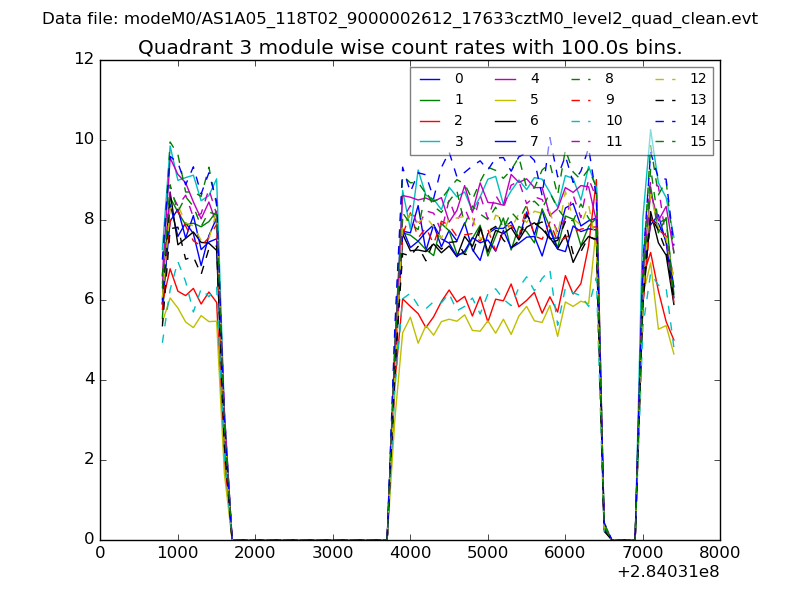

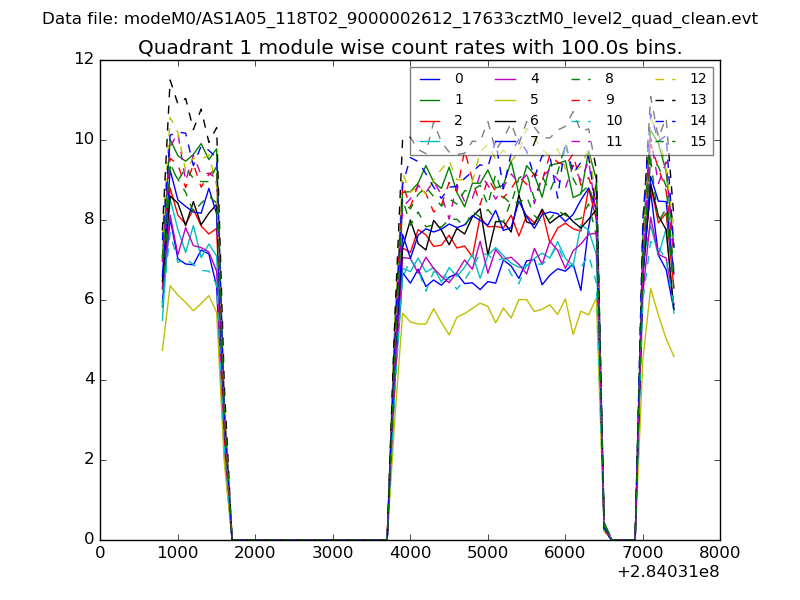

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

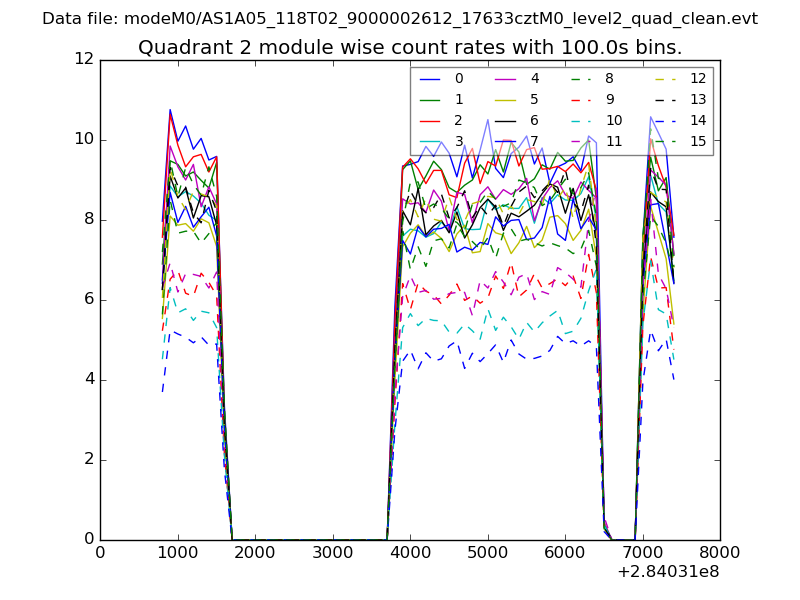

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

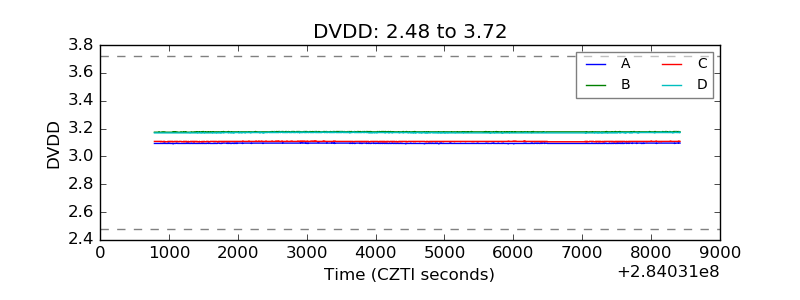

| D_VDD |  |

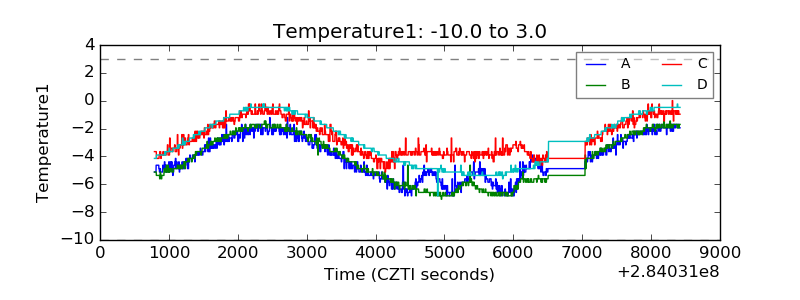

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

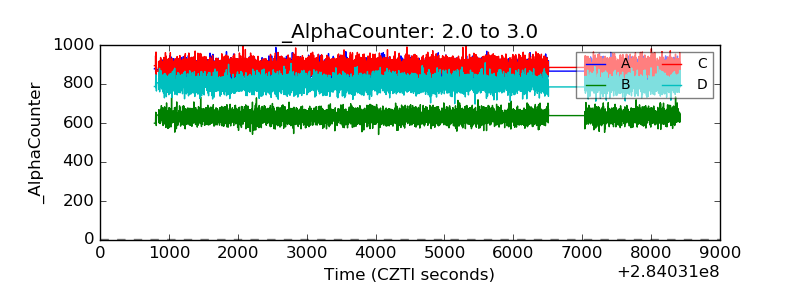

| Alpha Counter |  |
| _CPM_Rate |  |

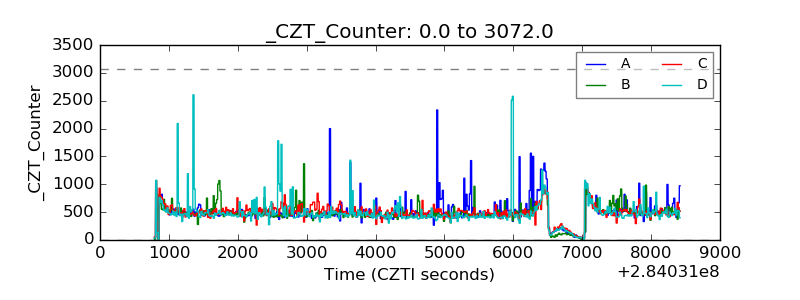

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

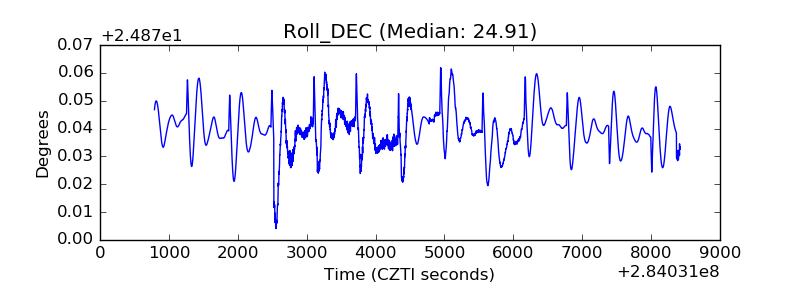

| _Roll_DEC |  |

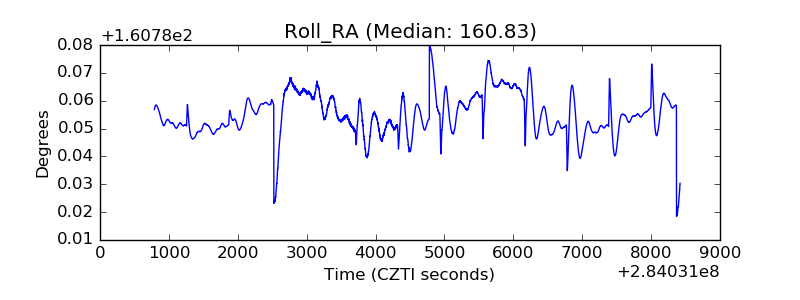

| _Roll_RA |  |
| Veto Counter |  |
