| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_118T02_9000002612_17639cztM0_level2.evt | modeM0/AS1A05_118T02_9000002612_17639cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,385,982,720 | 253,955,520 |
| Size | 1.3 GB | 242.2 MB |
| Events in quadrant A | 8,912,090 | 1,622,534 |
| Events in quadrant B | 9,425,668 | 1,643,832 |
| Events in quadrant C | 9,217,007 | 1,580,458 |
| Events in quadrant D | 13,123,666 | 1,523,514 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 390 | 0 |
| B | 0 | 390 | 0 |
| C | 0 | 390 | 0 |
| D | 0 | 390 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39317 | 4 |
| B | 0 | 40642 | 4 |
| C | 0 | 39662 | 4 |
| D | 0 | 52308 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19189 | 110 | 0.573245% |
| B | 19190 | 212 | 1.104742% |
| C | 19190 | 257 | 1.339239% |
| D | 19190 | 732 | 3.814487% |

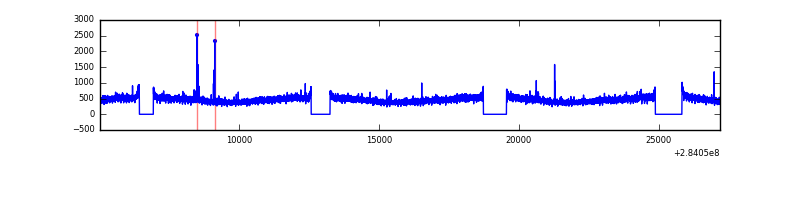

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22139 | 19193 | 2 | 2 | 0.01% | 0.01% |  |
| B | 22140 | 19194 | 30 | 30 | 0.14% | 0.16% |  |
| C | 22140 | 19192 | 0 | 0 | 0.00% | 0.00% |  |
| D | 22140 | 19192 | 469 | 469 | 2.12% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 42015 | 85.61 | 2301 | 2250 | 464.5 |
| A | 0 | 226 | 20122 | 38.48 | 2301 | 2250 | 464.5 |
| A | 3 | 137 | 17732 | 33.33 | 2301 | 2250 | 464.5 |
| B | 10 | 246 | 238336 | 539.45 | 2287 | 2226 | 437.7 |
| B | 0 | 230 | 136219 | 306.14 | 2287 | 2226 | 437.7 |
| B | 12 | 111 | 53885 | 118.03 | 2287 | 2226 | 437.7 |
| C | 14 | 238 | 337353 | 651.13 | 2198 | 2208 | 514.7 |
| C | 3 | 233 | 287796 | 554.85 | 2198 | 2208 | 514.7 |
| C | 5 | 218 | 29994 | 53.98 | 2198 | 2208 | 514.7 |
| D | 1 | 52 | 4155408 | 7768.46 | 2199 | 2136 | 534.6 |
| D | 13 | 189 | 336915 | 626.18 | 2199 | 2136 | 534.6 |
| D | 2 | 69 | 163251 | 301.36 | 2199 | 2136 | 534.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

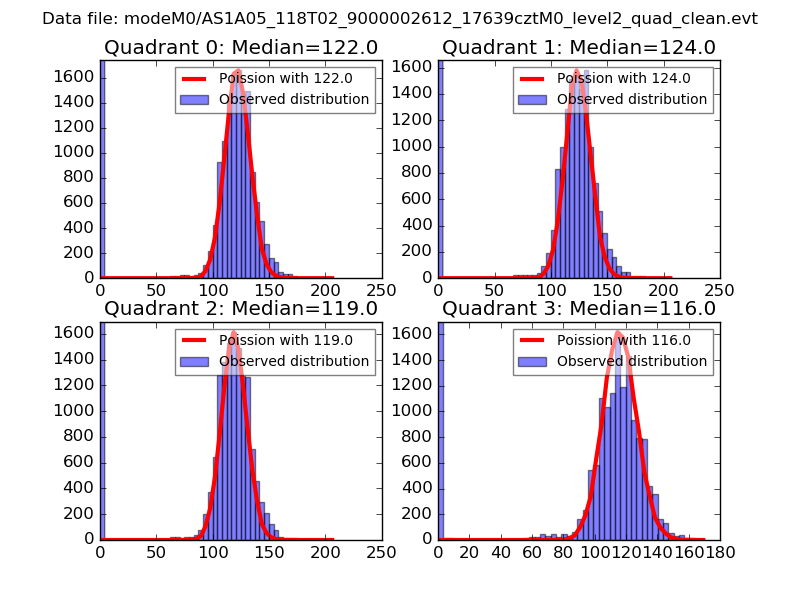

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

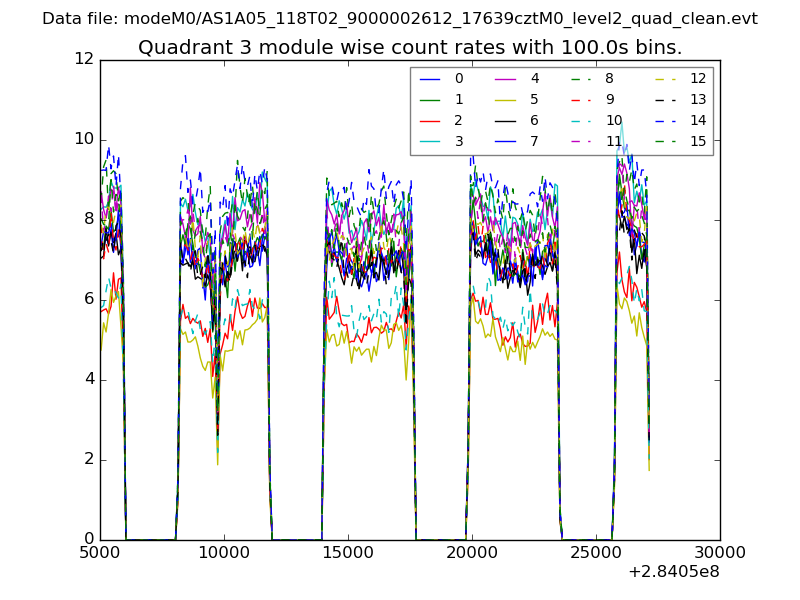

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

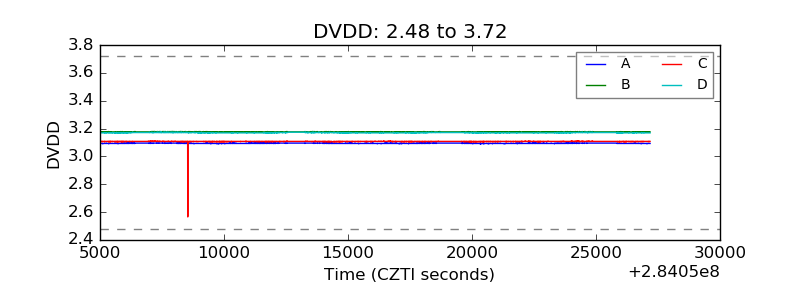

| D_VDD |  |

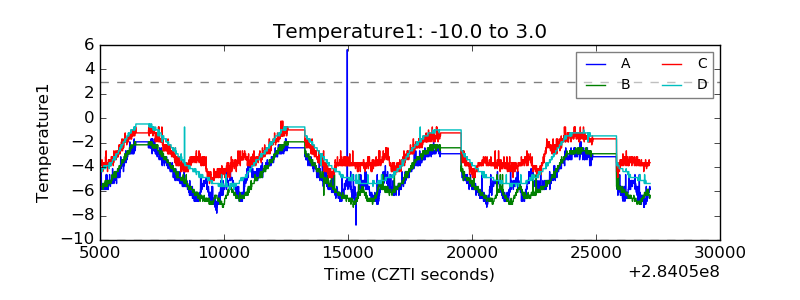

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

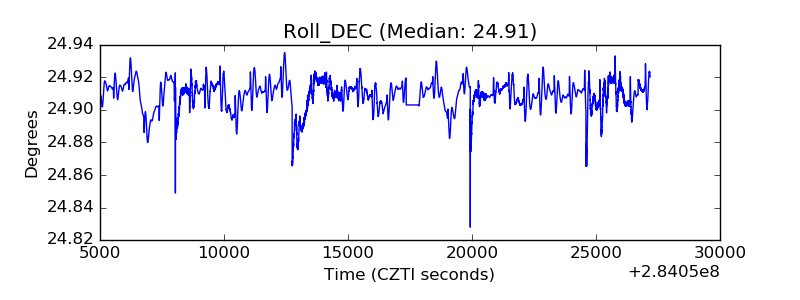

| _Roll_DEC |  |

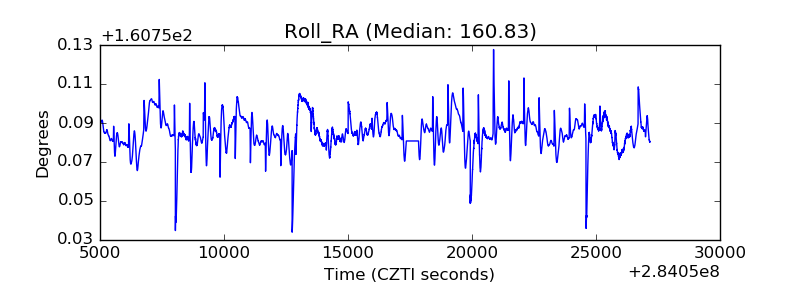

| _Roll_RA |  |

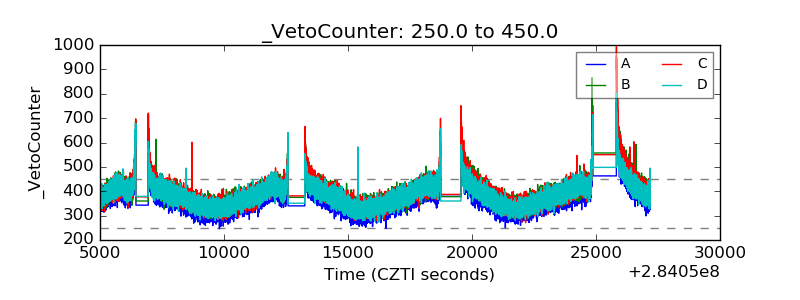

| Veto Counter |  |
