| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_118T02_9000002612_17644cztM0_level2.evt | modeM0/AS1A05_118T02_9000002612_17644cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,380,800 | 96,632,640 |
| Size | 480.1 MB | 92.2 MB |
| Events in quadrant A | 3,205,156 | 635,535 |
| Events in quadrant B | 3,369,159 | 647,821 |
| Events in quadrant C | 3,343,411 | 612,033 |
| Events in quadrant D | 4,891,893 | 583,153 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13302 | 2 |
| B | 0 | 13836 | 2 |
| C | 0 | 13556 | 2 |
| D | 0 | 18794 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6422 | 38 | 0.591716% |
| B | 6422 | 54 | 0.840860% |
| C | 6422 | 75 | 1.167860% |
| D | 6422 | 178 | 2.771722% |

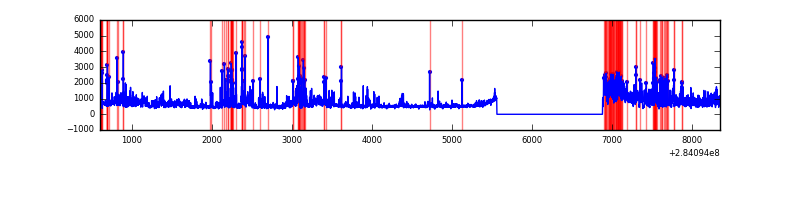

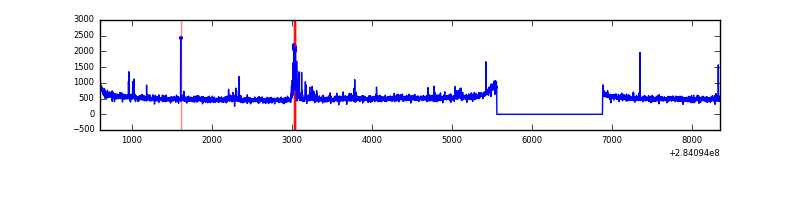

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7742 | 6423 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7742 | 6423 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7742 | 6423 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7742 | 6423 | 160 | 160 | 2.07% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7373 | 39.23 | 833 | 817 | 167.1 |
| A | 12 | 194 | 6060 | 31.37 | 833 | 817 | 167.1 |
| A | 3 | 137 | 5833 | 30.01 | 833 | 817 | 167.1 |
| B | 0 | 230 | 92910 | 592.45 | 828 | 812 | 155.5 |
| B | 10 | 245 | 26312 | 164.04 | 828 | 812 | 155.5 |
| B | 12 | 111 | 18282 | 112.38 | 828 | 812 | 155.5 |
| C | 14 | 238 | 126103 | 683.72 | 791 | 797 | 183.3 |
| C | 3 | 233 | 109134 | 591.13 | 791 | 797 | 183.3 |
| C | 5 | 218 | 24203 | 127.71 | 791 | 797 | 183.3 |
| D | 1 | 52 | 1473243 | 7585.88 | 797 | 774 | 194.1 |
| D | 13 | 189 | 358687 | 1843.9 | 797 | 774 | 194.1 |
| D | 2 | 234 | 22420 | 111.52 | 797 | 774 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

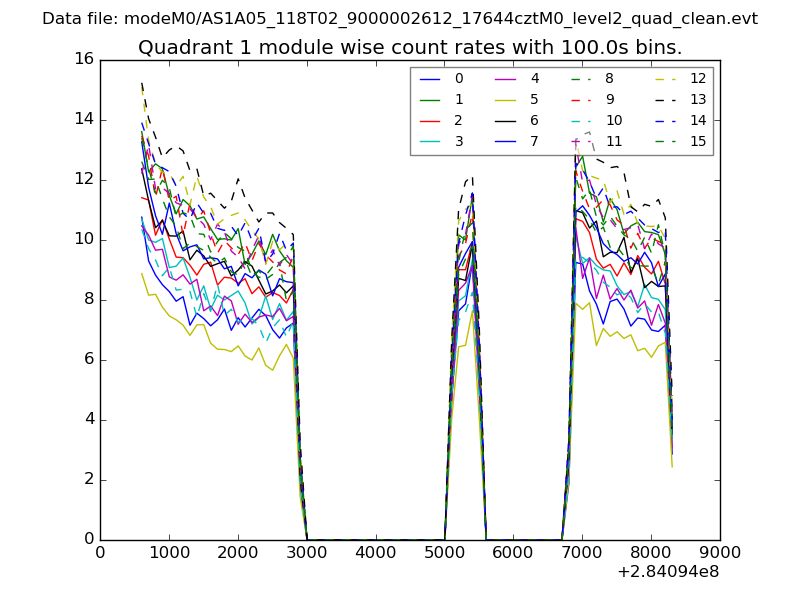

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

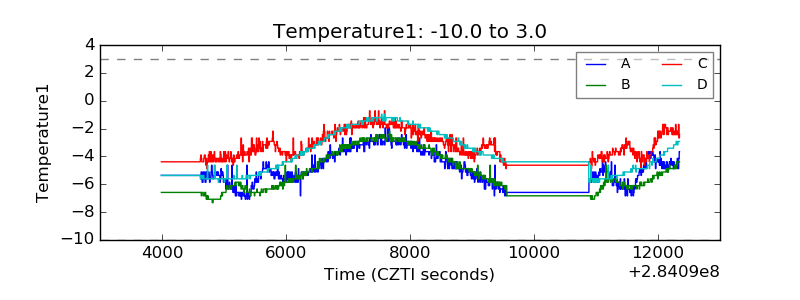

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

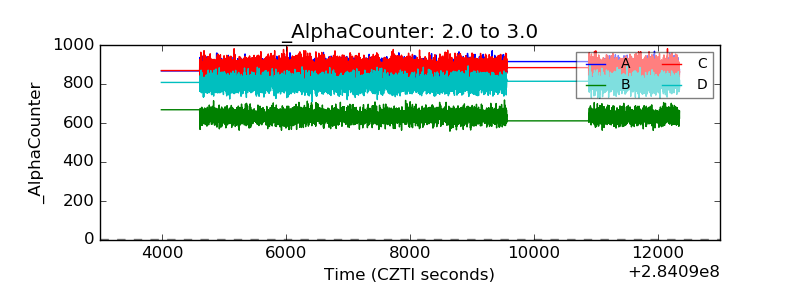

| Alpha Counter |  |

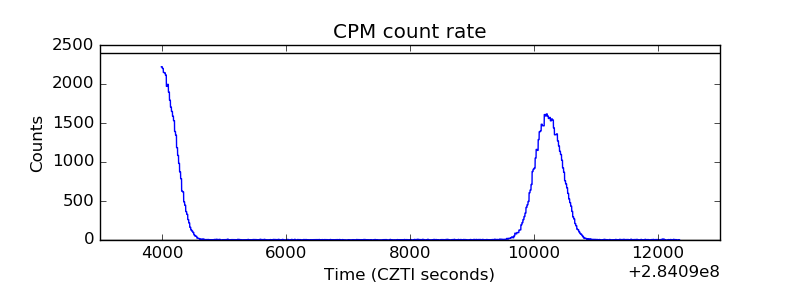

| _CPM_Rate |  |
| CZT Counter |  |

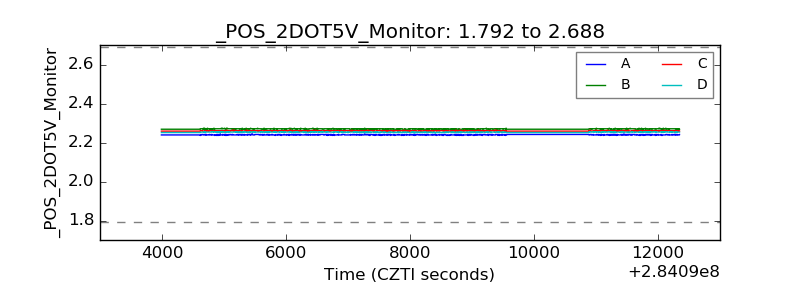

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

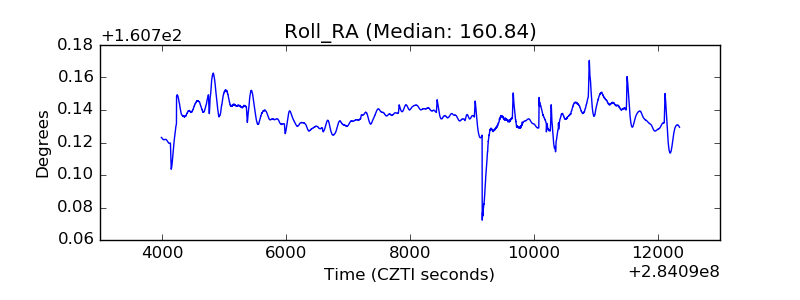

| _Roll_RA |  |
| Veto Counter |  |
