| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_118T02_9000002612_17646cztM0_level2.evt | modeM0/AS1A05_118T02_9000002612_17646cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,612,160 | 85,426,560 |
| Size | 551.8 MB | 81.5 MB |
| Events in quadrant A | 3,195,483 | 565,664 |
| Events in quadrant B | 3,322,931 | 575,785 |
| Events in quadrant C | 3,382,546 | 549,107 |
| Events in quadrant D | 7,176,602 | 437,617 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13489 | 2 |
| B | 0 | 13783 | 2 |
| C | 0 | 13643 | 2 |
| D | 0 | 25422 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6569 | 86 | 1.309179% |
| B | 6569 | 98 | 1.491856% |
| C | 6569 | 90 | 1.370072% |
| D | 6569 | 1657 | 25.224540% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7634 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7634 | 6570 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7634 | 6569 | 0 | 0 | 0.00% | 0.00% |  |

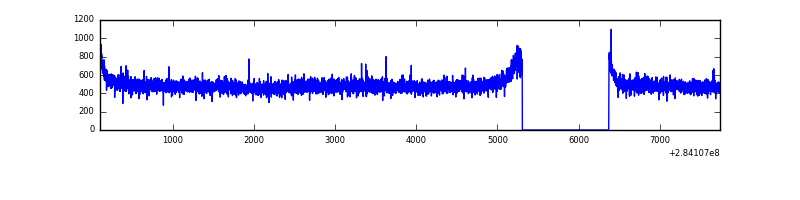

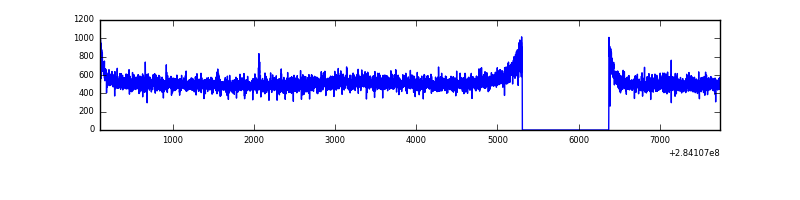

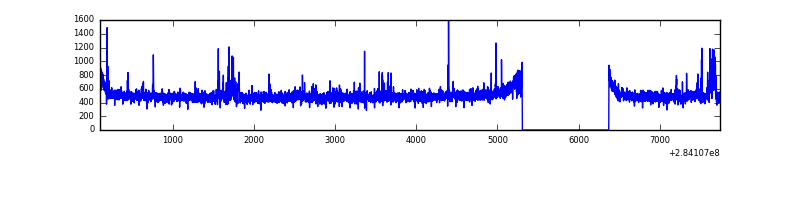

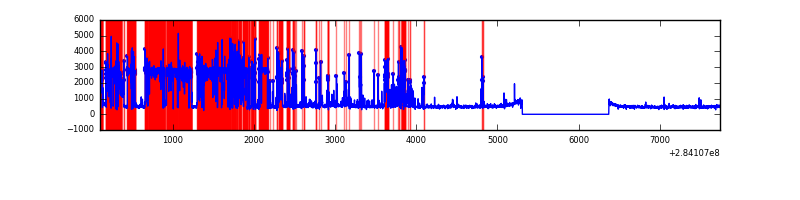

| D | 7634 | 6569 | 1474 | 1474 | 19.31% | 22.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7397 | 39.3 | 830 | 815 | 167.5 |
| A | 12 | 194 | 6044 | 31.22 | 830 | 815 | 167.5 |
| A | 3 | 137 | 6017 | 31.06 | 830 | 815 | 167.5 |
| B | 0 | 230 | 67730 | 425.59 | 820 | 801 | 157.3 |
| B | 12 | 111 | 18471 | 112.36 | 820 | 801 | 157.3 |
| B | 11 | 111 | 16139 | 97.53 | 820 | 801 | 157.3 |
| C | 3 | 233 | 165589 | 906.27 | 787 | 794 | 181.8 |
| C | 14 | 238 | 122635 | 670.05 | 787 | 794 | 181.8 |
| C | 8 | 128 | 11327 | 57.92 | 787 | 794 | 181.8 |
| D | 1 | 52 | 4271207 | 25299.5 | 690 | 670 | 168.8 |
| D | 13 | 189 | 183313 | 1082.01 | 690 | 670 | 168.8 |
| D | 10 | 70 | 83993 | 493.62 | 690 | 670 | 168.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

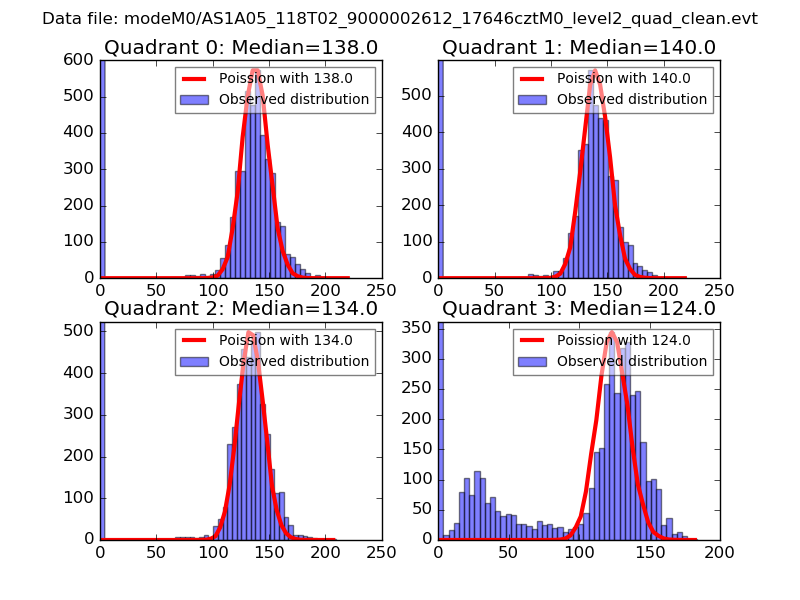

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

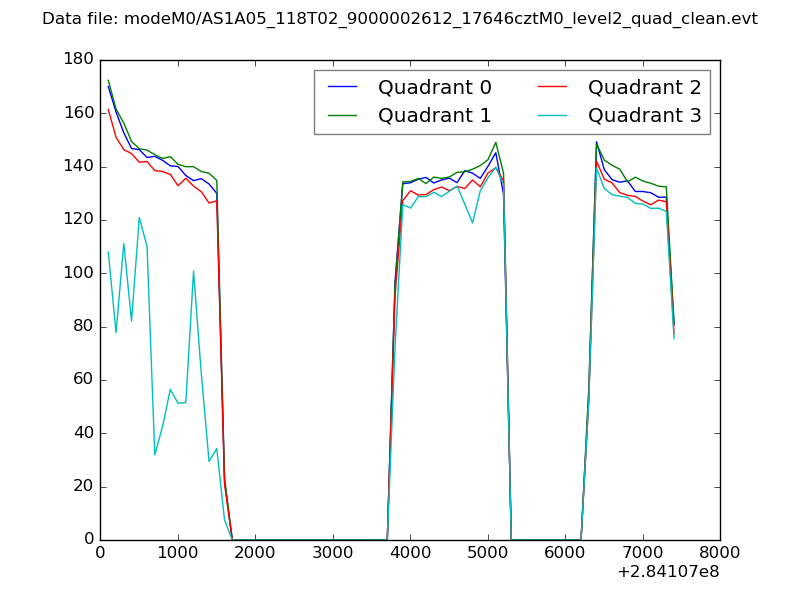

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

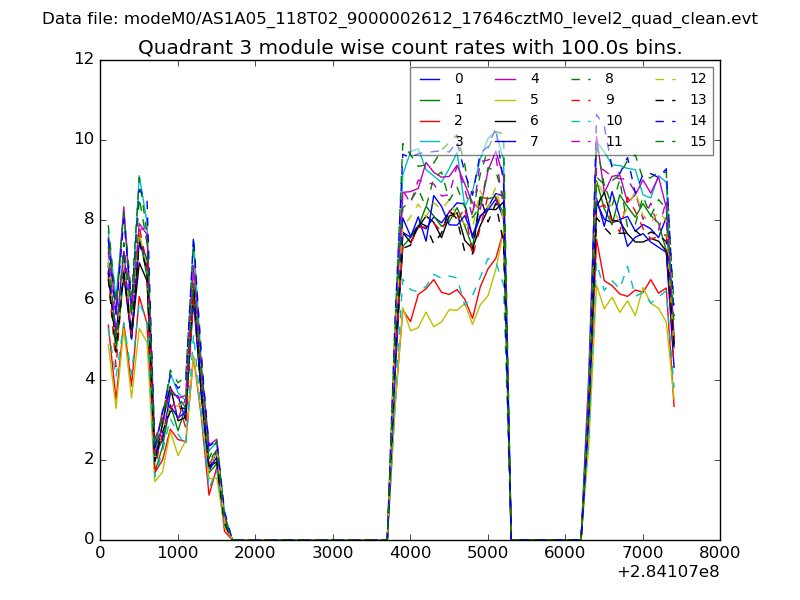

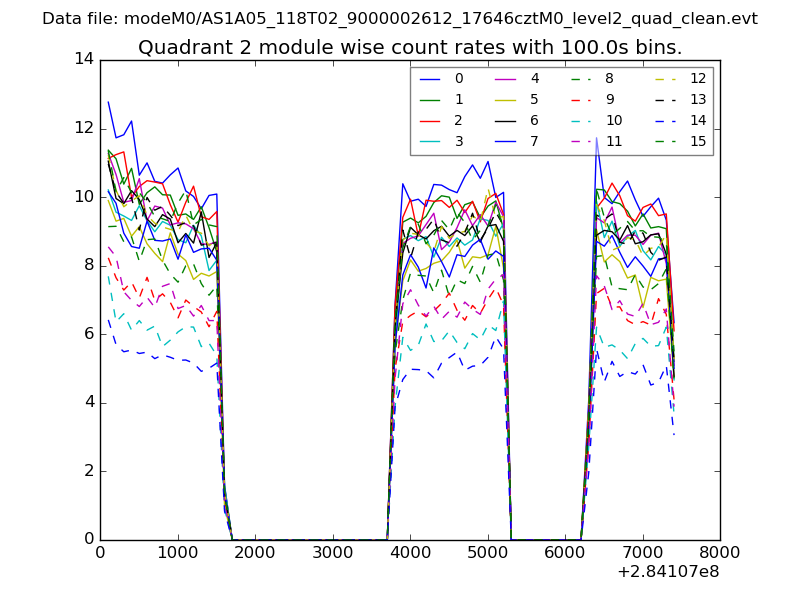

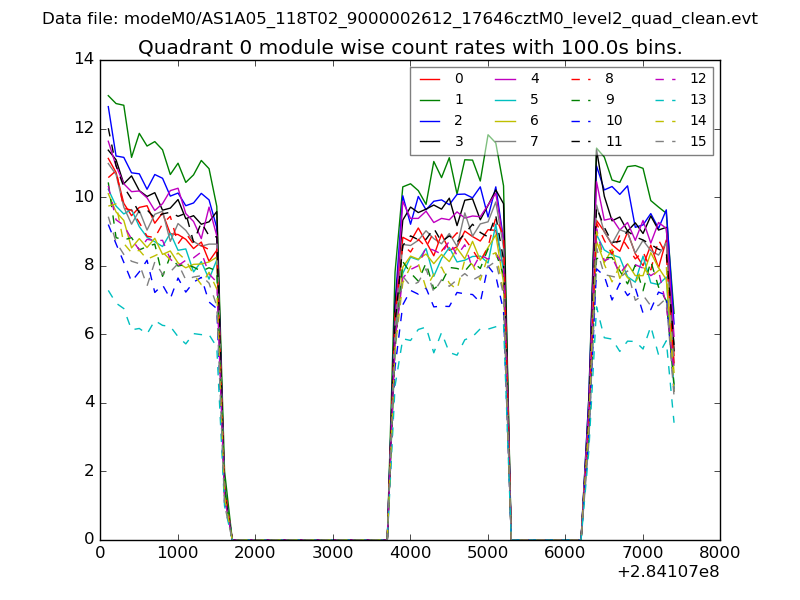

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

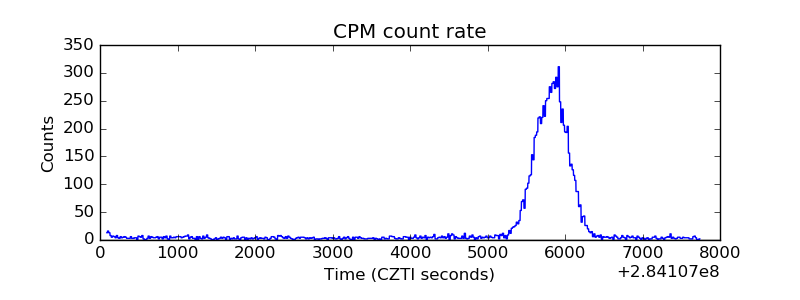

| _CPM_Rate |  |

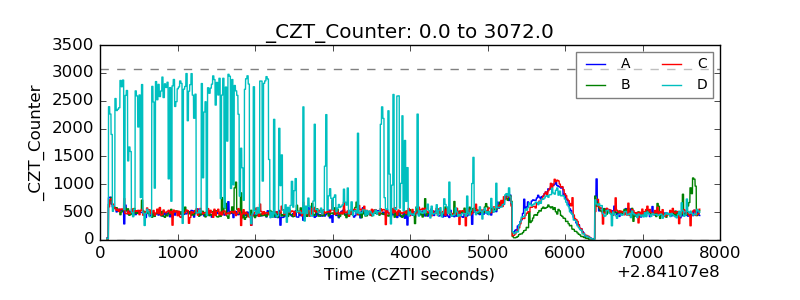

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

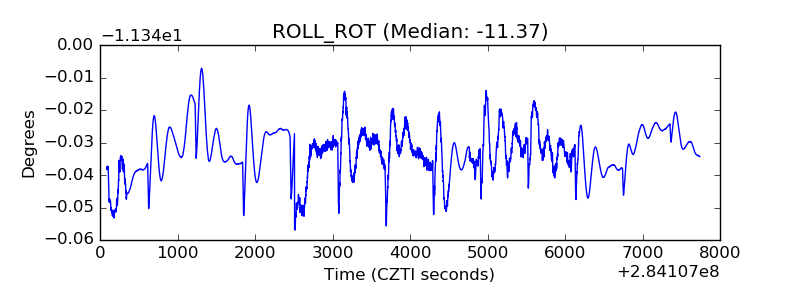

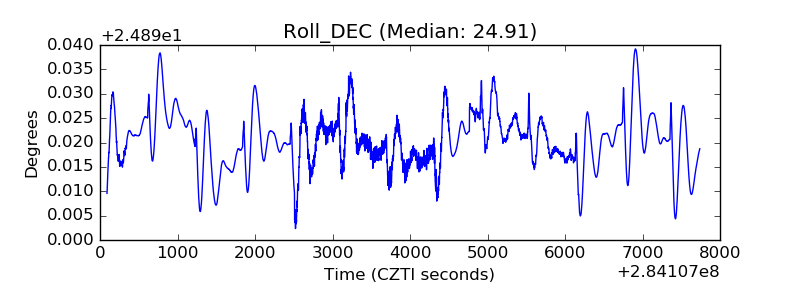

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

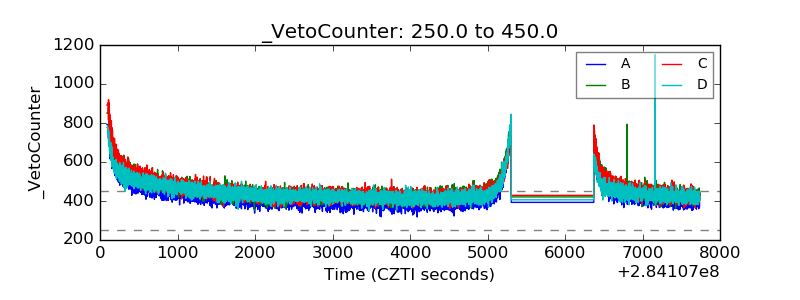

| Veto Counter |  |
