| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_050T01_9000002620_17686cztM0_level2.evt | modeM0/AS1T03_050T01_9000002620_17686cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,475,520 | 91,941,120 |
| Size | 424.8 MB | 87.7 MB |
| Events in quadrant A | 2,992,964 | 600,732 |
| Events in quadrant B | 3,711,034 | 600,870 |
| Events in quadrant C | 3,353,545 | 586,760 |
| Events in quadrant D | 3,020,680 | 571,516 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12777 | 1 |
| B | 0 | 15018 | 1 |
| C | 0 | 14054 | 1 |
| D | 0 | 12935 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6077 | 36 | 0.592398% |
| B | 6077 | 263 | 4.327793% |
| C | 6077 | 64 | 1.053151% |
| D | 6077 | 29 | 0.477209% |

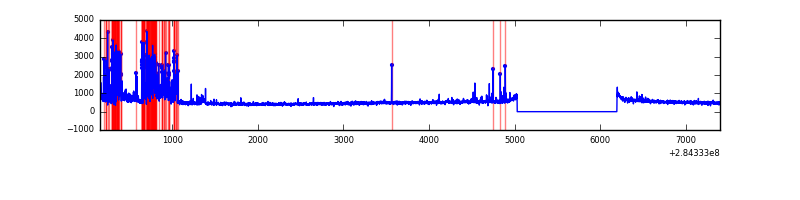

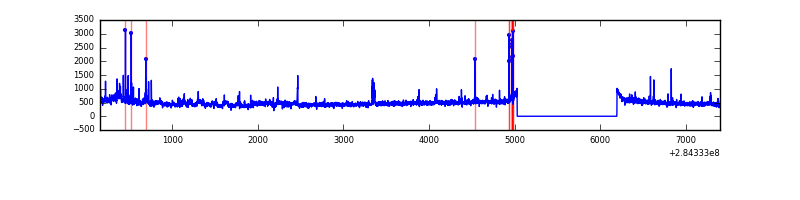

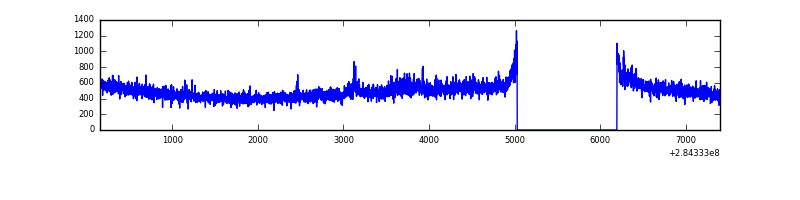

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7242 | 6078 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7242 | 6078 | 150 | 150 | 2.07% | 2.47% |  |
| C | 7242 | 6078 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7242 | 6078 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 108492 | 707.72 | 750 | 737 | 152.3 |
| A | 0 | 226 | 6548 | 38.17 | 750 | 737 | 152.3 |
| A | 12 | 194 | 5404 | 30.65 | 750 | 737 | 152.3 |
| B | 10 | 245 | 701058 | 4945.95 | 747 | 729 | 141.6 |
| B | 0 | 229 | 26250 | 180.23 | 747 | 729 | 141.6 |
| B | 12 | 111 | 16959 | 114.62 | 747 | 729 | 141.6 |
| C | 3 | 233 | 391110 | 2268.78 | 728 | 735 | 172.1 |
| C | 14 | 238 | 112705 | 650.75 | 728 | 735 | 172.1 |
| C | 5 | 218 | 10410 | 56.23 | 728 | 735 | 172.1 |
| D | 1 | 52 | 151742 | 844.77 | 729 | 711 | 178.8 |
| D | 7 | 38 | 34290 | 187.82 | 729 | 711 | 178.8 |
| D | 2 | 234 | 24985 | 135.77 | 729 | 711 | 178.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

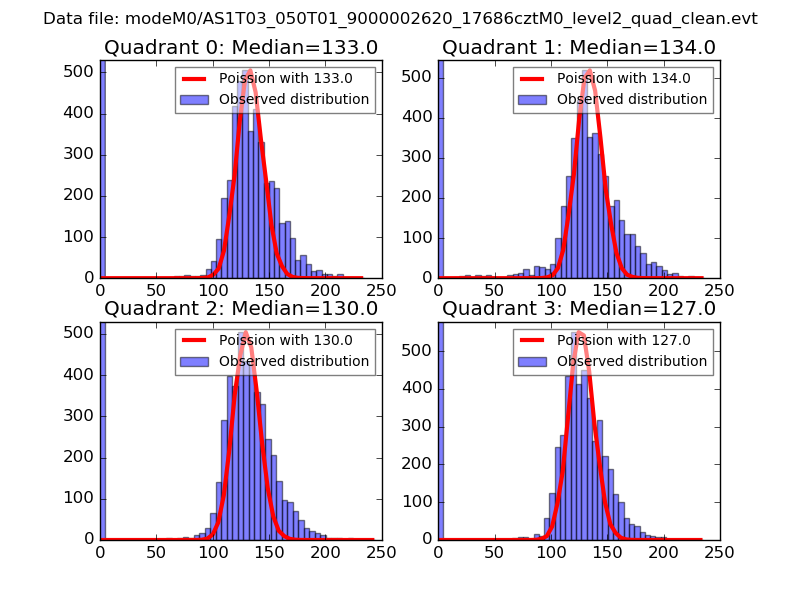

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

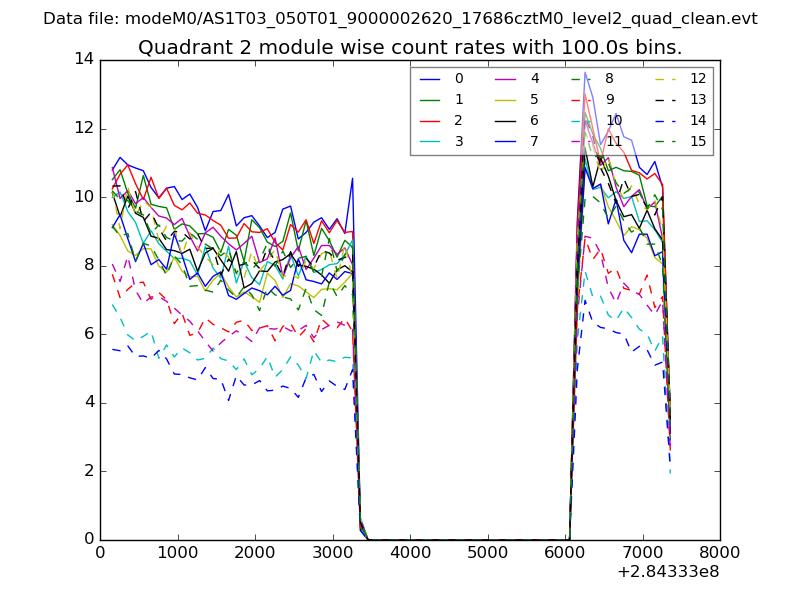

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

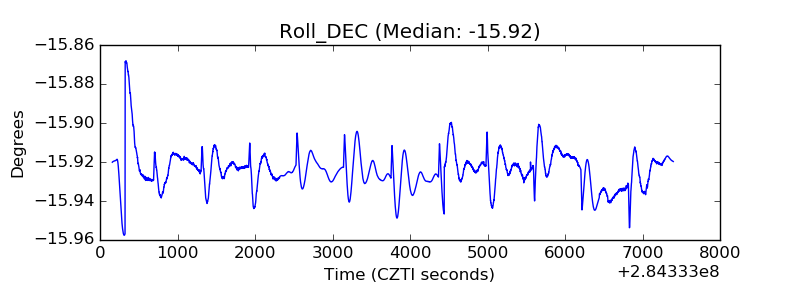

| _Roll_DEC |  |

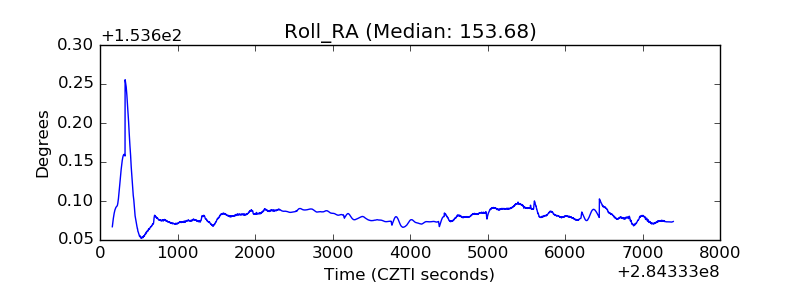

| _Roll_RA |  |

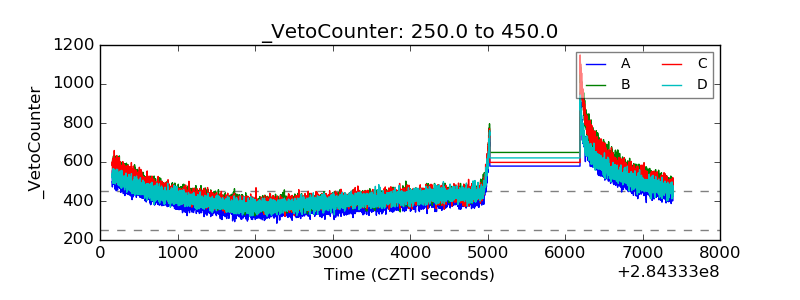

| Veto Counter |  |
