| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_052T01_9000002622_17686cztM0_level2.evt | modeM0/AS1T03_052T01_9000002622_17686cztM0_level2_quad_clean.evt |
| Size (bytes) | 315,967,680 | 65,914,560 |
| Size | 301.3 MB | 62.9 MB |
| Events in quadrant A | 2,289,099 | 423,069 |
| Events in quadrant B | 2,361,791 | 438,556 |
| Events in quadrant C | 2,358,478 | 415,719 |
| Events in quadrant D | 2,252,662 | 401,896 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9656 | 1 |
| B | 0 | 9834 | 2 |
| C | 0 | 9656 | 1 |
| D | 0 | 9755 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4503 | 22 | 0.488563% |
| B | 4502 | 50 | 1.110618% |
| C | 4502 | 67 | 1.488227% |
| D | 4502 | 39 | 0.866282% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

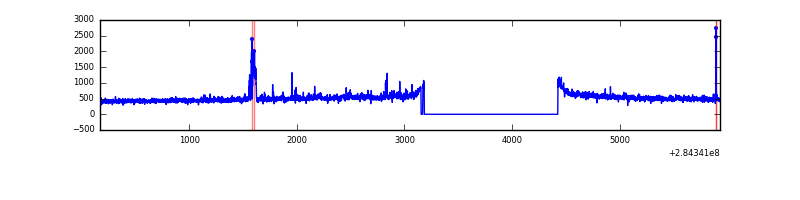

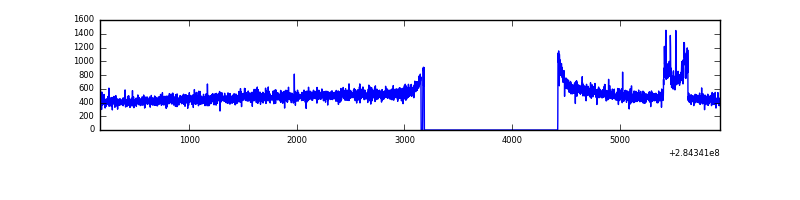

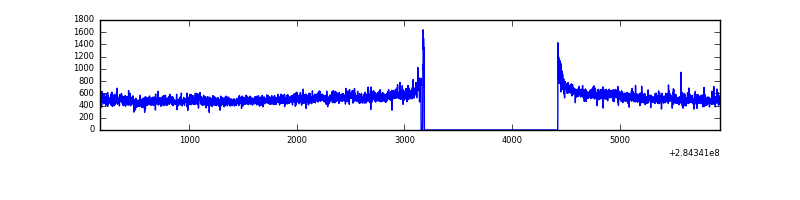

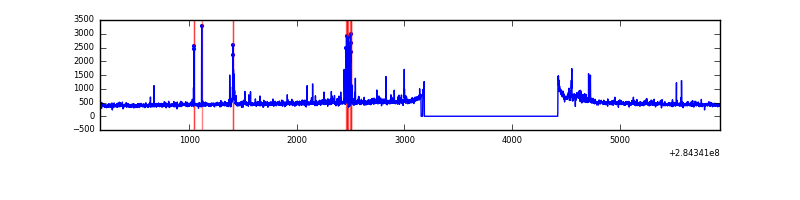

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5758 | 4505 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5757 | 4504 | 4 | 4 | 0.07% | 0.09% |  |
| C | 5757 | 4504 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5757 | 4504 | 15 | 15 | 0.26% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 31 | 91285 | 787.89 | 570 | 558 | 115.2 |
| A | 14 | 237 | 8642 | 70.2 | 570 | 558 | 115.2 |
| A | 0 | 226 | 4985 | 38.45 | 570 | 558 | 115.2 |
| B | 0 | 230 | 56931 | 516.38 | 572 | 558 | 109.2 |
| B | 0 | 198 | 16285 | 144.06 | 572 | 558 | 109.2 |
| B | 0 | 189 | 15404 | 135.99 | 572 | 558 | 109.2 |
| C | 3 | 233 | 141053 | 1108.33 | 545 | 549 | 126.8 |
| C | 14 | 238 | 85309 | 668.61 | 545 | 549 | 126.8 |
| C | 5 | 218 | 6267 | 45.11 | 545 | 549 | 126.8 |
| D | 10 | 70 | 50256 | 375.95 | 547 | 532 | 132.3 |
| D | 13 | 232 | 37110 | 276.56 | 547 | 532 | 132.3 |
| D | 2 | 152 | 32581 | 242.32 | 547 | 532 | 132.3 |

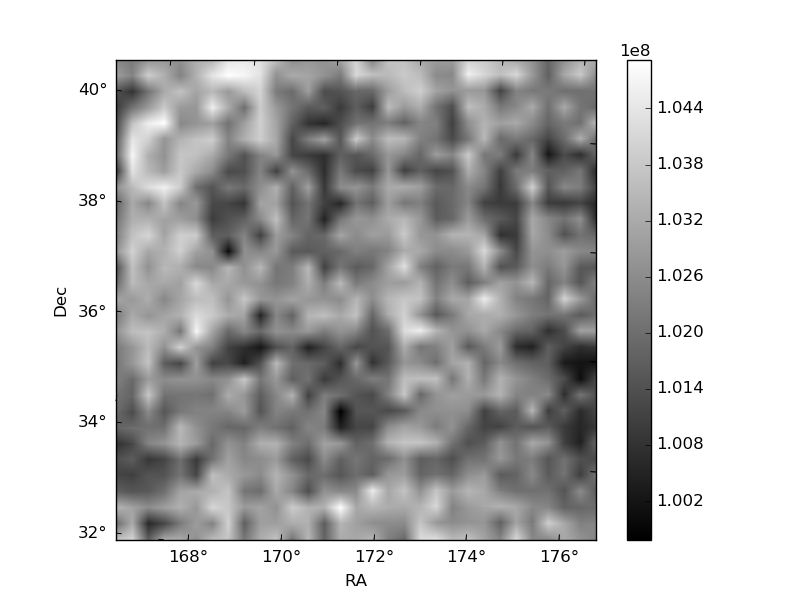

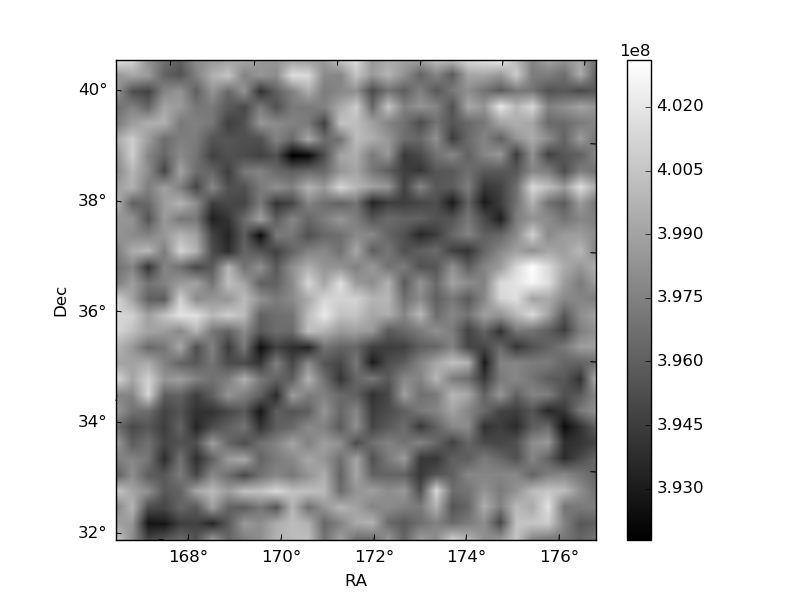

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

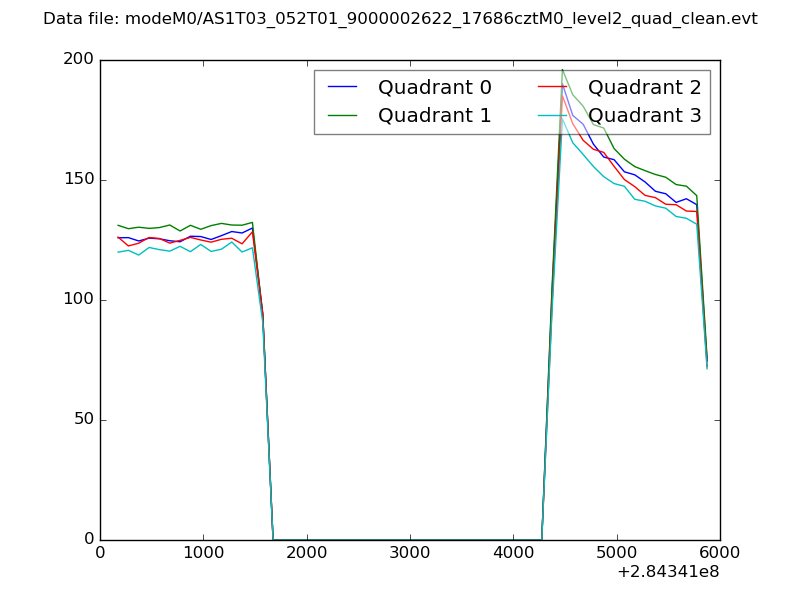

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

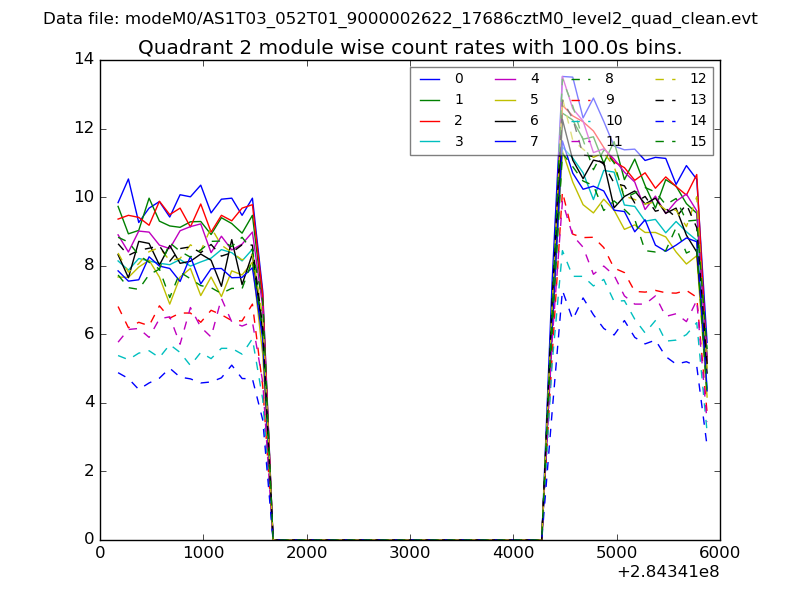

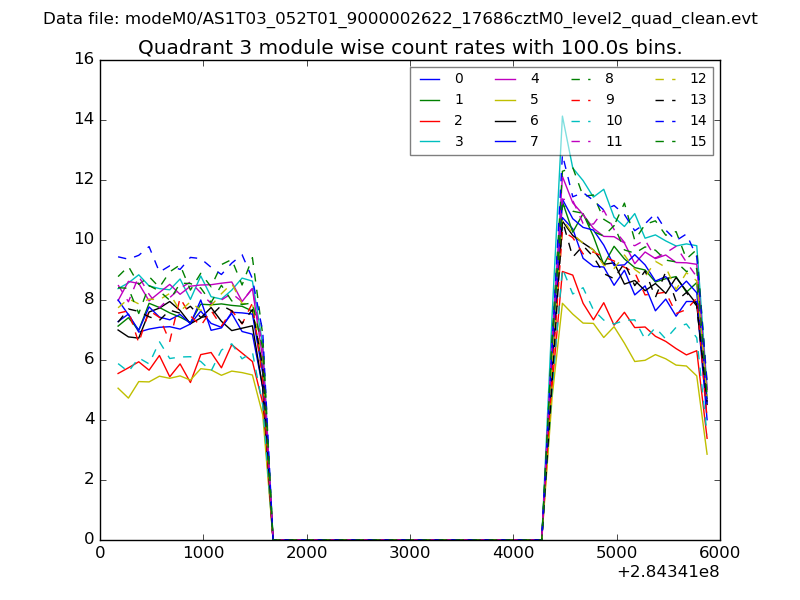

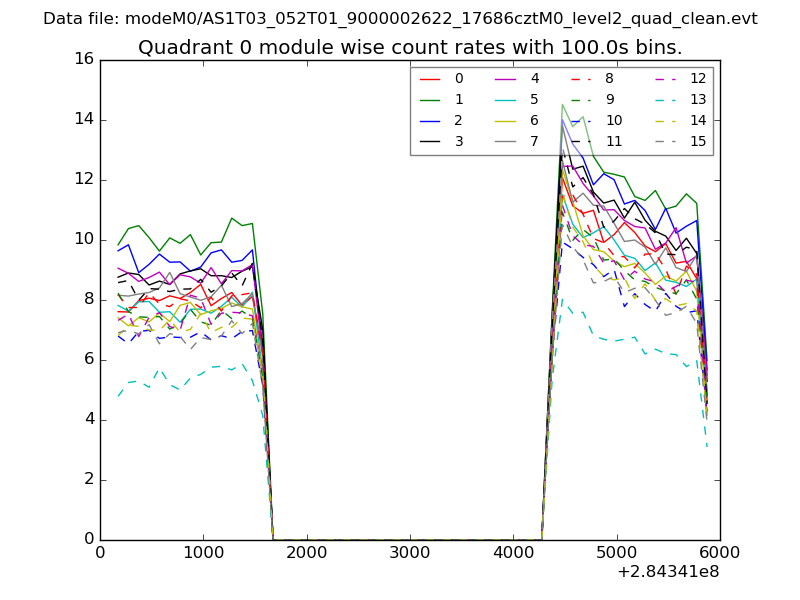

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

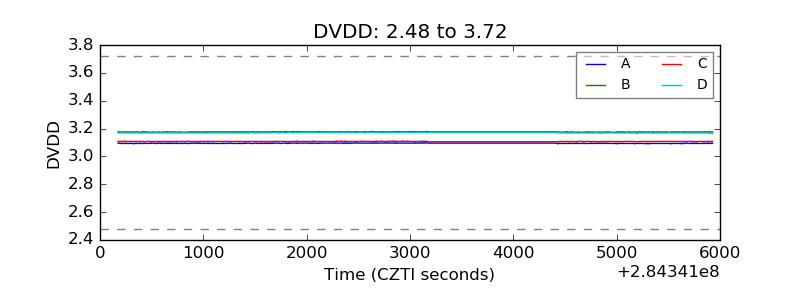

| D_VDD |  |

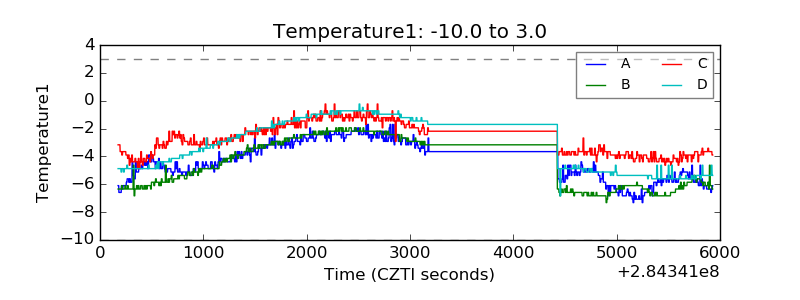

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

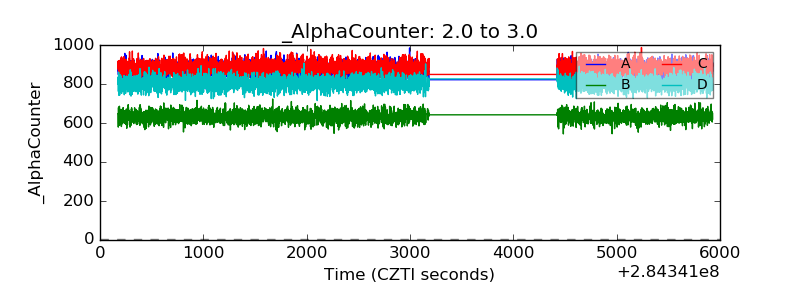

| Alpha Counter |  |

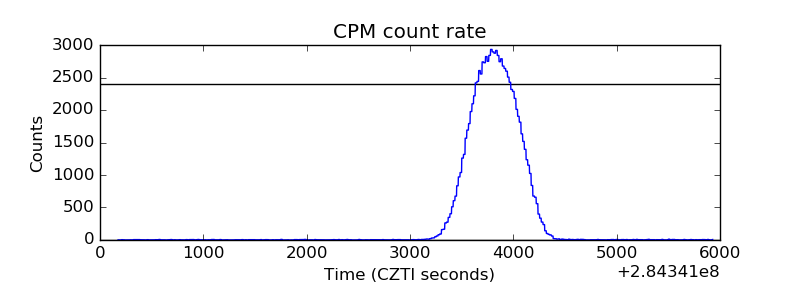

| _CPM_Rate |  |

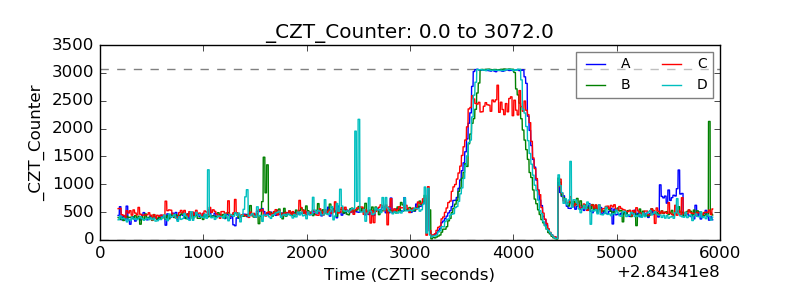

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

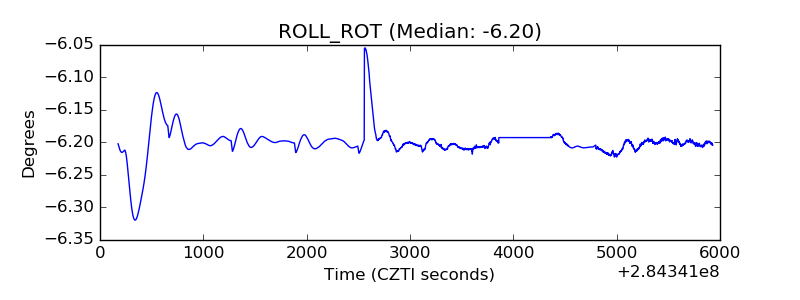

| _ROLL_ROT |  |

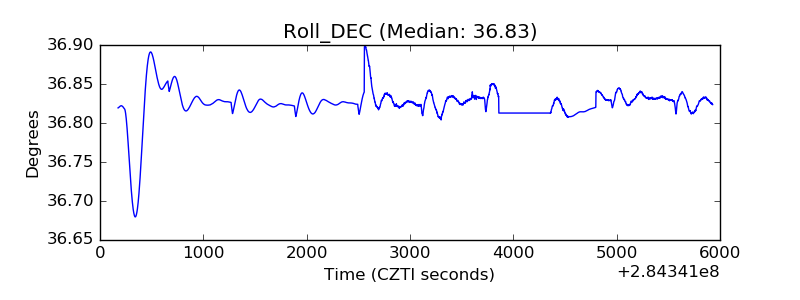

| _Roll_DEC |  |

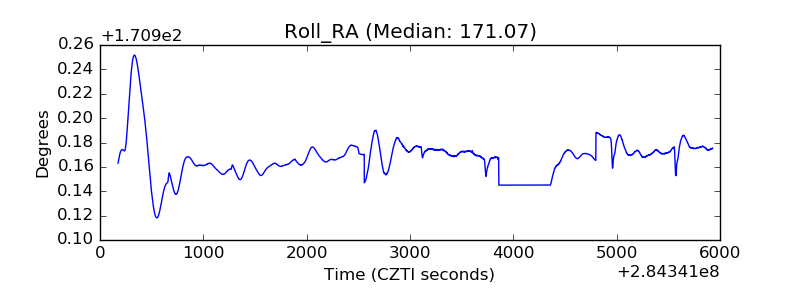

| _Roll_RA |  |

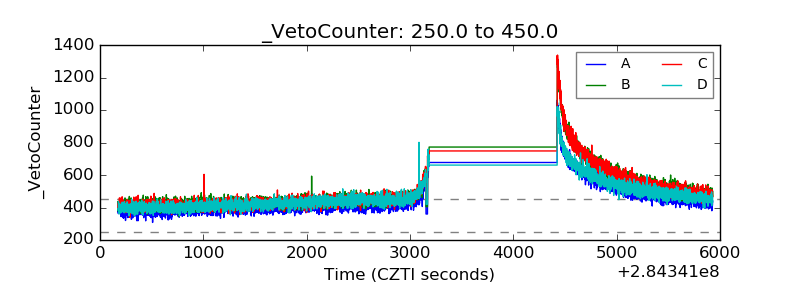

| Veto Counter |  |
