| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_052T01_9000002622_17687cztM0_level2.evt | modeM0/AS1T03_052T01_9000002622_17687cztM0_level2_quad_clean.evt |
| Size (bytes) | 397,085,760 | 84,404,160 |
| Size | 378.7 MB | 80.5 MB |
| Events in quadrant A | 2,870,291 | 547,350 |
| Events in quadrant B | 2,958,075 | 567,635 |
| Events in quadrant C | 3,001,306 | 534,033 |
| Events in quadrant D | 2,816,858 | 516,762 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12057 | 2 |
| B | 0 | 12137 | 2 |
| C | 0 | 12316 | 2 |
| D | 0 | 12071 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5582 | 25 | 0.447868% |
| B | 5582 | 51 | 0.913651% |
| C | 5582 | 83 | 1.486922% |
| D | 5582 | 20 | 0.358295% |

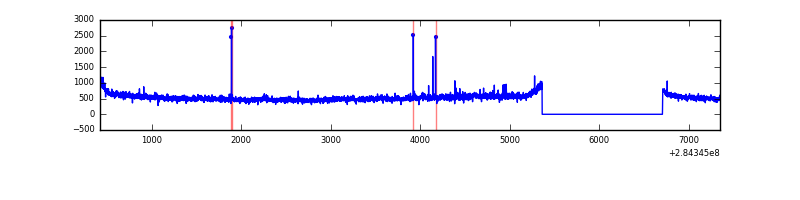

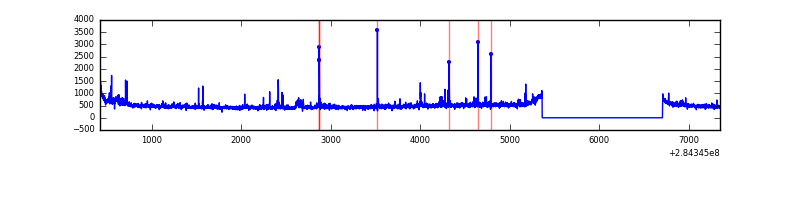

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6927 | 5583 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6927 | 5583 | 4 | 4 | 0.06% | 0.07% |  |
| C | 6927 | 5583 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6927 | 5583 | 7 | 7 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 31 | 91454 | 631.63 | 719 | 706 | 143.7 |
| A | 5 | 98 | 11109 | 72.41 | 719 | 706 | 143.7 |
| A | 0 | 226 | 6470 | 40.12 | 719 | 706 | 143.7 |
| B | 0 | 198 | 57806 | 421.28 | 724 | 708 | 135.5 |
| B | 10 | 245 | 50778 | 369.43 | 724 | 708 | 135.5 |
| B | 12 | 111 | 15689 | 110.53 | 724 | 708 | 135.5 |
| C | 3 | 233 | 193238 | 1207.91 | 690 | 695 | 159.4 |
| C | 14 | 238 | 108250 | 674.74 | 690 | 695 | 159.4 |
| C | 5 | 218 | 10320 | 60.38 | 690 | 695 | 159.4 |
| D | 1 | 52 | 65232 | 382.94 | 692 | 672 | 168.6 |
| D | 7 | 238 | 34114 | 198.36 | 692 | 672 | 168.6 |
| D | 13 | 232 | 33318 | 193.64 | 692 | 672 | 168.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

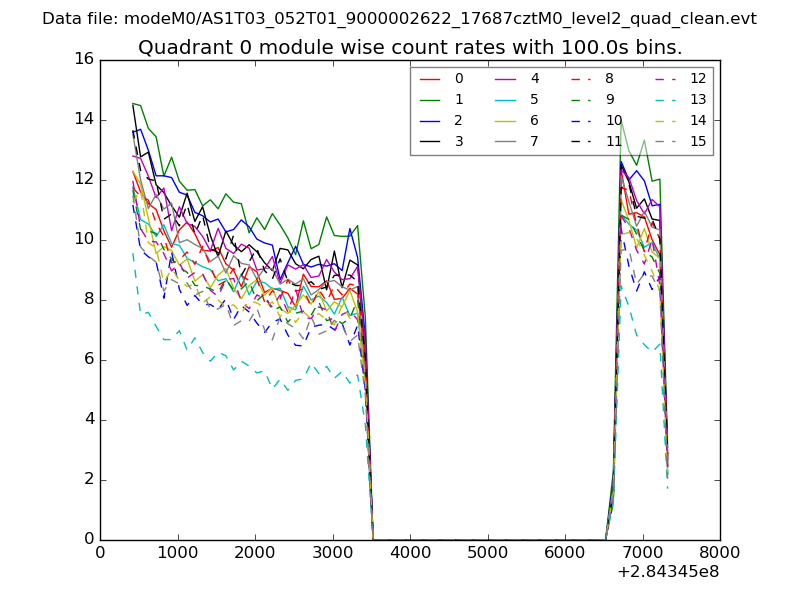

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

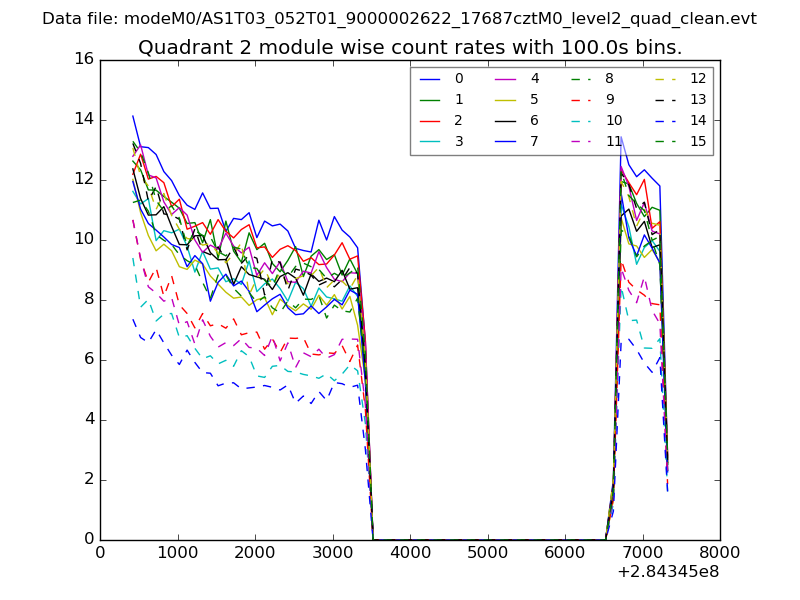

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

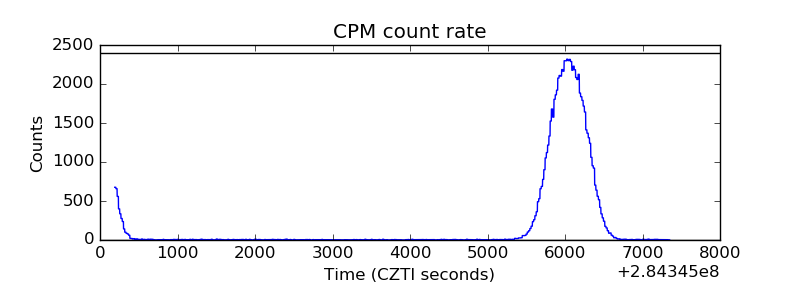

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

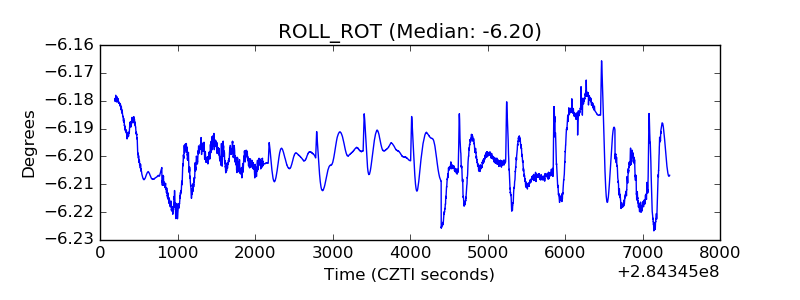

| _ROLL_ROT |  |

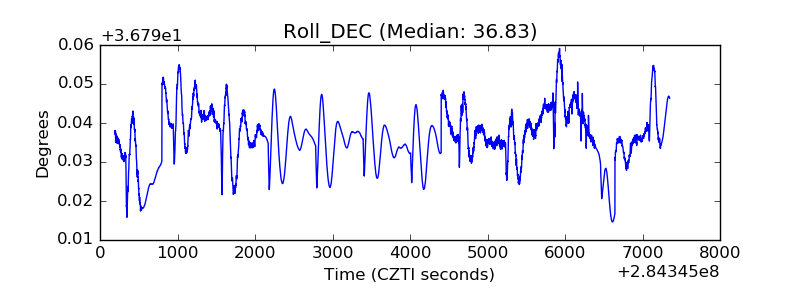

| _Roll_DEC |  |
| _Roll_RA |  |

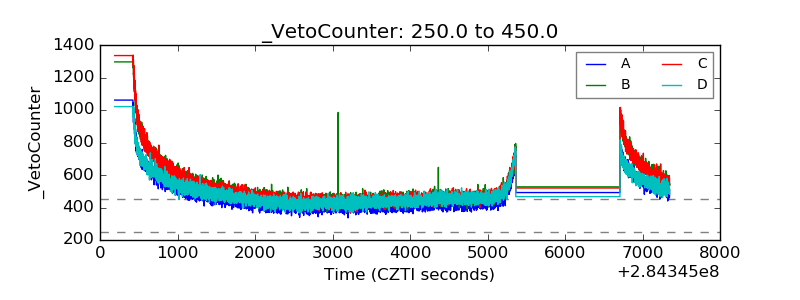

| Veto Counter |  |
