| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_186T02_9000002624_17696cztM0_level2.evt | modeM0/AS1A05_186T02_9000002624_17696cztM0_level2_quad_clean.evt |
| Size (bytes) | 917,706,240 | 158,800,320 |
| Size | 875.2 MB | 151.4 MB |
| Events in quadrant A | 6,279,999 | 993,216 |
| Events in quadrant B | 7,272,019 | 989,833 |
| Events in quadrant C | 6,719,309 | 951,207 |
| Events in quadrant D | 6,620,898 | 956,441 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27591 | 3 |
| B | 0 | 30292 | 3 |
| C | 0 | 27786 | 3 |
| D | 0 | 28996 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 272 | 0 |
| B | 0 | 272 | 0 |
| C | 0 | 272 | 0 |
| D | 0 | 272 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13300 | 192 | 1.443609% |
| B | 13300 | 374 | 2.812030% |
| C | 13300 | 233 | 1.751880% |
| D | 13300 | 248 | 1.864662% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14810 | 13303 | 15 | 15 | 0.10% | 0.11% |  |
| B | 14810 | 13301 | 72 | 72 | 0.49% | 0.54% |  |
| C | 14810 | 13301 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14810 | 13302 | 99 | 99 | 0.67% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 130407 | 398.89 | 1599 | 1560 | 323.0 |
| A | 0 | 226 | 13831 | 37.99 | 1599 | 1560 | 323.0 |
| A | 3 | 137 | 12035 | 32.43 | 1599 | 1560 | 323.0 |
| B | 10 | 245 | 668317 | 2211.43 | 1582 | 1542 | 301.5 |
| B | 7 | 220 | 141074 | 462.77 | 1582 | 1542 | 301.5 |
| B | 0 | 229 | 101722 | 332.26 | 1582 | 1542 | 301.5 |
| C | 3 | 233 | 454154 | 1267.9 | 1526 | 1532 | 357.0 |
| C | 14 | 238 | 235658 | 655.84 | 1526 | 1532 | 357.0 |
| C | 5 | 218 | 70945 | 194.44 | 1526 | 1532 | 357.0 |
| D | 7 | 238 | 472597 | 1254.45 | 1551 | 1507 | 375.5 |
| D | 2 | 33 | 96538 | 253.05 | 1551 | 1507 | 375.5 |
| D | 2 | 234 | 57596 | 149.36 | 1551 | 1507 | 375.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

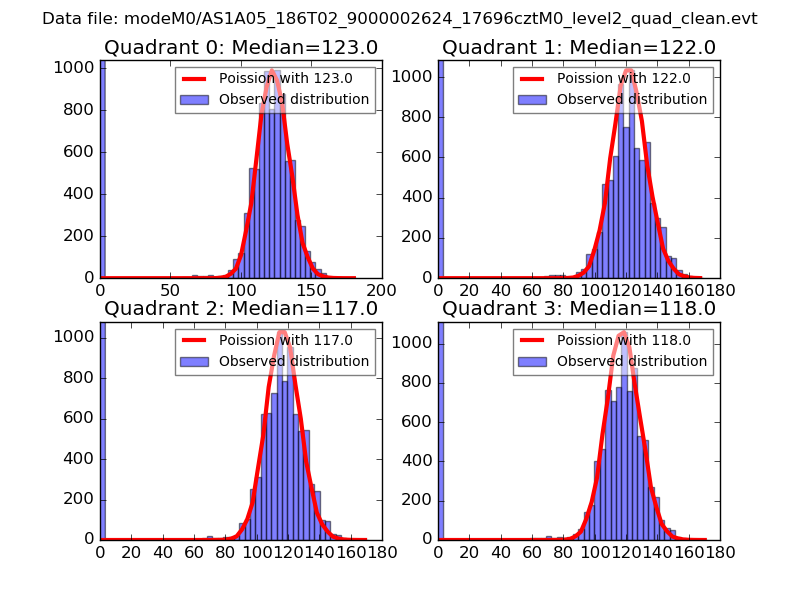

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

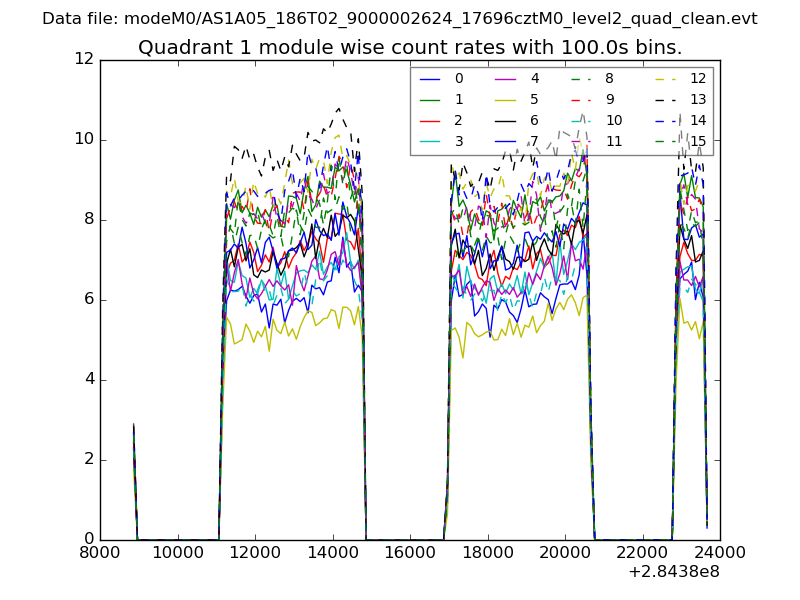

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

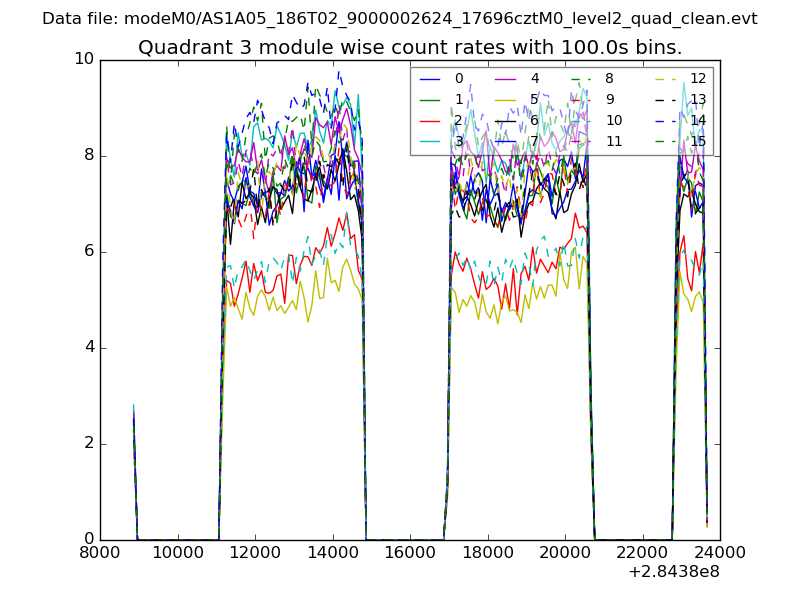

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
