| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_186T02_9000002624_17697cztM0_level2.evt | modeM0/AS1A05_186T02_9000002624_17697cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,296,040,320 | 225,144,000 |
| Size | 1.2 GB | 214.7 MB |
| Events in quadrant A | 8,496,982 | 1,430,410 |
| Events in quadrant B | 9,813,882 | 1,424,830 |
| Events in quadrant C | 9,204,831 | 1,367,885 |
| Events in quadrant D | 10,502,697 | 1,339,513 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37579 | 3 |
| B | 0 | 41018 | 3 |
| C | 0 | 37903 | 3 |
| D | 0 | 43854 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 370 | 0 |
| B | 0 | 370 | 0 |
| C | 0 | 370 | 0 |
| D | 0 | 370 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18228 | 228 | 1.250823% |
| B | 18228 | 438 | 2.402897% |
| C | 18228 | 301 | 1.651306% |
| D | 18228 | 721 | 3.955453% |

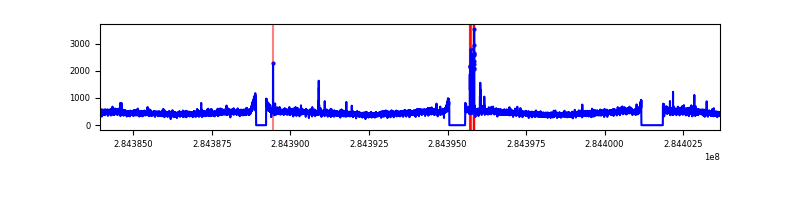

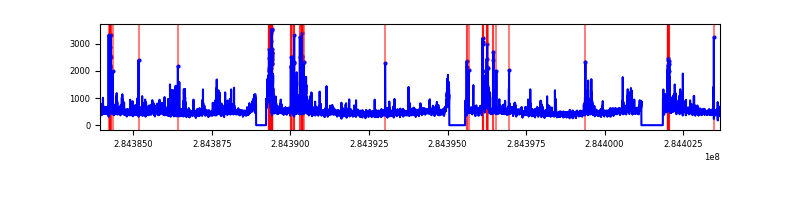

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19738 | 18231 | 15 | 15 | 0.08% | 0.08% |  |
| B | 19738 | 18229 | 84 | 84 | 0.43% | 0.46% |  |
| C | 19738 | 18229 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19738 | 18230 | 490 | 490 | 2.48% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 131209 | 294.61 | 2175 | 2125 | 438.2 |
| A | 0 | 226 | 18874 | 38.23 | 2175 | 2125 | 438.2 |
| A | 3 | 137 | 16367 | 32.5 | 2175 | 2125 | 438.2 |
| B | 10 | 245 | 795752 | 1941.29 | 2155 | 2102 | 408.8 |
| B | 7 | 220 | 197110 | 476.99 | 2155 | 2102 | 408.8 |
| B | 0 | 229 | 169704 | 409.96 | 2155 | 2102 | 408.8 |
| C | 3 | 233 | 660710 | 1351.01 | 2077 | 2087 | 487.5 |
| C | 14 | 238 | 319229 | 650.54 | 2077 | 2087 | 487.5 |
| C | 5 | 218 | 104459 | 209.99 | 2077 | 2087 | 487.5 |
| D | 1 | 52 | 1438989 | 2838.83 | 2086 | 2029 | 506.2 |
| D | 7 | 238 | 834415 | 1644.45 | 2086 | 2029 | 506.2 |
| D | 2 | 33 | 111689 | 216.64 | 2086 | 2029 | 506.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

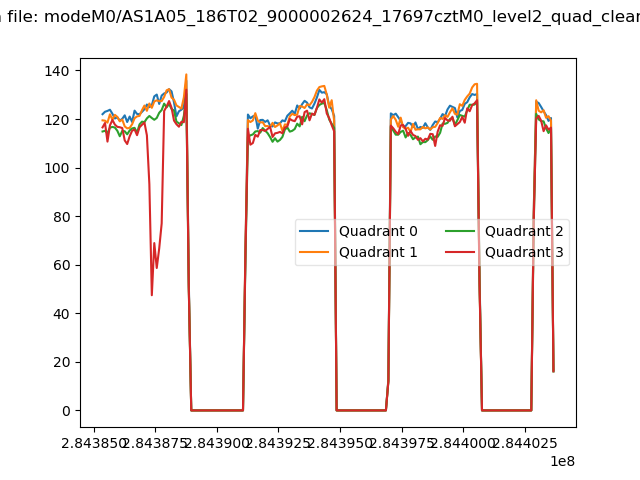

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

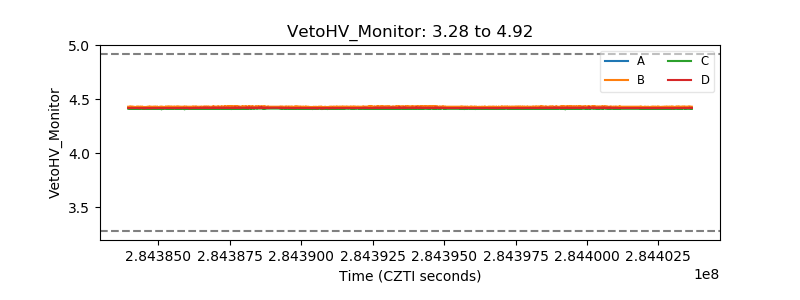

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

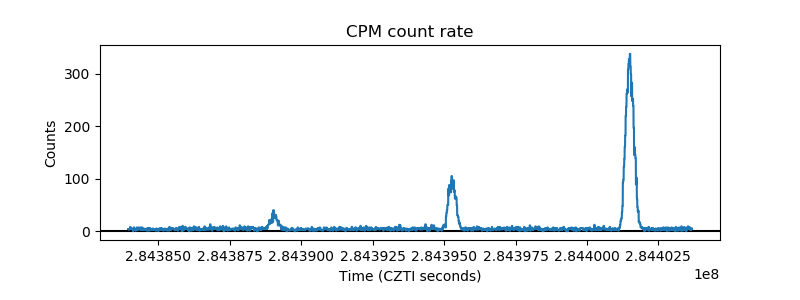

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

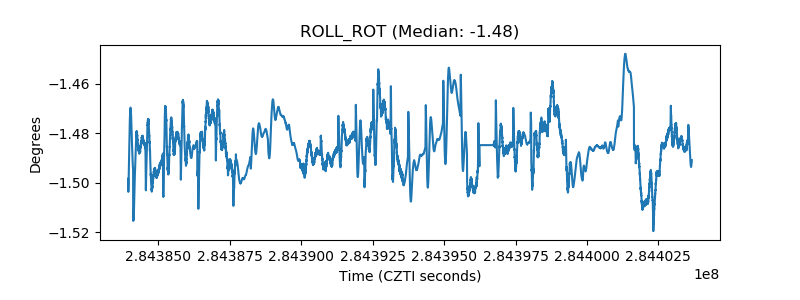

| _ROLL_ROT |  |

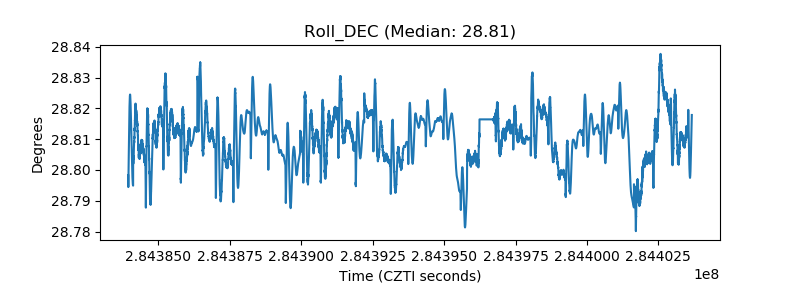

| _Roll_DEC |  |

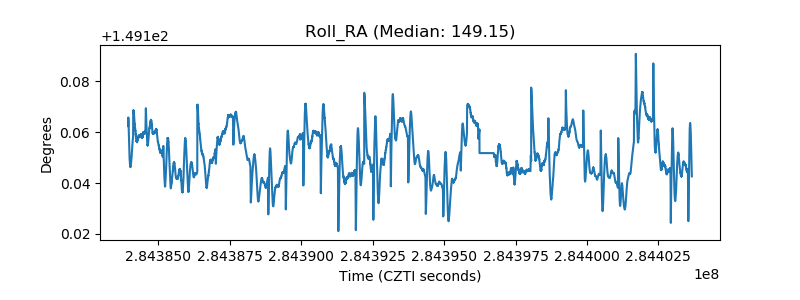

| _Roll_RA |  |
| Veto Counter |  |
