| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_040T01_9000002628_17712cztM0_level2.evt | modeM0/AS1T03_040T01_9000002628_17712cztM0_level2_quad_clean.evt |
| Size (bytes) | 195,658,560 | 19,105,920 |
| Size | 186.6 MB | 18.2 MB |
| Events in quadrant A | 986,230 | 111,530 |
| Events in quadrant B | 1,044,848 | 113,184 |
| Events in quadrant C | 1,045,132 | 109,686 |
| Events in quadrant D | 2,711,201 | 98,107 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4204 | 1 |
| B | 0 | 4357 | 1 |
| C | 0 | 4389 | 1 |
| D | 0 | 9474 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2000 | 7 | 0.350000% |
| B | 2001 | 1 | 0.049975% |
| C | 2001 | 23 | 1.149425% |
| D | 2001 | 551 | 27.536232% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2000 | 2000 | 1 | 1 | 0.05% | 0.05% |  |
| B | 2001 | 2001 | 1 | 1 | 0.05% | 0.05% |  |
| C | 2001 | 2001 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2001 | 2001 | 439 | 439 | 21.94% | 21.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 13937 | 257.29 | 253 | 246 | 53.2 |
| A | 0 | 226 | 2338 | 39.31 | 253 | 246 | 53.2 |
| A | 12 | 194 | 1946 | 31.95 | 253 | 246 | 53.2 |
| B | 0 | 189 | 21812 | 426.56 | 255 | 249 | 50.6 |
| B | 0 | 190 | 7350 | 140.47 | 255 | 249 | 50.6 |
| B | 0 | 230 | 6291 | 119.52 | 255 | 249 | 50.6 |
| C | 14 | 238 | 38732 | 645.01 | 248 | 249 | 59.7 |
| C | 3 | 233 | 18538 | 306.54 | 248 | 249 | 59.7 |
| C | 1 | 16 | 11427 | 187.35 | 248 | 249 | 59.7 |
| D | 7 | 238 | 1810155 | 31427.49 | 228 | 221 | 57.6 |
| D | 10 | 70 | 17466 | 299.44 | 228 | 221 | 57.6 |
| D | 8 | 195 | 7433 | 125.23 | 228 | 221 | 57.6 |

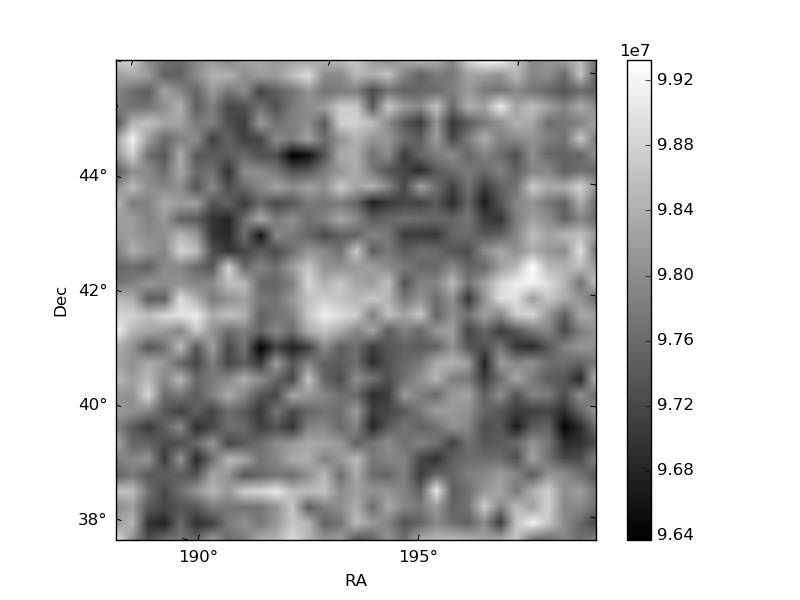

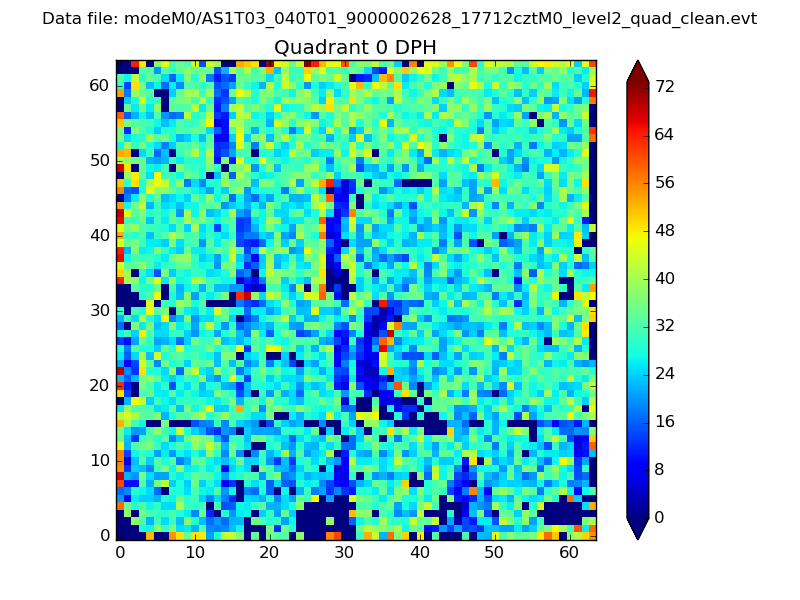

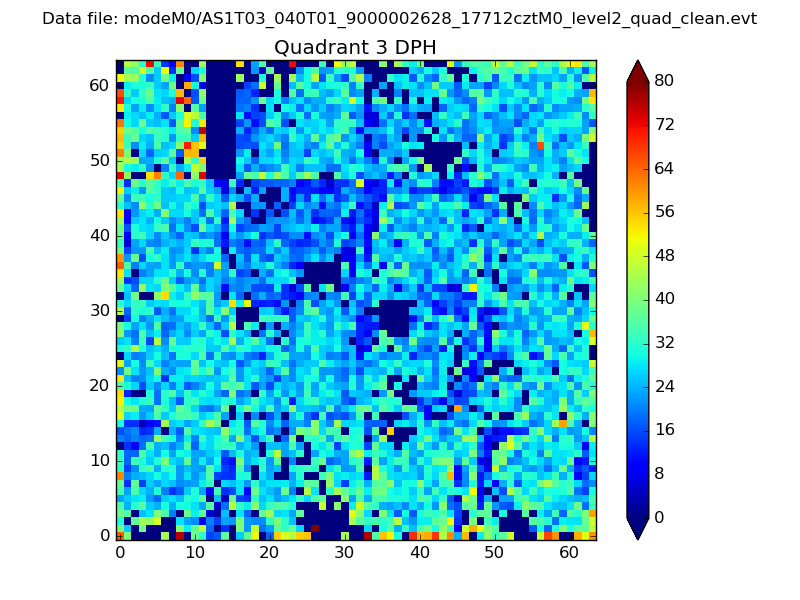

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

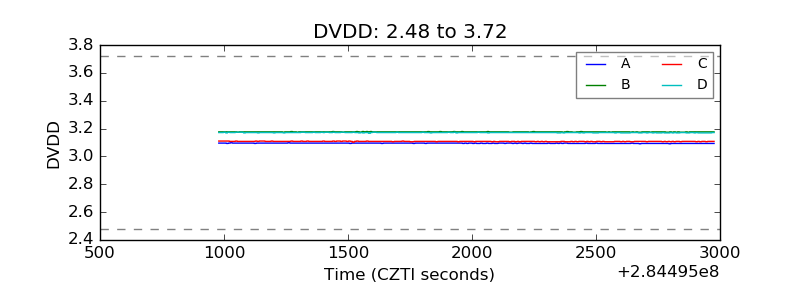

| D_VDD |  |
| Temperature 1 |  |

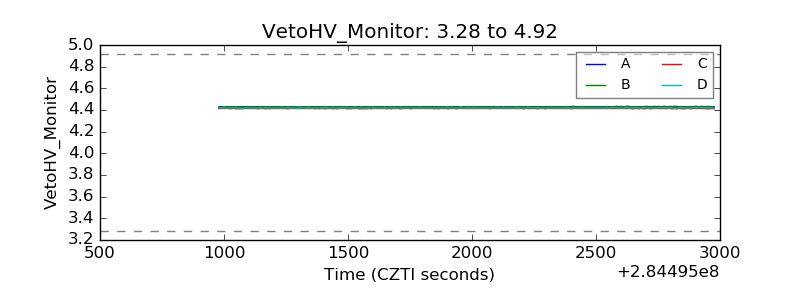

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

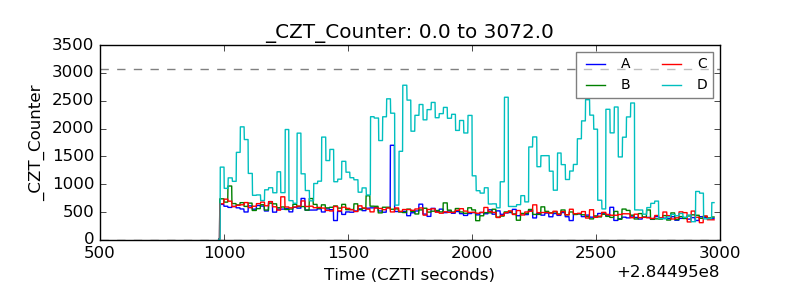

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

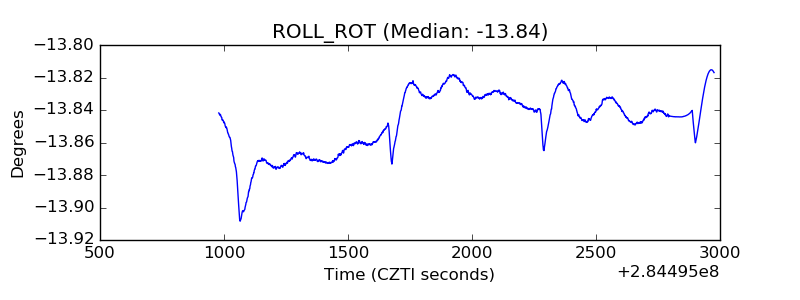

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

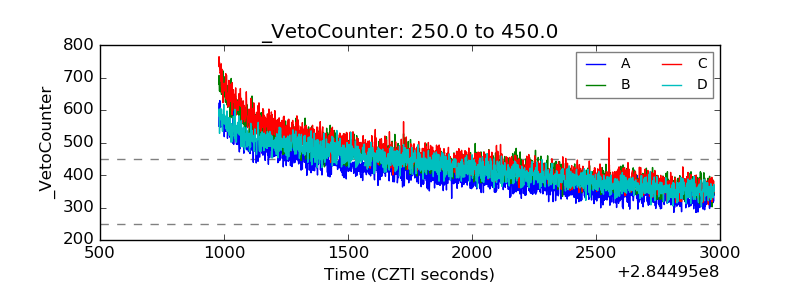

| Veto Counter |  |
