| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_070T01_9000002632_17737cztM0_level2.evt | modeM0/AS1T03_070T01_9000002632_17737cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,579,840 | 96,791,040 |
| Size | 509.8 MB | 92.3 MB |
| Events in quadrant A | 3,814,007 | 603,390 |
| Events in quadrant B | 3,989,658 | 609,837 |
| Events in quadrant C | 3,748,953 | 589,741 |
| Events in quadrant D | 4,106,384 | 585,259 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16557 | 2 |
| B | 0 | 16878 | 2 |
| C | 0 | 16204 | 2 |
| D | 0 | 17488 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7808 | 306 | 3.919057% |
| B | 7809 | 320 | 4.097836% |
| C | 7809 | 289 | 3.700858% |
| D | 7809 | 300 | 3.841721% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8208 | 7810 | 26 | 26 | 0.32% | 0.33% |  |
| B | 8209 | 7811 | 17 | 17 | 0.21% | 0.22% |  |
| C | 8209 | 7812 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8209 | 7811 | 60 | 60 | 0.73% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 156104 | 803.55 | 942 | 918 | 193.1 |
| A | 14 | 237 | 32095 | 161.43 | 942 | 918 | 193.1 |
| A | 0 | 226 | 8207 | 37.74 | 942 | 918 | 193.1 |
| B | 7 | 220 | 81379 | 444.19 | 936 | 907 | 181.2 |
| B | 0 | 219 | 74640 | 406.99 | 936 | 907 | 181.2 |
| B | 10 | 245 | 62819 | 341.74 | 936 | 907 | 181.2 |
| C | 14 | 238 | 138545 | 647.2 | 902 | 905 | 212.7 |
| C | 3 | 233 | 36702 | 168.32 | 902 | 905 | 212.7 |
| C | 5 | 218 | 30399 | 138.68 | 902 | 905 | 212.7 |
| D | 1 | 52 | 303128 | 1251.8 | 913 | 895 | 241.4 |
| D | 7 | 223 | 223073 | 920.22 | 913 | 895 | 241.4 |
| D | 2 | 234 | 34953 | 141.06 | 913 | 895 | 241.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

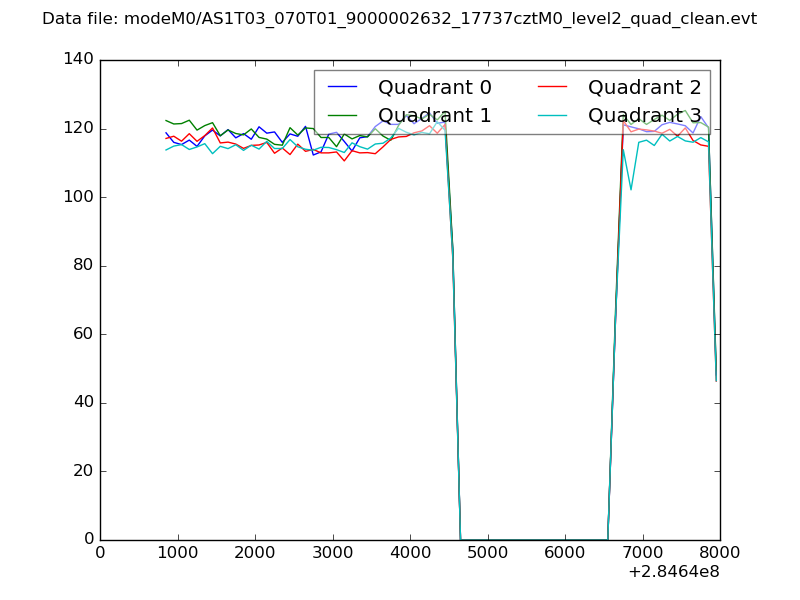

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

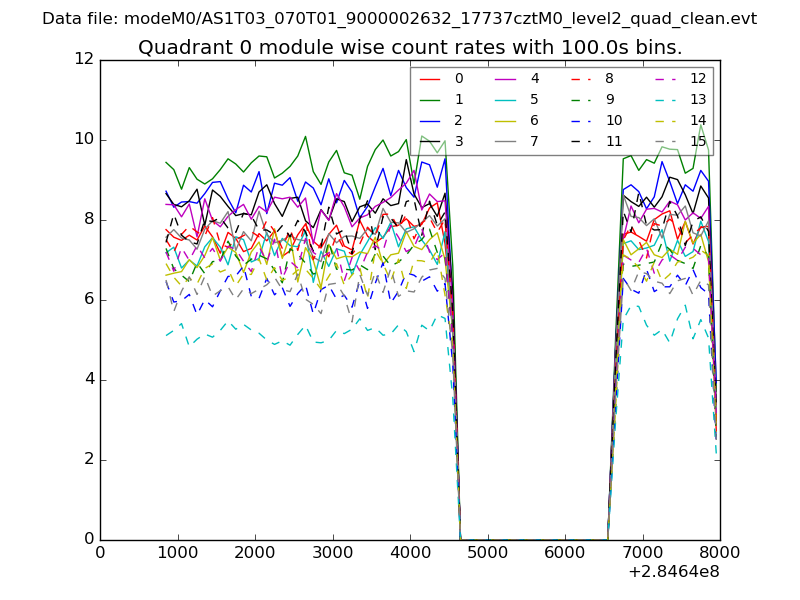

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

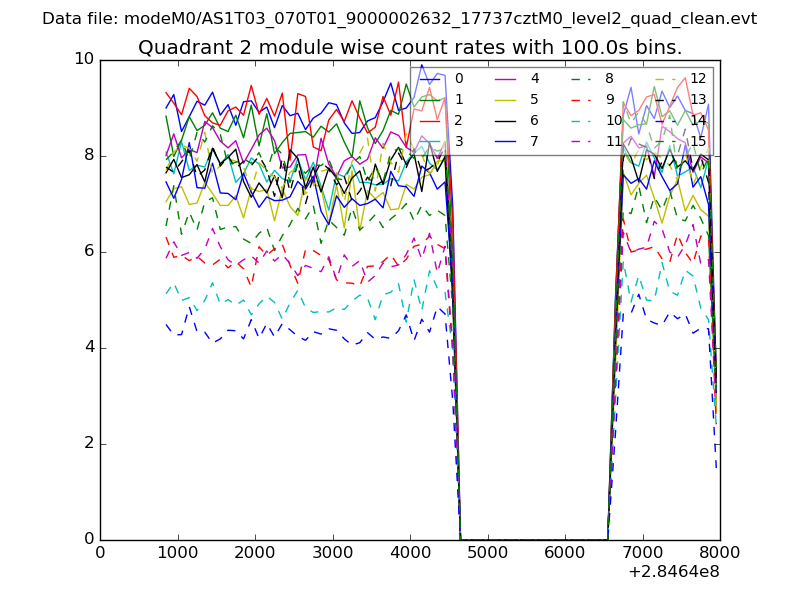

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

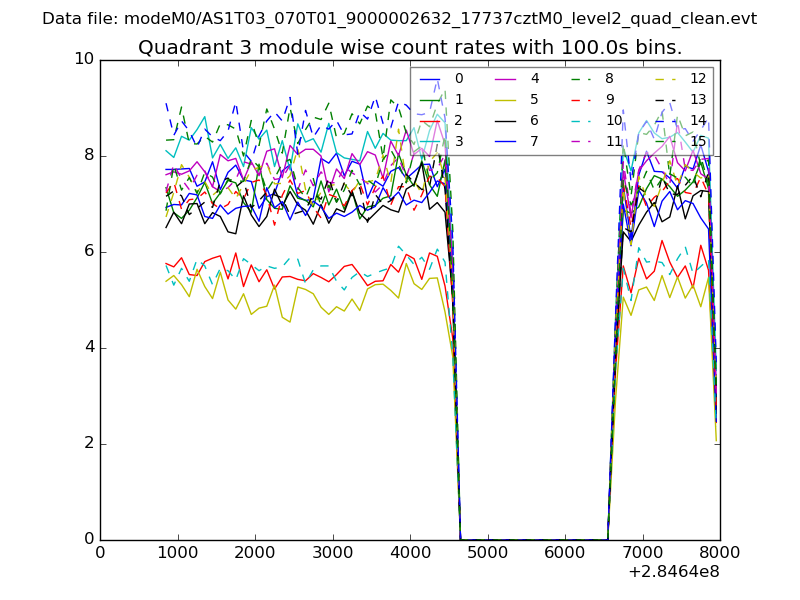

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

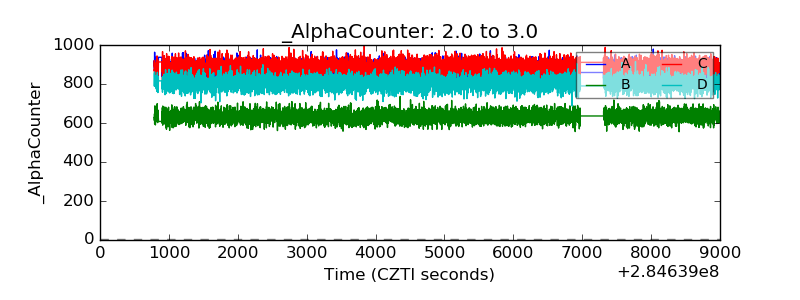

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

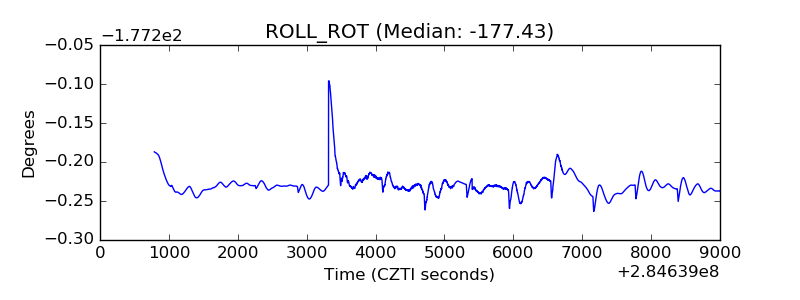

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
