| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_070T03_9000002636_17744cztM0_level2.evt | modeM0/AS1T03_070T03_9000002636_17744cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,920,320 | 79,600,320 |
| Size | 389.0 MB | 75.9 MB |
| Events in quadrant A | 2,743,189 | 515,616 |
| Events in quadrant B | 3,399,299 | 493,644 |
| Events in quadrant C | 2,871,289 | 493,949 |
| Events in quadrant D | 2,934,236 | 490,542 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12242 | 1 |
| B | 0 | 14208 | 1 |
| C | 0 | 12351 | 1 |
| D | 0 | 12983 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5960 | 36 | 0.604027% |
| B | 5960 | 290 | 4.865772% |
| C | 5961 | 68 | 1.140748% |
| D | 5961 | 82 | 1.375608% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

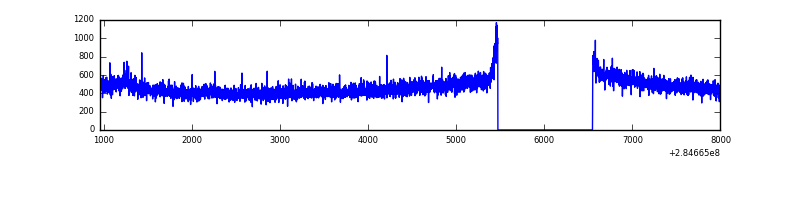

| A | 7035 | 5961 | 0 | 0 | 0.00% | 0.00% |  |

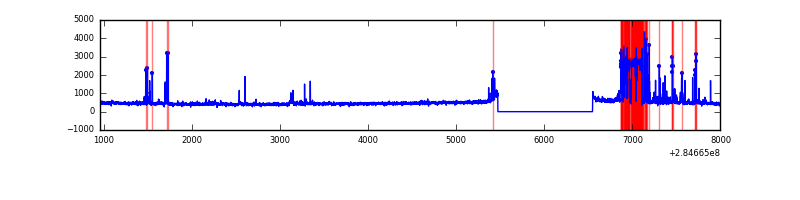

| B | 7035 | 5961 | 207 | 207 | 2.94% | 3.47% |  |

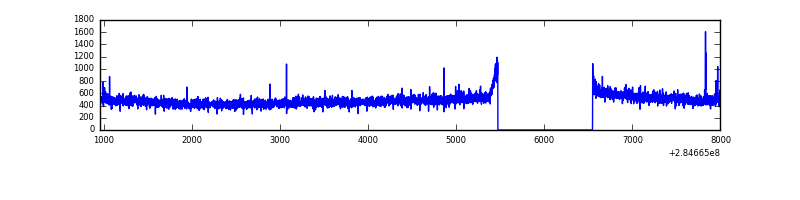

| C | 7036 | 5962 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7036 | 5962 | 28 | 28 | 0.40% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 191 | 39686 | 274.01 | 702 | 686 | 142.3 |
| A | 0 | 226 | 6303 | 39.46 | 702 | 686 | 142.3 |
| A | 3 | 137 | 5277 | 32.26 | 702 | 686 | 142.3 |
| B | 4 | 142 | 537036 | 4087.91 | 684 | 666 | 131.2 |
| B | 10 | 245 | 99959 | 756.76 | 684 | 666 | 131.2 |
| B | 0 | 197 | 45765 | 343.72 | 684 | 666 | 131.2 |
| C | 14 | 238 | 105165 | 658.73 | 681 | 686 | 158.6 |
| C | 5 | 218 | 60632 | 377.95 | 681 | 686 | 158.6 |
| C | 3 | 233 | 35546 | 219.79 | 681 | 686 | 158.6 |
| D | 1 | 52 | 229978 | 1272.52 | 682 | 666 | 180.2 |
| D | 2 | 234 | 26709 | 144.52 | 682 | 666 | 180.2 |
| D | 7 | 238 | 21999 | 118.38 | 682 | 666 | 180.2 |

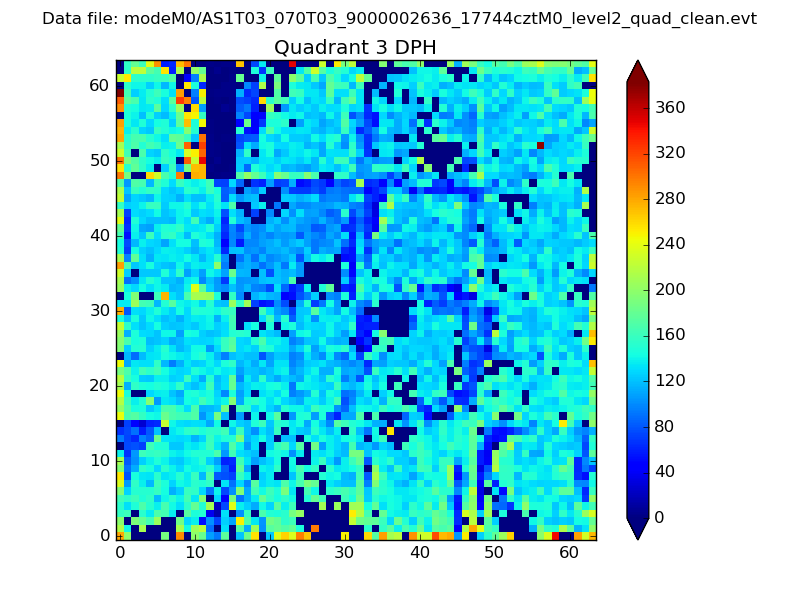

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

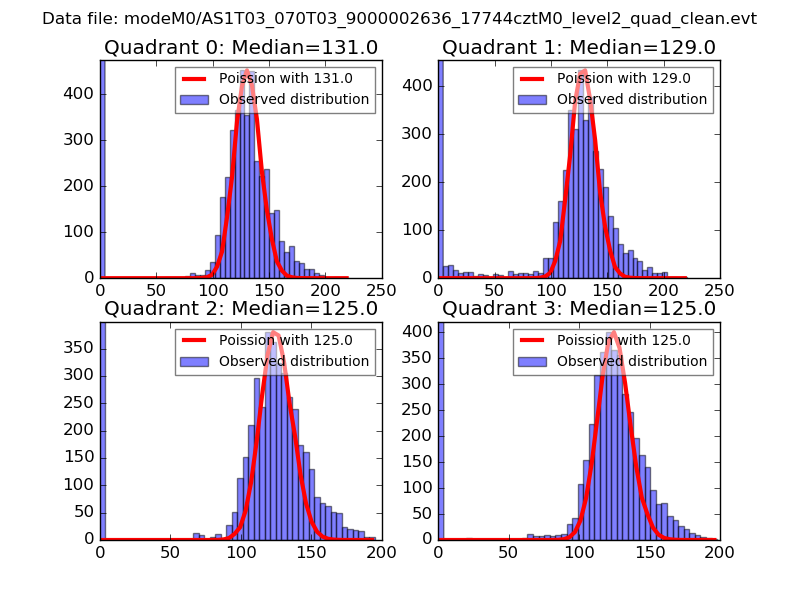

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

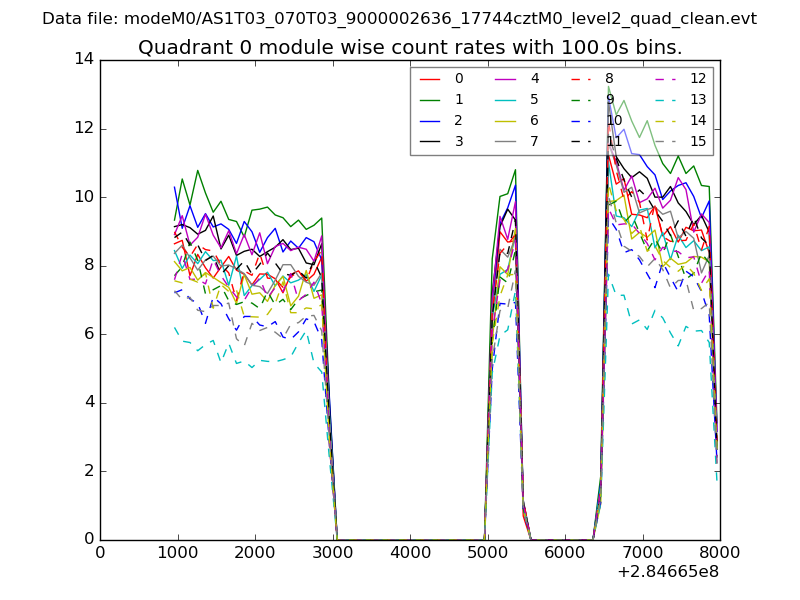

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

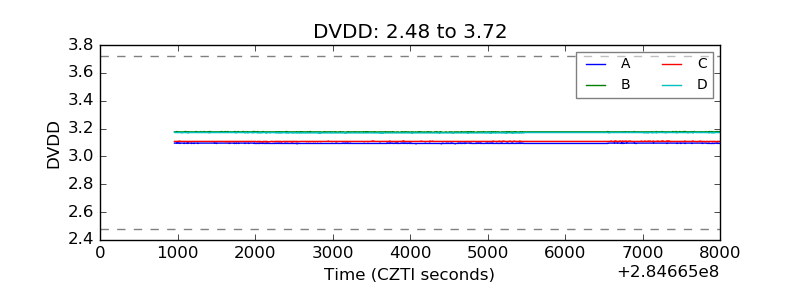

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

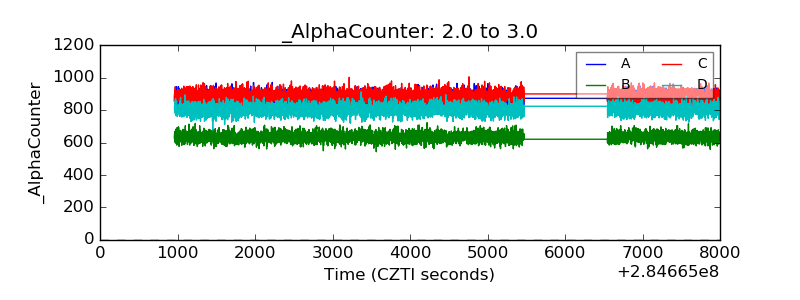

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
