| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_070T05_9000002640_17749cztM0_level2.evt | modeM0/AS1T03_070T05_9000002640_17749cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,888,320 | 78,163,200 |
| Size | 462.4 MB | 74.5 MB |
| Events in quadrant A | 3,309,035 | 476,777 |
| Events in quadrant B | 3,886,218 | 472,215 |
| Events in quadrant C | 3,441,765 | 461,131 |
| Events in quadrant D | 3,560,901 | 457,865 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14687 | 3 |
| B | 0 | 16218 | 2 |
| C | 0 | 14759 | 2 |
| D | 0 | 15674 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7159 | 128 | 1.787959% |
| B | 7159 | 291 | 4.064814% |
| C | 7159 | 145 | 2.025423% |
| D | 7159 | 163 | 2.276854% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7539 | 7160 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7539 | 7160 | 98 | 98 | 1.30% | 1.37% |  |
| C | 7539 | 7160 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7539 | 7160 | 60 | 60 | 0.80% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7349 | 37.38 | 858 | 839 | 174.1 |
| A | 3 | 137 | 6550 | 32.8 | 858 | 839 | 174.1 |
| A | 12 | 194 | 6289 | 31.3 | 858 | 839 | 174.1 |
| B | 10 | 245 | 447924 | 2704.17 | 855 | 832 | 165.3 |
| B | 7 | 220 | 57297 | 341.52 | 855 | 832 | 165.3 |
| B | 12 | 111 | 19942 | 115.58 | 855 | 832 | 165.3 |
| C | 14 | 238 | 125811 | 638.17 | 830 | 835 | 195.8 |
| C | 5 | 218 | 49580 | 248.91 | 830 | 835 | 195.8 |
| C | 5 | 219 | 13500 | 64.67 | 830 | 835 | 195.8 |
| D | 5 | 222 | 247973 | 1233.74 | 833 | 812 | 200.3 |
| D | 2 | 165 | 103155 | 510.86 | 833 | 812 | 200.3 |
| D | 2 | 234 | 31541 | 153.39 | 833 | 812 | 200.3 |

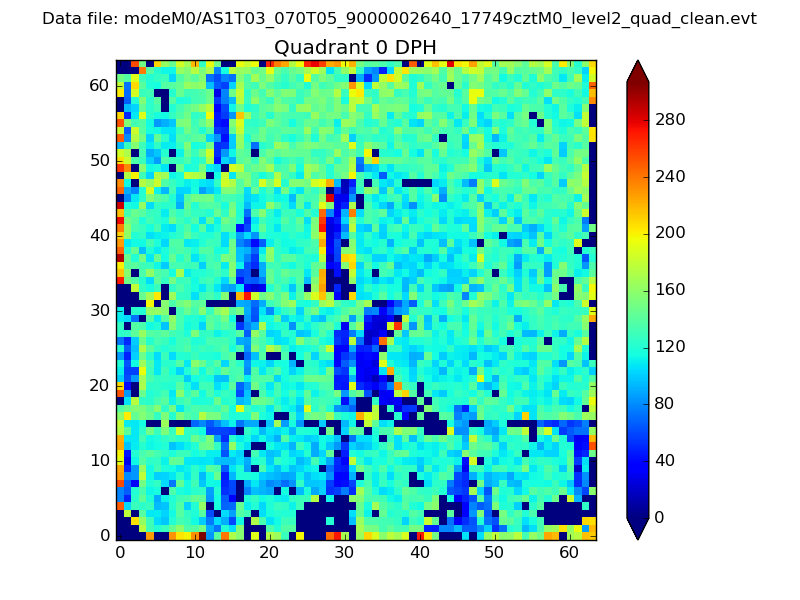

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

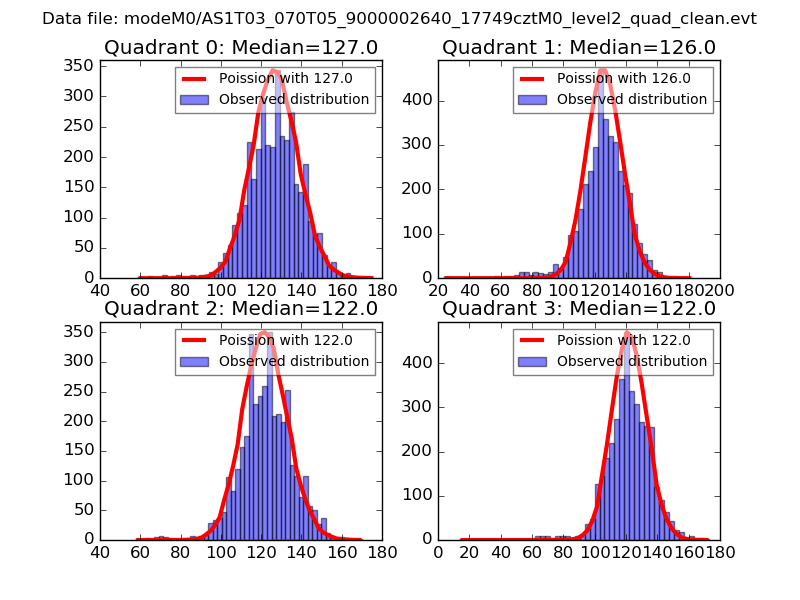

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

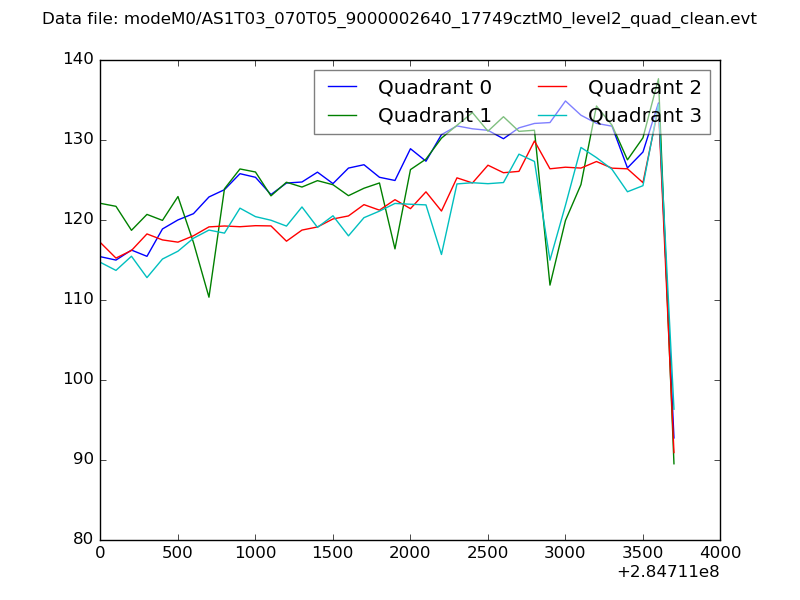

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

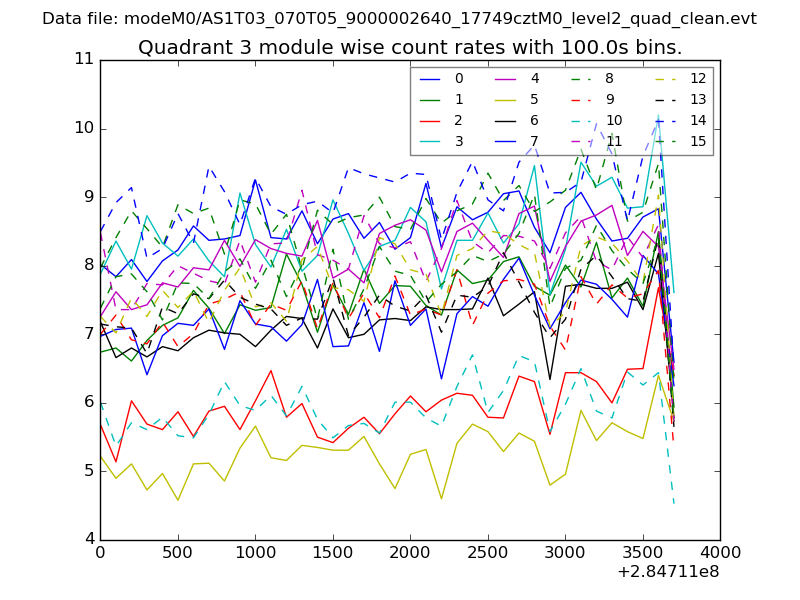

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

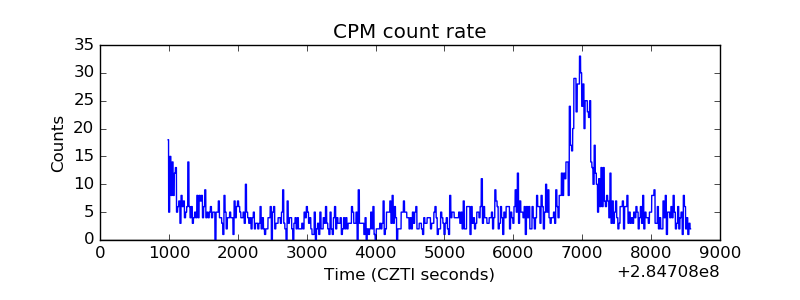

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

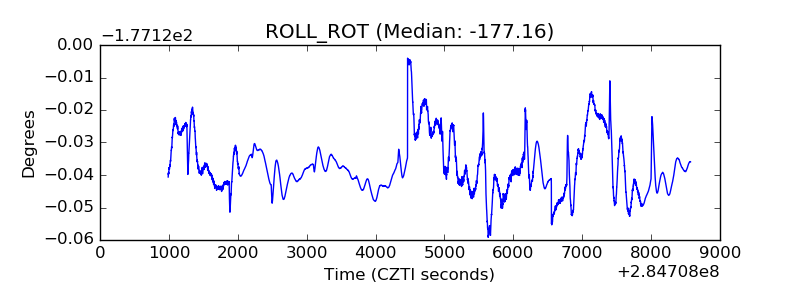

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
