| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_070T08_9000002646_17760cztM0_level2.evt | modeM0/AS1T03_070T08_9000002646_17760cztM0_level2_quad_clean.evt |
| Size (bytes) | 398,761,920 | 82,483,200 |
| Size | 380.3 MB | 78.7 MB |
| Events in quadrant A | 2,982,984 | 528,593 |
| Events in quadrant B | 2,967,443 | 555,103 |
| Events in quadrant C | 2,910,335 | 521,973 |
| Events in quadrant D | 2,834,977 | 500,676 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12397 | 2 |
| B | 0 | 12314 | 2 |
| C | 0 | 11977 | 2 |
| D | 0 | 12180 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5591 | 122 | 2.182078% |
| B | 5591 | 38 | 0.679664% |
| C | 5591 | 69 | 1.234126% |
| D | 5591 | 42 | 0.751207% |

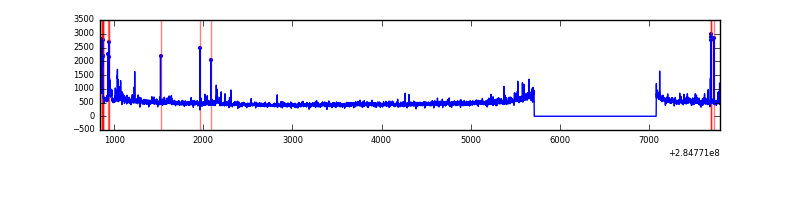

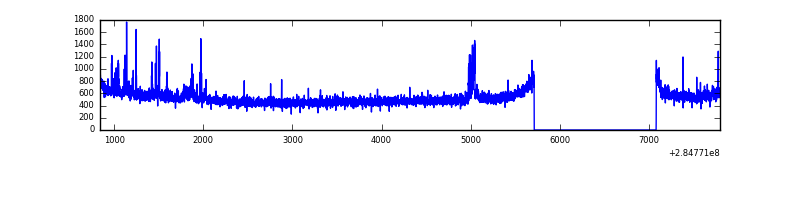

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6961 | 5592 | 94 | 94 | 1.35% | 1.68% |  |
| B | 6961 | 5592 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6961 | 5592 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6961 | 5592 | 18 | 18 | 0.26% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 244158 | 1714.6 | 709 | 697 | 142.0 |
| A | 0 | 226 | 6078 | 37.9 | 709 | 697 | 142.0 |
| A | 12 | 194 | 5183 | 31.59 | 709 | 697 | 142.0 |
| B | 0 | 229 | 50255 | 367.01 | 725 | 708 | 135.0 |
| B | 0 | 219 | 29558 | 213.7 | 725 | 708 | 135.0 |
| B | 0 | 230 | 29058 | 210.0 | 725 | 708 | 135.0 |
| C | 14 | 238 | 108852 | 671.0 | 695 | 702 | 161.2 |
| C | 5 | 218 | 45897 | 280.4 | 695 | 702 | 161.2 |
| C | 3 | 233 | 21951 | 131.84 | 695 | 702 | 161.2 |
| D | 7 | 238 | 75212 | 448.95 | 692 | 675 | 166.0 |
| D | 1 | 52 | 46167 | 274.01 | 692 | 675 | 166.0 |
| D | 2 | 152 | 33042 | 194.95 | 692 | 675 | 166.0 |

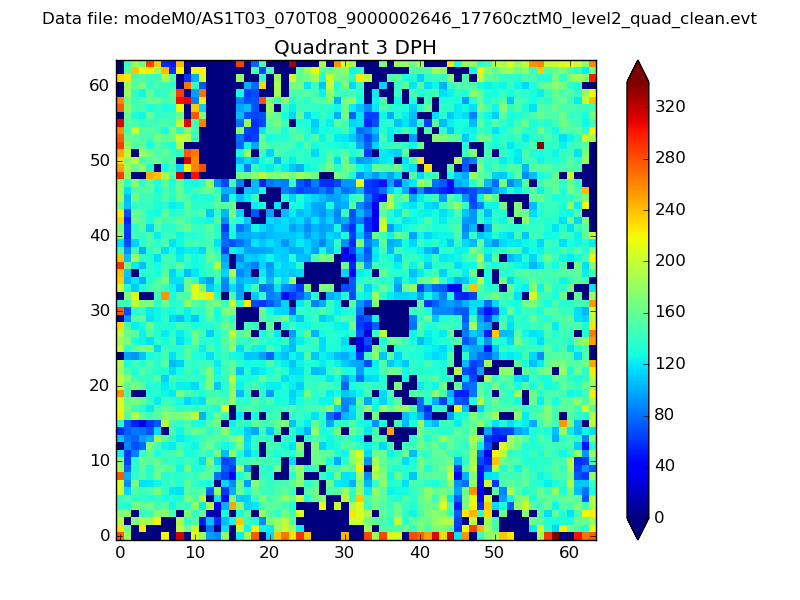

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

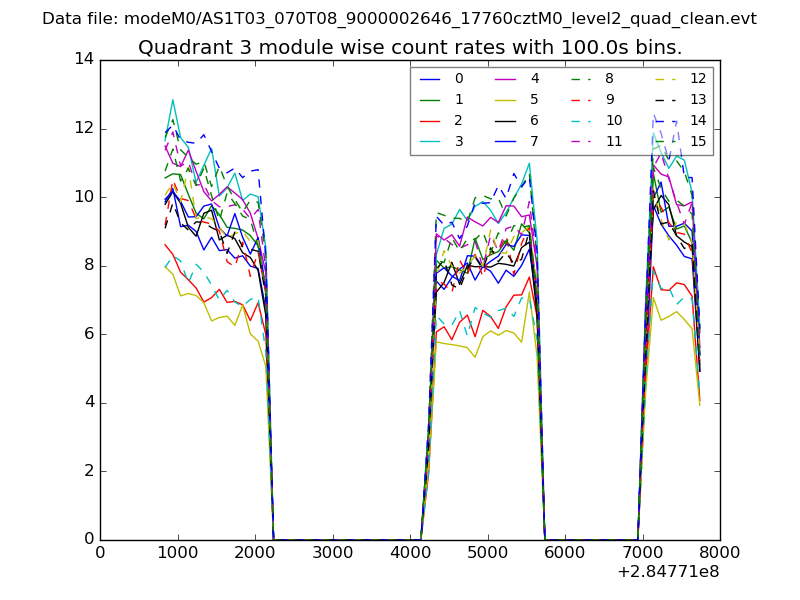

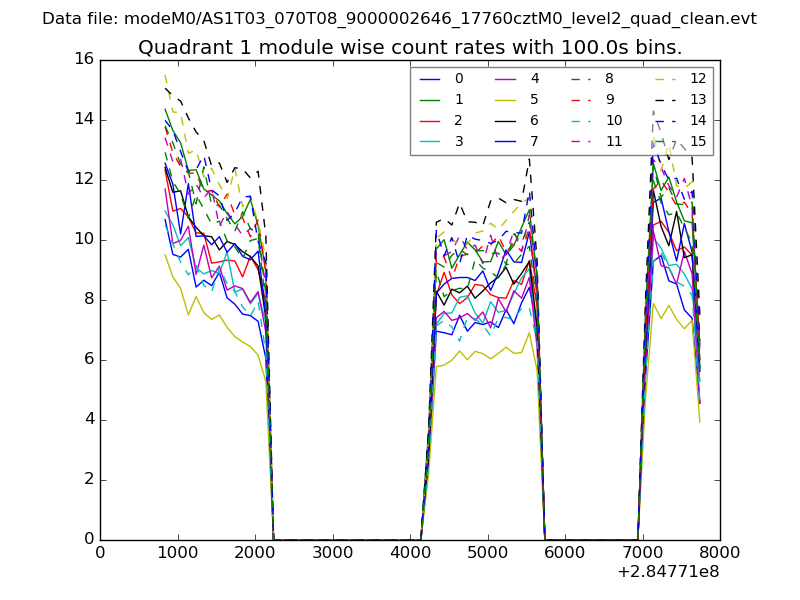

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

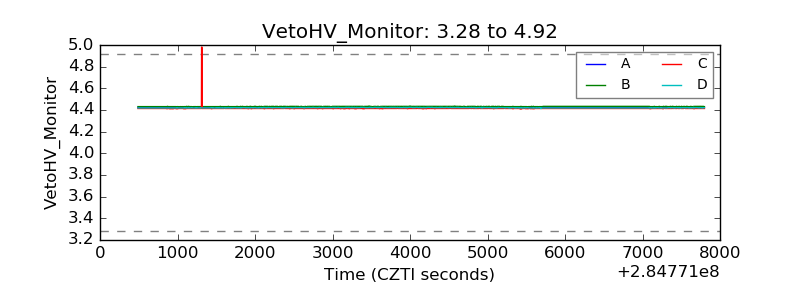

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

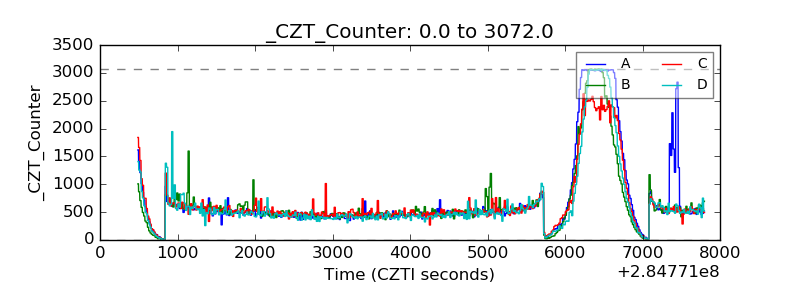

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

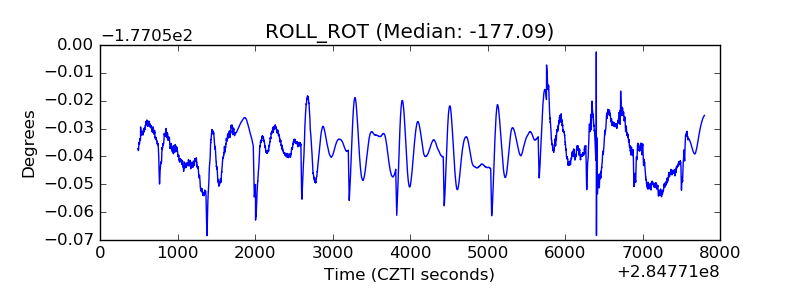

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
