| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17774cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17774cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,262,400 | 106,248,960 |
| Size | 553.4 MB | 101.3 MB |
| Events in quadrant A | 3,096,415 | 712,611 |
| Events in quadrant B | 3,273,053 | 743,049 |
| Events in quadrant C | 3,852,990 | 689,379 |
| Events in quadrant D | 6,926,597 | 635,459 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13202 | 2 |
| B | 0 | 13710 | 2 |
| C | 0 | 15460 | 2 |
| D | 0 | 24798 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6259 | 35 | 0.559195% |
| B | 6259 | 70 | 1.118390% |
| C | 6259 | 301 | 4.809075% |
| D | 6259 | 1133 | 18.101933% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8969 | 6261 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8969 | 6261 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8969 | 6261 | 103 | 103 | 1.15% | 1.65% |  |
| D | 8968 | 6260 | 1016 | 1016 | 11.33% | 16.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6972 | 38.59 | 803 | 790 | 160.2 |
| A | 4 | 2 | 6692 | 36.85 | 803 | 790 | 160.2 |
| A | 12 | 194 | 6266 | 34.19 | 803 | 790 | 160.2 |
| B | 0 | 219 | 29829 | 191.89 | 813 | 797 | 151.3 |
| B | 7 | 220 | 25999 | 166.57 | 813 | 797 | 151.3 |
| B | 4 | 80 | 22429 | 142.98 | 813 | 797 | 151.3 |
| C | 4 | 254 | 648782 | 3671.82 | 768 | 774 | 176.5 |
| C | 14 | 238 | 122538 | 689.95 | 768 | 774 | 176.5 |
| C | 5 | 218 | 38488 | 213.7 | 768 | 774 | 176.5 |
| D | 7 | 238 | 4112196 | 25051.53 | 693 | 676 | 164.1 |
| D | 10 | 70 | 69103 | 416.93 | 693 | 676 | 164.1 |
| D | 5 | 233 | 50551 | 303.89 | 693 | 676 | 164.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

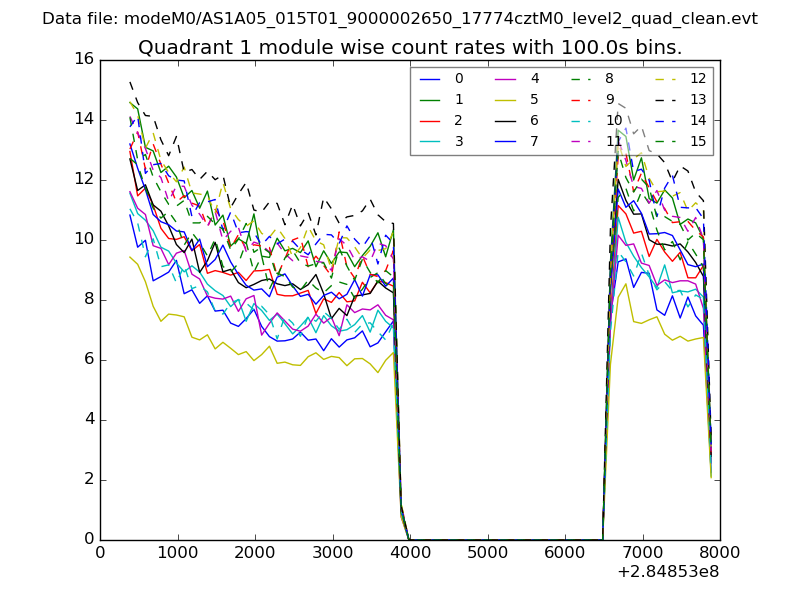

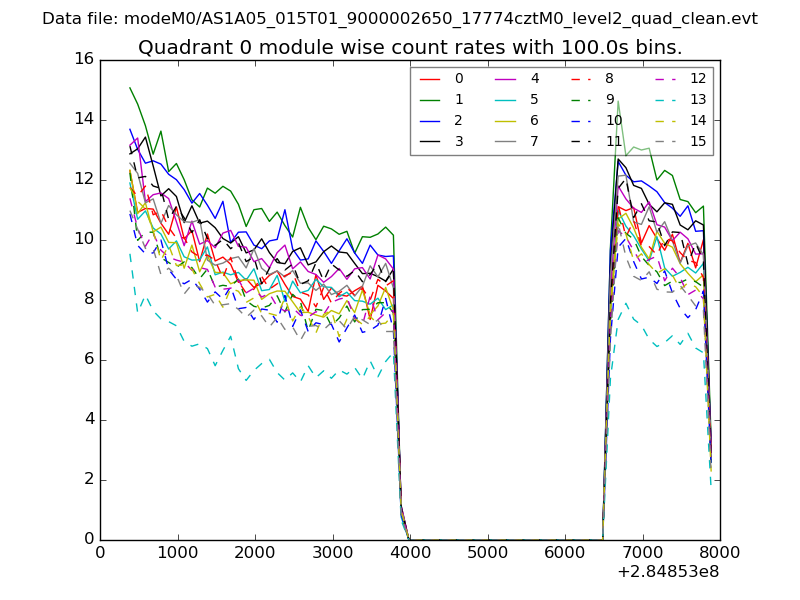

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

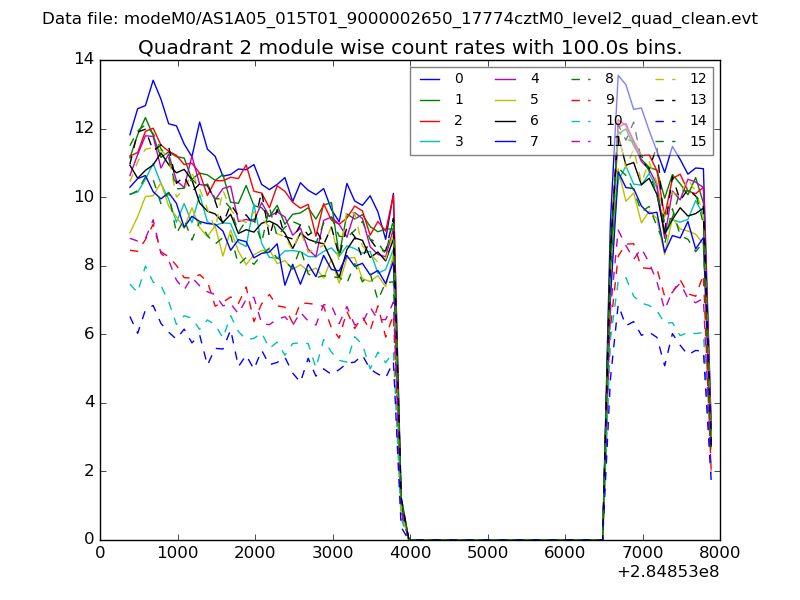

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

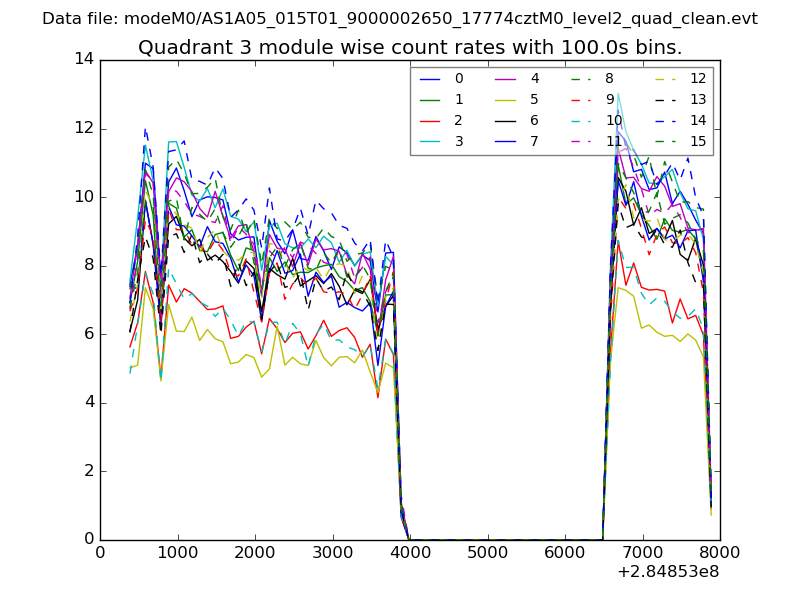

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

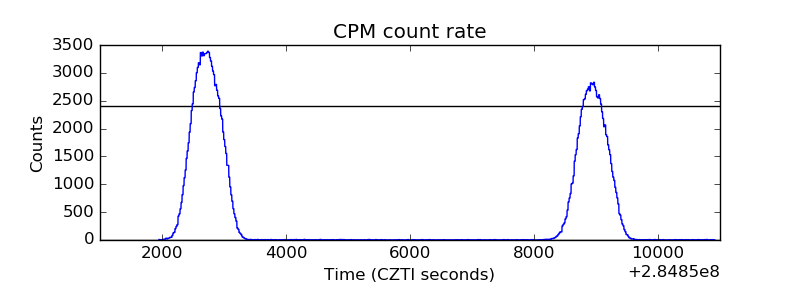

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

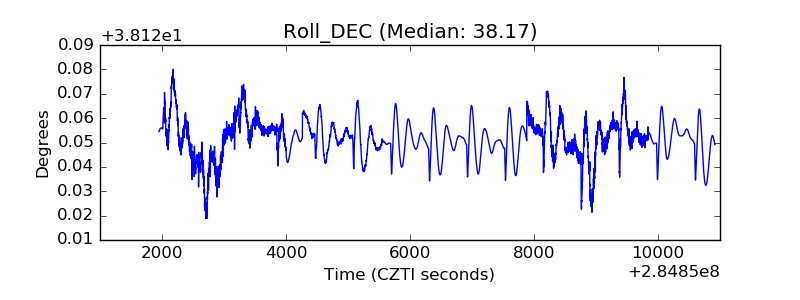

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

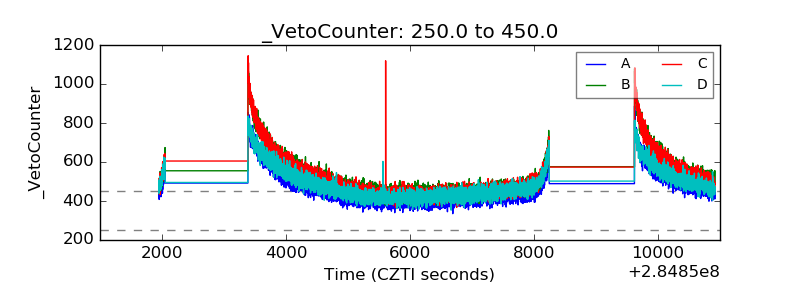

| Veto Counter |  |
