| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17777cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17777cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,021,120 | 96,436,800 |
| Size | 483.5 MB | 92.0 MB |
| Events in quadrant A | 3,216,500 | 624,687 |
| Events in quadrant B | 3,380,628 | 639,061 |
| Events in quadrant C | 4,851,885 | 570,339 |
| Events in quadrant D | 3,431,740 | 599,675 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14268 | 9 |
| B | 0 | 14651 | 10 |
| C | 0 | 18897 | 10 |
| D | 0 | 15212 | 15 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6984 | 52 | 0.744559% |
| B | 6983 | 64 | 0.916512% |
| C | 6983 | 602 | 8.620937% |
| D | 6983 | 43 | 0.615781% |

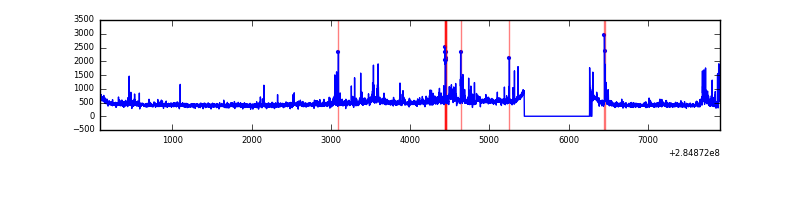

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7826 | 6987 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7823 | 6985 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7823 | 6985 | 475 | 475 | 6.07% | 6.80% |  |
| D | 7823 | 6985 | 11 | 11 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7289 | 38.3 | 835 | 818 | 169.0 |
| A | 12 | 194 | 6122 | 31.39 | 835 | 818 | 169.0 |
| A | 3 | 137 | 6104 | 31.28 | 835 | 818 | 169.0 |
| B | 0 | 230 | 70672 | 439.67 | 835 | 815 | 158.9 |
| B | 7 | 220 | 28692 | 175.45 | 835 | 815 | 158.9 |
| B | 12 | 111 | 18790 | 113.13 | 835 | 815 | 158.9 |
| C | 4 | 254 | 1679207 | 9378.92 | 765 | 770 | 179.0 |
| C | 14 | 238 | 118701 | 658.99 | 765 | 770 | 179.0 |
| C | 5 | 218 | 46118 | 253.4 | 765 | 770 | 179.0 |
| D | 7 | 238 | 222733 | 1156.13 | 802 | 783 | 192.0 |
| D | 10 | 70 | 49961 | 256.17 | 802 | 783 | 192.0 |
| D | 7 | 223 | 36215 | 184.56 | 802 | 783 | 192.0 |

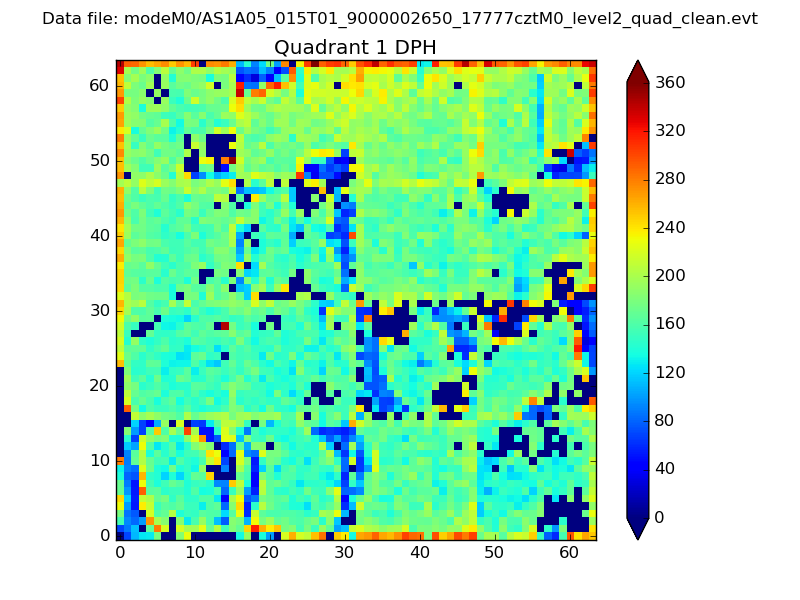

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

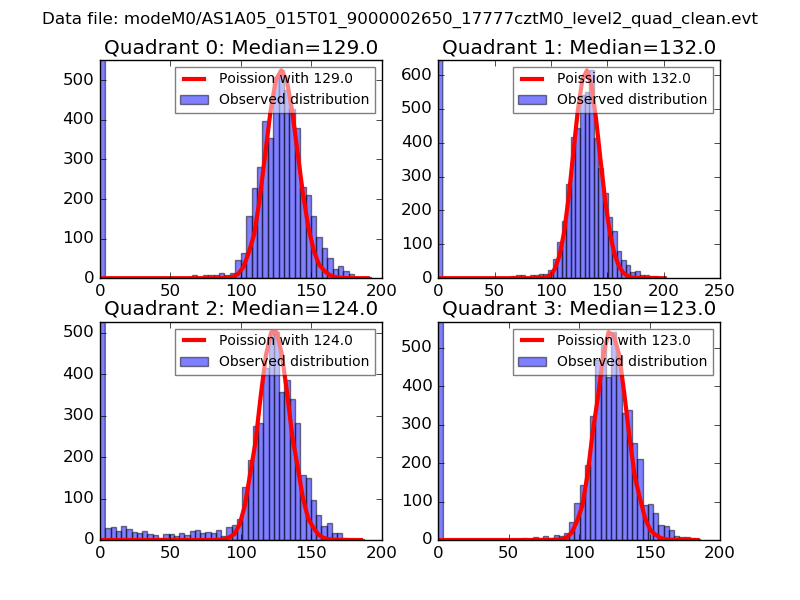

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

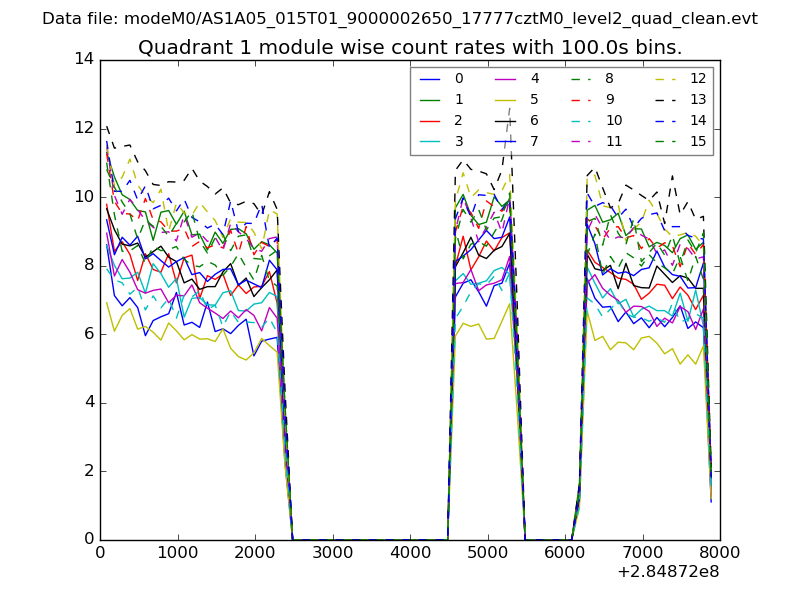

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

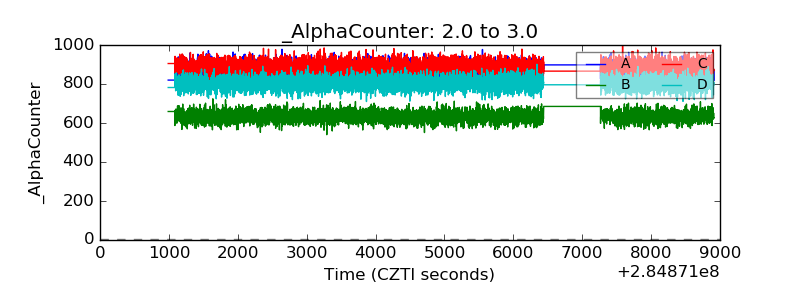

| Alpha Counter |  |

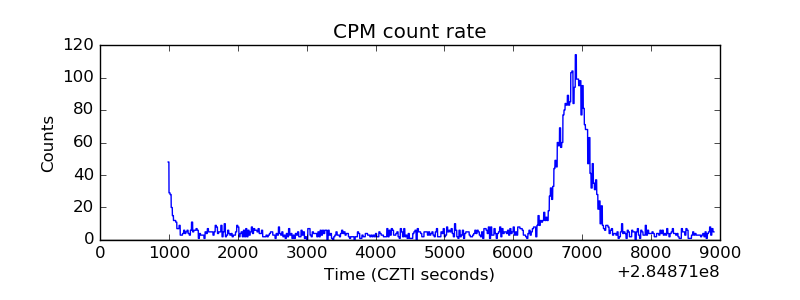

| _CPM_Rate |  |

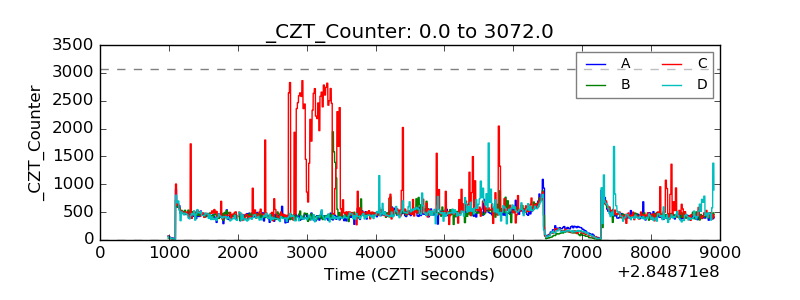

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

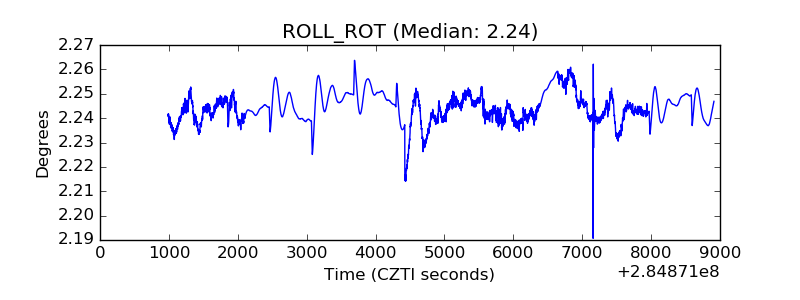

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
