| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17783cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17783cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,589,120 | 72,123,840 |
| Size | 448.8 MB | 68.8 MB |
| Events in quadrant A | 3,216,153 | 433,522 |
| Events in quadrant B | 3,393,405 | 436,605 |
| Events in quadrant C | 3,253,755 | 420,795 |
| Events in quadrant D | 3,925,878 | 418,420 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14021 | 2 |
| B | 0 | 14517 | 2 |
| C | 0 | 14053 | 2 |
| D | 0 | 16289 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6802 | 87 | 1.279036% |
| B | 6802 | 100 | 1.470156% |
| C | 6803 | 112 | 1.646333% |
| D | 6803 | 163 | 2.396002% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

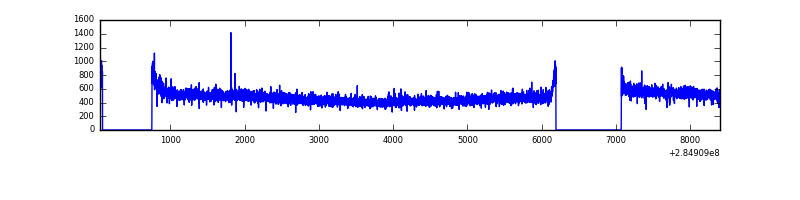

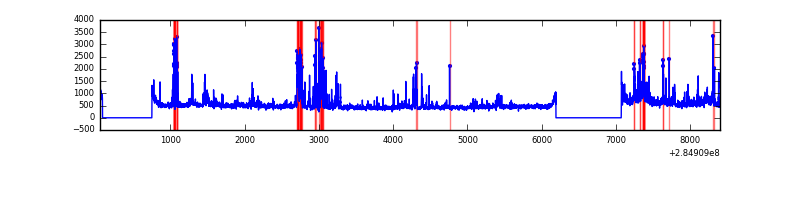

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8347 | 6803 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8347 | 6803 | 12 | 12 | 0.14% | 0.18% |  |
| C | 8348 | 6803 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8348 | 6804 | 70 | 70 | 0.84% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 25117 | 143.12 | 829 | 808 | 169.9 |
| A | 0 | 226 | 7212 | 37.7 | 829 | 808 | 169.9 |
| A | 3 | 137 | 6140 | 31.39 | 829 | 808 | 169.9 |
| B | 7 | 220 | 78529 | 486.8 | 828 | 803 | 159.7 |
| B | 12 | 111 | 18607 | 111.51 | 828 | 803 | 159.7 |
| B | 6 | 36 | 17778 | 106.31 | 828 | 803 | 159.7 |
| C | 14 | 238 | 121534 | 646.95 | 795 | 802 | 186.6 |
| C | 3 | 233 | 16175 | 82.38 | 795 | 802 | 186.6 |
| C | 1 | 16 | 14049 | 70.98 | 795 | 802 | 186.6 |
| D | 7 | 238 | 554539 | 2840.61 | 806 | 785 | 194.9 |
| D | 1 | 52 | 118610 | 604.41 | 806 | 785 | 194.9 |
| D | 10 | 70 | 90721 | 461.34 | 806 | 785 | 194.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

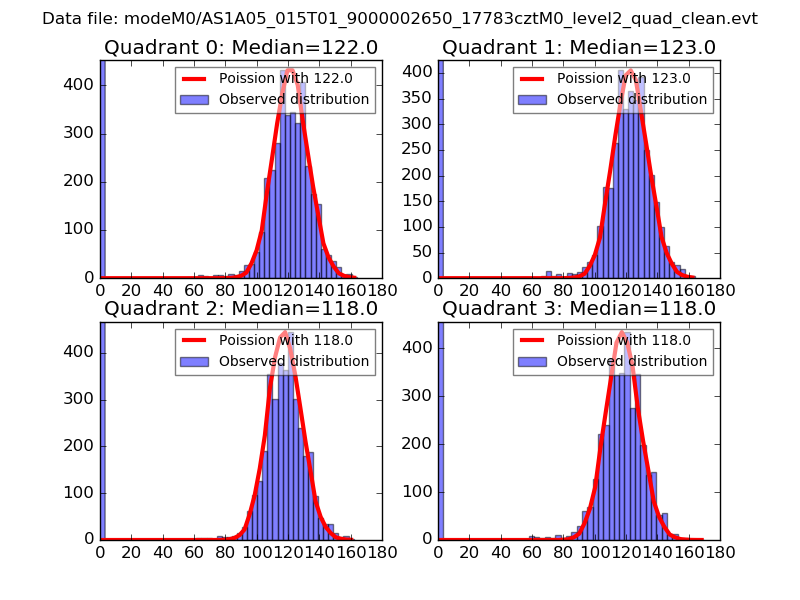

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

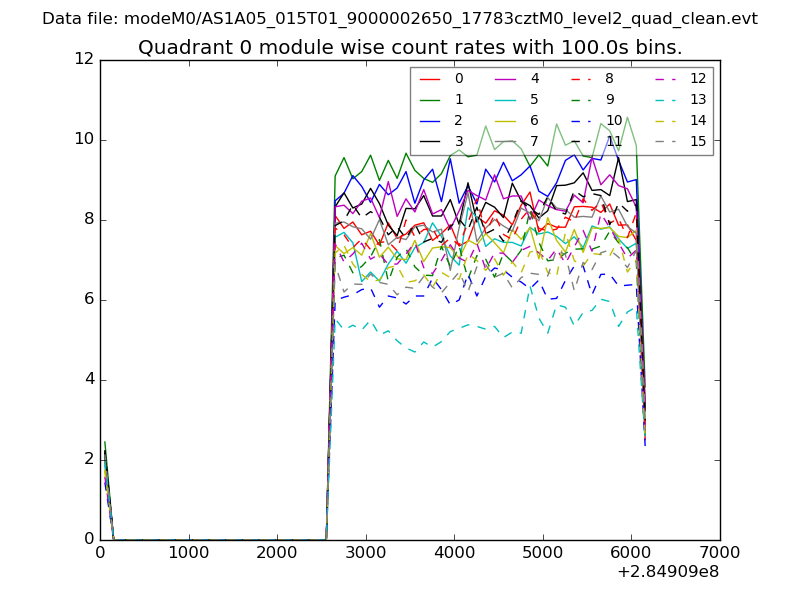

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

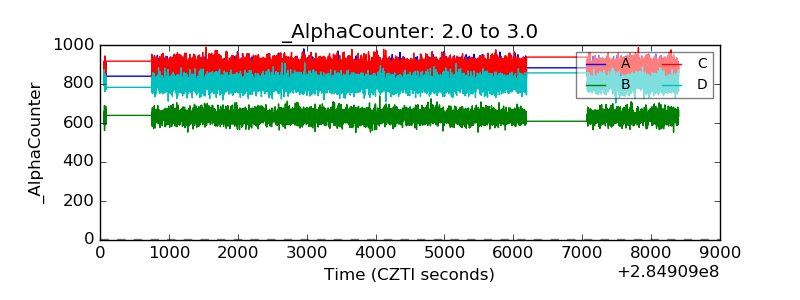

| Alpha Counter |  |

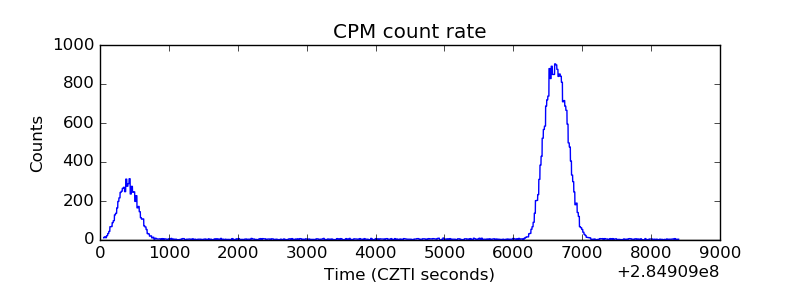

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

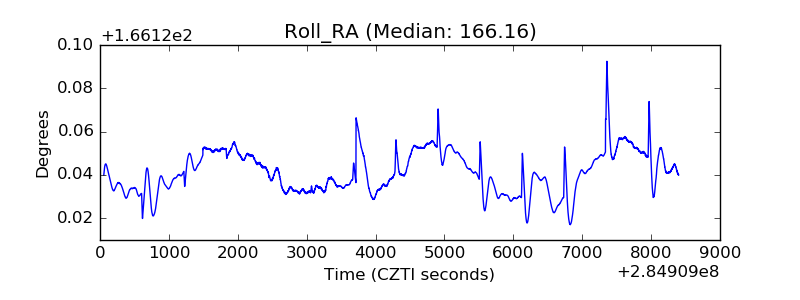

| _Roll_RA |  |
| Veto Counter |  |
