| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17786cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17786cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,267,520 | 94,950,720 |
| Size | 459.9 MB | 90.6 MB |
| Events in quadrant A | 3,334,343 | 603,742 |
| Events in quadrant B | 3,786,358 | 615,255 |
| Events in quadrant C | 3,497,147 | 594,987 |
| Events in quadrant D | 3,526,591 | 588,612 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14491 | 2 |
| B | 0 | 15793 | 2 |
| C | 0 | 14875 | 2 |
| D | 0 | 15185 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6792 | 99 | 1.457597% |
| B | 6793 | 194 | 2.855881% |
| C | 6793 | 136 | 2.002061% |
| D | 6793 | 98 | 1.442662% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8977 | 6794 | 8 | 8 | 0.09% | 0.12% |  |
| B | 8978 | 6793 | 48 | 48 | 0.53% | 0.71% |  |
| C | 8978 | 6794 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8978 | 6794 | 9 | 9 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 39525 | 223.59 | 857 | 839 | 173.0 |
| A | 0 | 226 | 7585 | 38.99 | 857 | 839 | 173.0 |
| A | 3 | 137 | 6381 | 32.03 | 857 | 839 | 173.0 |
| B | 10 | 245 | 260142 | 1577.45 | 856 | 834 | 164.4 |
| B | 15 | 35 | 36679 | 218.06 | 856 | 834 | 164.4 |
| B | 3 | 209 | 35565 | 211.28 | 856 | 834 | 164.4 |
| C | 14 | 238 | 128523 | 658.39 | 834 | 839 | 193.9 |
| C | 3 | 233 | 99437 | 508.41 | 834 | 839 | 193.9 |
| C | 5 | 218 | 10367 | 49.13 | 834 | 839 | 193.9 |
| D | 1 | 52 | 118460 | 589.74 | 838 | 820 | 199.5 |
| D | 7 | 238 | 100847 | 501.44 | 838 | 820 | 199.5 |
| D | 8 | 195 | 49891 | 246.0 | 838 | 820 | 199.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

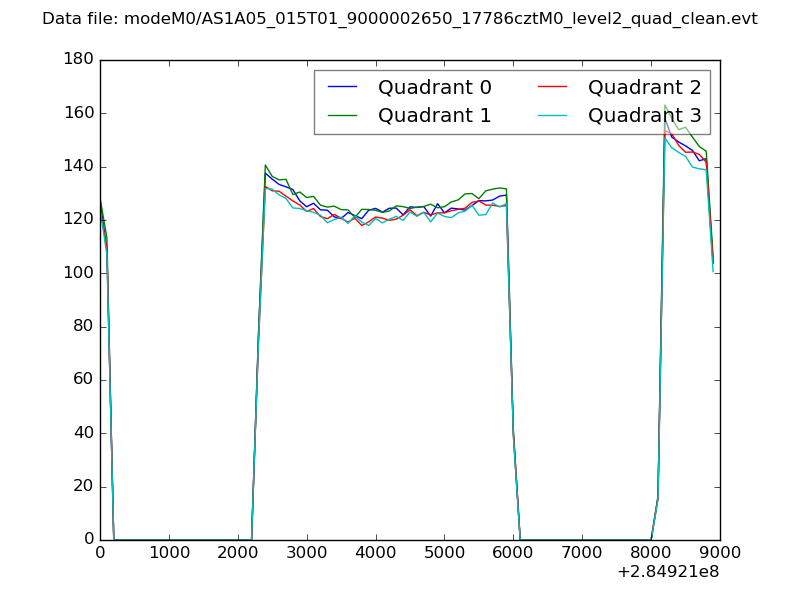

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

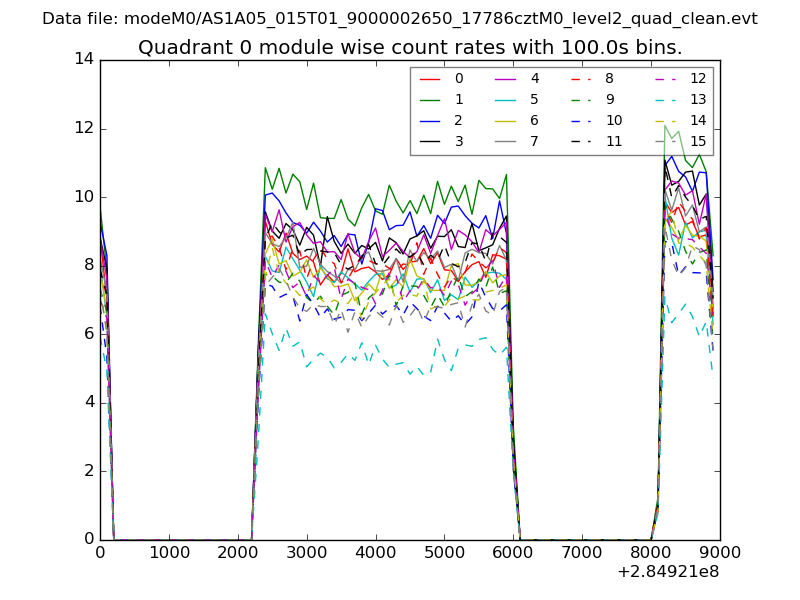

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

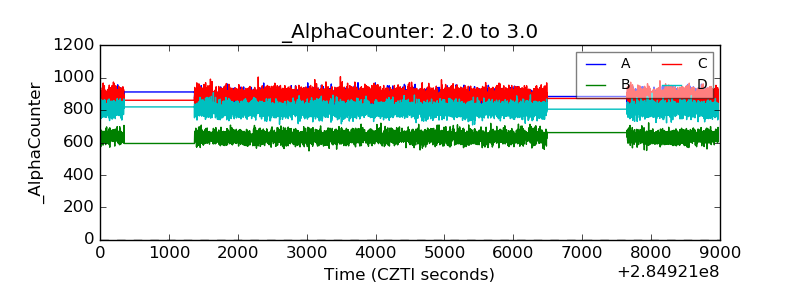

| Alpha Counter |  |

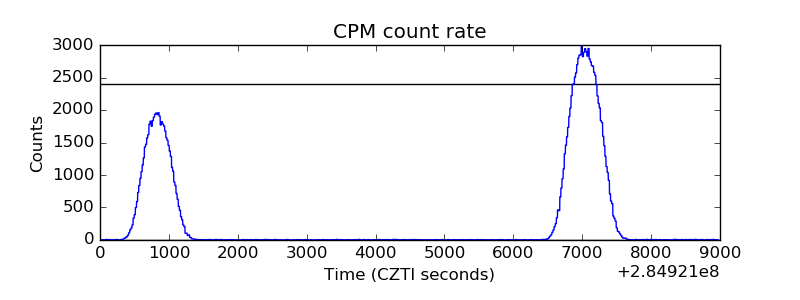

| _CPM_Rate |  |

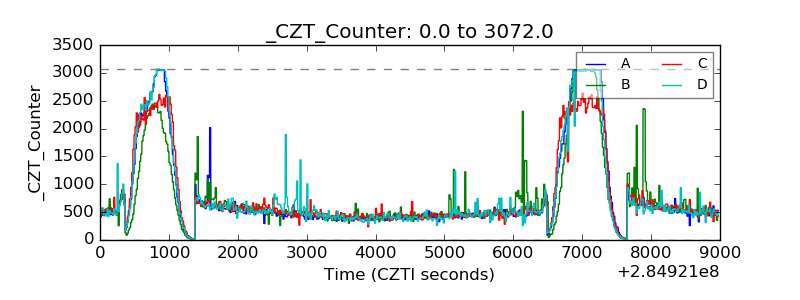

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

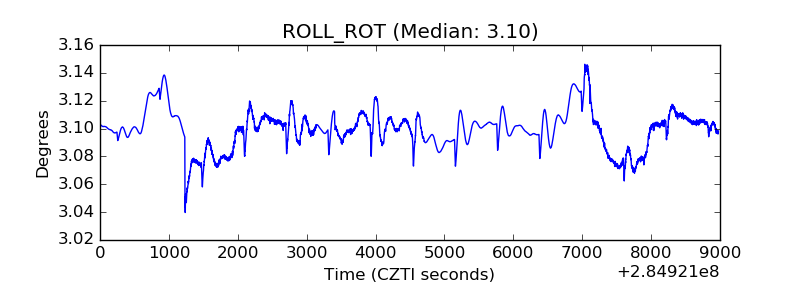

| _ROLL_ROT |  |
| _Roll_DEC |  |

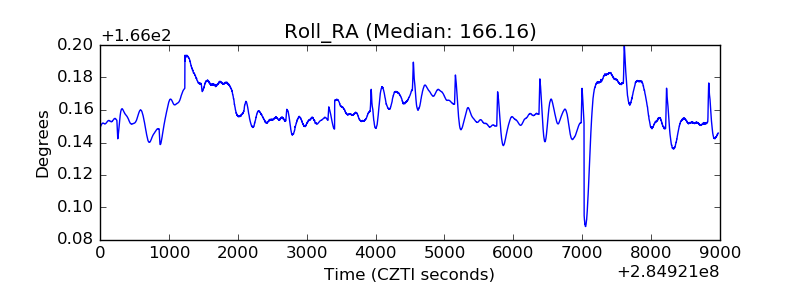

| _Roll_RA |  |
| Veto Counter |  |
