| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17788cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17788cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,007,040 | 110,433,600 |
| Size | 504.5 MB | 105.3 MB |
| Events in quadrant A | 3,302,487 | 734,939 |
| Events in quadrant B | 3,454,863 | 765,646 |
| Events in quadrant C | 3,462,650 | 722,963 |
| Events in quadrant D | 5,351,547 | 658,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14075 | 2 |
| B | 0 | 14538 | 2 |
| C | 0 | 14549 | 2 |
| D | 0 | 20429 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6631 | 42 | 0.633389% |
| B | 6631 | 61 | 0.919922% |
| C | 6631 | 87 | 1.312019% |
| D | 6631 | 481 | 7.253808% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9261 | 6633 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9261 | 6633 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9261 | 6633 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9261 | 6633 | 452 | 452 | 4.88% | 6.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7532 | 39.03 | 858 | 840 | 171.5 |
| A | 12 | 194 | 6266 | 31.64 | 858 | 840 | 171.5 |
| A | 3 | 137 | 5956 | 29.84 | 858 | 840 | 171.5 |
| B | 0 | 230 | 29311 | 176.26 | 868 | 847 | 161.5 |
| B | 0 | 189 | 20097 | 119.2 | 868 | 847 | 161.5 |
| B | 12 | 111 | 18474 | 109.15 | 868 | 847 | 161.5 |
| C | 14 | 238 | 130762 | 672.38 | 833 | 840 | 193.2 |
| C | 3 | 233 | 65038 | 332.24 | 833 | 840 | 193.2 |
| C | 5 | 218 | 8666 | 40.5 | 833 | 840 | 193.2 |
| D | 7 | 238 | 1723424 | 8826.86 | 799 | 779 | 195.2 |
| D | 12 | 110 | 459063 | 2348.25 | 799 | 779 | 195.2 |
| D | 10 | 70 | 98312 | 499.76 | 799 | 779 | 195.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

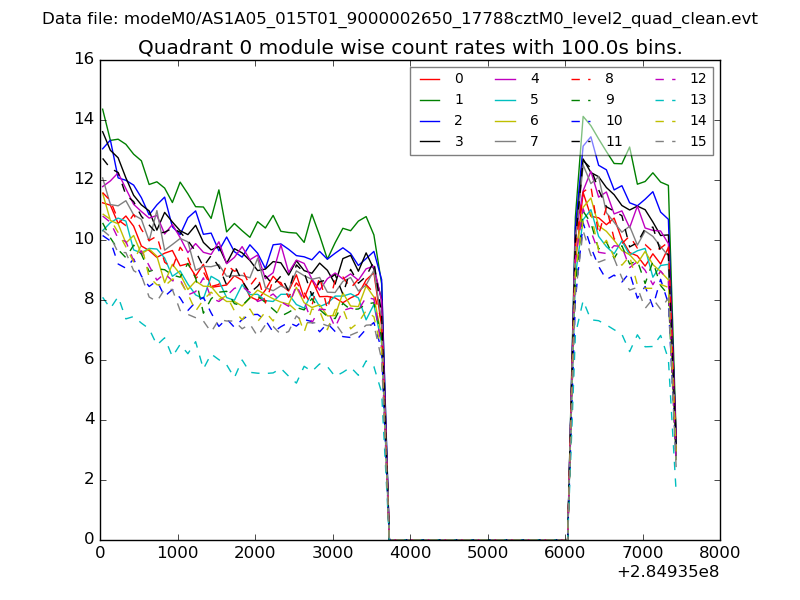

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

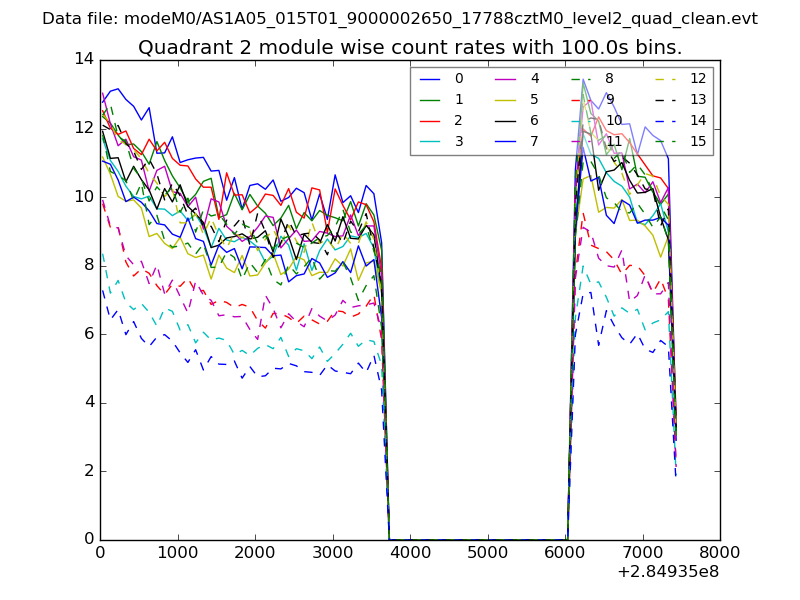

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

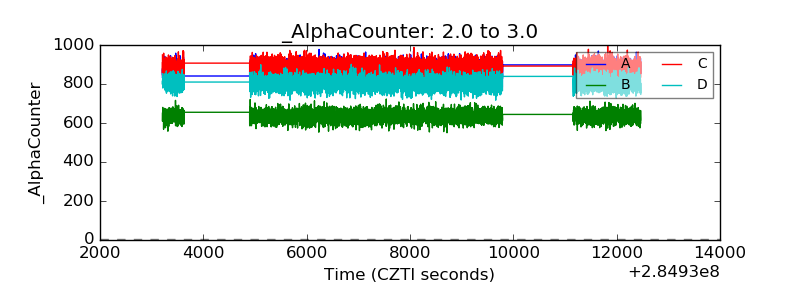

| Alpha Counter |  |

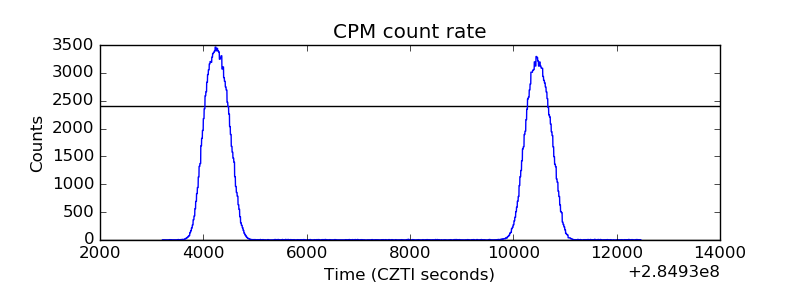

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

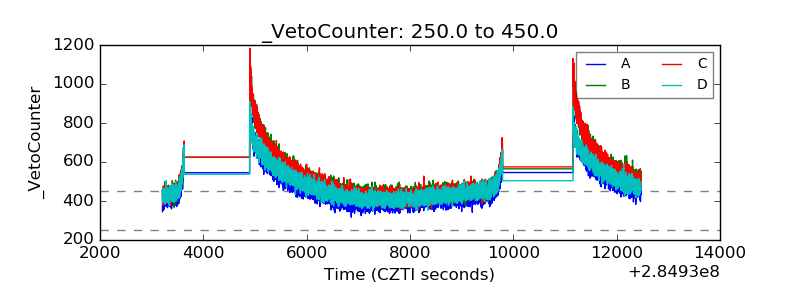

| Veto Counter |  |
