| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17791cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17791cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,304,960 | 95,713,920 |
| Size | 442.8 MB | 91.3 MB |
| Events in quadrant A | 3,174,721 | 613,319 |
| Events in quadrant B | 3,337,482 | 630,126 |
| Events in quadrant C | 3,362,009 | 601,472 |
| Events in quadrant D | 3,724,281 | 579,003 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14005 | 2 |
| B | 0 | 14360 | 2 |
| C | 0 | 14451 | 2 |
| D | 0 | 16011 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6812 | 24 | 0.352319% |
| B | 6812 | 54 | 0.792719% |
| C | 6812 | 55 | 0.807399% |
| D | 6811 | 226 | 3.318162% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

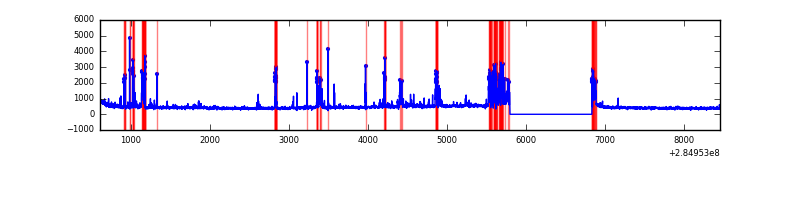

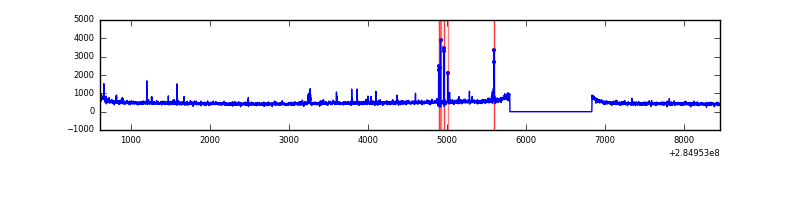

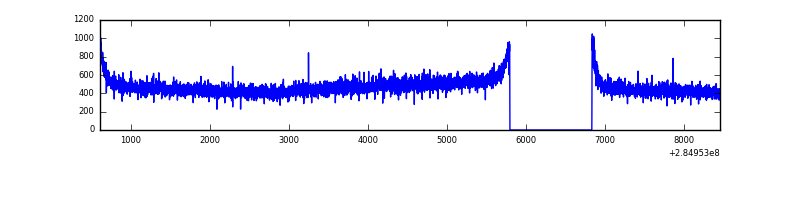

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7852 | 6813 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7852 | 6813 | 9 | 9 | 0.11% | 0.13% |  |
| C | 7852 | 6813 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7851 | 6812 | 153 | 153 | 1.95% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7231 | 38.55 | 824 | 808 | 166.6 |
| A | 3 | 137 | 6027 | 31.32 | 824 | 808 | 166.6 |
| A | 12 | 194 | 6009 | 31.21 | 824 | 808 | 166.6 |
| B | 10 | 245 | 57371 | 361.8 | 825 | 804 | 156.4 |
| B | 12 | 111 | 18513 | 113.26 | 825 | 804 | 156.4 |
| B | 6 | 36 | 15766 | 95.7 | 825 | 804 | 156.4 |
| C | 14 | 238 | 122375 | 660.39 | 787 | 793 | 184.1 |
| C | 9 | 160 | 58866 | 315.43 | 787 | 793 | 184.1 |
| C | 3 | 233 | 47708 | 254.82 | 787 | 793 | 184.1 |
| D | 7 | 238 | 373537 | 1999.13 | 781 | 762 | 186.5 |
| D | 10 | 70 | 365166 | 1954.23 | 781 | 762 | 186.5 |
| D | 2 | 234 | 25925 | 134.94 | 781 | 762 | 186.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

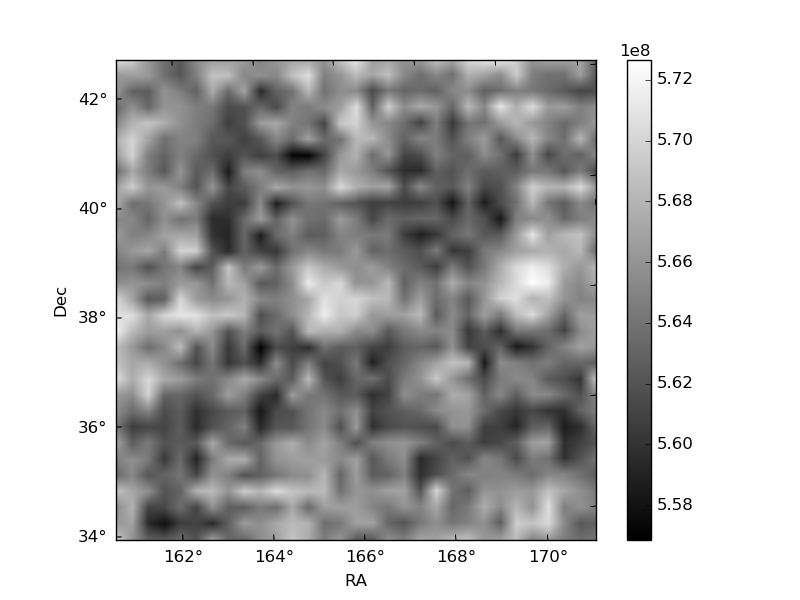

| Plot type | Count rate plots | Images |
|---|---|---|

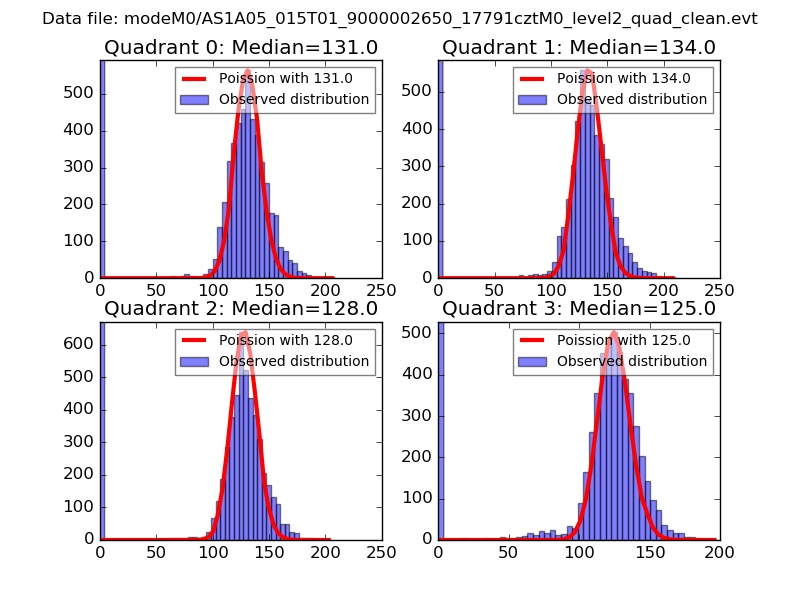

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

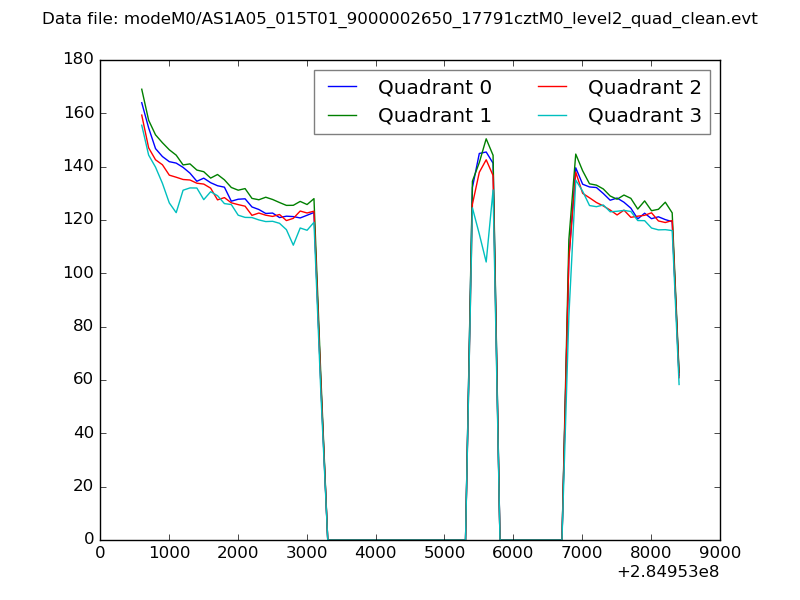

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

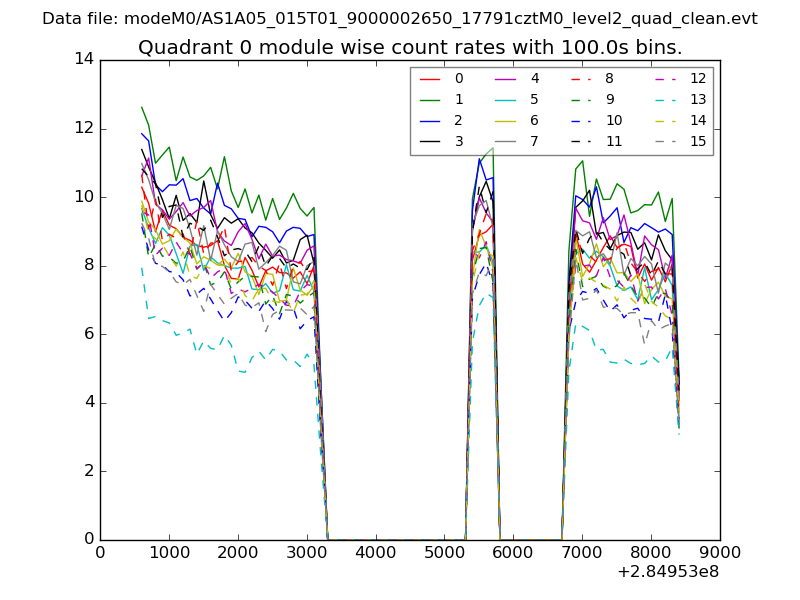

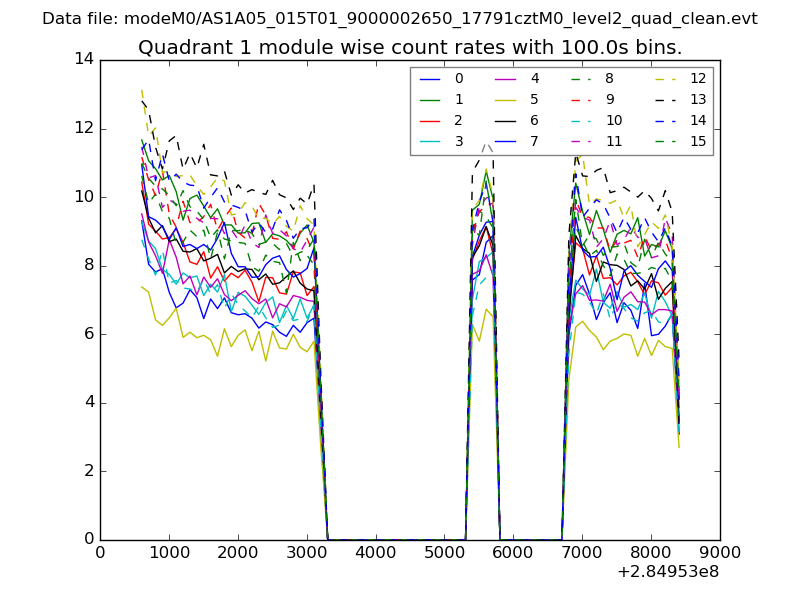

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

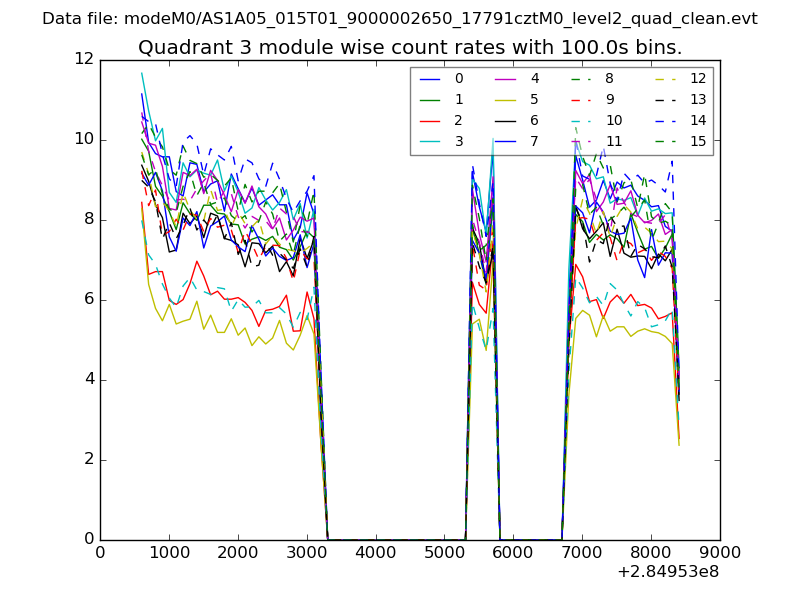

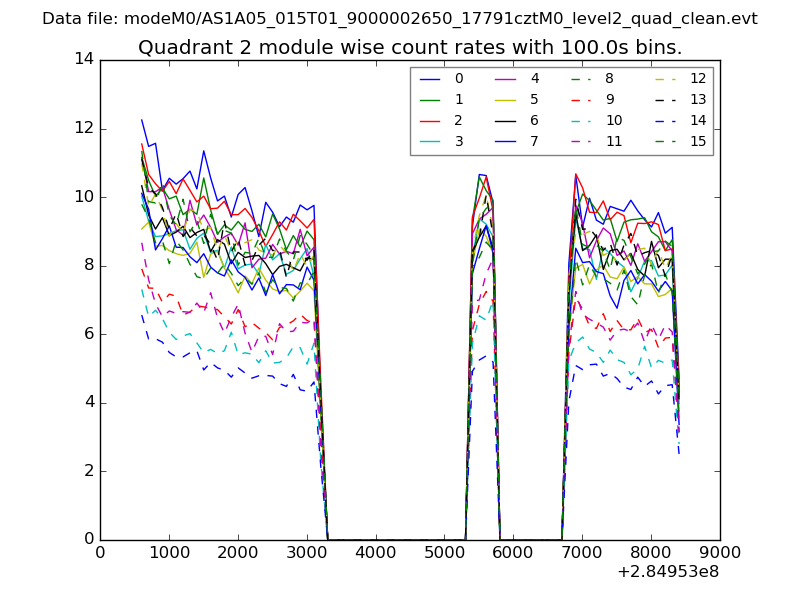

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

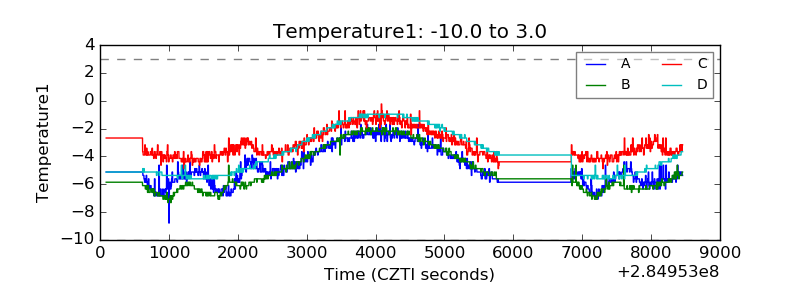

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

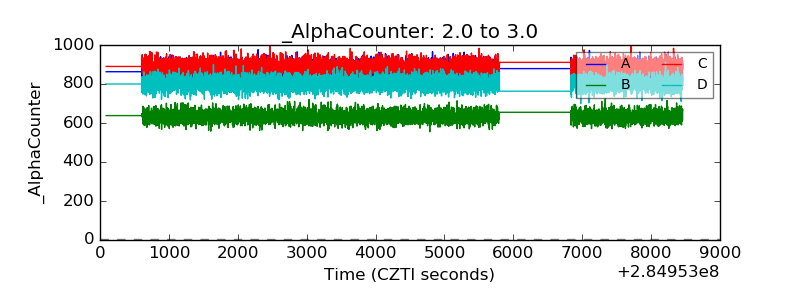

| Alpha Counter |  |

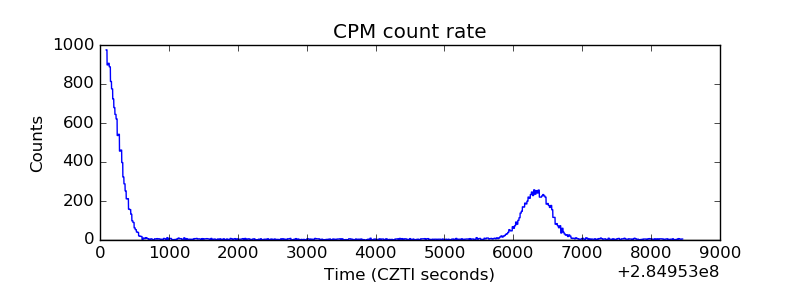

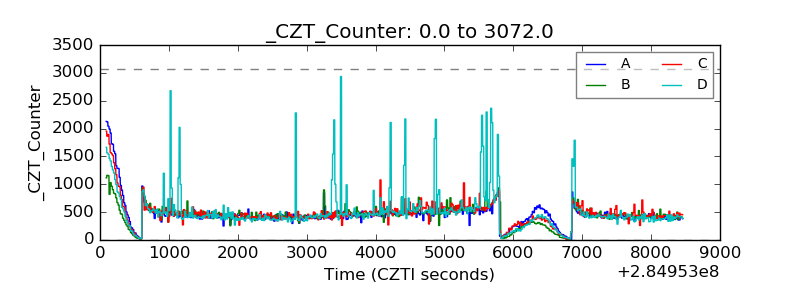

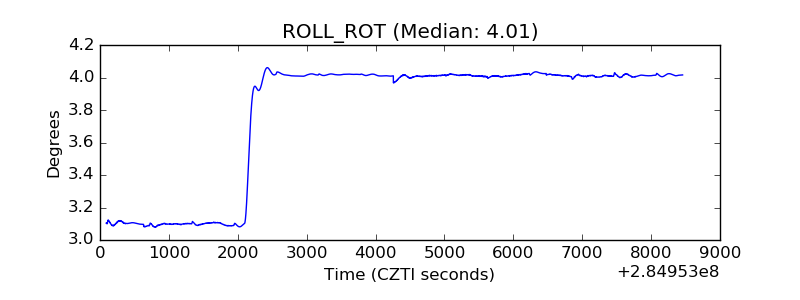

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

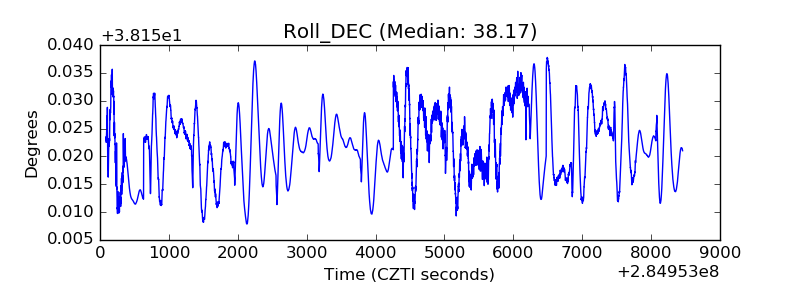

| _Roll_DEC |  |

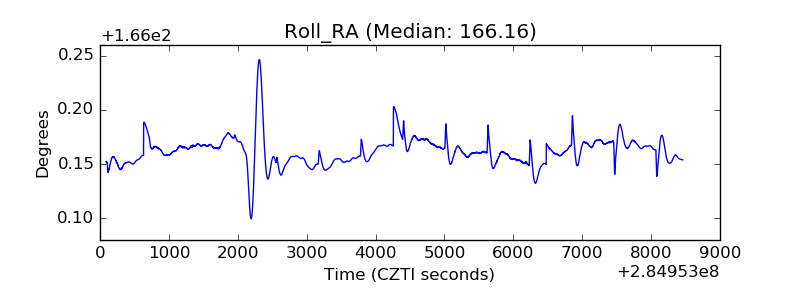

| _Roll_RA |  |

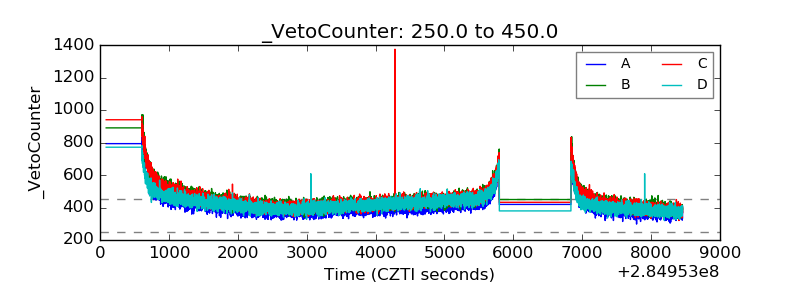

| Veto Counter |  |
