| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17792cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17792cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,829,440 | 101,278,080 |
| Size | 455.7 MB | 96.6 MB |
| Events in quadrant A | 3,361,662 | 645,075 |
| Events in quadrant B | 3,406,772 | 660,271 |
| Events in quadrant C | 3,600,934 | 633,850 |
| Events in quadrant D | 3,606,922 | 621,209 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14947 | 2 |
| B | 0 | 14959 | 2 |
| C | 0 | 15230 | 2 |
| D | 0 | 16028 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7278 | 79 | 1.085463% |
| B | 7278 | 82 | 1.126683% |
| C | 7278 | 81 | 1.112943% |
| D | 7278 | 118 | 1.621325% |

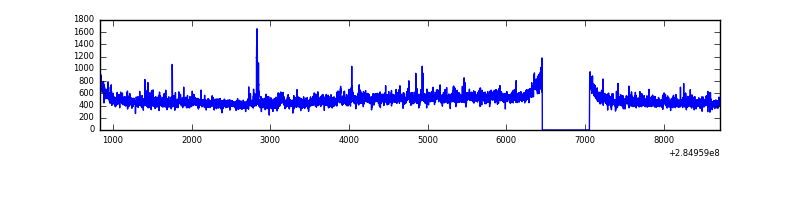

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7878 | 7279 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7878 | 7279 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7878 | 7279 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7878 | 7279 | 54 | 54 | 0.69% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 30055 | 166.55 | 866 | 847 | 175.4 |
| A | 0 | 226 | 7416 | 37.46 | 866 | 847 | 175.4 |
| A | 3 | 137 | 6481 | 32.13 | 866 | 847 | 175.4 |
| B | 12 | 111 | 20005 | 116.21 | 866 | 843 | 164.9 |
| B | 11 | 111 | 17087 | 98.52 | 866 | 843 | 164.9 |
| B | 14 | 111 | 14554 | 83.16 | 866 | 843 | 164.9 |
| C | 14 | 238 | 127659 | 656.73 | 825 | 831 | 193.1 |
| C | 3 | 233 | 90561 | 464.63 | 825 | 831 | 193.1 |
| C | 9 | 160 | 79426 | 406.97 | 825 | 831 | 193.1 |
| D | 7 | 238 | 256664 | 1278.75 | 829 | 807 | 200.1 |
| D | 10 | 70 | 171179 | 851.51 | 829 | 807 | 200.1 |
| D | 2 | 234 | 26740 | 129.61 | 829 | 807 | 200.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

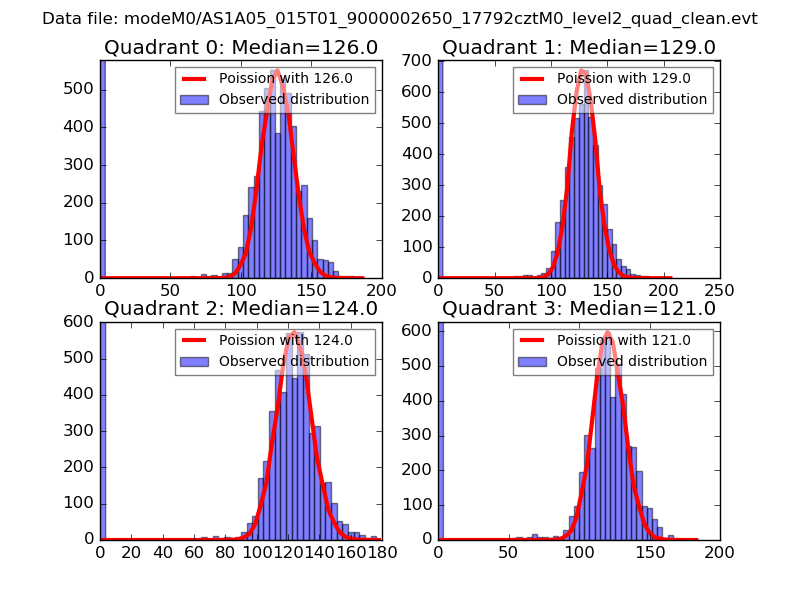

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

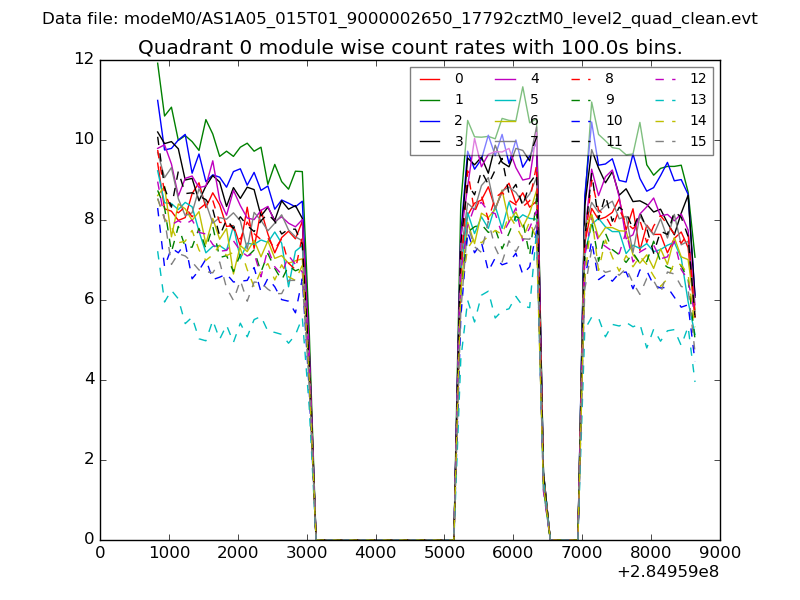

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

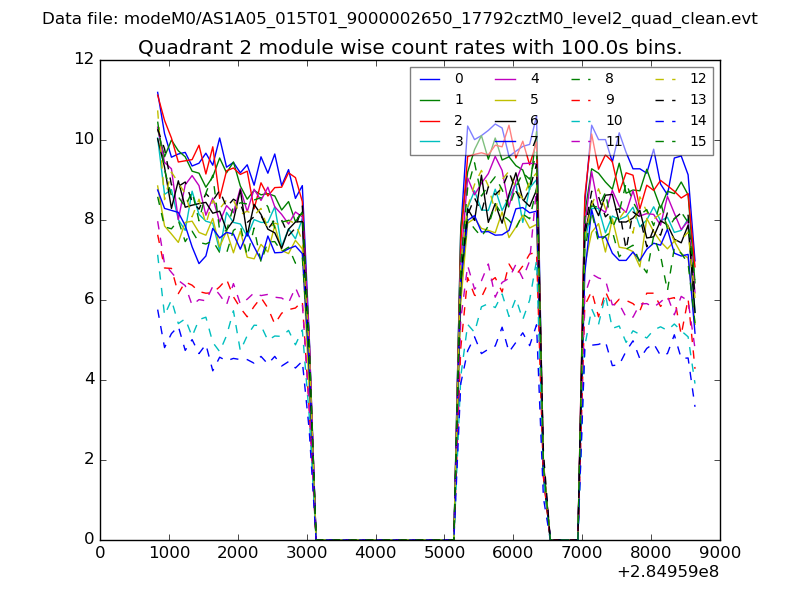

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

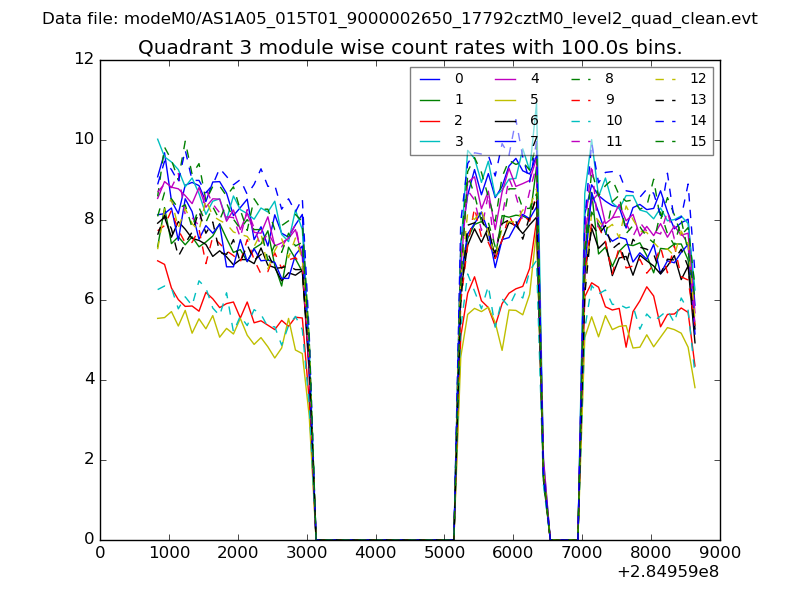

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

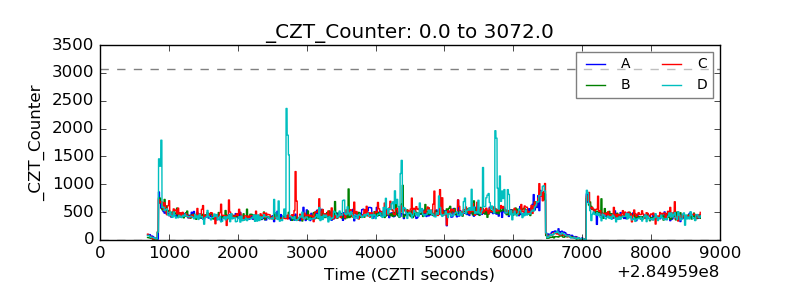

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

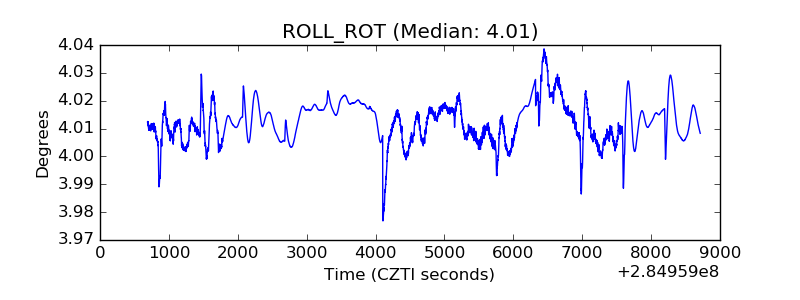

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

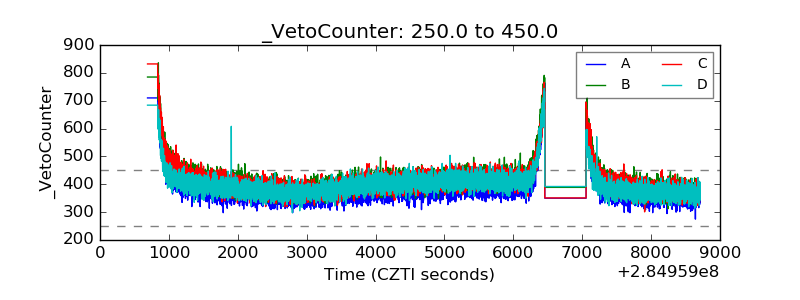

| Veto Counter |  |
