| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17802cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17802cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,747,200 | 111,476,160 |
| Size | 496.6 MB | 106.3 MB |
| Events in quadrant A | 3,516,043 | 730,883 |
| Events in quadrant B | 3,673,420 | 754,352 |
| Events in quadrant C | 3,642,704 | 723,598 |
| Events in quadrant D | 4,472,494 | 688,546 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14906 | 2 |
| B | 0 | 15373 | 2 |
| C | 0 | 15174 | 2 |
| D | 0 | 18013 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6869 | 78 | 1.135536% |
| B | 6870 | 104 | 1.513828% |
| C | 6870 | 139 | 2.023290% |
| D | 6870 | 289 | 4.206696% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9389 | 6871 | 4 | 4 | 0.04% | 0.06% |  |
| B | 9390 | 6872 | 8 | 8 | 0.09% | 0.12% |  |
| C | 9390 | 6871 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9390 | 6872 | 185 | 185 | 1.97% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 84737 | 469.81 | 892 | 875 | 178.5 |
| A | 0 | 226 | 7720 | 38.35 | 892 | 875 | 178.5 |
| A | 12 | 194 | 6468 | 31.33 | 892 | 875 | 178.5 |
| B | 0 | 230 | 45469 | 264.68 | 903 | 882 | 168.5 |
| B | 4 | 48 | 34901 | 201.94 | 903 | 882 | 168.5 |
| B | 6 | 36 | 23035 | 131.5 | 903 | 882 | 168.5 |
| C | 14 | 238 | 137437 | 679.64 | 871 | 877 | 200.9 |
| C | 3 | 233 | 65824 | 323.23 | 871 | 877 | 200.9 |
| C | 5 | 218 | 38073 | 185.12 | 871 | 877 | 200.9 |
| D | 7 | 238 | 874748 | 4293.32 | 861 | 842 | 203.6 |
| D | 2 | 165 | 220680 | 1080.02 | 861 | 842 | 203.6 |
| D | 2 | 120 | 35793 | 171.7 | 861 | 842 | 203.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

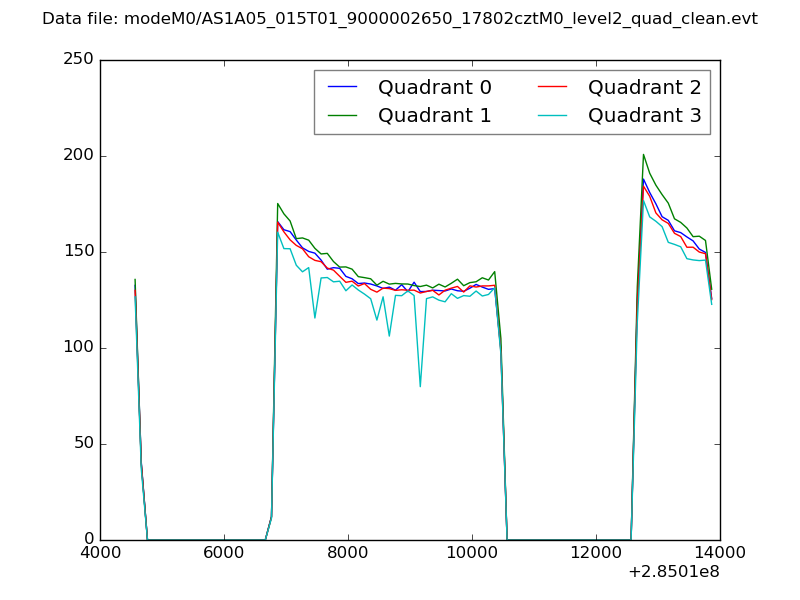

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

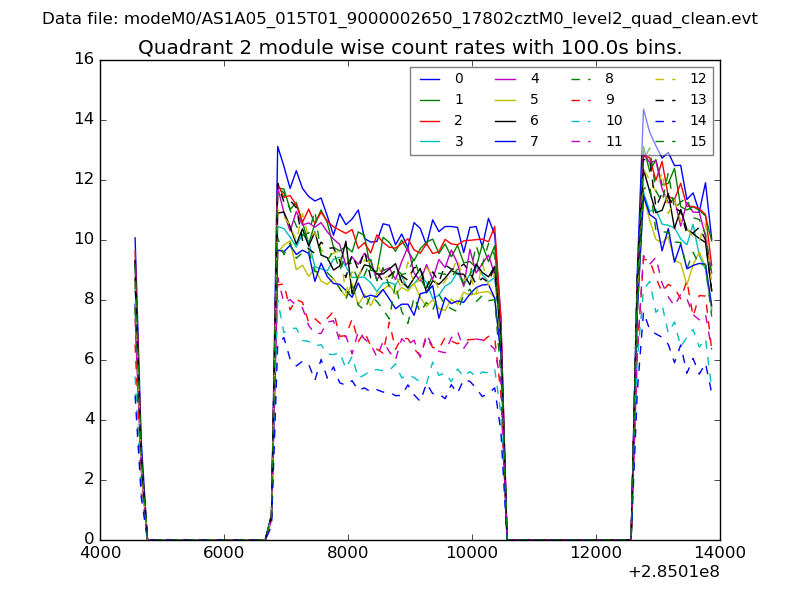

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

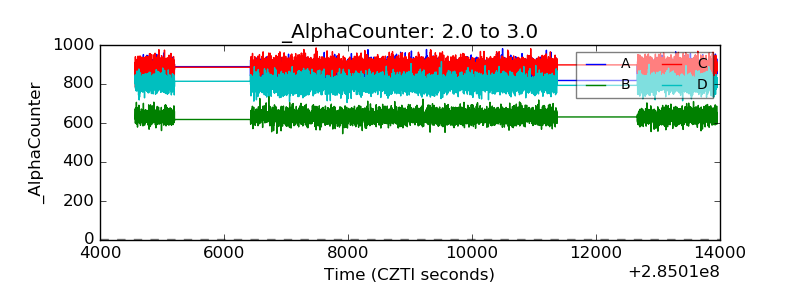

| Alpha Counter |  |

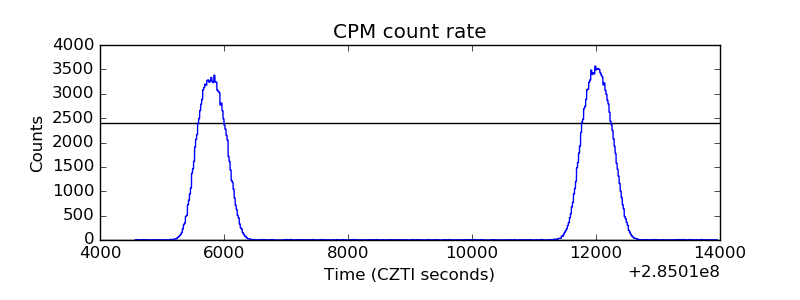

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

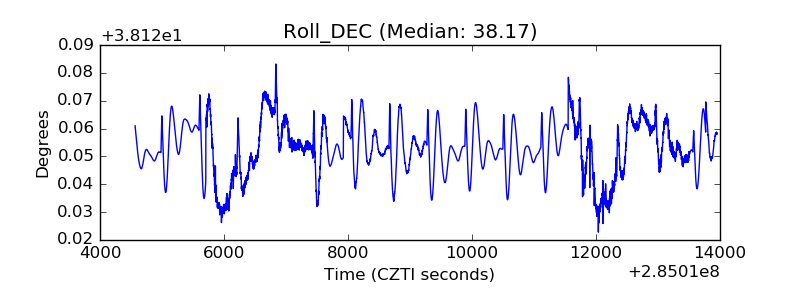

| _Roll_DEC |  |
| _Roll_RA |  |

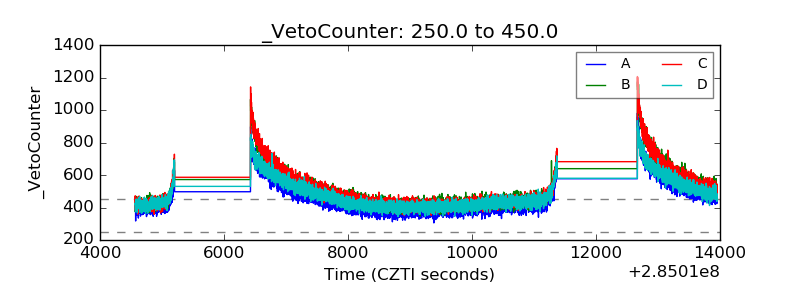

| Veto Counter |  |
