| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17805cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17805cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,989,760 | 96,621,120 |
| Size | 470.2 MB | 92.1 MB |
| Events in quadrant A | 3,177,229 | 621,922 |
| Events in quadrant B | 3,261,323 | 643,819 |
| Events in quadrant C | 3,371,046 | 610,039 |
| Events in quadrant D | 4,664,291 | 581,829 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13953 | 2 |
| B | 0 | 14062 | 2 |
| C | 0 | 14401 | 2 |
| D | 0 | 18689 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6727 | 28 | 0.416233% |
| B | 6727 | 46 | 0.683812% |
| C | 6727 | 102 | 1.516278% |
| D | 6727 | 461 | 6.852981% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7937 | 6728 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7937 | 6728 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7937 | 6728 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7937 | 6728 | 290 | 290 | 3.65% | 4.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 8887 | 48.98 | 824 | 810 | 164.9 |
| A | 0 | 226 | 7032 | 37.73 | 824 | 810 | 164.9 |
| A | 12 | 194 | 5951 | 31.18 | 824 | 810 | 164.9 |
| B | 12 | 111 | 18274 | 110.65 | 830 | 810 | 157.8 |
| B | 11 | 111 | 15747 | 94.64 | 830 | 810 | 157.8 |
| B | 14 | 111 | 13431 | 79.97 | 830 | 810 | 157.8 |
| C | 14 | 238 | 124064 | 672.44 | 791 | 797 | 183.3 |
| C | 3 | 233 | 113244 | 613.41 | 791 | 797 | 183.3 |
| C | 5 | 218 | 47109 | 252.64 | 791 | 797 | 183.3 |
| D | 7 | 238 | 1616766 | 8682.27 | 776 | 757 | 186.1 |
| D | 7 | 38 | 31107 | 163.06 | 776 | 757 | 186.1 |
| D | 2 | 234 | 24718 | 128.73 | 776 | 757 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

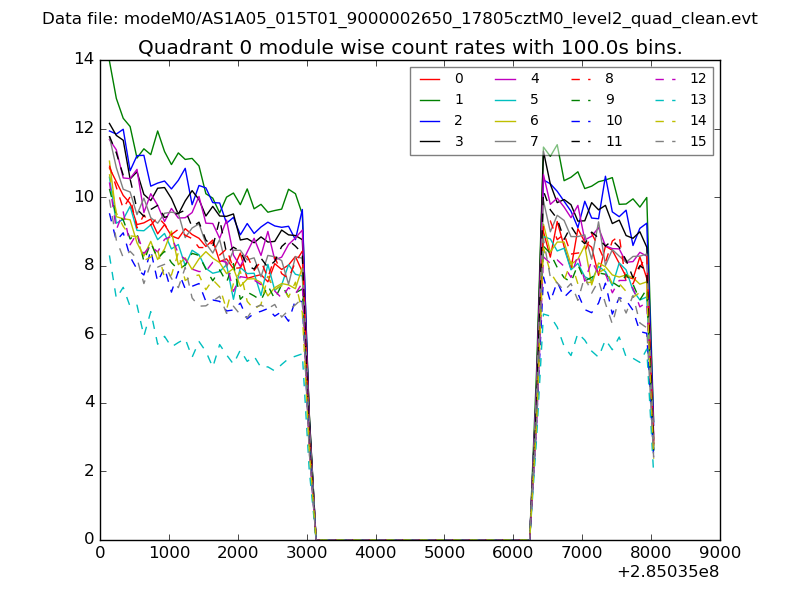

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

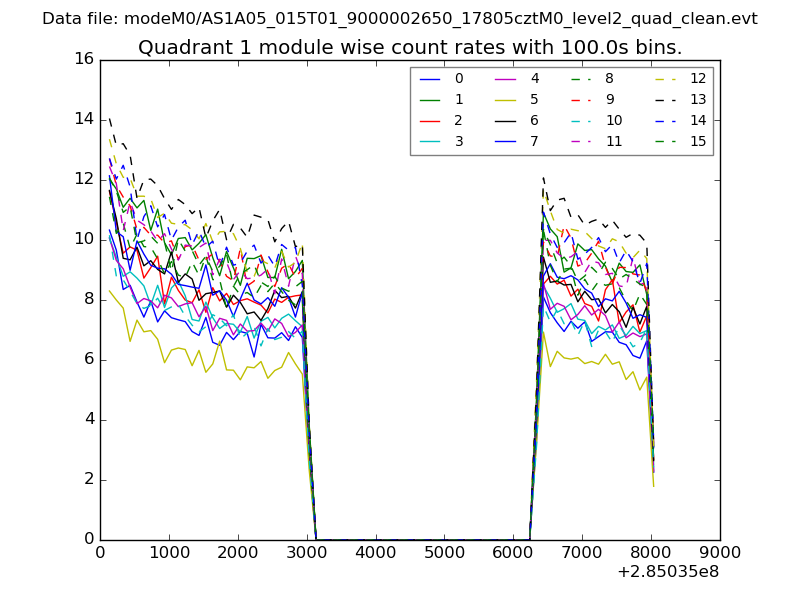

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

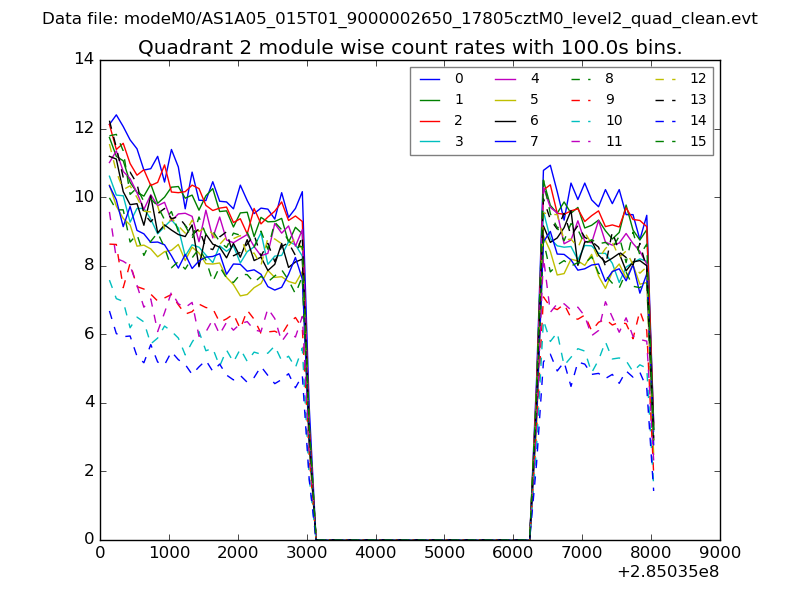

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

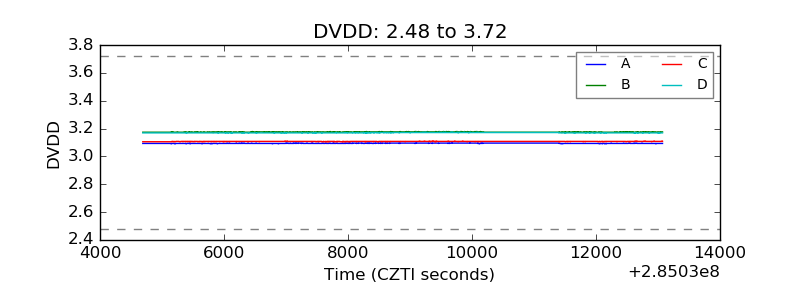

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

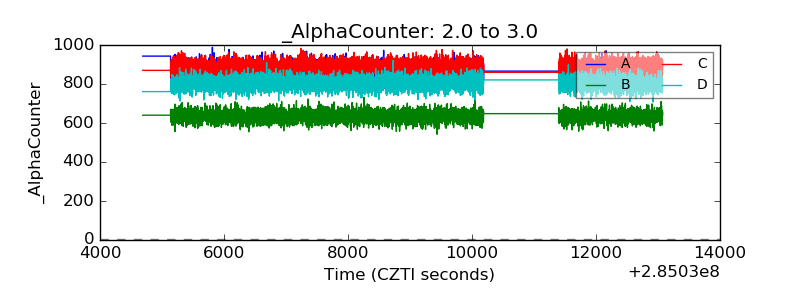

| Alpha Counter |  |
| _CPM_Rate |  |

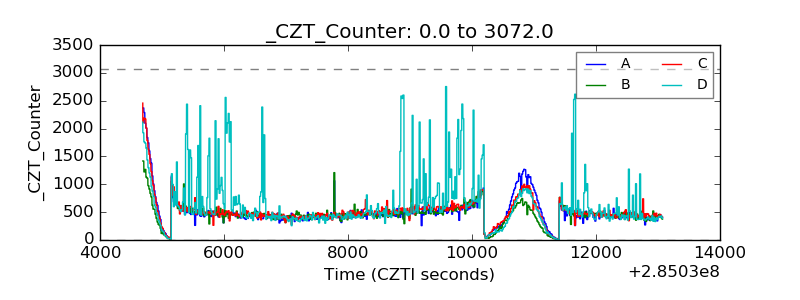

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

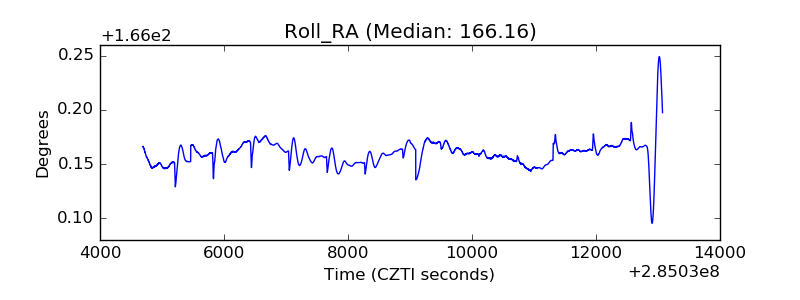

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
