| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17807cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17807cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,339,200 | 98,112,960 |
| Size | 456.2 MB | 93.6 MB |
| Events in quadrant A | 3,312,728 | 623,497 |
| Events in quadrant B | 3,372,487 | 637,588 |
| Events in quadrant C | 3,356,180 | 611,989 |
| Events in quadrant D | 3,956,249 | 597,691 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14776 | 1 |
| B | 0 | 14789 | 1 |
| C | 0 | 14711 | 1 |
| D | 0 | 17021 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7185 | 120 | 1.670146% |
| B | 7186 | 114 | 1.586418% |
| C | 7186 | 111 | 1.544670% |
| D | 7186 | 191 | 2.657946% |

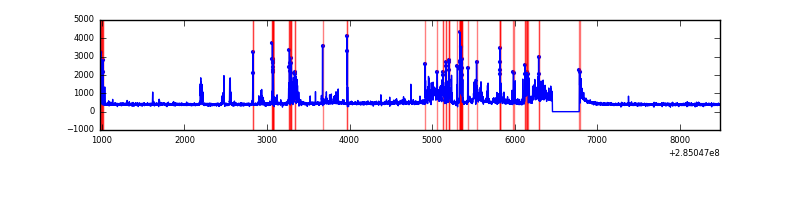

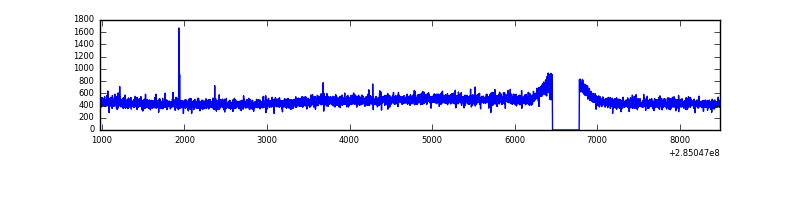

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 7186 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7511 | 7187 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7511 | 7187 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7511 | 7187 | 81 | 81 | 1.08% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 50422 | 286.53 | 849 | 830 | 173.1 |
| A | 0 | 226 | 7244 | 37.06 | 849 | 830 | 173.1 |
| A | 3 | 137 | 6549 | 33.04 | 849 | 830 | 173.1 |
| B | 12 | 111 | 19700 | 114.67 | 850 | 829 | 164.6 |
| B | 11 | 111 | 16921 | 97.78 | 850 | 829 | 164.6 |
| B | 14 | 111 | 14440 | 82.71 | 850 | 829 | 164.6 |
| C | 14 | 238 | 125410 | 651.75 | 812 | 813 | 191.2 |
| C | 5 | 218 | 33200 | 169.41 | 812 | 813 | 191.2 |
| C | 3 | 233 | 15948 | 79.17 | 812 | 813 | 191.2 |
| D | 7 | 238 | 753432 | 3846.33 | 815 | 794 | 195.7 |
| D | 10 | 70 | 39874 | 199.72 | 815 | 794 | 195.7 |
| D | 2 | 33 | 30304 | 150.81 | 815 | 794 | 195.7 |

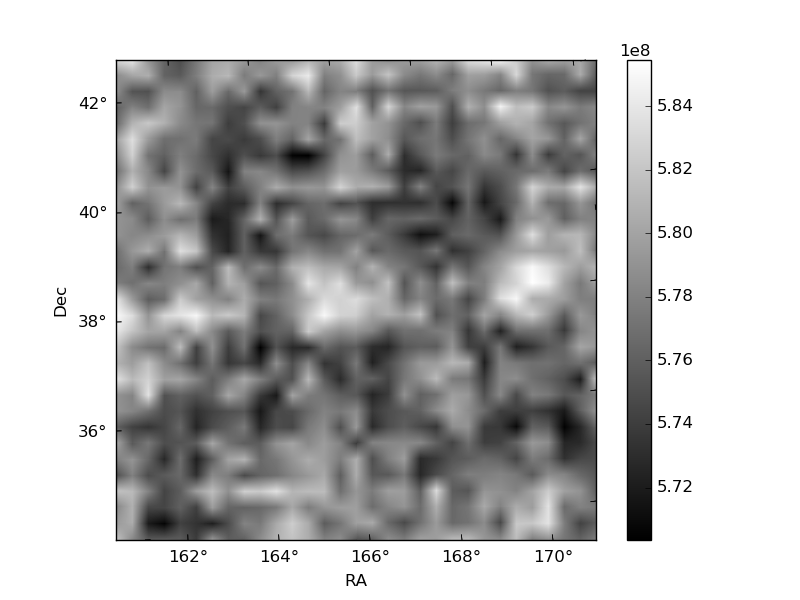

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

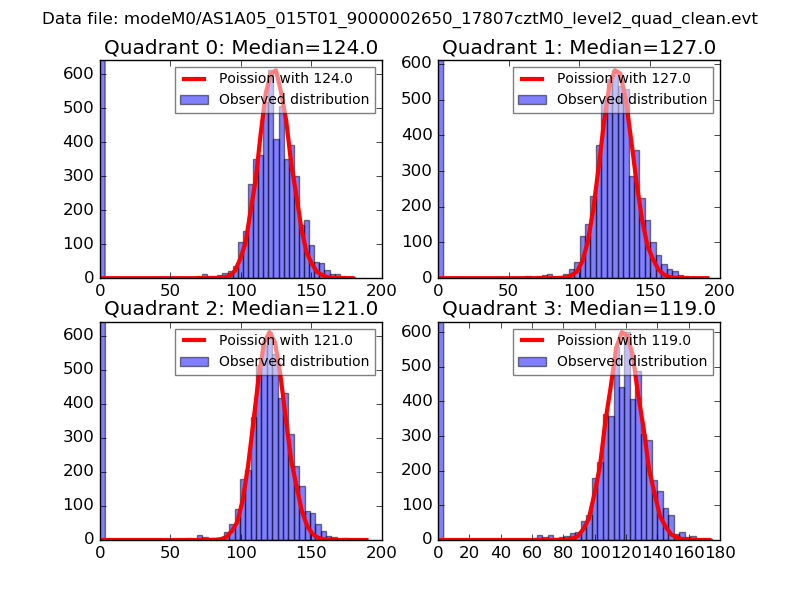

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

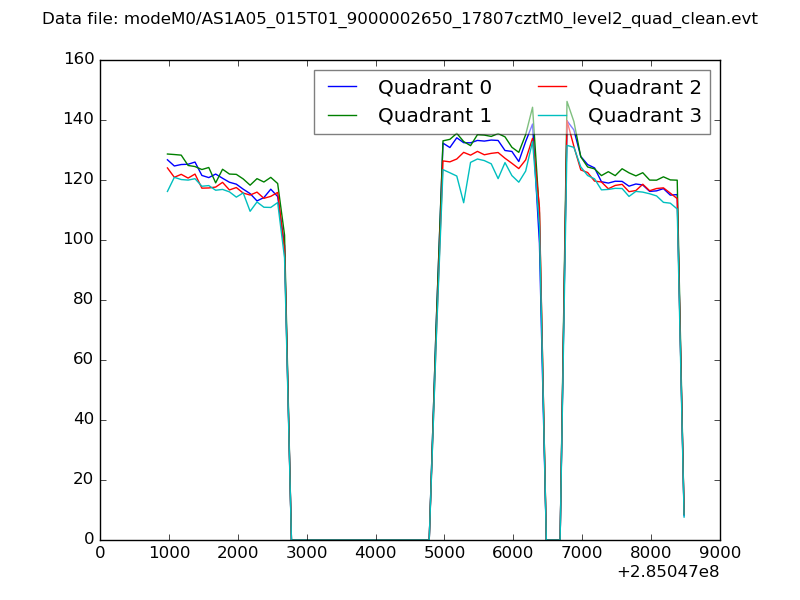

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

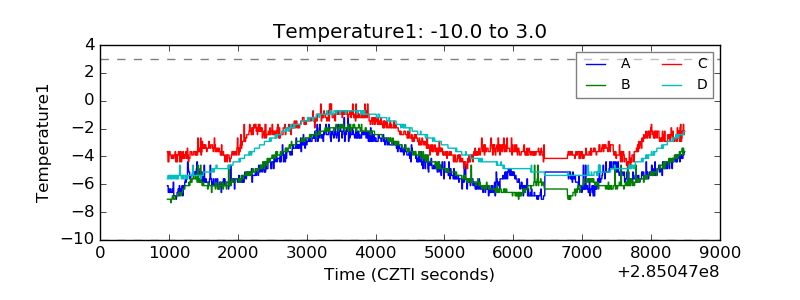

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

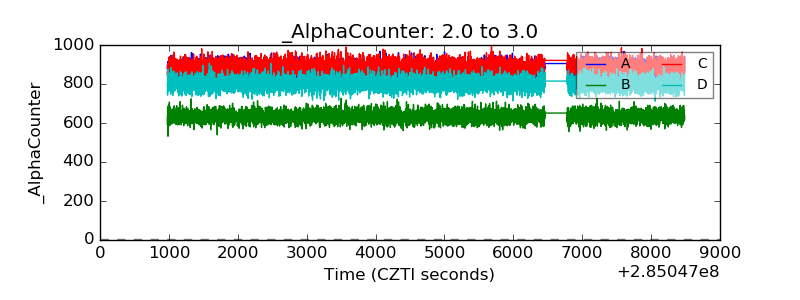

| Alpha Counter |  |

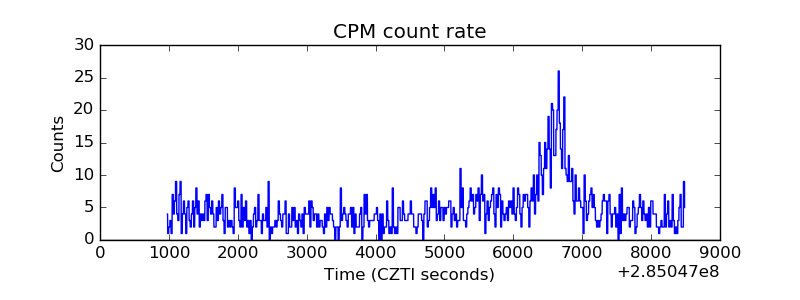

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
