| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17811cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17811cztM0_level2_quad_clean.evt |
| Size (bytes) | 905,022,720 | 144,414,720 |
| Size | 863.1 MB | 137.7 MB |
| Events in quadrant A | 6,660,142 | 869,212 |
| Events in quadrant B | 6,617,115 | 892,747 |
| Events in quadrant C | 6,108,343 | 860,370 |
| Events in quadrant D | 7,139,014 | 848,821 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28412 | 3 |
| B | 0 | 28039 | 3 |
| C | 0 | 26558 | 3 |
| D | 0 | 30111 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13050 | 362 | 2.773946% |
| B | 13050 | 274 | 2.099617% |
| C | 13050 | 198 | 1.517241% |
| D | 13050 | 363 | 2.781609% |

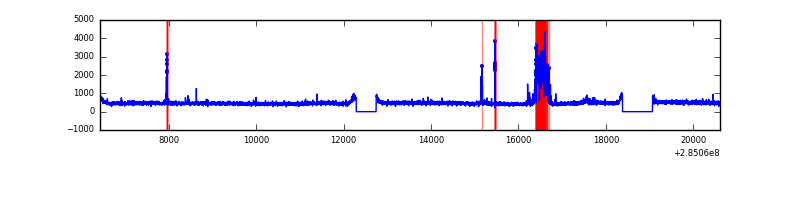

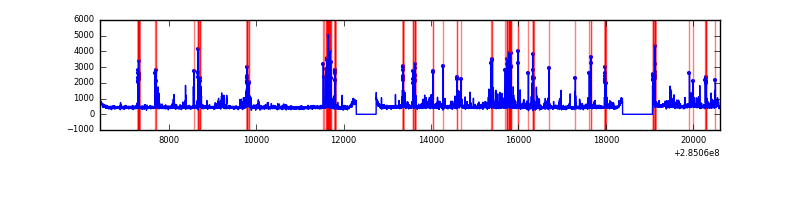

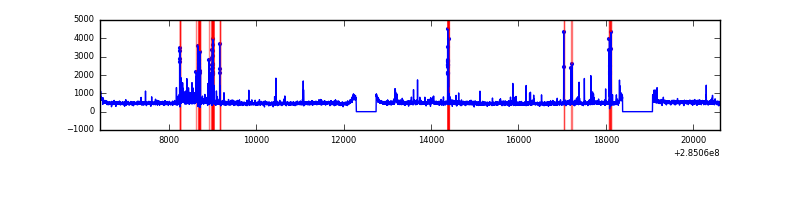

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14190 | 13050 | 179 | 179 | 1.26% | 1.37% |  |
| B | 14190 | 13051 | 64 | 64 | 0.45% | 0.49% |  |
| C | 14190 | 13051 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14190 | 13051 | 167 | 167 | 1.18% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 691927 | 2177.03 | 1553 | 1513 | 317.1 |
| A | 0 | 226 | 13643 | 38.25 | 1553 | 1513 | 317.1 |
| A | 3 | 137 | 12102 | 33.39 | 1553 | 1513 | 317.1 |
| B | 7 | 220 | 270222 | 894.46 | 1551 | 1509 | 300.4 |
| B | 10 | 245 | 137514 | 452.72 | 1551 | 1509 | 300.4 |
| B | 4 | 48 | 42951 | 137.95 | 1551 | 1509 | 300.4 |
| C | 14 | 238 | 227305 | 641.55 | 1490 | 1496 | 352.0 |
| C | 3 | 233 | 57583 | 159.35 | 1490 | 1496 | 352.0 |
| C | 13 | 61 | 10571 | 25.78 | 1490 | 1496 | 352.0 |
| D | 7 | 238 | 1005516 | 2766.68 | 1502 | 1463 | 362.9 |
| D | 1 | 52 | 189972 | 519.44 | 1502 | 1463 | 362.9 |
| D | 10 | 70 | 150564 | 410.85 | 1502 | 1463 | 362.9 |

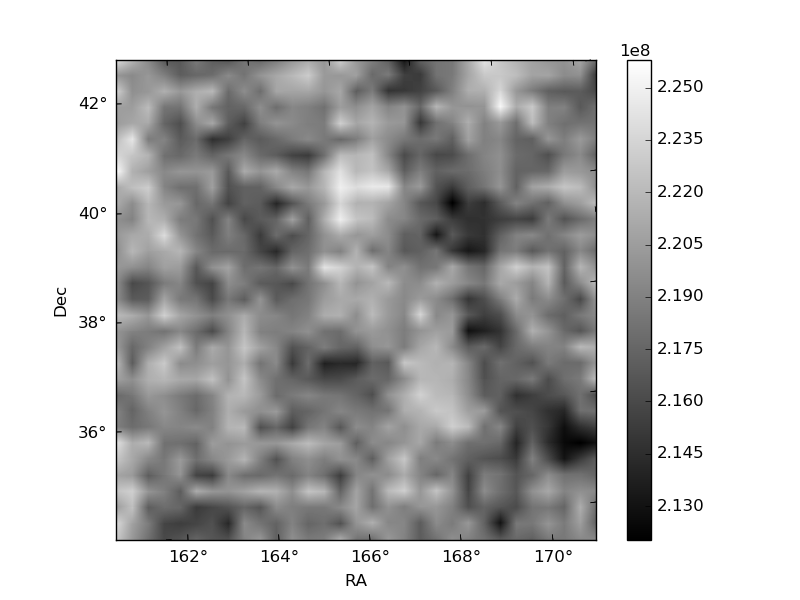

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

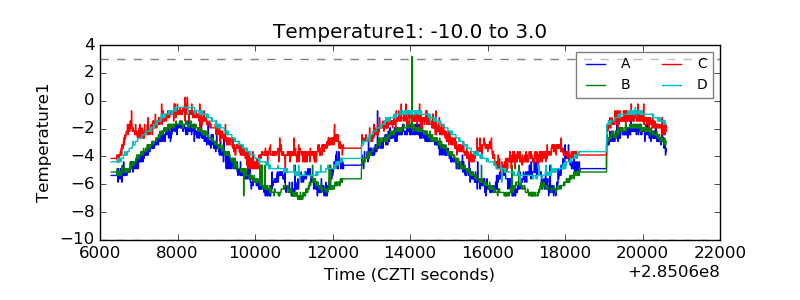

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

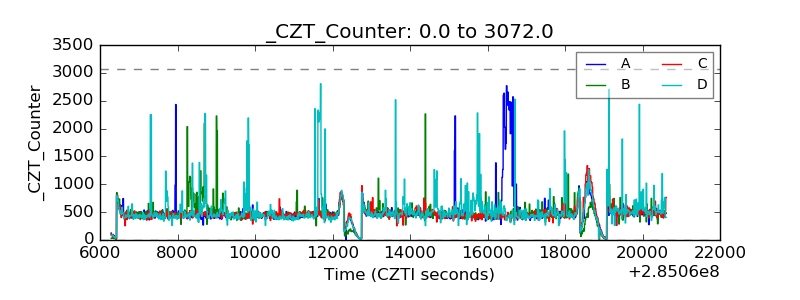

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

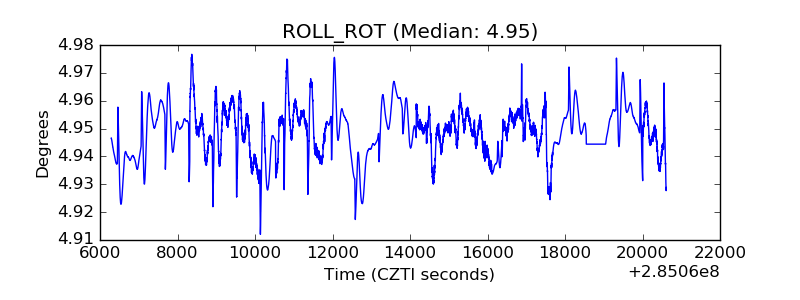

| _ROLL_ROT |  |

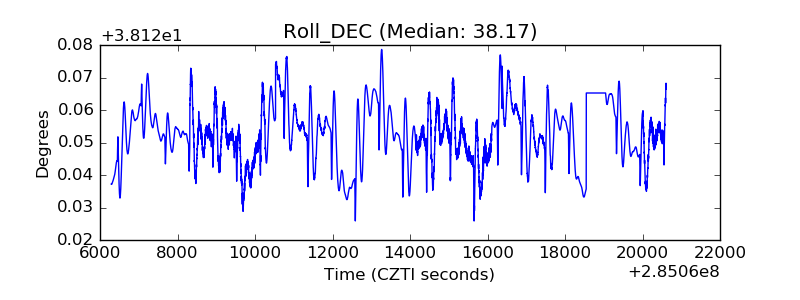

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
