| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17821cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17821cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,633,600 | 102,473,280 |
| Size | 455.5 MB | 97.7 MB |
| Events in quadrant A | 3,363,431 | 653,522 |
| Events in quadrant B | 3,497,550 | 667,654 |
| Events in quadrant C | 3,424,643 | 642,294 |
| Events in quadrant D | 3,681,201 | 629,673 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15037 | 2 |
| B | 0 | 15285 | 2 |
| C | 0 | 15060 | 2 |
| D | 0 | 16202 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7331 | 88 | 1.200382% |
| B | 7331 | 111 | 1.514118% |
| C | 7331 | 103 | 1.404992% |
| D | 7331 | 110 | 1.500477% |

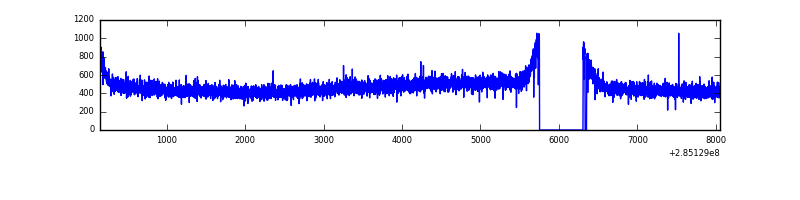

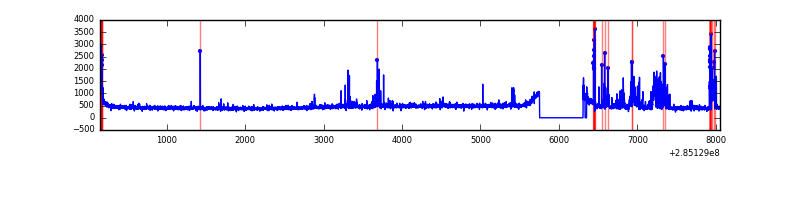

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7906 | 7333 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7906 | 7333 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7906 | 7333 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7906 | 7333 | 46 | 46 | 0.58% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7736 | 38.84 | 875 | 856 | 177.1 |
| A | 3 | 137 | 6662 | 32.78 | 875 | 856 | 177.1 |
| A | 12 | 194 | 6597 | 32.41 | 875 | 856 | 177.1 |
| B | 12 | 111 | 20361 | 117.03 | 875 | 854 | 166.7 |
| B | 6 | 36 | 19254 | 110.39 | 875 | 854 | 166.7 |
| B | 10 | 245 | 18876 | 108.12 | 875 | 854 | 166.7 |
| C | 14 | 238 | 130120 | 659.29 | 838 | 842 | 196.1 |
| C | 5 | 218 | 19798 | 96.67 | 838 | 842 | 196.1 |
| C | 13 | 61 | 5923 | 25.91 | 838 | 842 | 196.1 |
| D | 7 | 238 | 438839 | 2159.72 | 841 | 819 | 202.8 |
| D | 2 | 234 | 27781 | 132.94 | 841 | 819 | 202.8 |
| D | 10 | 70 | 10432 | 47.4 | 841 | 819 | 202.8 |

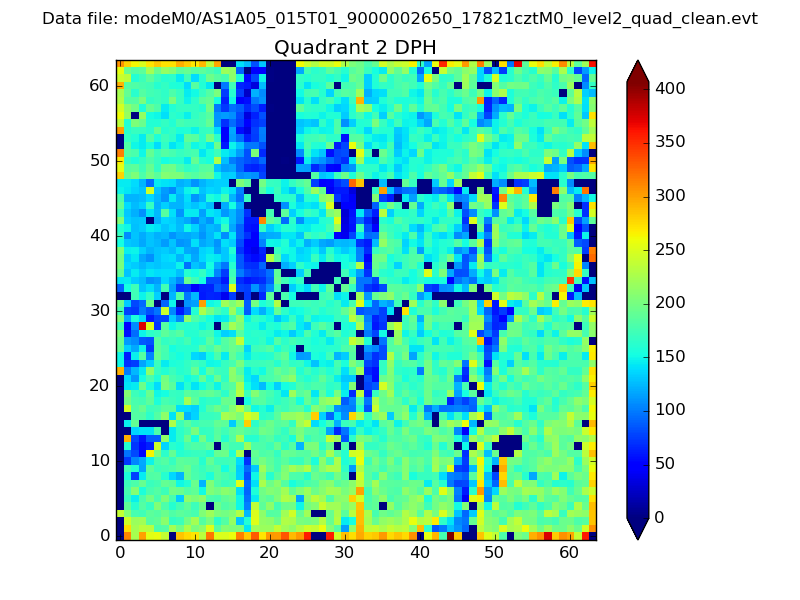

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

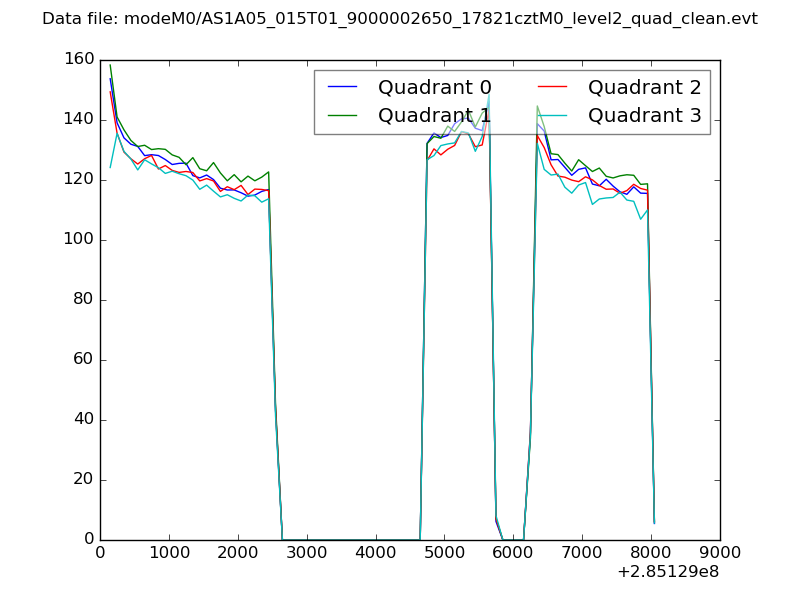

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

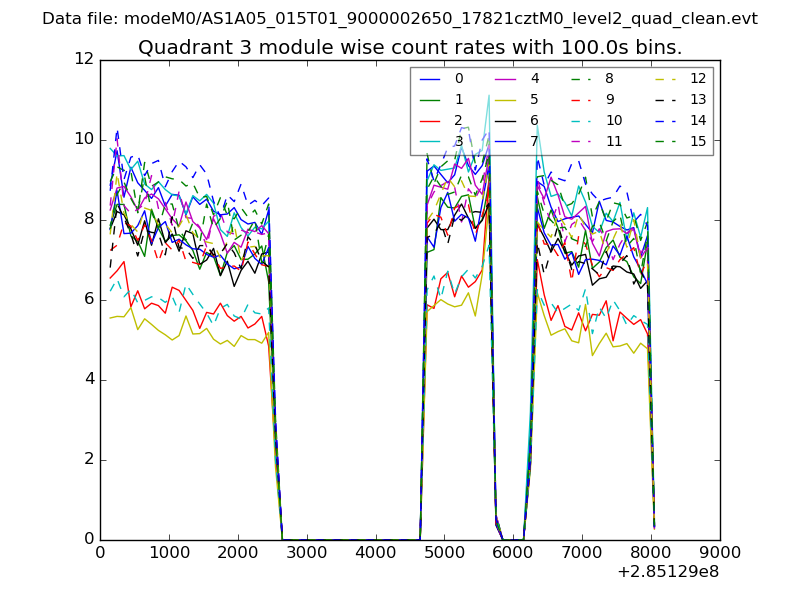

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

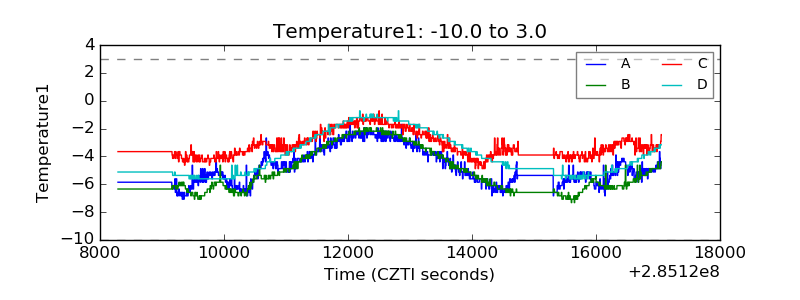

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

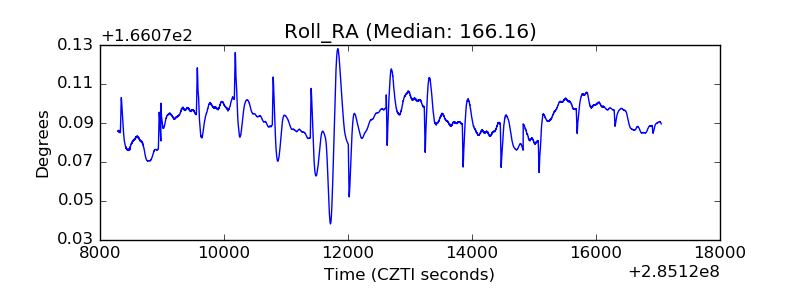

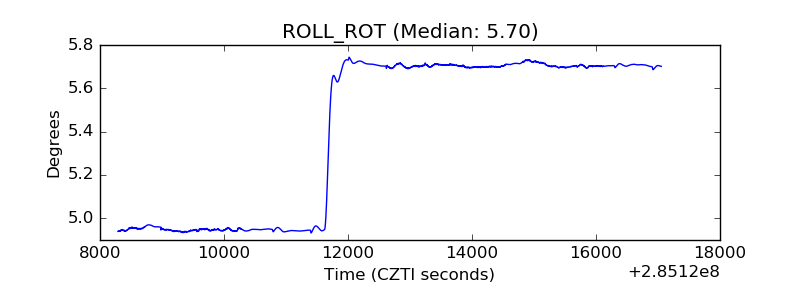

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
