| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_015T01_9000002650_17822cztM0_level2.evt | modeM0/AS1A05_015T01_9000002650_17822cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,554,240 | 108,567,360 |
| Size | 505.0 MB | 103.5 MB |
| Events in quadrant A | 3,555,784 | 693,673 |
| Events in quadrant B | 3,806,162 | 709,695 |
| Events in quadrant C | 3,619,035 | 683,771 |
| Events in quadrant D | 4,529,217 | 660,989 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15990 | 1 |
| B | 0 | 16493 | 1 |
| C | 0 | 15955 | 2 |
| D | 0 | 18723 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7765 | 213 | 2.743078% |
| B | 7765 | 256 | 3.296845% |
| C | 7764 | 209 | 2.691911% |
| D | 7764 | 354 | 4.559505% |

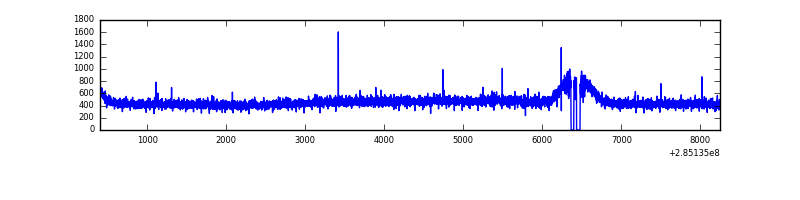

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7845 | 7767 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7845 | 7767 | 39 | 39 | 0.50% | 0.50% |  |
| C | 7844 | 7766 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7844 | 7766 | 139 | 139 | 1.77% | 1.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7971 | 37.44 | 923 | 902 | 188.8 |
| A | 3 | 137 | 7012 | 32.36 | 923 | 902 | 188.8 |
| A | 12 | 194 | 6704 | 30.73 | 923 | 902 | 188.8 |
| B | 0 | 229 | 148204 | 834.97 | 923 | 896 | 176.4 |
| B | 12 | 111 | 21698 | 117.91 | 923 | 896 | 176.4 |
| B | 11 | 111 | 18871 | 101.89 | 923 | 896 | 176.4 |
| C | 14 | 238 | 138725 | 665.47 | 885 | 890 | 207.1 |
| C | 5 | 218 | 16817 | 76.9 | 885 | 890 | 207.1 |
| C | 8 | 128 | 7648 | 32.63 | 885 | 890 | 207.1 |
| D | 7 | 238 | 1036421 | 4878.97 | 882 | 858 | 212.3 |
| D | 2 | 165 | 92410 | 431.34 | 882 | 858 | 212.3 |
| D | 2 | 234 | 29790 | 136.31 | 882 | 858 | 212.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

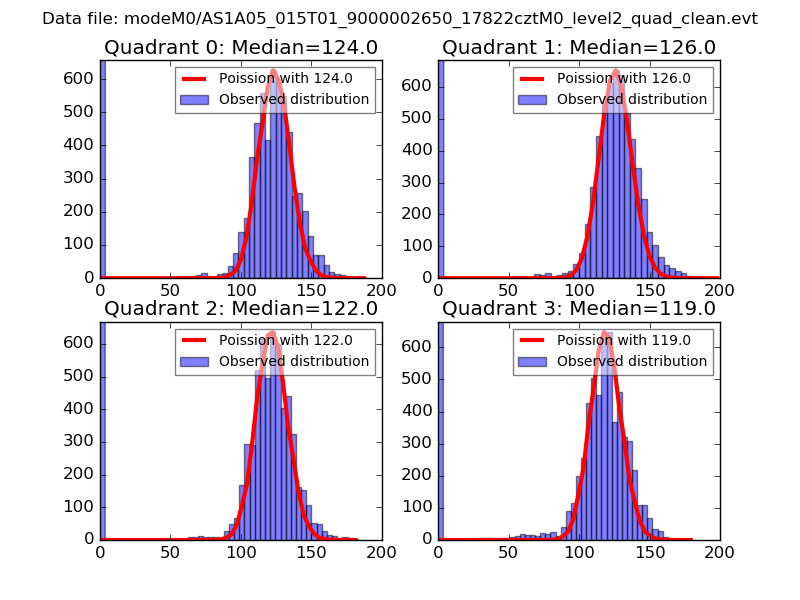

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

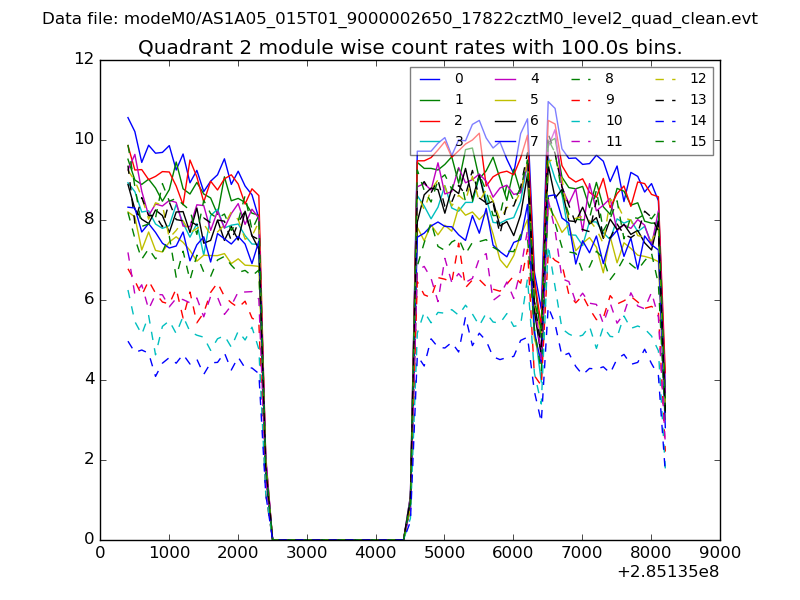

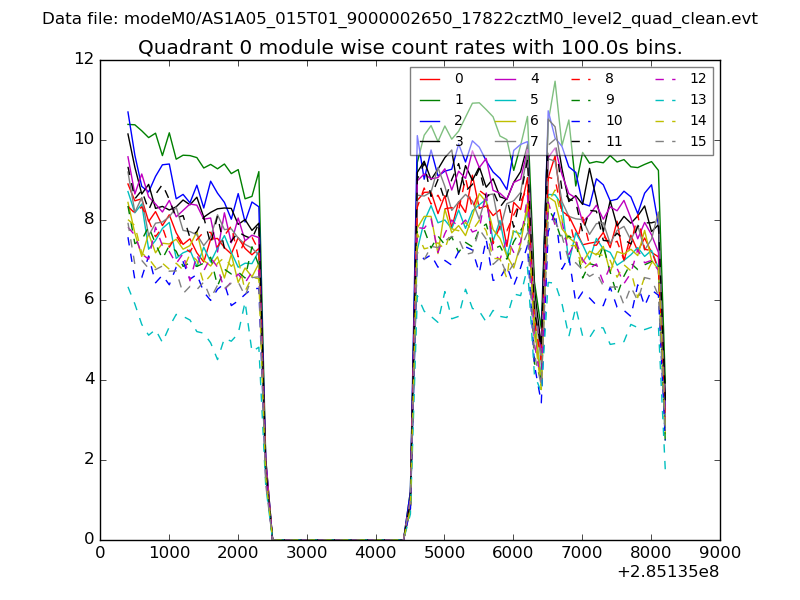

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

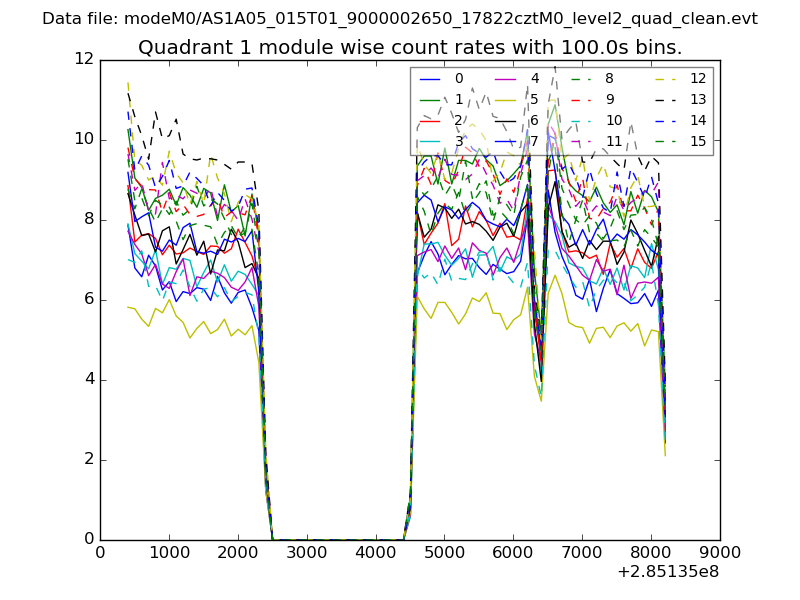

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

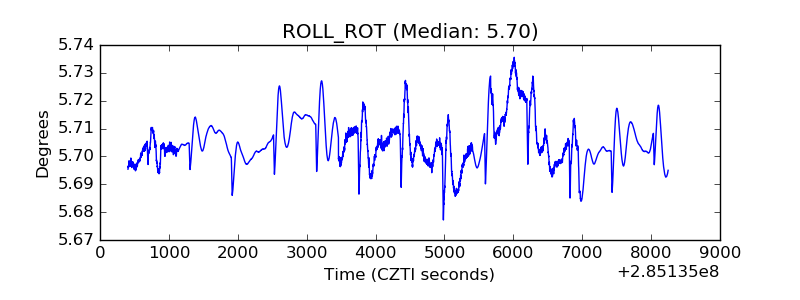

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

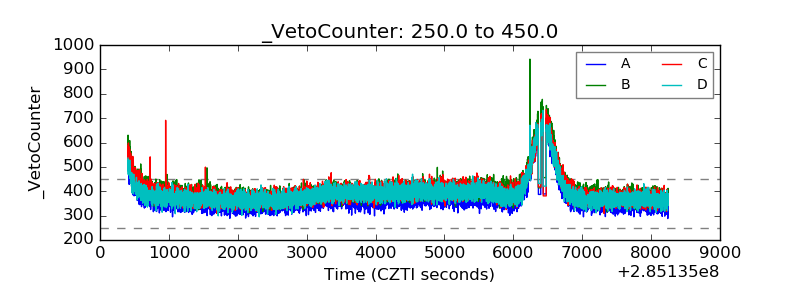

| Veto Counter |  |
