| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_085T01_9000002658_17849cztM0_level2.evt | modeM0/AS1A05_085T01_9000002658_17849cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,444,480 | 93,418,560 |
| Size | 415.3 MB | 89.1 MB |
| Events in quadrant A | 3,068,135 | 598,580 |
| Events in quadrant B | 3,198,459 | 612,140 |
| Events in quadrant C | 3,224,883 | 582,810 |
| Events in quadrant D | 3,244,005 | 572,001 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13522 | 2 |
| B | 0 | 13715 | 2 |
| C | 0 | 13573 | 2 |
| D | 0 | 14265 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6644 | 10 | 0.150512% |
| B | 6644 | 15 | 0.225768% |
| C | 6644 | 30 | 0.451535% |
| D | 6644 | 18 | 0.270921% |

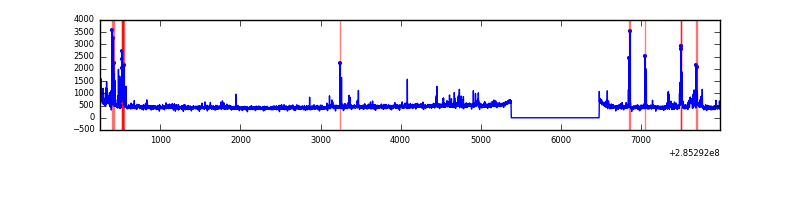

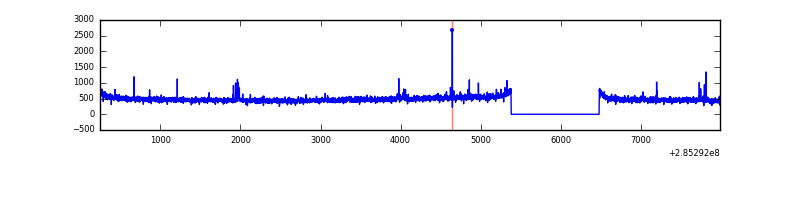

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7744 | 6645 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7744 | 6645 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7744 | 6645 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7744 | 6645 | 20 | 20 | 0.26% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6798 | 37.57 | 797 | 780 | 160.2 |
| A | 3 | 137 | 5957 | 32.32 | 797 | 780 | 160.2 |
| A | 12 | 194 | 5686 | 30.63 | 797 | 780 | 160.2 |
| B | 15 | 222 | 23701 | 149.67 | 806 | 788 | 153.1 |
| B | 12 | 111 | 18246 | 114.04 | 806 | 788 | 153.1 |
| B | 11 | 111 | 15564 | 96.52 | 806 | 788 | 153.1 |
| C | 14 | 238 | 119969 | 658.8 | 777 | 783 | 180.9 |
| C | 5 | 218 | 45879 | 249.27 | 777 | 783 | 180.9 |
| C | 5 | 219 | 13022 | 67.65 | 777 | 783 | 180.9 |
| D | 7 | 238 | 271811 | 1308.65 | 768 | 752 | 207.1 |
| D | 2 | 234 | 26126 | 122.5 | 768 | 752 | 207.1 |
| D | 10 | 70 | 23526 | 109.95 | 768 | 752 | 207.1 |

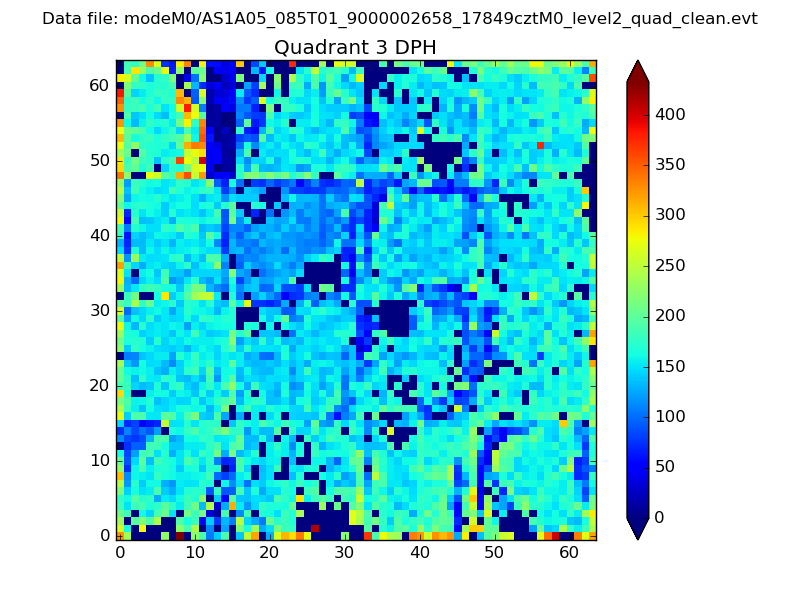

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

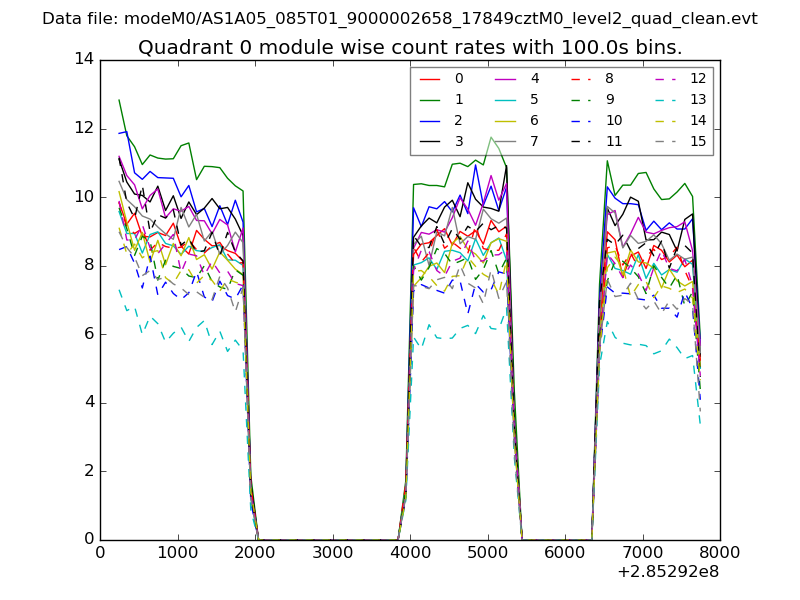

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

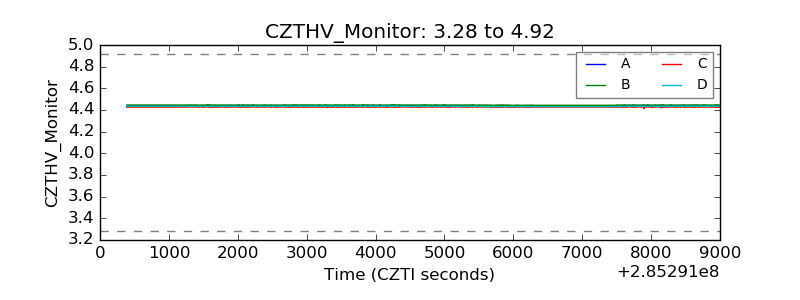

| CZT HV Monitor |  |
| D_VDD |  |

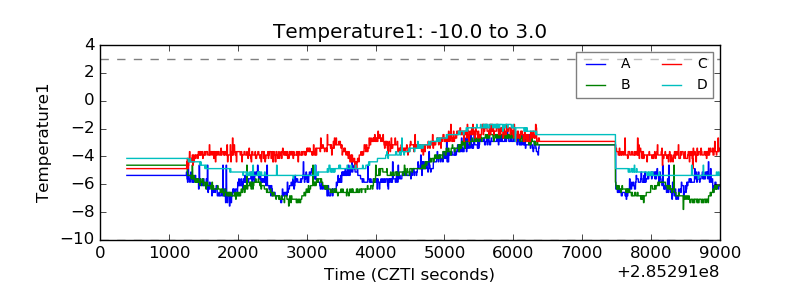

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

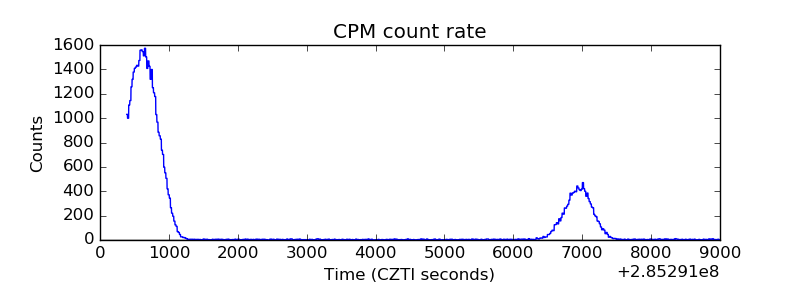

| _CPM_Rate |  |

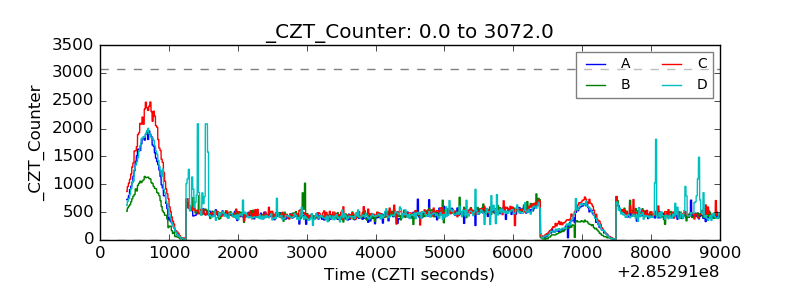

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
