| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_085T01_9000002658_17852cztM0_level2.evt | modeM0/AS1A05_085T01_9000002658_17852cztM0_level2_quad_clean.evt |
| Size (bytes) | 606,611,520 | 110,436,480 |
| Size | 578.5 MB | 105.3 MB |
| Events in quadrant A | 4,267,542 | 694,631 |
| Events in quadrant B | 4,363,615 | 699,731 |
| Events in quadrant C | 4,402,124 | 672,764 |
| Events in quadrant D | 4,730,899 | 656,588 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 184 | 0 |
| B | 0 | 184 | 0 |
| C | 0 | 184 | 0 |
| D | 0 | 184 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18931 | 2 |
| B | 0 | 18931 | 2 |
| C | 0 | 18943 | 2 |
| D | 0 | 20480 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8931 | 368 | 4.120479% |
| B | 8932 | 438 | 4.903717% |
| C | 8931 | 459 | 5.139402% |
| D | 8931 | 468 | 5.240175% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

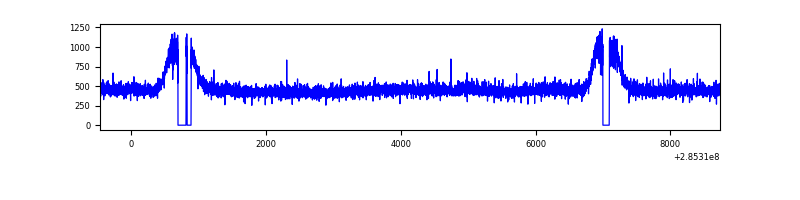

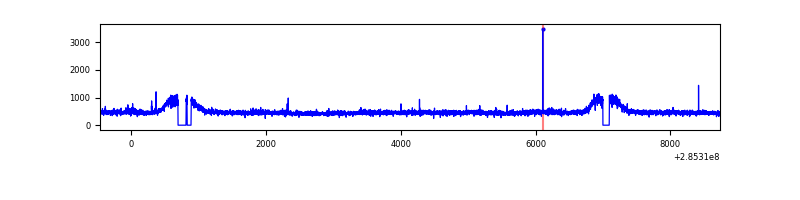

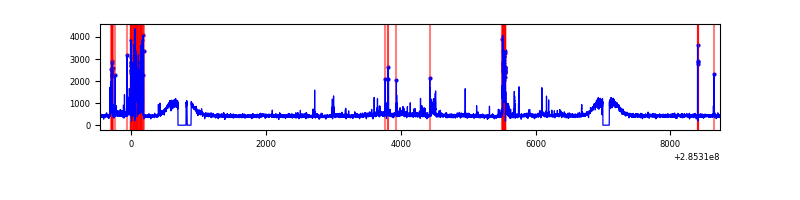

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9206 | 8934 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9207 | 8935 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9206 | 8934 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9206 | 8934 | 118 | 118 | 1.28% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 9356 | 36.37 | 1109 | 1082 | 227.5 |
| A | 3 | 137 | 9150 | 35.47 | 1109 | 1082 | 227.5 |
| A | 12 | 194 | 7987 | 30.35 | 1109 | 1082 | 227.5 |
| B | 12 | 111 | 27276 | 120.44 | 1105 | 1072 | 217.6 |
| B | 11 | 111 | 23678 | 103.9 | 1105 | 1072 | 217.6 |
| B | 14 | 111 | 20549 | 89.52 | 1105 | 1072 | 217.6 |
| C | 14 | 238 | 159979 | 624.47 | 1067 | 1072 | 254.5 |
| C | 3 | 233 | 39290 | 150.19 | 1067 | 1072 | 254.5 |
| C | 5 | 218 | 33466 | 127.3 | 1067 | 1072 | 254.5 |
| D | 7 | 238 | 532936 | 1998.23 | 1079 | 1046 | 266.2 |
| D | 1 | 52 | 85051 | 315.59 | 1079 | 1046 | 266.2 |
| D | 2 | 234 | 37707 | 137.73 | 1079 | 1046 | 266.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

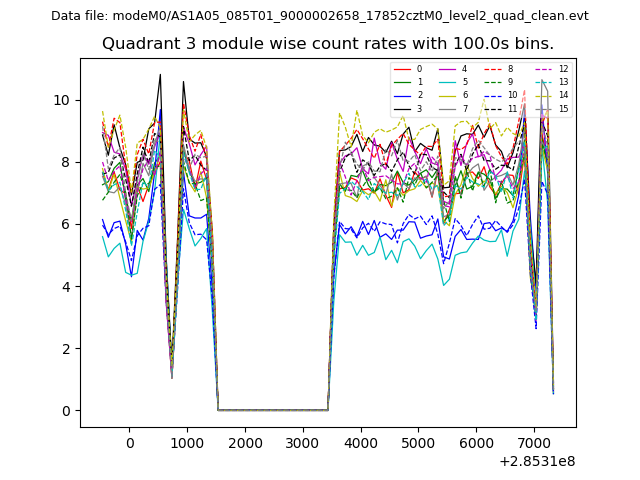

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

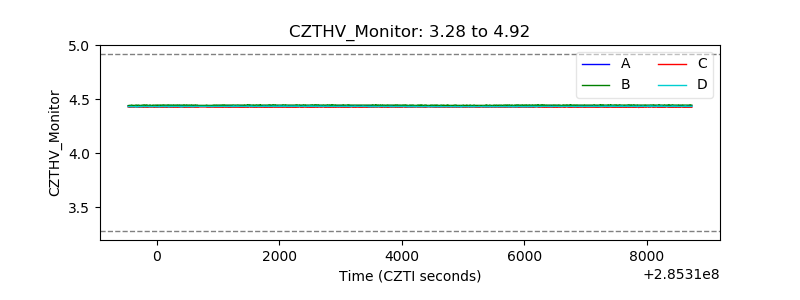

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

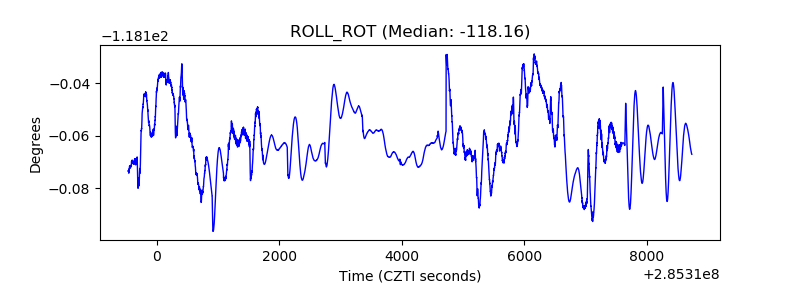

| _ROLL_ROT |  |

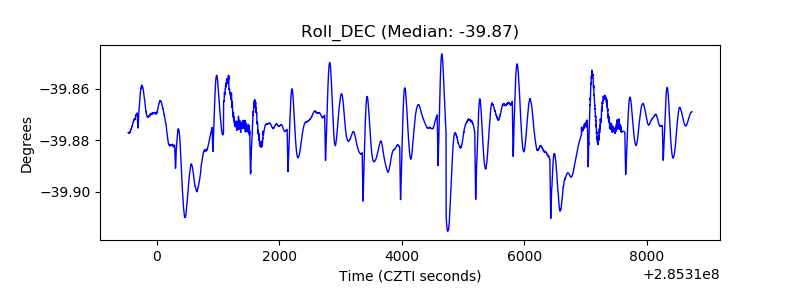

| _Roll_DEC |  |
| _Roll_RA |  |

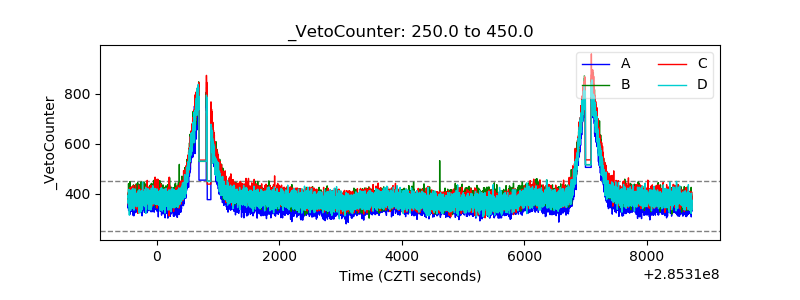

| Veto Counter |  |
