| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_085T01_9000002658_17863cztM0_level2.evt | modeM0/AS1A05_085T01_9000002658_17863cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,403,200 | 94,383,360 |
| Size | 472.5 MB | 90.0 MB |
| Events in quadrant A | 3,028,047 | 613,409 |
| Events in quadrant B | 3,124,438 | 628,393 |
| Events in quadrant C | 3,150,353 | 597,735 |
| Events in quadrant D | 5,263,743 | 569,919 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13273 | 2 |
| B | 0 | 13400 | 2 |
| C | 0 | 13308 | 2 |
| D | 0 | 20056 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6434 | 11 | 0.170967% |
| B | 6434 | 20 | 0.310849% |
| C | 6434 | 45 | 0.699409% |
| D | 6434 | 654 | 10.164750% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7684 | 6435 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7684 | 6435 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7684 | 6435 | 0 | 0 | 0.00% | 0.00% |  |

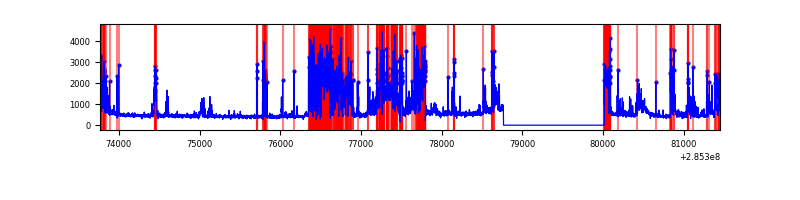

| D | 7684 | 6435 | 543 | 543 | 7.07% | 8.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6775 | 37.63 | 788 | 773 | 159.5 |
| A | 3 | 137 | 6022 | 32.91 | 788 | 773 | 159.5 |
| A | 12 | 194 | 5588 | 30.19 | 788 | 773 | 159.5 |
| B | 12 | 111 | 18044 | 115.98 | 794 | 778 | 148.9 |
| B | 11 | 111 | 15424 | 98.38 | 794 | 778 | 148.9 |
| B | 14 | 111 | 13635 | 86.36 | 794 | 778 | 148.9 |
| C | 14 | 238 | 120712 | 677.37 | 765 | 773 | 177.1 |
| C | 5 | 218 | 29260 | 160.88 | 765 | 773 | 177.1 |
| C | 13 | 61 | 5428 | 26.29 | 765 | 773 | 177.1 |
| D | 7 | 238 | 2313312 | 12920.35 | 726 | 708 | 179.0 |
| D | 1 | 52 | 146950 | 817.04 | 726 | 708 | 179.0 |
| D | 13 | 168 | 39377 | 216.04 | 726 | 708 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

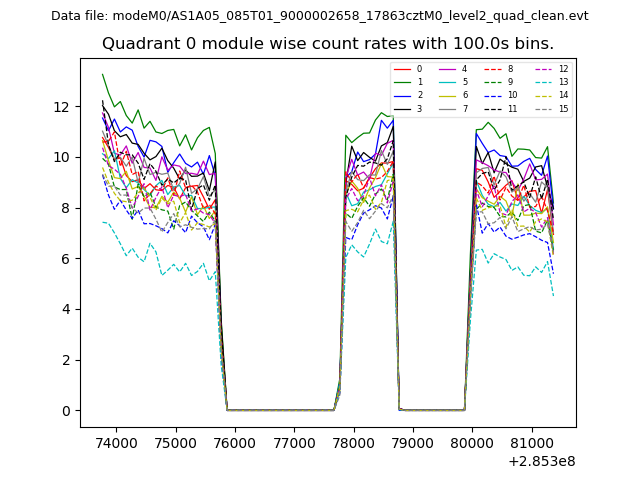

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

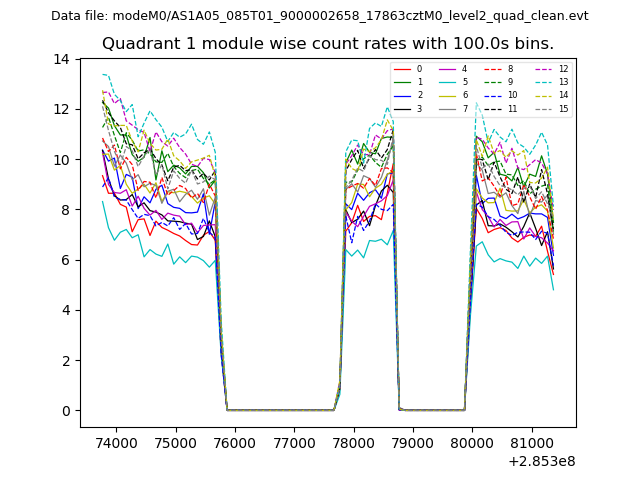

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

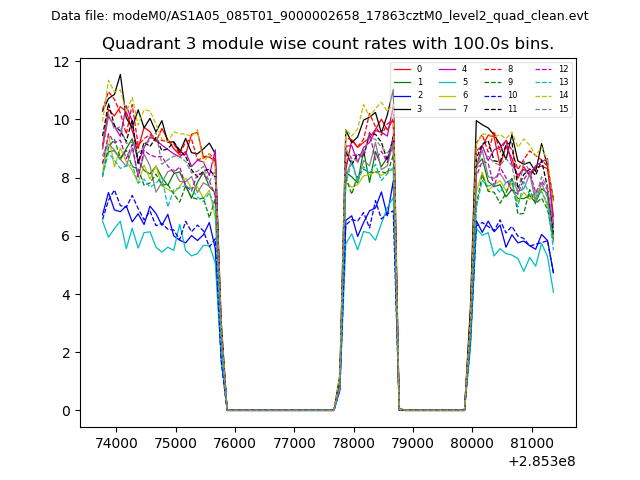

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

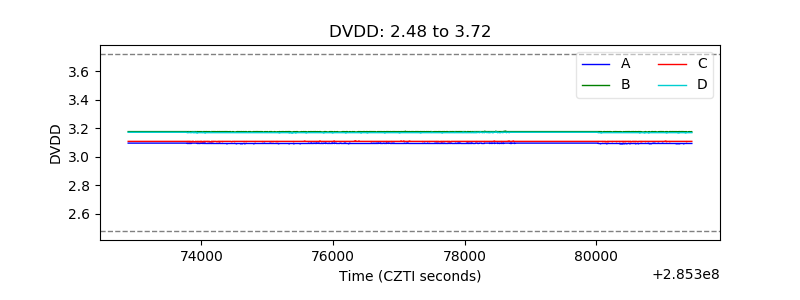

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

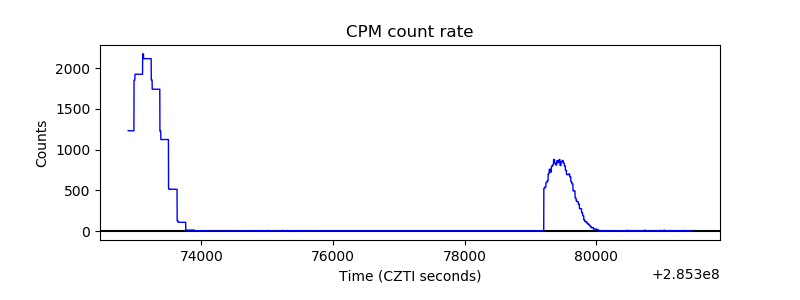

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

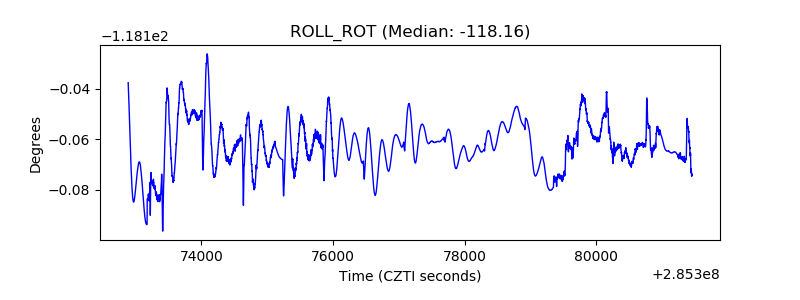

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

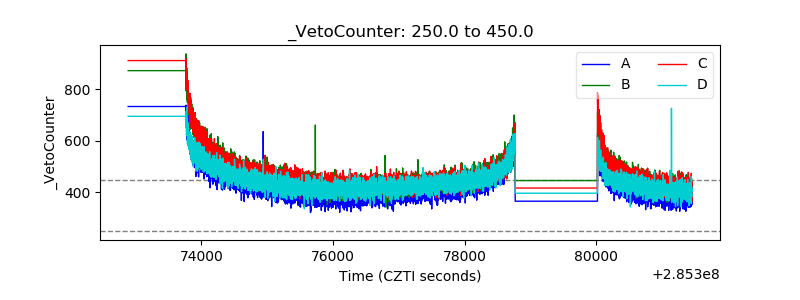

| Veto Counter |  |
