| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T06_9000002656_17844cztM0_level2.evt | modeM0/AS1A05_101T06_9000002656_17844cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,943,360 | 88,957,440 |
| Size | 397.6 MB | 84.8 MB |
| Events in quadrant A | 2,944,264 | 577,945 |
| Events in quadrant B | 3,171,403 | 587,546 |
| Events in quadrant C | 2,884,264 | 555,580 |
| Events in quadrant D | 3,207,494 | 541,935 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12865 | 1 |
| B | 0 | 13524 | 1 |
| C | 0 | 12667 | 1 |
| D | 0 | 13755 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6176 | 26 | 0.420984% |
| B | 6177 | 40 | 0.647564% |
| C | 6177 | 45 | 0.728509% |
| D | 6176 | 74 | 1.198187% |

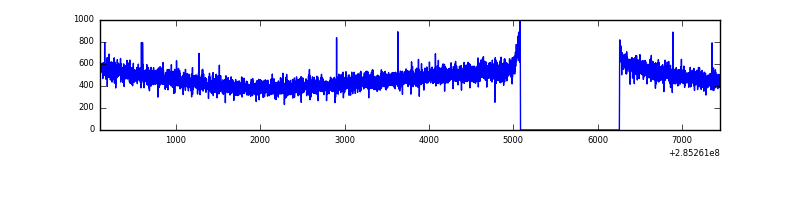

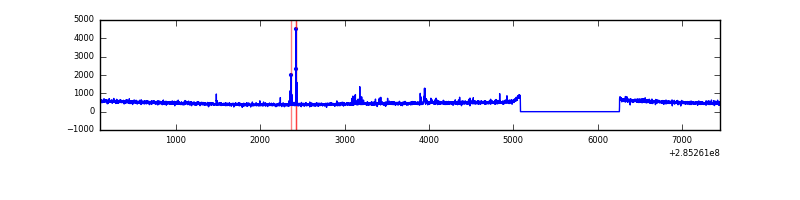

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7351 | 6177 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7352 | 6178 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7352 | 6178 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7351 | 6177 | 54 | 54 | 0.73% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 62789 | 407.5 | 748 | 731 | 152.3 |
| A | 0 | 226 | 6636 | 38.77 | 748 | 731 | 152.3 |
| A | 12 | 194 | 5442 | 30.93 | 748 | 731 | 152.3 |
| B | 0 | 189 | 47201 | 330.11 | 751 | 736 | 140.8 |
| B | 15 | 35 | 38302 | 266.89 | 751 | 736 | 140.8 |
| B | 0 | 219 | 33154 | 230.31 | 751 | 736 | 140.8 |
| C | 14 | 238 | 109769 | 665.13 | 706 | 711 | 164.0 |
| C | 3 | 233 | 9884 | 55.94 | 706 | 711 | 164.0 |
| C | 8 | 208 | 8256 | 46.02 | 706 | 711 | 164.0 |
| D | 7 | 238 | 380133 | 2023.3 | 707 | 693 | 187.5 |
| D | 10 | 70 | 39287 | 205.79 | 707 | 693 | 187.5 |
| D | 2 | 234 | 32394 | 169.04 | 707 | 693 | 187.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

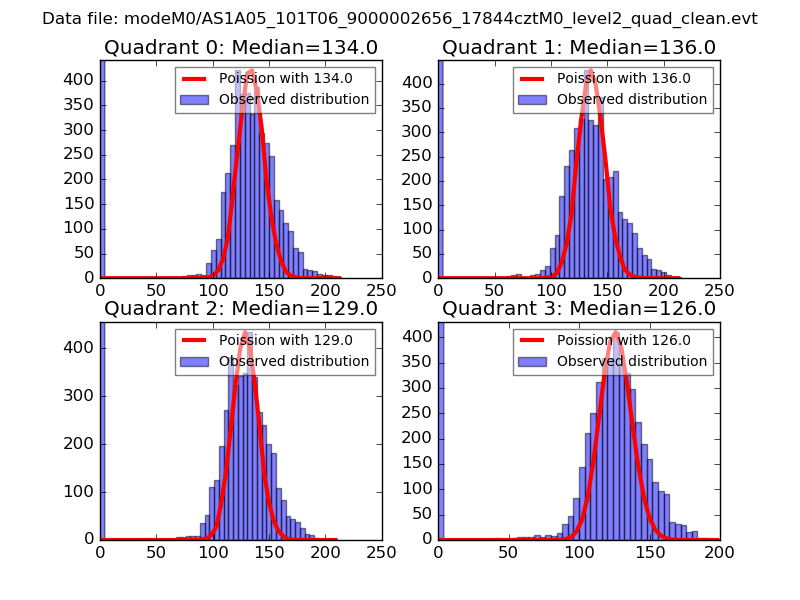

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

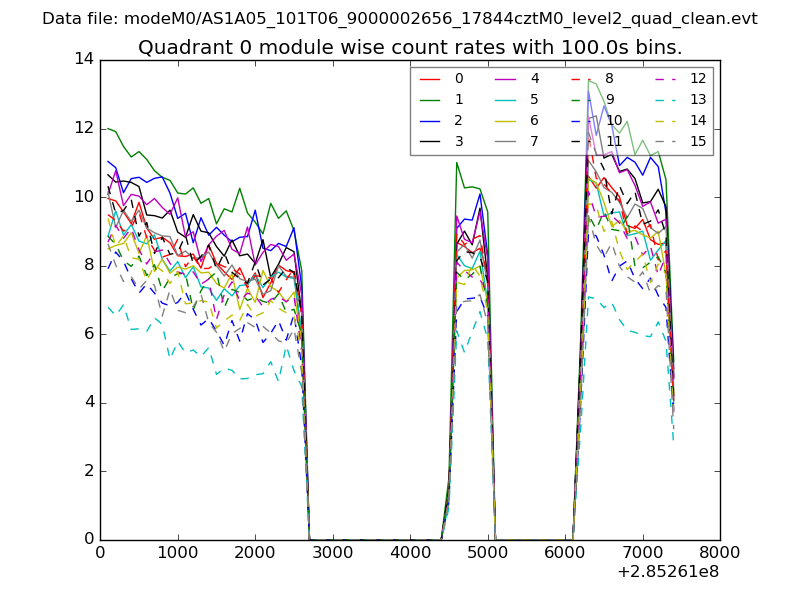

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

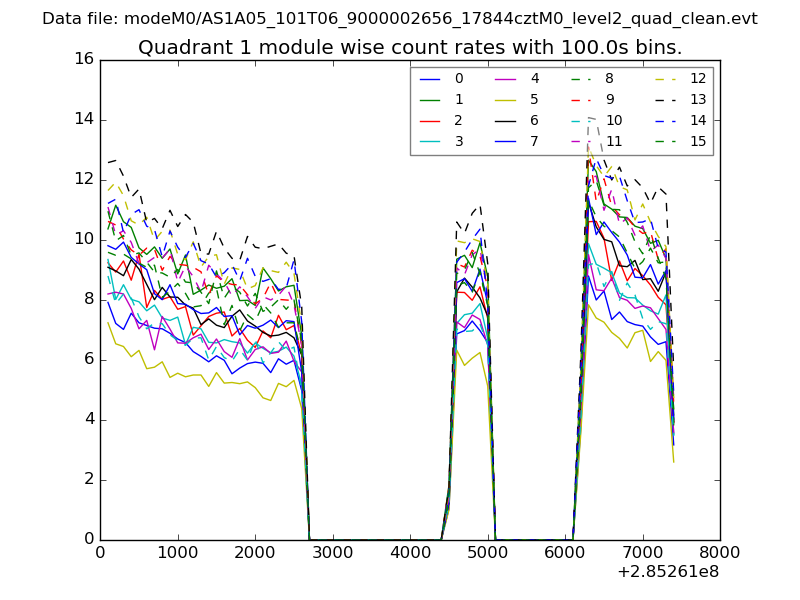

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

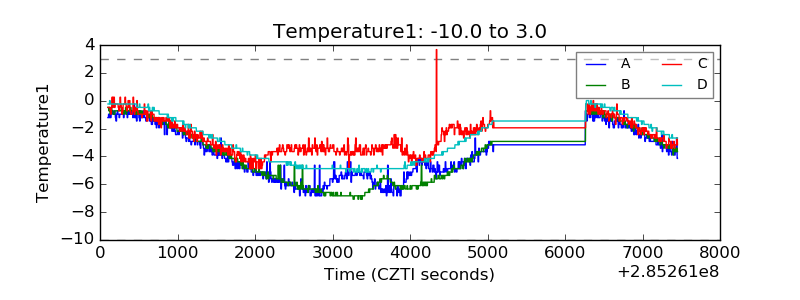

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

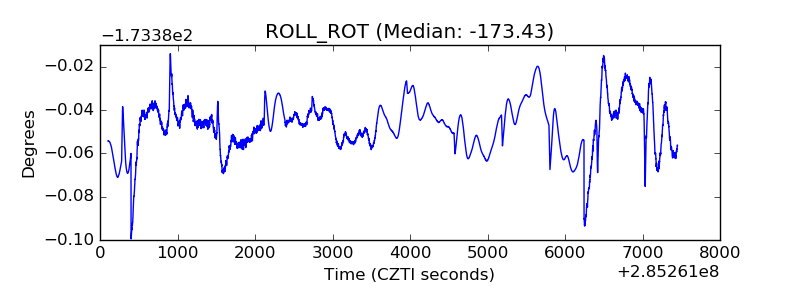

| _ROLL_ROT |  |
| _Roll_DEC |  |

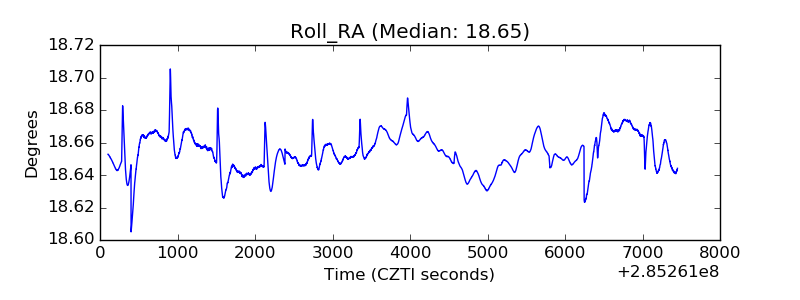

| _Roll_RA |  |
| Veto Counter |  |
