| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T06_9000002656_17846cztM0_level2.evt | modeM0/AS1A05_101T06_9000002656_17846cztM0_level2_quad_clean.evt |
| Size (bytes) | 82,008,000 | 23,696,640 |
| Size | 78.2 MB | 22.6 MB |
| Events in quadrant A | 576,061 | 162,481 |
| Events in quadrant B | 666,772 | 168,090 |
| Events in quadrant C | 534,240 | 158,003 |
| Events in quadrant D | 635,436 | 151,518 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2348 | 1 |
| B | 0 | 2639 | 1 |
| C | 0 | 2180 | 1 |
| D | 0 | 2553 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1000 | 9 | 0.900000% |
| B | 1000 | 18 | 1.800000% |
| C | 1000 | 14 | 1.400000% |
| D | 1000 | 5 | 0.500000% |

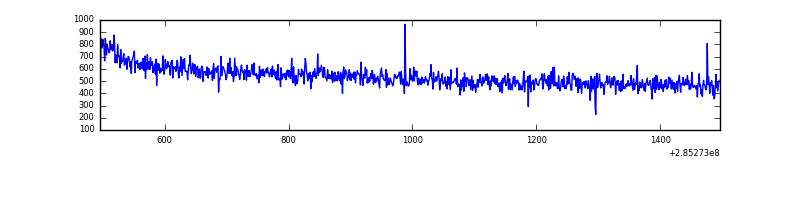

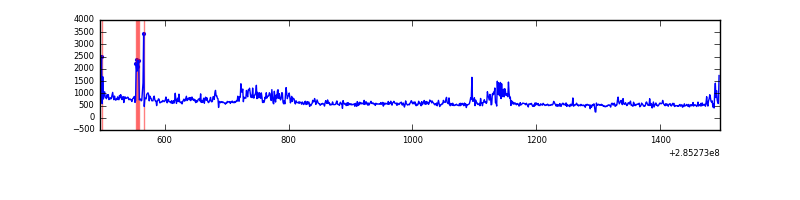

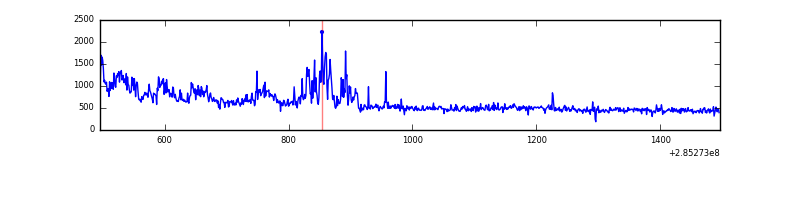

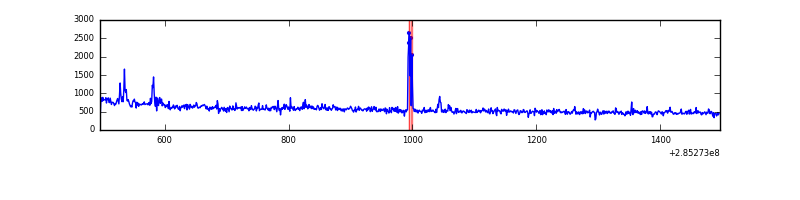

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1001 | 1001 | 4 | 4 | 0.40% | 0.40% |  |
| B | 1001 | 1001 | 6 | 6 | 0.60% | 0.60% |  |
| C | 1001 | 1001 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1001 | 1001 | 1 | 1 | 0.10% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 25759 | 849.87 | 140 | 138 | 30.1 |
| A | 14 | 238 | 6485 | 210.53 | 140 | 138 | 30.1 |
| A | 0 | 226 | 1310 | 38.88 | 140 | 138 | 30.1 |
| B | 15 | 35 | 60842 | 2136.56 | 142 | 139 | 28.4 |
| B | 0 | 244 | 15148 | 528.27 | 142 | 139 | 28.4 |
| B | 0 | 189 | 7626 | 263.52 | 142 | 139 | 28.4 |
| C | 14 | 238 | 21119 | 656.53 | 130 | 131 | 32.0 |
| C | 3 | 233 | 1372 | 38.82 | 130 | 131 | 32.0 |
| C | 1 | 16 | 1359 | 38.41 | 130 | 131 | 32.0 |
| D | 7 | 238 | 105751 | 2922.09 | 130 | 126 | 36.1 |
| D | 15 | 0 | 16013 | 439.51 | 130 | 126 | 36.1 |
| D | 2 | 234 | 4809 | 129.55 | 130 | 126 | 36.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

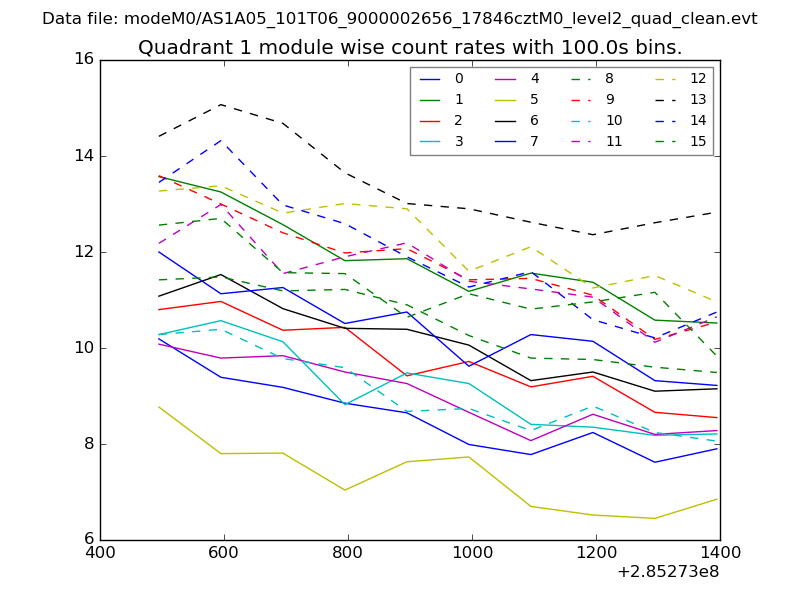

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

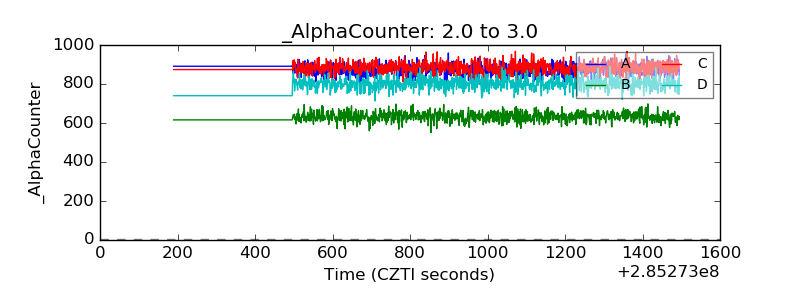

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

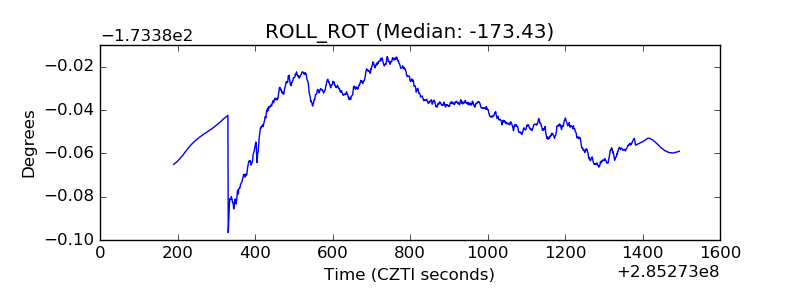

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

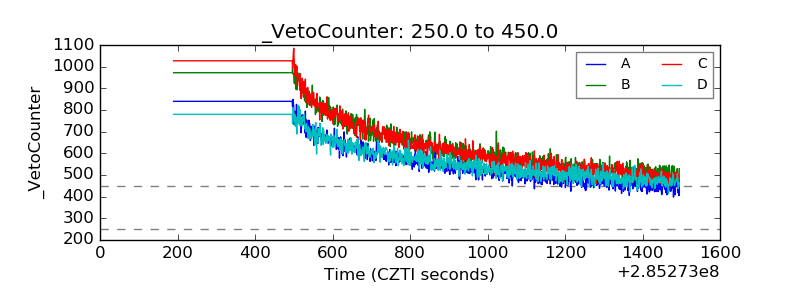

| Veto Counter |  |
