| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_075T01_9000002660_17877cztM0_level2.evt | modeM0/AS1T03_075T01_9000002660_17877cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,775,360 | 101,563,200 |
| Size | 394.6 MB | 96.9 MB |
| Events in quadrant A | 2,959,506 | 662,425 |
| Events in quadrant B | 3,090,276 | 689,966 |
| Events in quadrant C | 3,091,751 | 656,982 |
| Events in quadrant D | 2,973,310 | 639,340 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12797 | 2 |
| B | 0 | 13138 | 2 |
| C | 0 | 13060 | 2 |
| D | 0 | 13059 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6114 | 19 | 0.310762% |
| B | 6114 | 37 | 0.605168% |
| C | 6114 | 78 | 1.275761% |
| D | 6114 | 36 | 0.588813% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6115 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7459 | 6115 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7459 | 6115 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7459 | 6115 | 20 | 20 | 0.27% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6756 | 38.79 | 769 | 755 | 154.7 |
| A | 3 | 137 | 5632 | 31.52 | 769 | 755 | 154.7 |
| A | 12 | 194 | 5580 | 31.18 | 769 | 755 | 154.7 |
| B | 12 | 111 | 17364 | 112.99 | 780 | 761 | 146.9 |
| B | 11 | 111 | 15109 | 97.64 | 780 | 761 | 146.9 |
| B | 14 | 111 | 13210 | 84.72 | 780 | 761 | 146.9 |
| C | 14 | 238 | 117992 | 674.58 | 749 | 756 | 173.8 |
| C | 3 | 233 | 49149 | 278.46 | 749 | 756 | 173.8 |
| C | 13 | 61 | 5334 | 26.34 | 749 | 756 | 173.8 |
| D | 10 | 70 | 66449 | 349.8 | 744 | 724 | 187.9 |
| D | 7 | 38 | 50293 | 263.82 | 744 | 724 | 187.9 |
| D | 2 | 234 | 20587 | 105.72 | 744 | 724 | 187.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

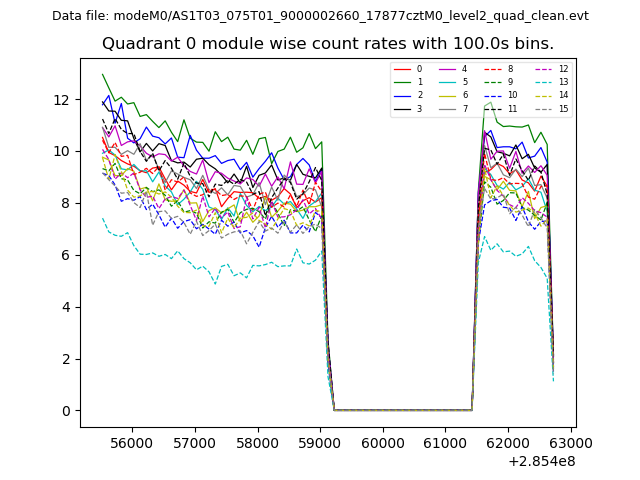

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

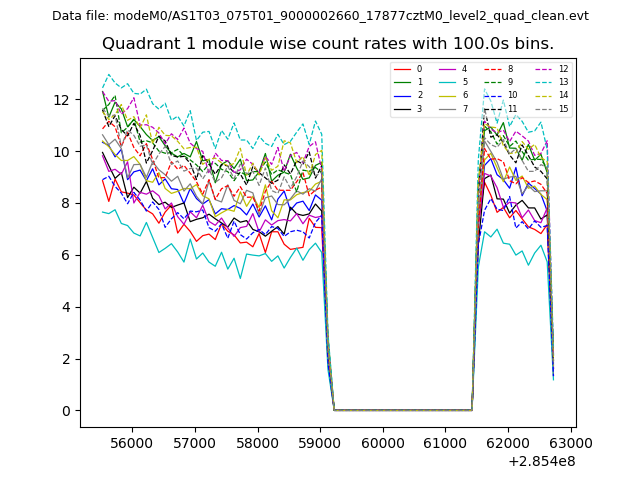

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

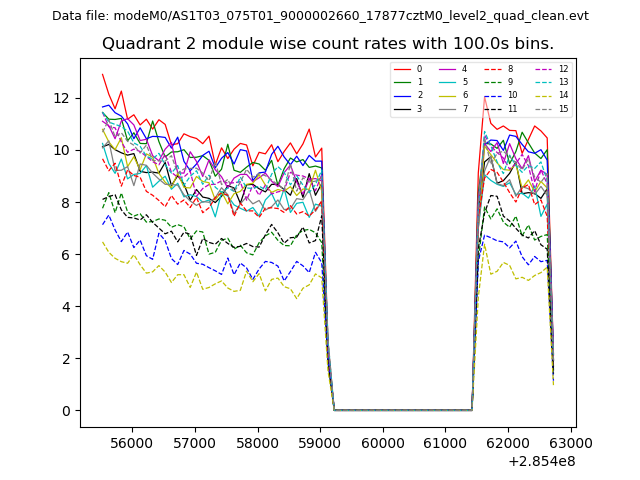

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

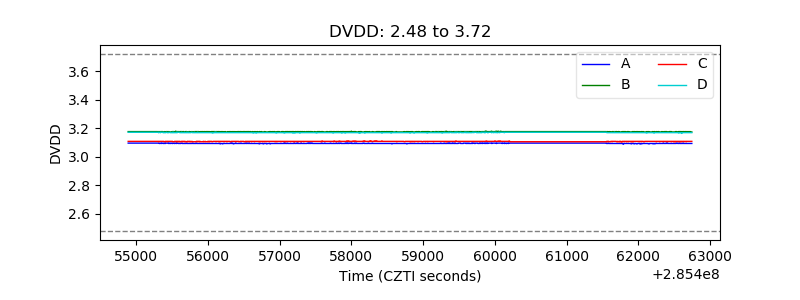

| D_VDD |  |

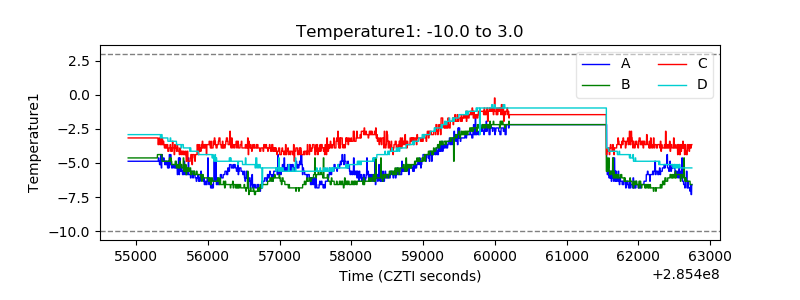

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

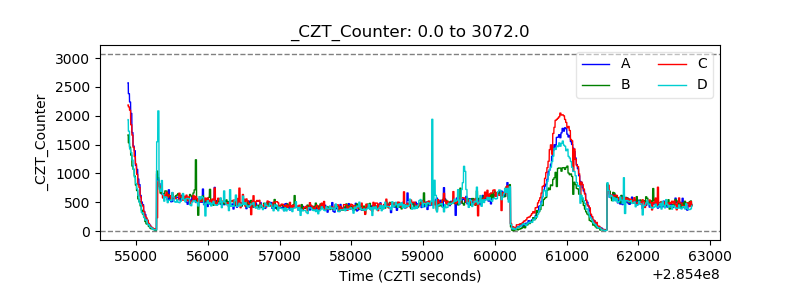

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

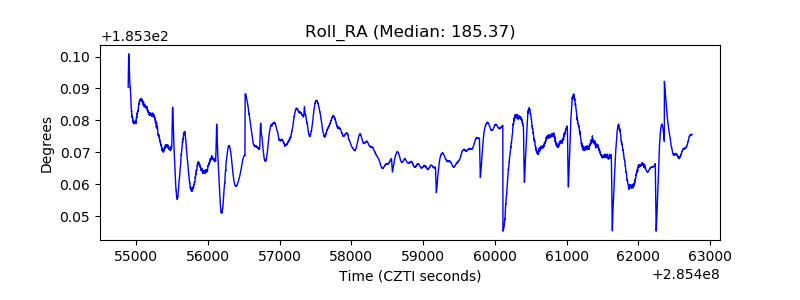

| _Roll_RA |  |
| Veto Counter |  |
