| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_075T01_9000002660_17885cztM0_level2.evt | modeM0/AS1T03_075T01_9000002660_17885cztM0_level2_quad_clean.evt |
| Size (bytes) | 833,829,120 | 134,213,760 |
| Size | 795.2 MB | 128.0 MB |
| Events in quadrant A | 5,946,643 | 808,115 |
| Events in quadrant B | 6,086,791 | 823,289 |
| Events in quadrant C | 5,999,872 | 791,555 |
| Events in quadrant D | 6,371,913 | 776,729 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 256 | 0 |
| B | 0 | 256 | 0 |
| C | 0 | 256 | 0 |
| D | 0 | 256 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25835 | 4 |
| B | 0 | 25999 | 3 |
| C | 0 | 25645 | 3 |
| D | 0 | 27332 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12500 | 138 | 1.104000% |
| B | 12500 | 149 | 1.192000% |
| C | 12500 | 186 | 1.488000% |
| D | 12500 | 251 | 2.008000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14200 | 12501 | 3 | 3 | 0.02% | 0.02% |  |
| B | 14200 | 12501 | 12 | 12 | 0.08% | 0.10% |  |
| C | 14200 | 12500 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14200 | 12501 | 136 | 136 | 0.96% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 68129 | 217.75 | 1518 | 1486 | 306.1 |
| A | 15 | 174 | 43029 | 135.74 | 1518 | 1486 | 306.1 |
| A | 0 | 226 | 13258 | 38.46 | 1518 | 1486 | 306.1 |
| B | 15 | 222 | 69834 | 236.65 | 1510 | 1471 | 288.9 |
| B | 0 | 189 | 35893 | 119.16 | 1510 | 1471 | 288.9 |
| B | 12 | 111 | 35451 | 117.63 | 1510 | 1471 | 288.9 |
| C | 14 | 238 | 225370 | 654.24 | 1453 | 1460 | 342.2 |
| C | 3 | 233 | 89139 | 256.19 | 1453 | 1460 | 342.2 |
| C | 9 | 54 | 18582 | 50.03 | 1453 | 1460 | 342.2 |
| D | 7 | 38 | 311256 | 864.83 | 1467 | 1424 | 358.3 |
| D | 7 | 238 | 192529 | 533.43 | 1467 | 1424 | 358.3 |
| D | 13 | 168 | 90176 | 247.73 | 1467 | 1424 | 358.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

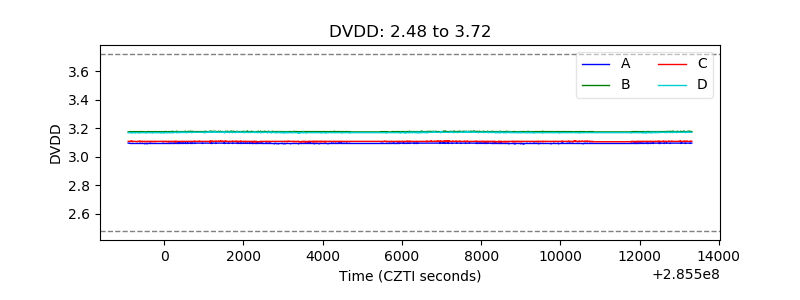

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

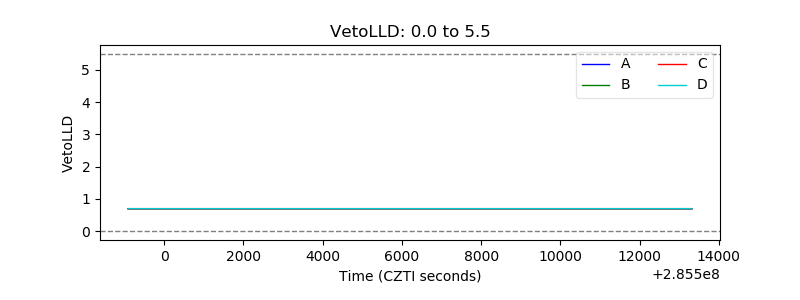

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

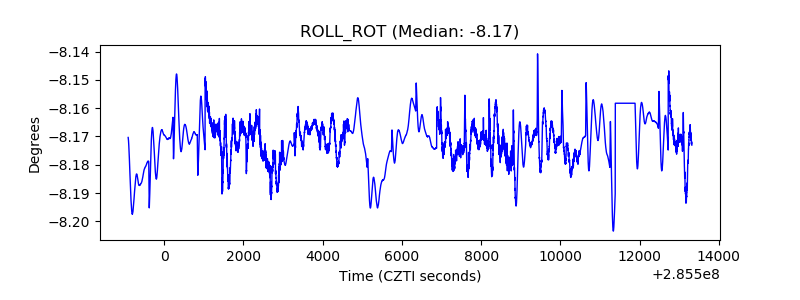

| _ROLL_ROT |  |
| _Roll_DEC |  |

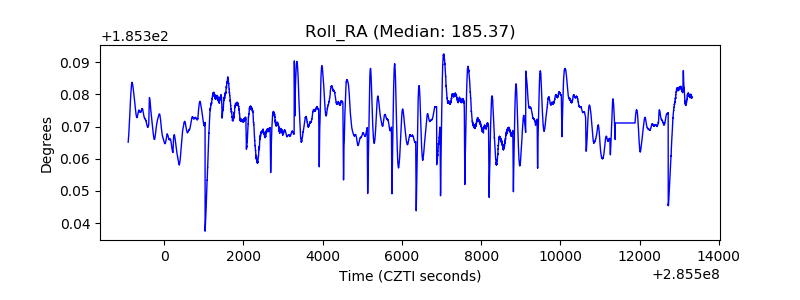

| _Roll_RA |  |

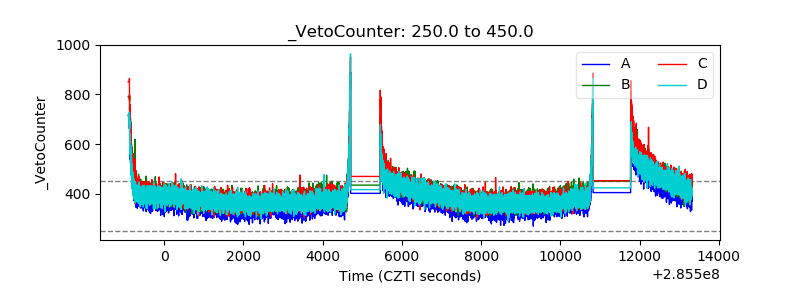

| Veto Counter |  |
