| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_075T01_9000002660_17888cztM0_level2.evt | modeM0/AS1T03_075T01_9000002660_17888cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,677,760 | 70,784,640 |
| Size | 449.8 MB | 67.5 MB |
| Events in quadrant A | 3,210,153 | 431,537 |
| Events in quadrant B | 3,418,973 | 436,832 |
| Events in quadrant C | 3,428,764 | 423,497 |
| Events in quadrant D | 3,799,211 | 411,722 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13741 | 2 |
| B | 0 | 14367 | 2 |
| C | 0 | 14413 | 2 |
| D | 0 | 15677 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6299 | 55 | 0.873154% |
| B | 6299 | 103 | 1.635180% |
| C | 6299 | 112 | 1.778060% |
| D | 6299 | 150 | 2.381330% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7509 | 6299 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7509 | 6299 | 20 | 20 | 0.27% | 0.32% |  |
| C | 7509 | 6299 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7509 | 6299 | 107 | 107 | 1.42% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7309 | 38.63 | 834 | 818 | 168.0 |
| A | 12 | 194 | 6026 | 30.99 | 834 | 818 | 168.0 |
| A | 3 | 137 | 5965 | 30.63 | 834 | 818 | 168.0 |
| B | 7 | 220 | 79209 | 499.71 | 832 | 812 | 156.9 |
| B | 0 | 197 | 20790 | 127.34 | 832 | 812 | 156.9 |
| B | 12 | 111 | 17842 | 108.55 | 832 | 812 | 156.9 |
| C | 3 | 233 | 132090 | 700.55 | 810 | 818 | 187.4 |
| C | 14 | 238 | 126445 | 670.43 | 810 | 818 | 187.4 |
| C | 5 | 218 | 11768 | 58.44 | 810 | 818 | 187.4 |
| D | 7 | 238 | 530879 | 2652.83 | 819 | 795 | 199.8 |
| D | 10 | 70 | 60896 | 300.78 | 819 | 795 | 199.8 |
| D | 13 | 168 | 50220 | 247.35 | 819 | 795 | 199.8 |

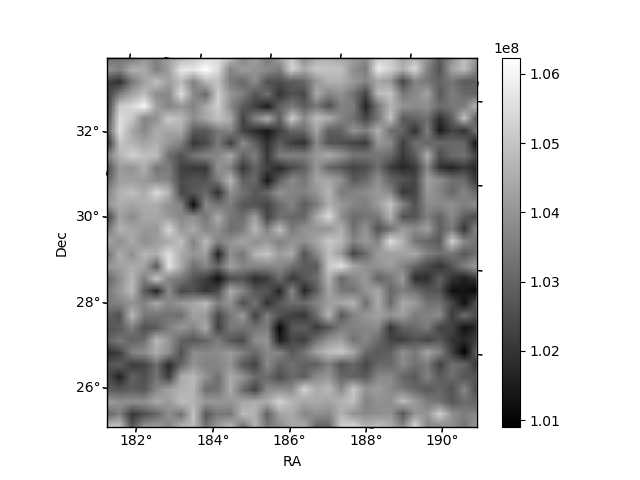

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

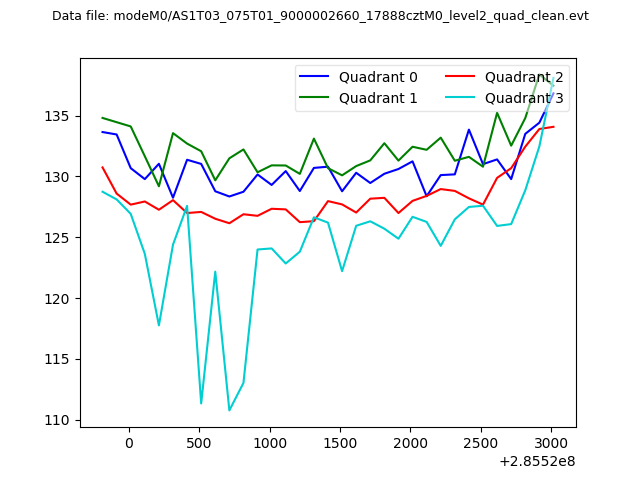

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

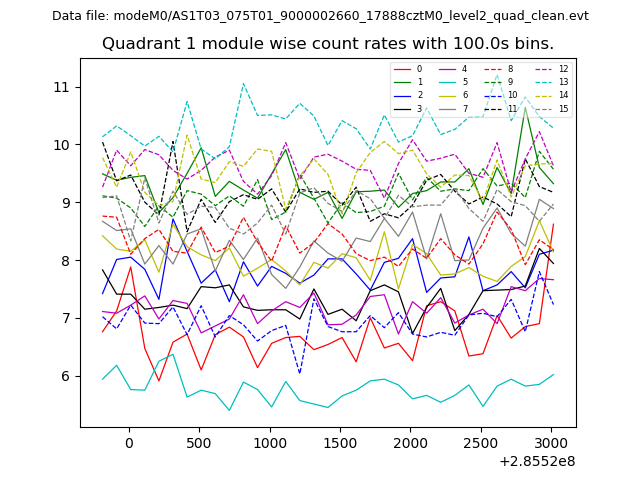

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

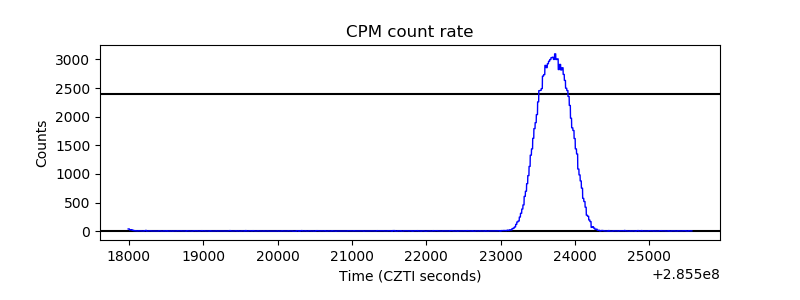

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

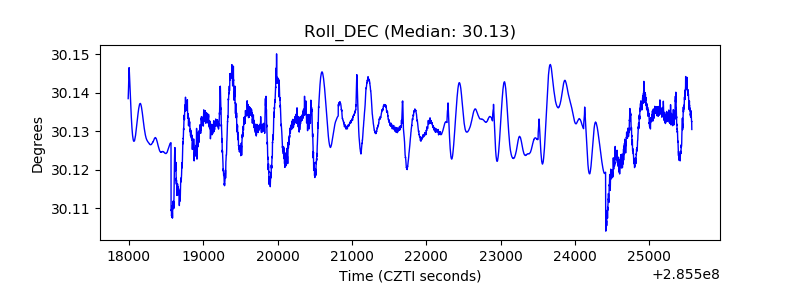

| _Roll_DEC |  |

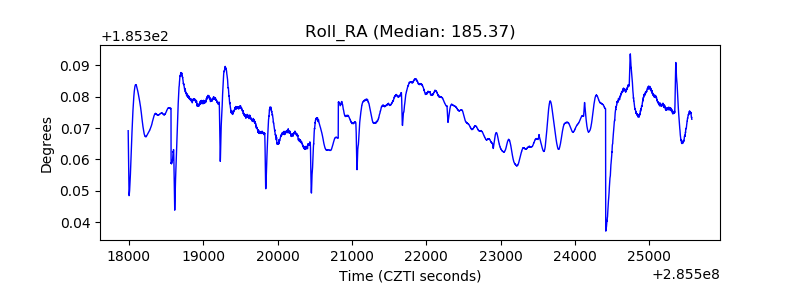

| _Roll_RA |  |
| Veto Counter |  |
