| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_096T06_9000002668_17908cztM0_level2.evt | modeM0/AS1A05_096T06_9000002668_17908cztM0_level2_quad_clean.evt |
| Size (bytes) | 378,581,760 | 101,266,560 |
| Size | 361.0 MB | 96.6 MB |
| Events in quadrant A | 2,644,262 | 674,376 |
| Events in quadrant B | 2,811,594 | 690,785 |
| Events in quadrant C | 2,700,166 | 652,569 |
| Events in quadrant D | 2,908,457 | 637,953 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11978 | 1 |
| B | 0 | 12350 | 1 |
| C | 0 | 11980 | 1 |
| D | 0 | 12967 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5891 | 34 | 0.577152% |
| B | 5891 | 59 | 1.001528% |
| C | 5891 | 63 | 1.069428% |
| D | 5890 | 112 | 1.901528% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6531 | 5892 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6531 | 5892 | 10 | 10 | 0.15% | 0.17% |  |
| C | 6531 | 5892 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6530 | 5891 | 62 | 62 | 0.95% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 10476 | 70.72 | 683 | 667 | 138.7 |
| A | 0 | 226 | 5940 | 38.02 | 683 | 667 | 138.7 |
| A | 3 | 137 | 5132 | 32.19 | 683 | 667 | 138.7 |
| B | 7 | 220 | 58928 | 451.32 | 685 | 668 | 129.1 |
| B | 0 | 189 | 21170 | 158.82 | 685 | 668 | 129.1 |
| B | 4 | 48 | 17420 | 129.77 | 685 | 668 | 129.1 |
| C | 14 | 238 | 102955 | 667.9 | 657 | 659 | 153.2 |
| C | 3 | 233 | 35324 | 226.33 | 657 | 659 | 153.2 |
| C | 13 | 61 | 4628 | 25.91 | 657 | 659 | 153.2 |
| D | 10 | 70 | 143644 | 820.23 | 654 | 639 | 174.3 |
| D | 5 | 222 | 112183 | 639.78 | 654 | 639 | 174.3 |
| D | 2 | 165 | 73417 | 417.43 | 654 | 639 | 174.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

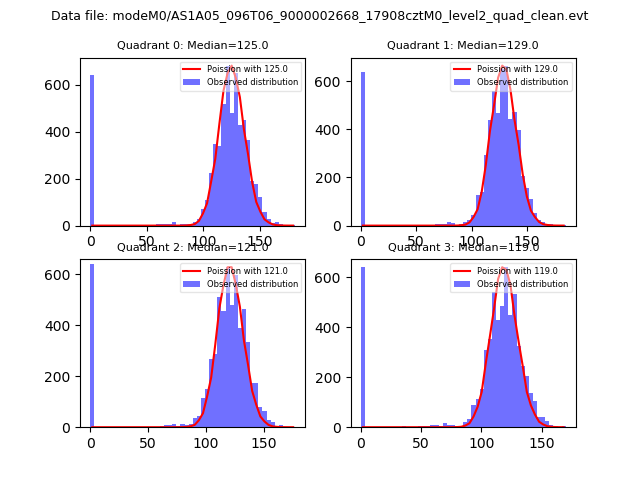

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

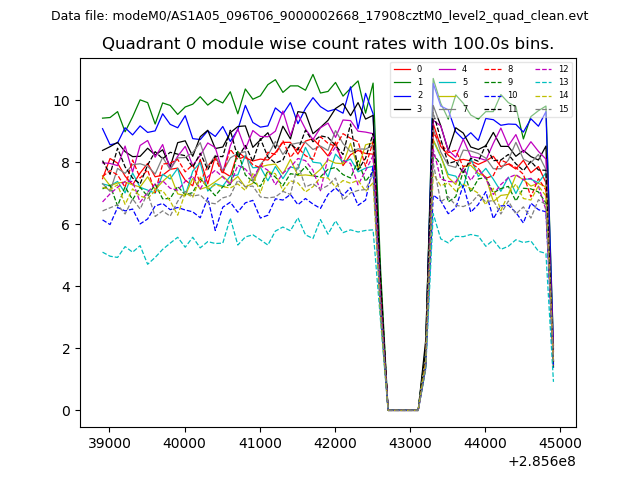

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

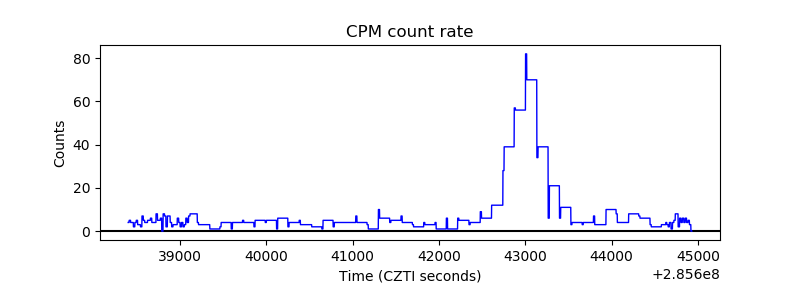

| _CPM_Rate |  |

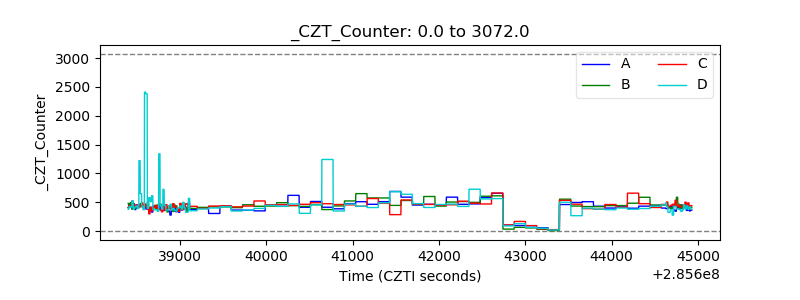

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
